04B Roller Chain Sprocket -6 mm Pitch-DIN 8187 -ISO 606 3D model

Publication date: 2021-05-22

04B Roller Chain Sprocket -6 mm Pitch-DIN 8187 -ISO 606 3D model

$10

License: Editorial No Ai License

author:

Chamara-Samarasinghe

Description

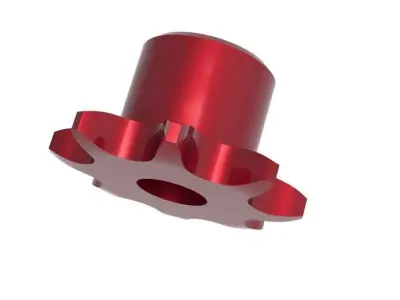

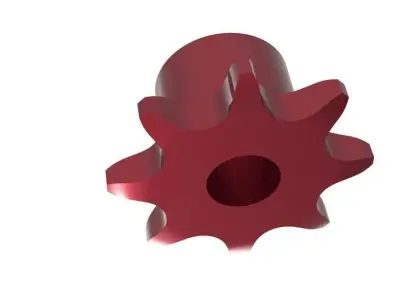

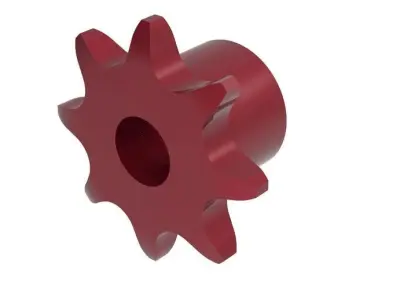

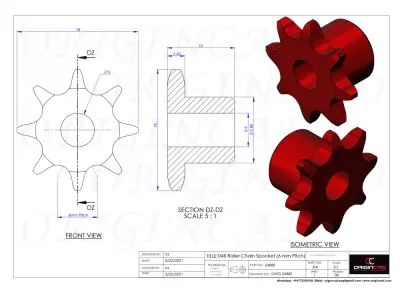

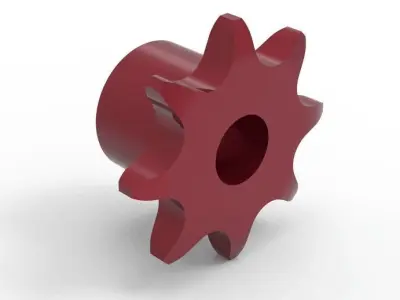

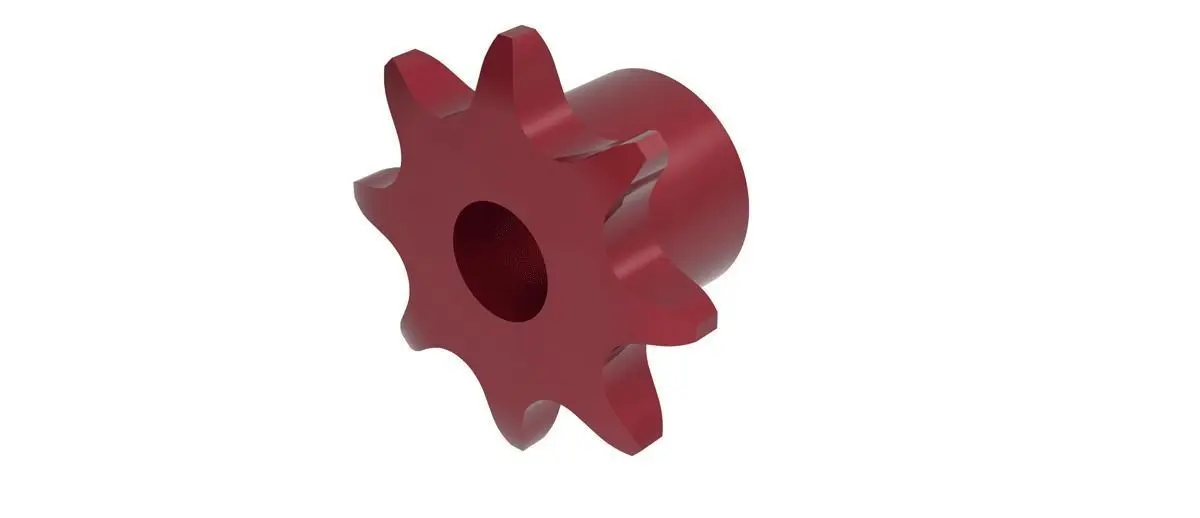

This is the 04B Roller Chain sprocket (6mm pitch) ISO 606, DIN 8187 Standard cad model.You can download the Original Solidworks file, Step File, STL 3D printing File,IGES file, Adobe Illustrator File, DWG And PDF File formats.

Sprocket Type Standard
Roller Chain Strand Type Single
Roller Chain Standard DIN, ISO
Roller Chain Trade Size 04B
Pitch 6mm
Number of Teeth 8
Shaft Diameter 5 mm Maximum Shaft Diameter -7 mm
ID 5 mm
OD 18mm
Overall Width 10 mm
Hub Diameter 9.8 mm
Standard DIN8187, ISO 606

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Other
Polygons: 0
Vertices: 0

Tags

Gears Machinery Wheel Tool Mechanical Engineering Design Chain Sprocket Drawings Modeling Industrial Part Industrial part
