Description

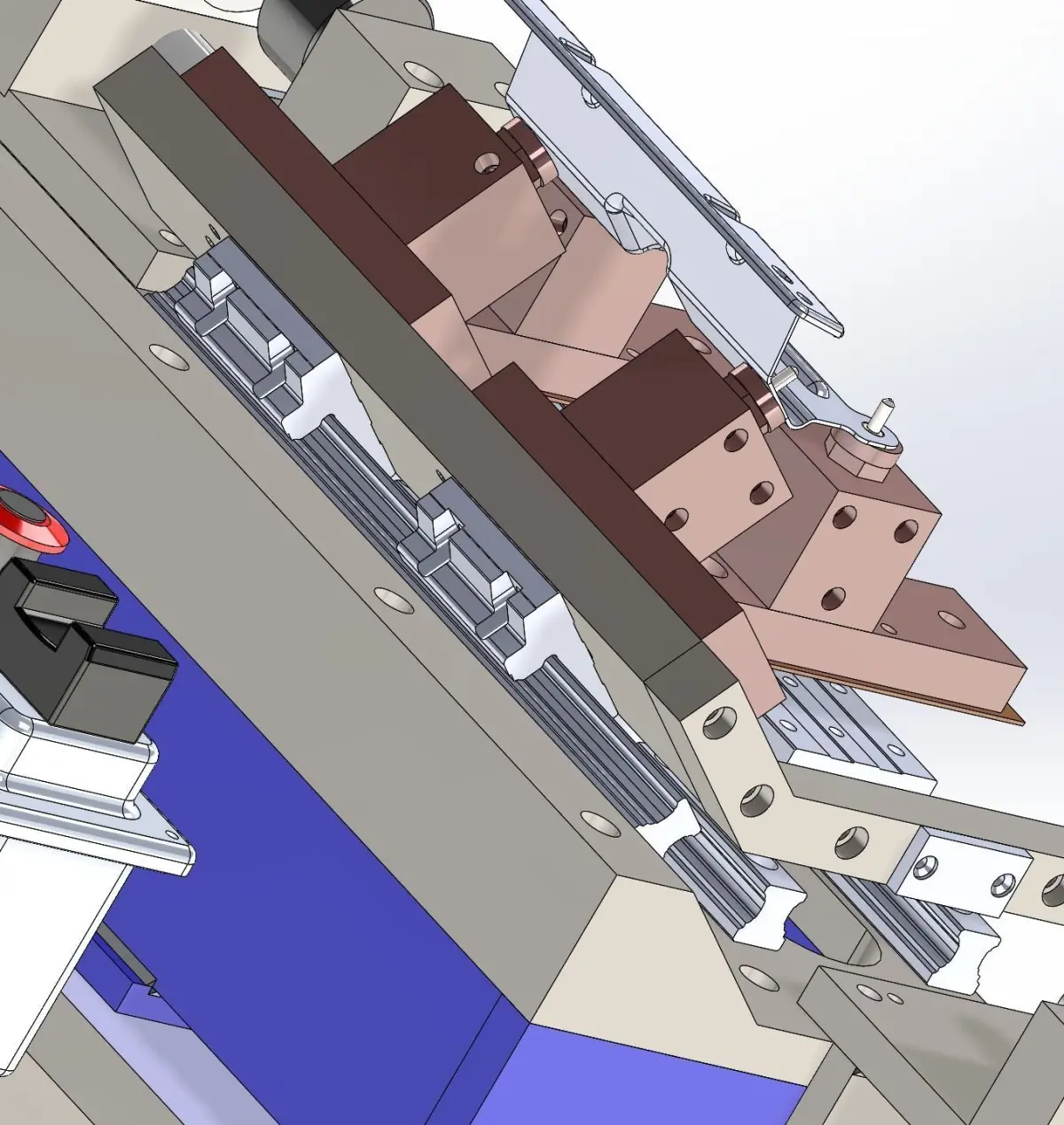

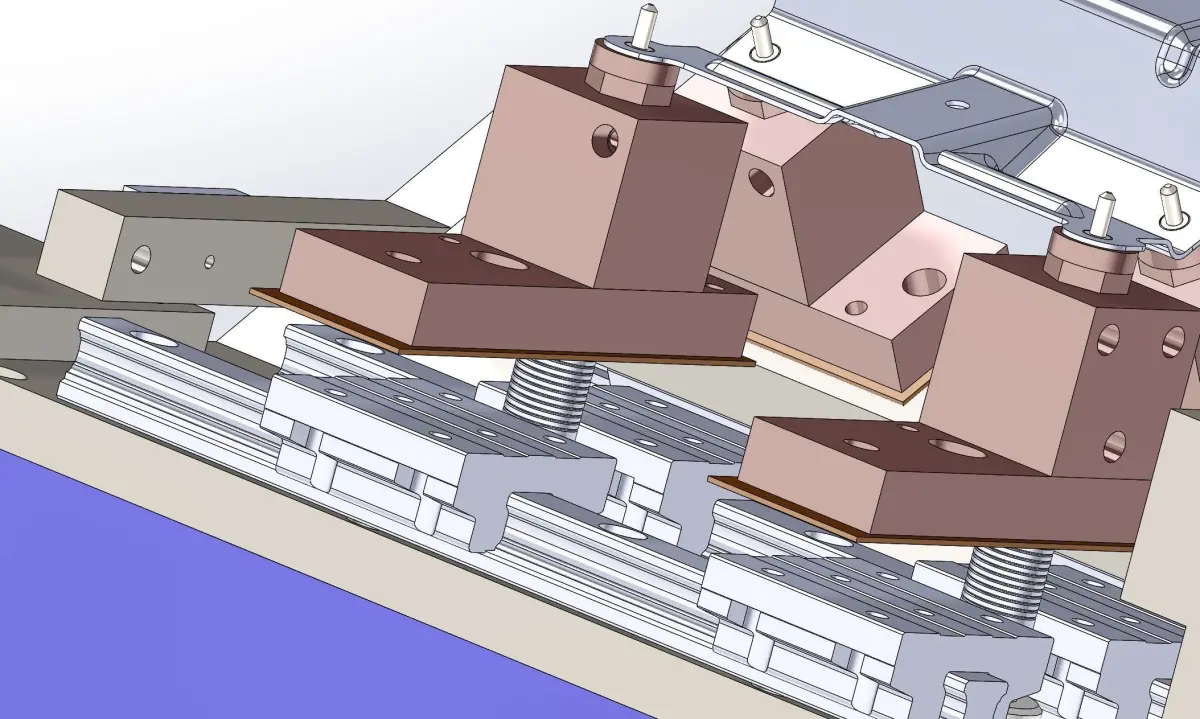

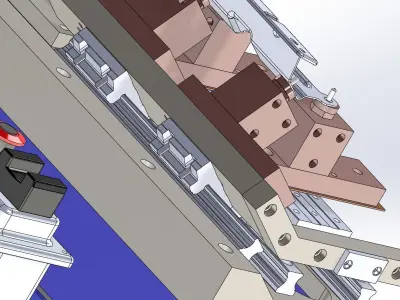

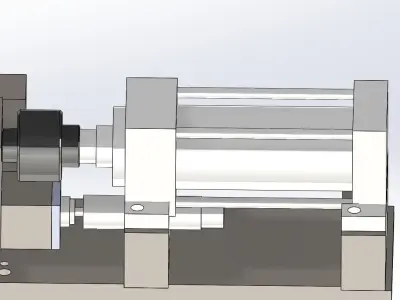

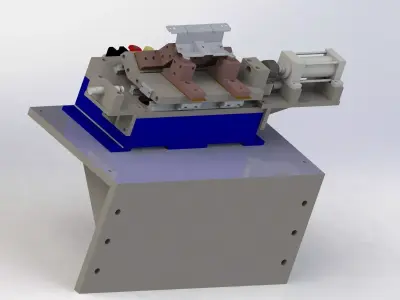

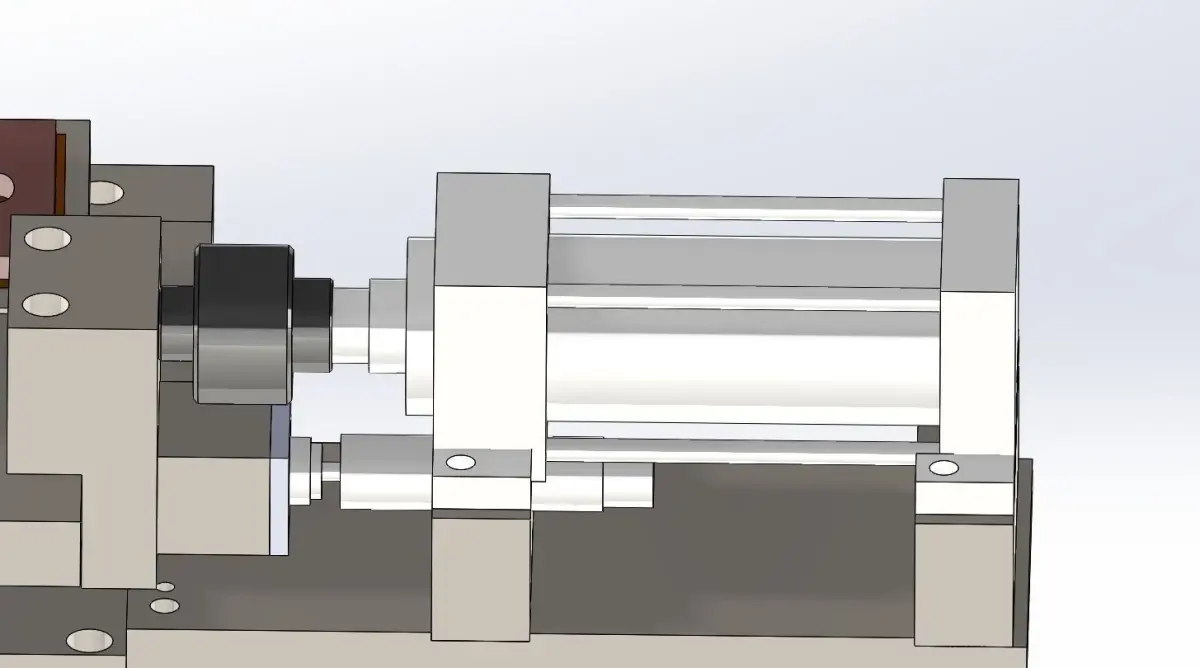

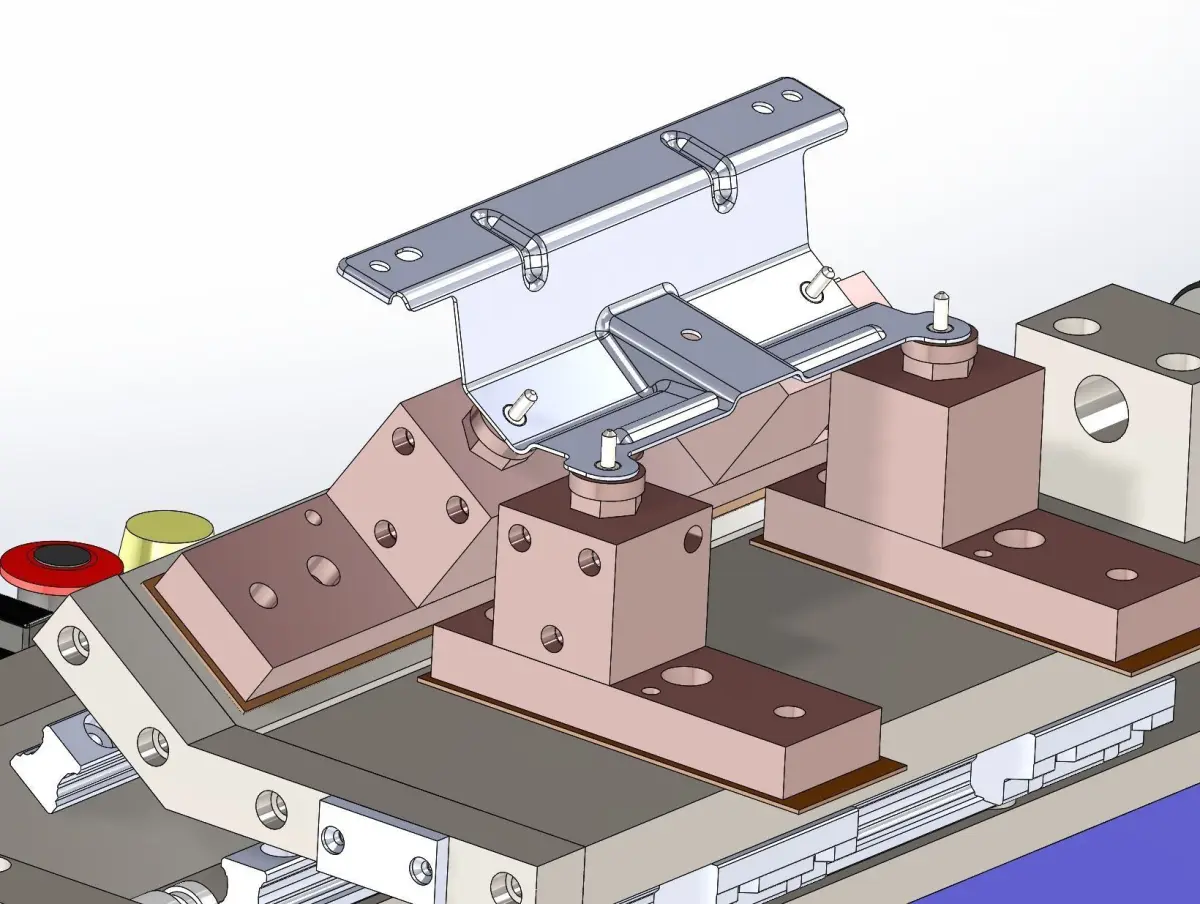

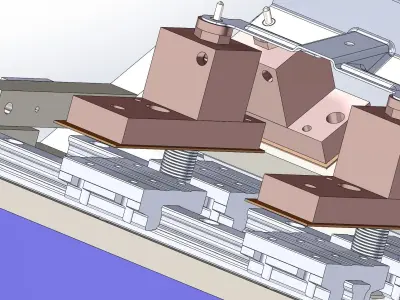

Angle fixture platform, the platform through the three slide rail travel inclined Angle of the jig platform, through the agency will push the cylinder fixed sheet metal products, products from the Angle of the platform is suitable for some fixed and positioning equipmentThe mechanism includes:

  1. Inclined slide rail mechanism.
  2. Parallel traverse mechanism.
  3. Electric control box structure.************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds
  4. and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************
