ATV wheel and suspension assembly with steering and drive Free 3D model

Publication date: 2015-11-29

ATV wheel and suspension assembly with steering and drive Free 3D model

free

License: Royalty Free No Ai License

author:

speedy-d

Description

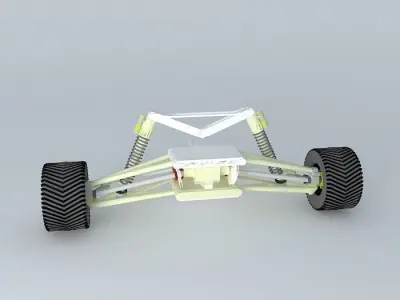

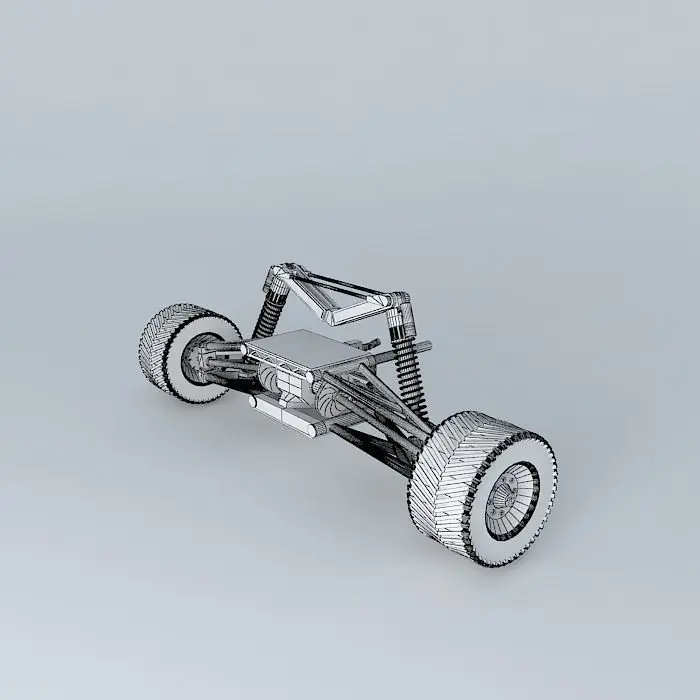

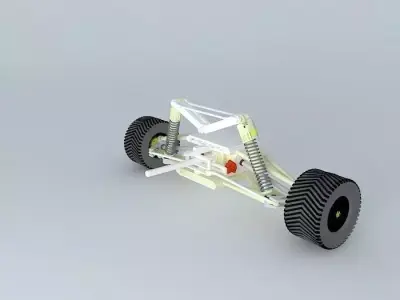

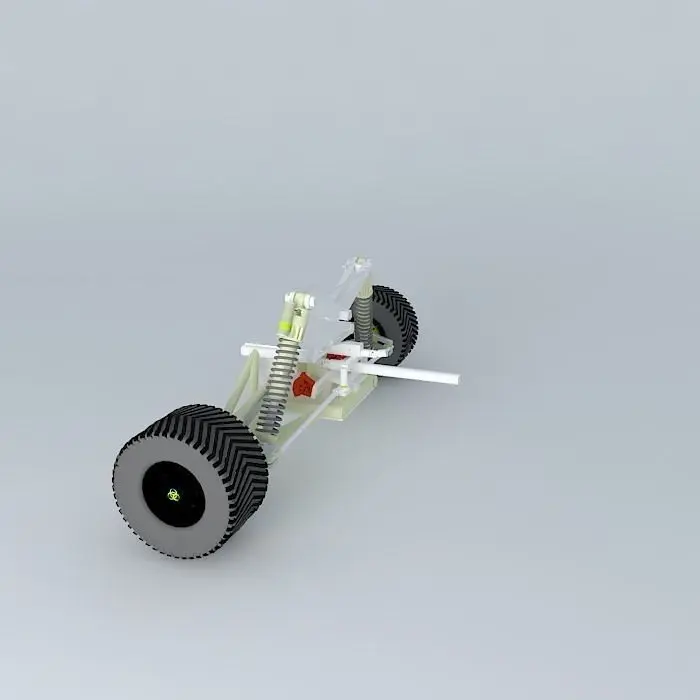

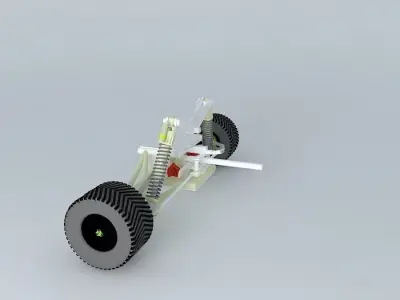

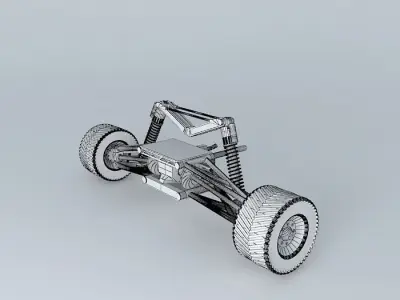

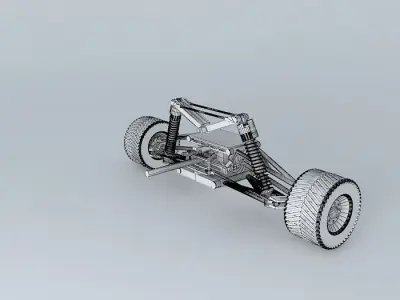

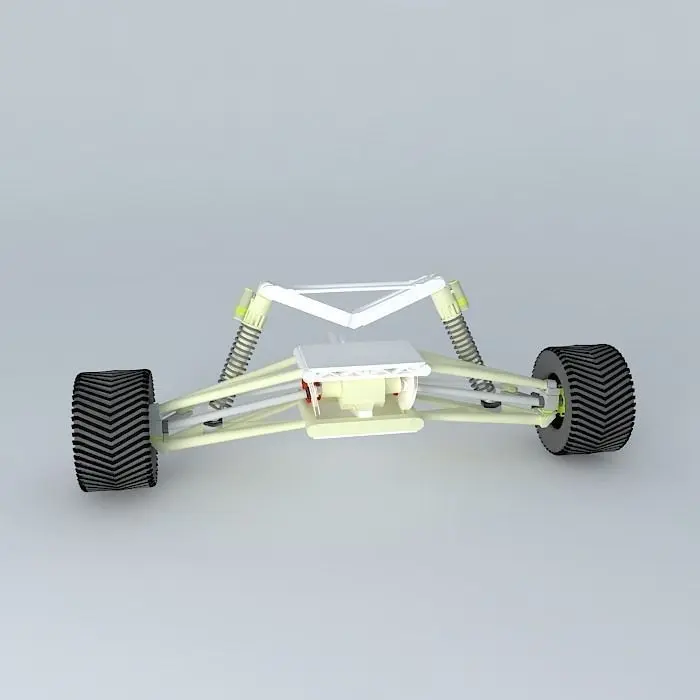

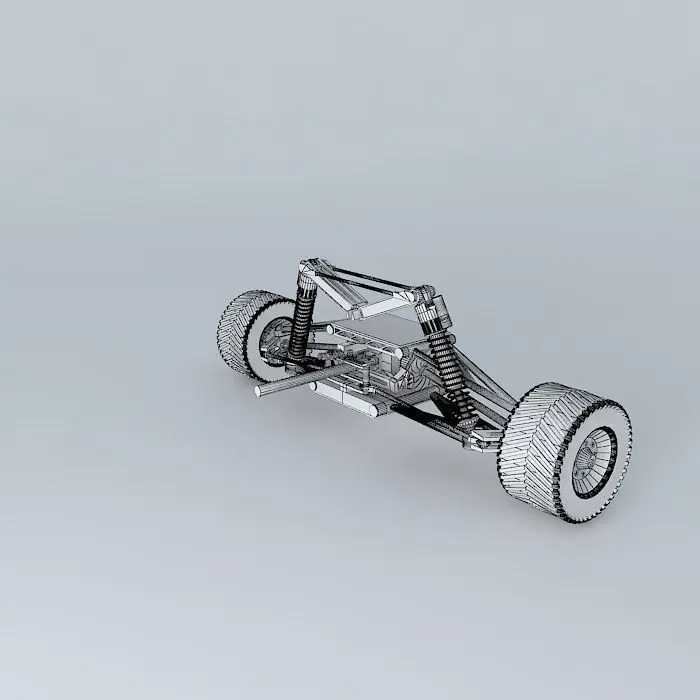

This is the first part of an ATV I am designing. It is the front assembly of my ATV that includes well detailed steering assembly, drive shaft, A-frame suspension arm set up with a shock-absorber and spring with full internal features and 29cm upwards travel and 23cm downward travel under the weight of the full vehical. 54cm travel all together, a set of dual break disk and clamps on both axles, a differential case, but no gears inside, a pivoting drive shaft and a pivorting steering shaft. . Please give me credit if you use it in a model. If you dont... I'll have my hired, heavy fisted goons come pay you a visit. And im not on about the type of visit involving tea and biscuits. Except maybe just a few biscuits. You've been warned!

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: 0
Vertices: 0

Tags

A frame Absorber Atv Axle Bajaj Black Buggy Car Cart Crafting Differential Dune buggy Extreme Fast Go Off Outdoors Race Rally Road Shock Shock absorber Speed Sport Steering Suspension Tire Track Vehicle Wheel Part Vehicle part Race track Black car Car part Car wheel Car wheels Race car Rally car Sports car Steering wheel
