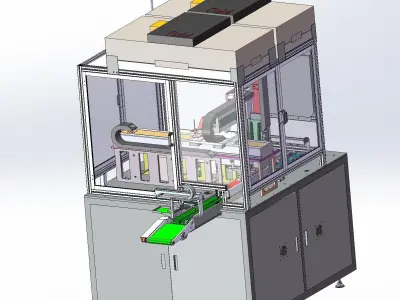

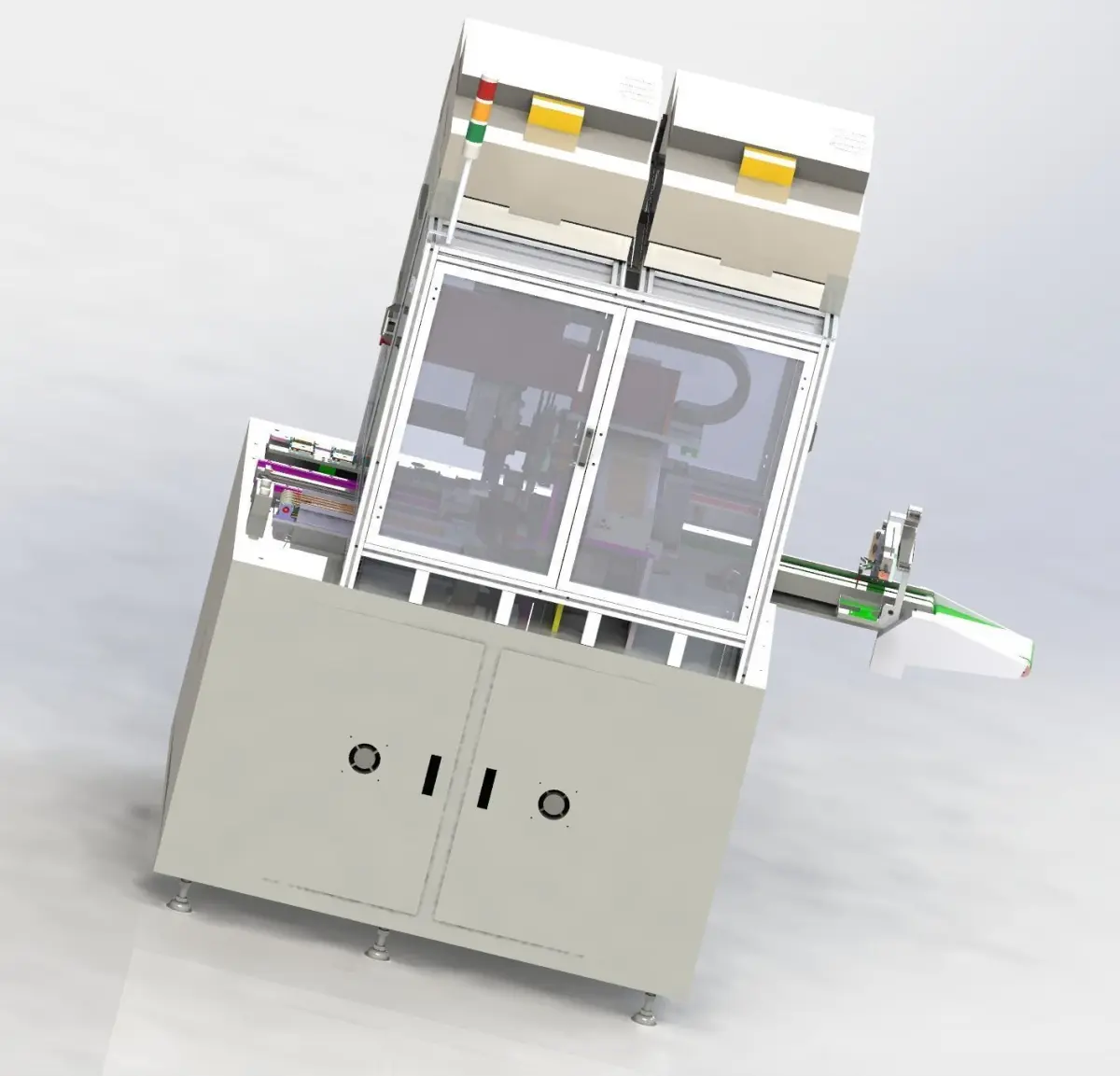

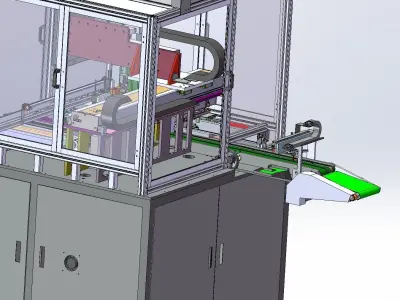

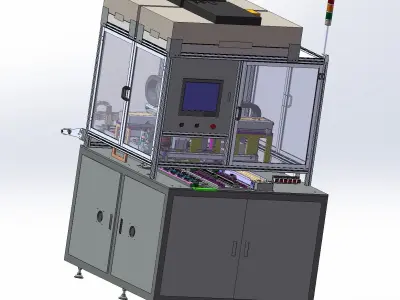

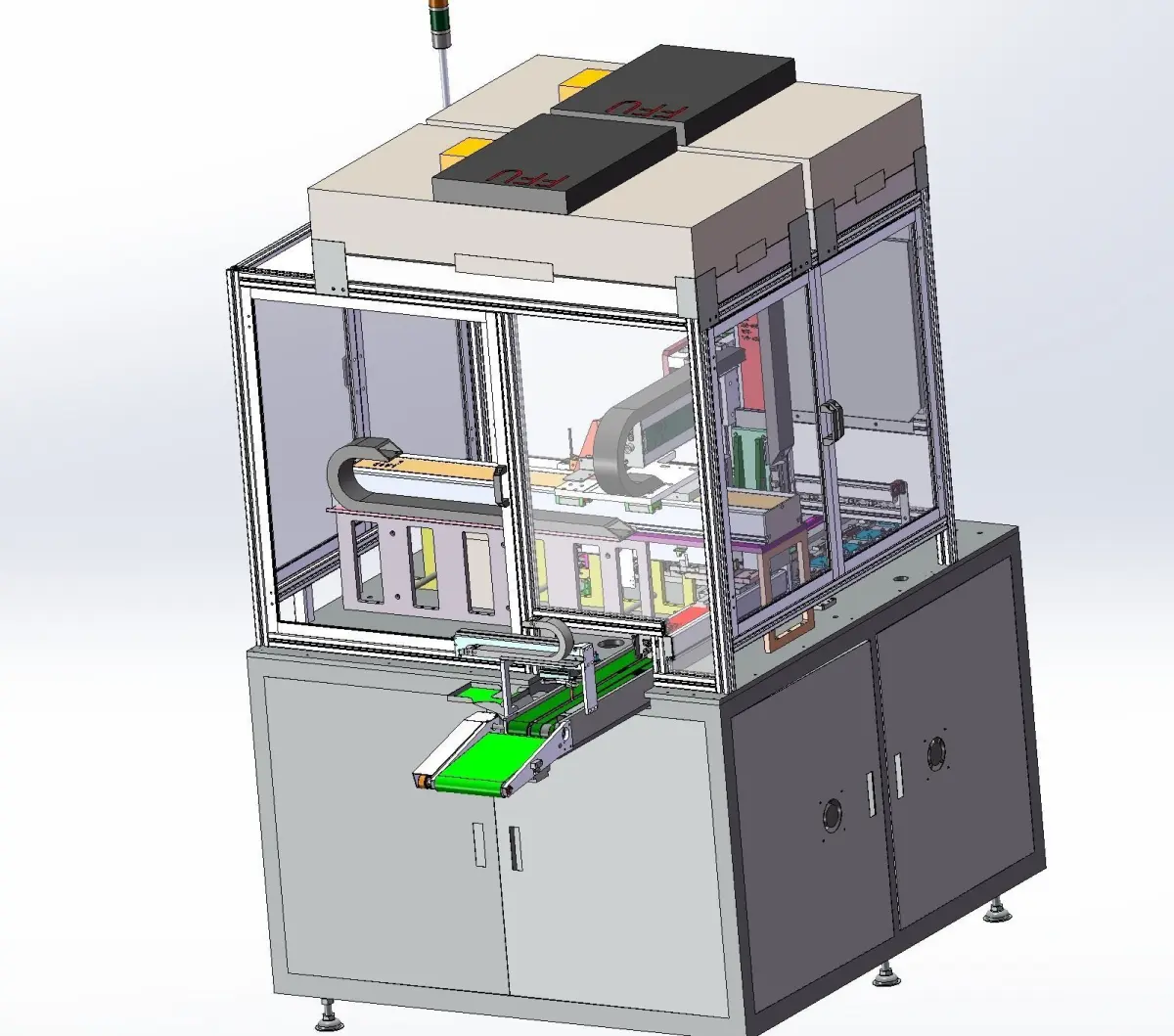

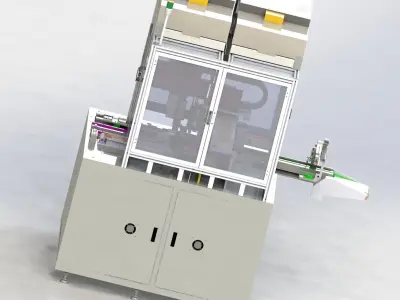

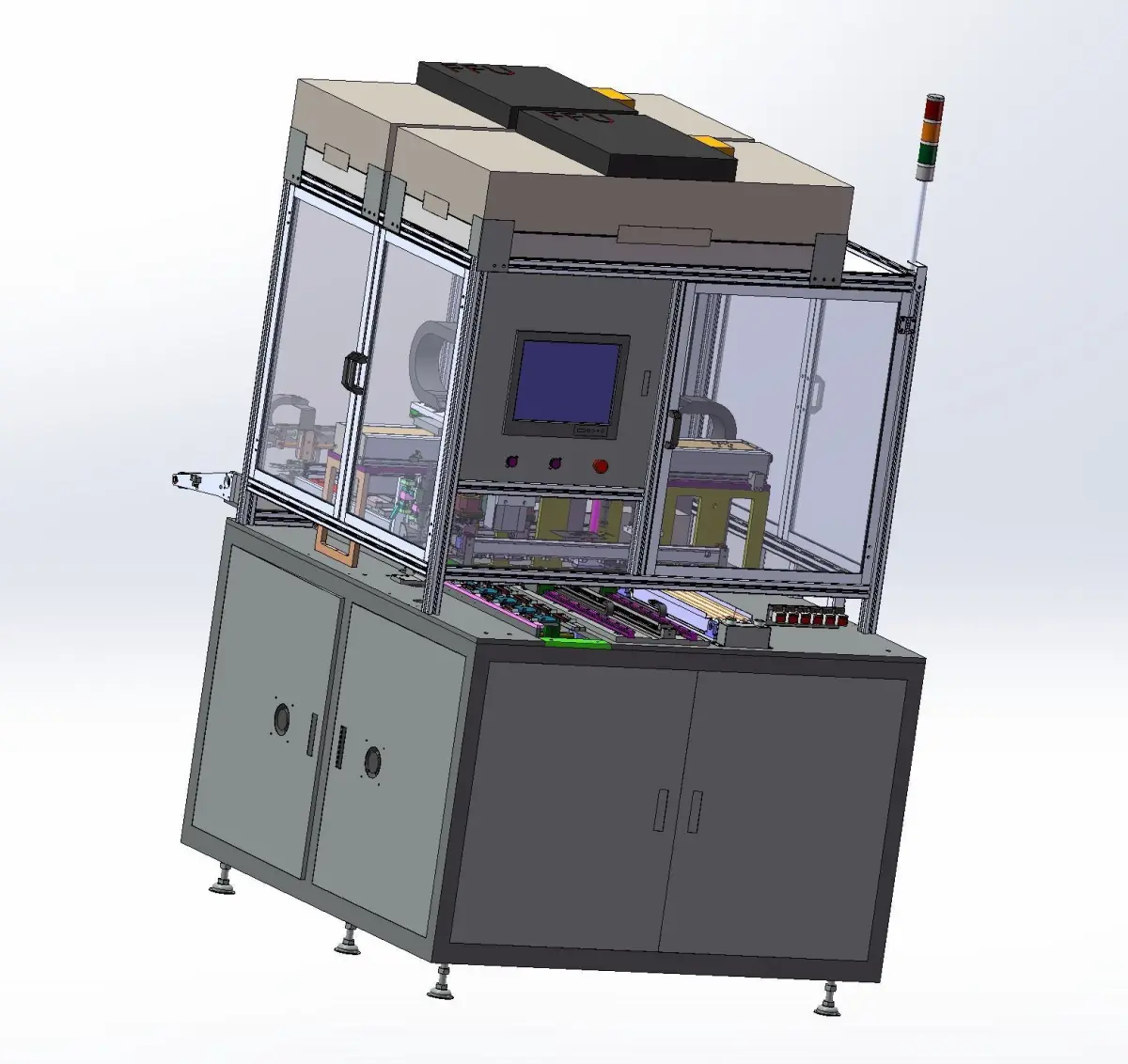

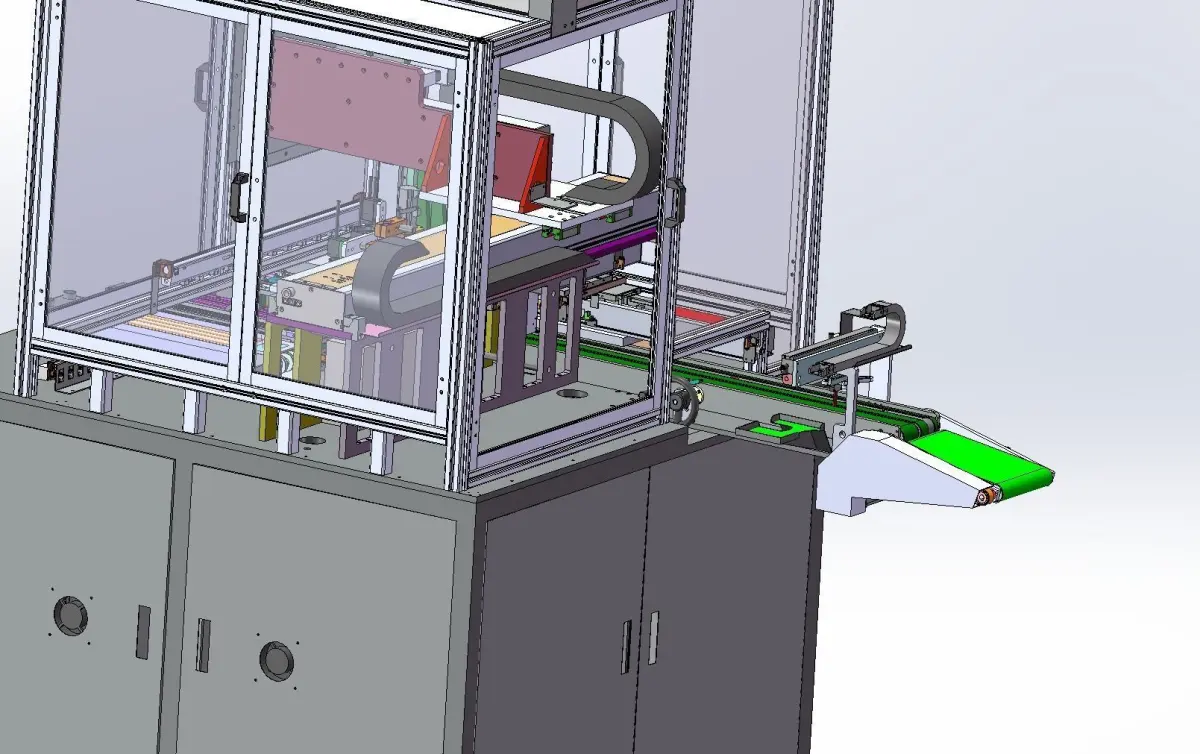

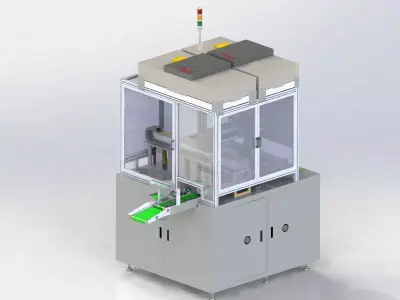

Automatic assembling of touch screen 3D model

Description

Automatic assembling of touch screen, this machine is used to assemble the touch screen of electronic products, which is made up of automatic assembling of mechanical hand and small materials on the assembly line by taking pictures of CCD

mechanism include

1. Feeding mechanism of xy axle module

2. CCD camera correction mechanism

3. Assembly line positioning feeding mechanism

4. PLC electronic control system

**************************************

Files format contains

-solidworks 2017

-step

-iges

-stl

-obj

-3ds

-Fbx

-3dmax

- and other formats

**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.

Designed with SolidWorks 2017, render with PhotoView 360

**************************************

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 5,048,766
Vertices: 10,100,707
