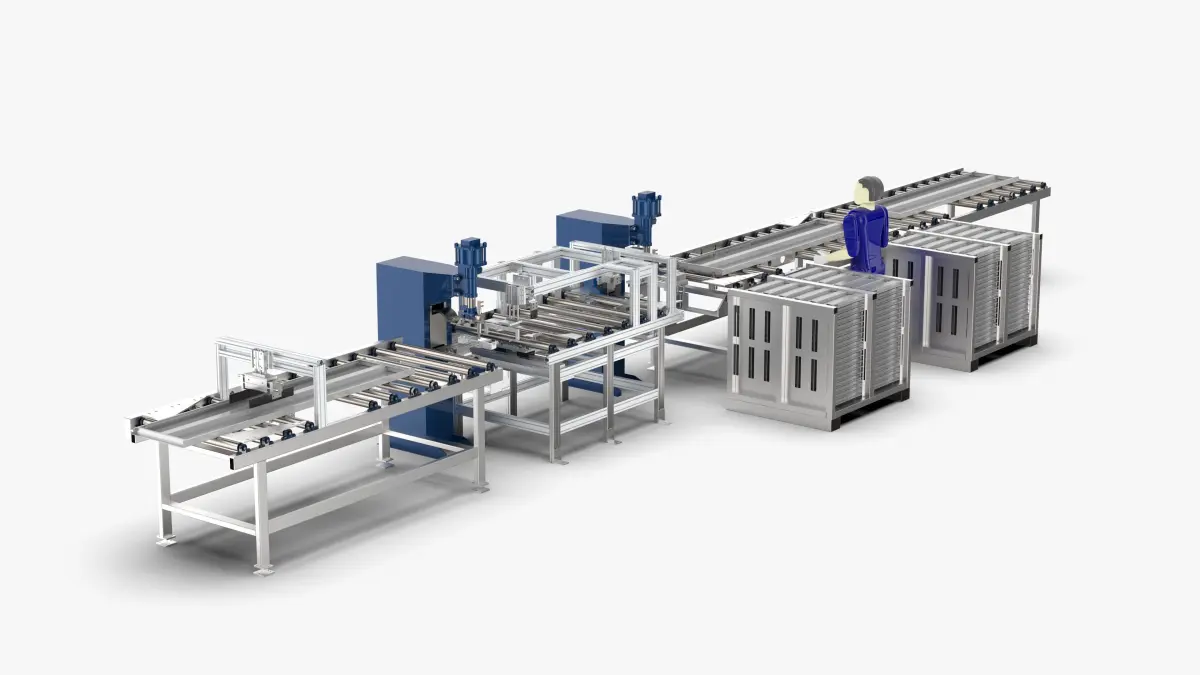

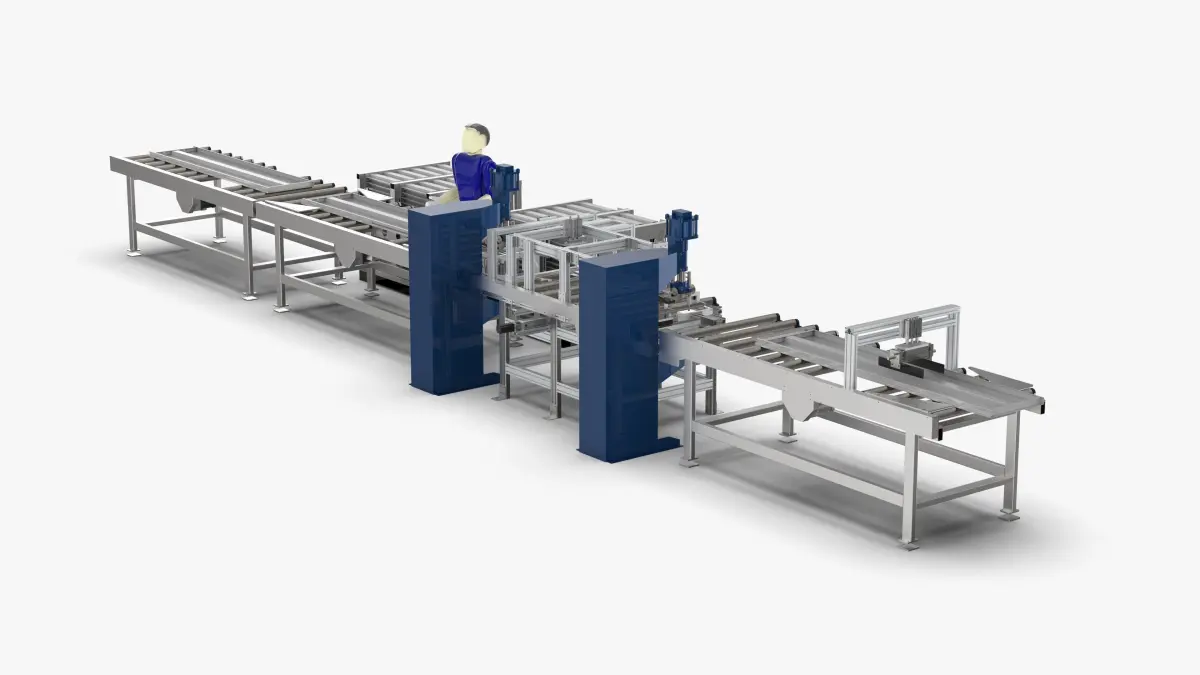

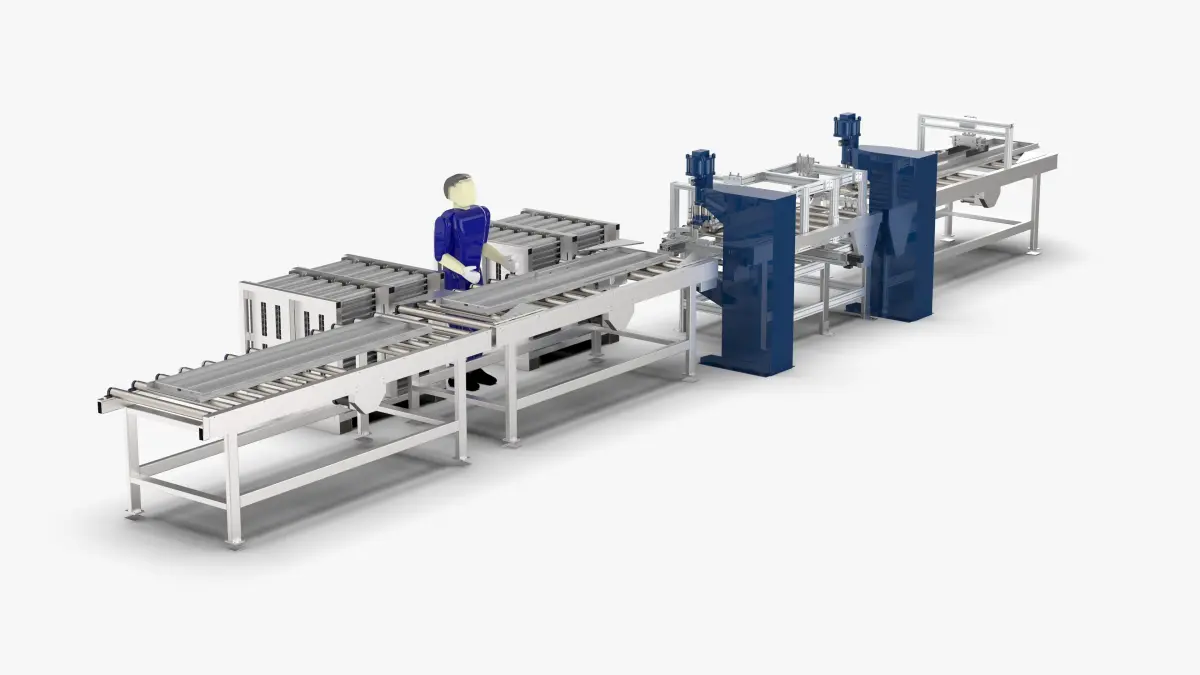

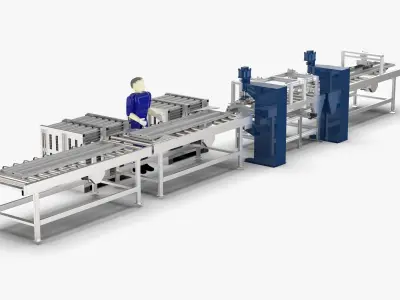

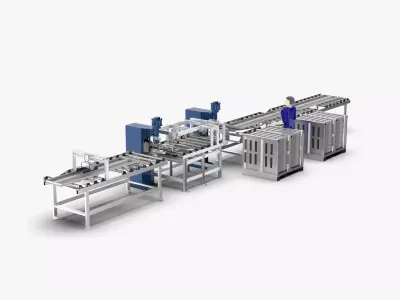

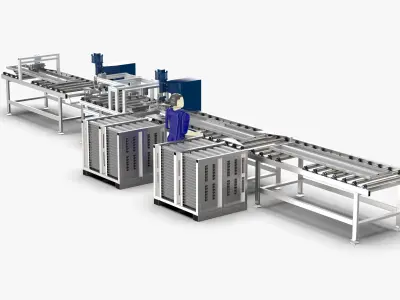

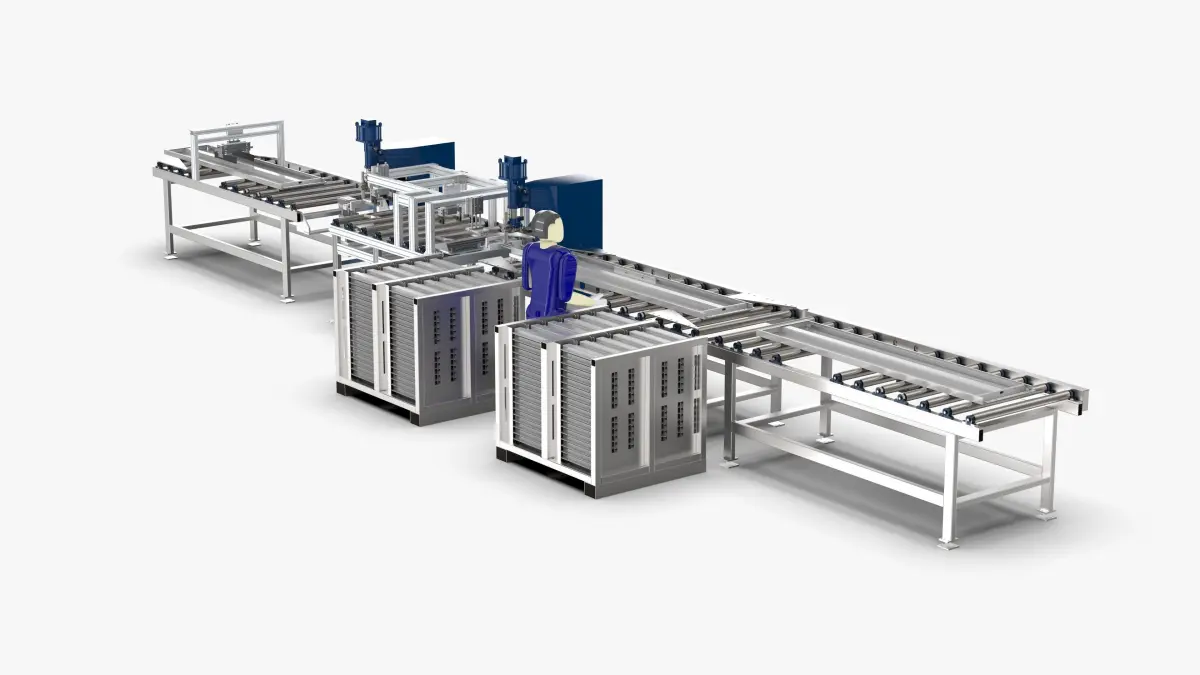

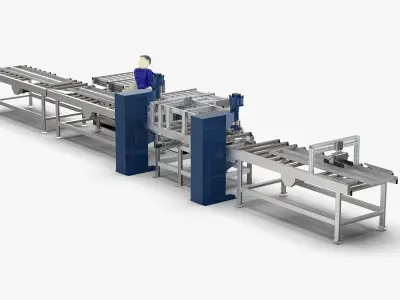

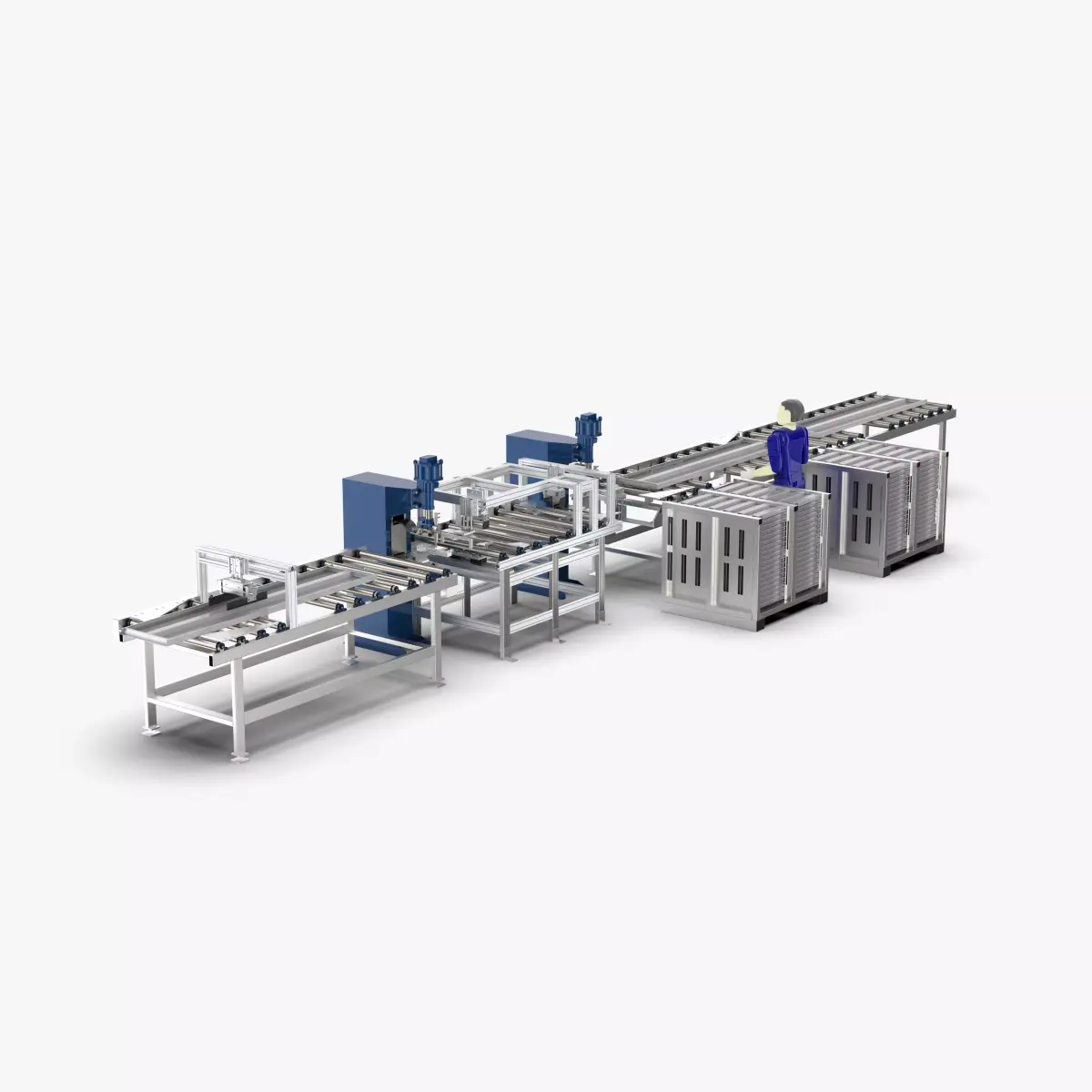

Automatic Elevator Door Panel Head Plate Welding Workstation
Introduction
- Project content (1) Door panel conveying line body; (2) Reinforcing rib central positioning mechanism; (3) Door panel central positioning mechanism; (4) Upper head positioning mechanism; (5) Lower head positioning mechanism; (6) Door panel welding push mechanism (7) Electrical control system;
- Project overview This project realizes the automatic resistance welding of the door panel head panel through the door panel, reinforcing rib, head plate positioning mechanism and door panels before and after receiving and outputting processes.
- Product specifications: 2 sides bending door, DW800-DW900 DH2100-DH2200
- Production line beat: ≤28 seconds/piece. At present, this workstation has been applied to the welding of a German-owned elevator head plate
