Automatic tray stacking feeding machine 3D model
Home Catalog Aircraft part Automatic tray stacking feeding machine 3D model
Automatic tray stacking feeding machine 3D model
Automatic tray stacking feeding machine 3D model
Automatic tray stacking feeding machine 3D model
Automatic tray stacking feeding machine 3D model
Automatic tray stacking feeding machine 3D model

Publication date: 2018-11-01

Automatic tray stacking feeding machine 3D model

$9

License: Royalty Free License

author:

forestlsls

Buy at www.cgtrader.com - $9 Add to Wishlist
  • Description
  • Formats
Description

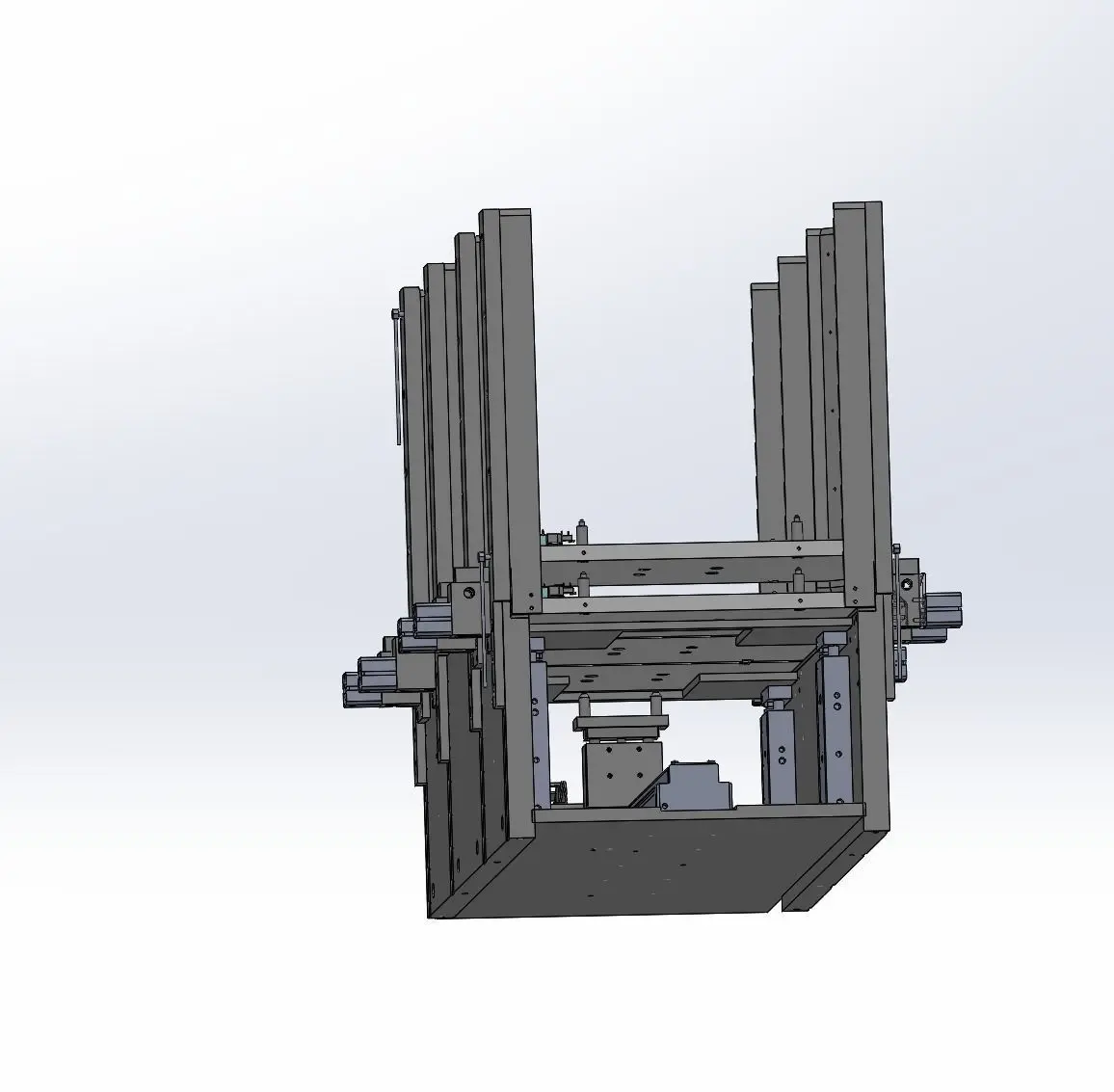

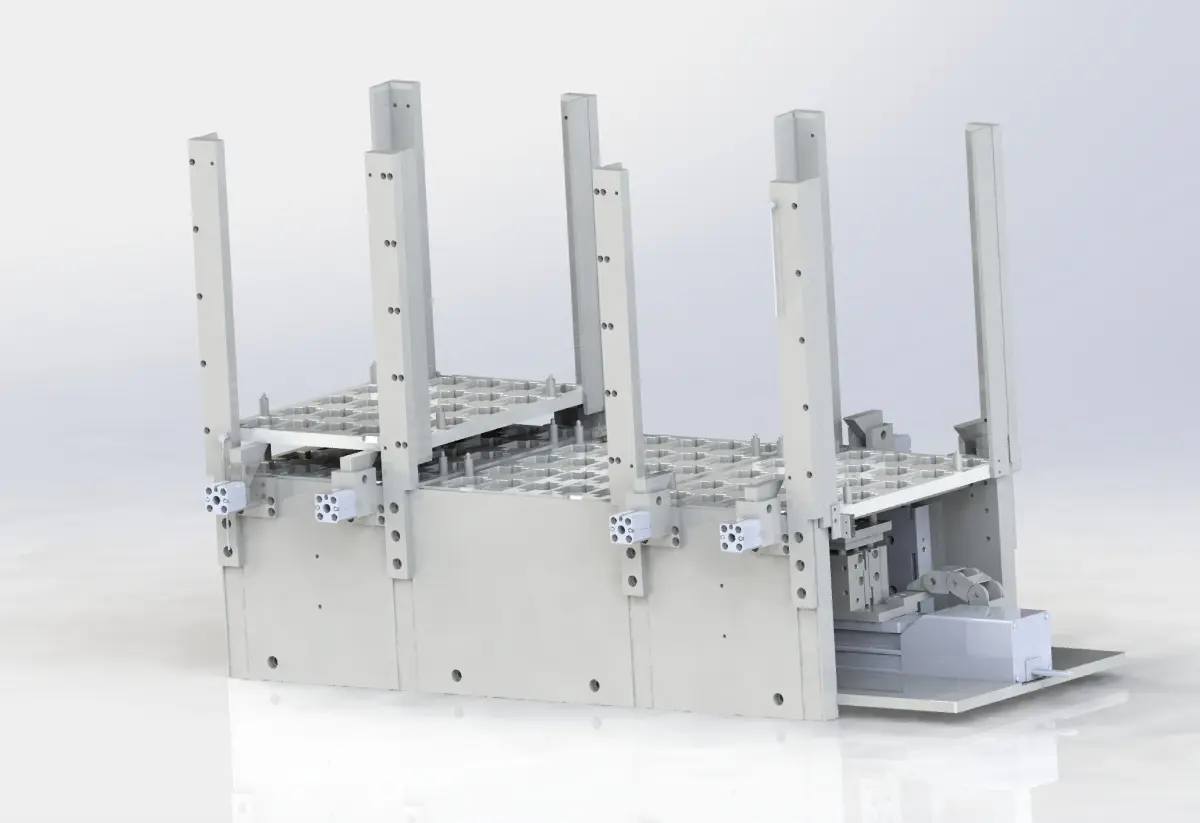

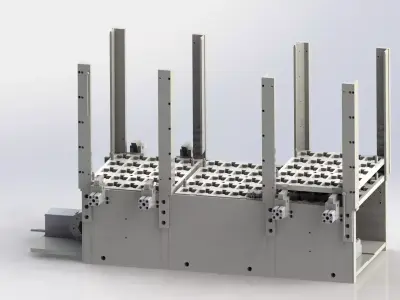

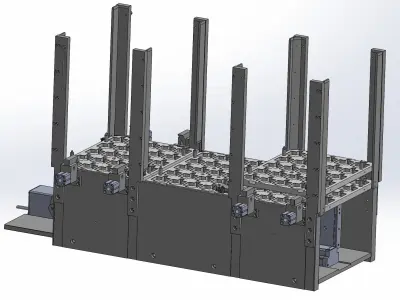

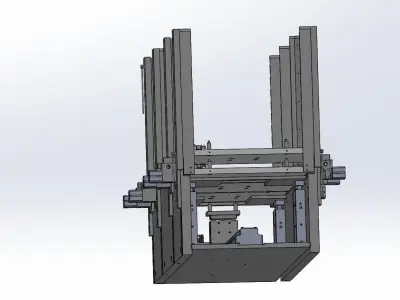

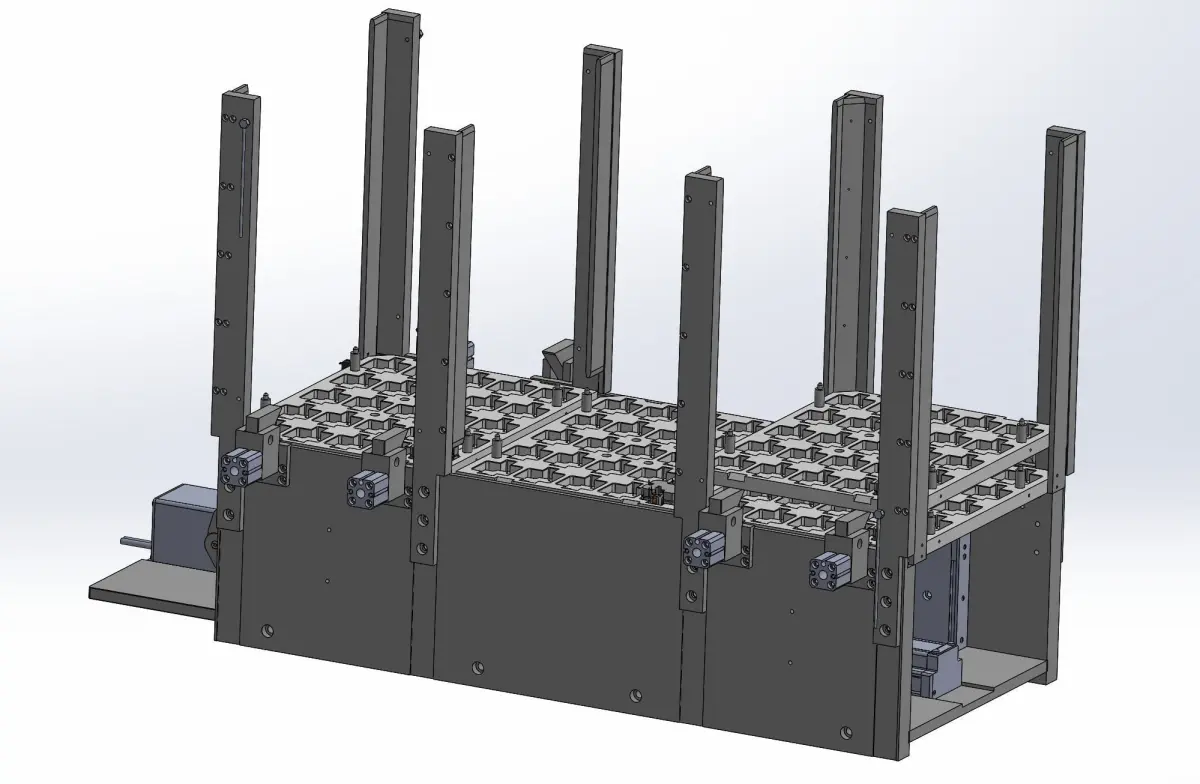

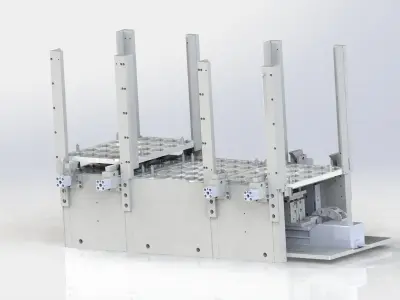

The tray loading mechanism is composed of several sets of cylinders. The tray mechainsm is used for automatic stacking and discharging. The mechanism uses a simple cylinder structure to realize automatic loading and unloading, which is very ingenious

mechanism include

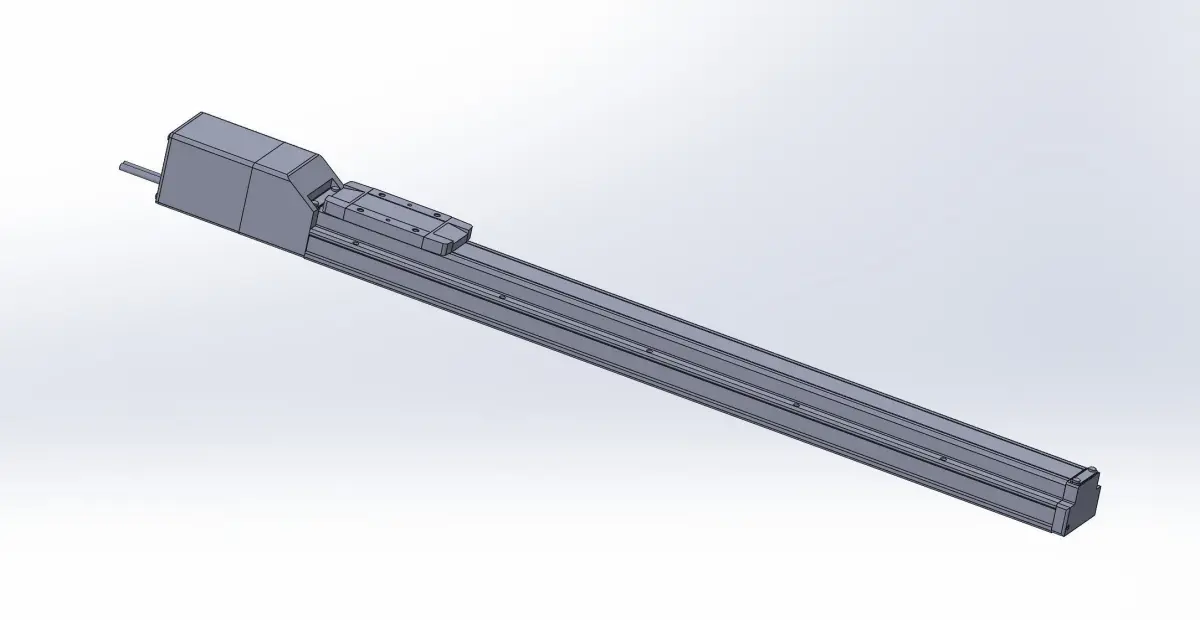

1. Cylinder transverse moving platform

2. Cylinder stacking mechanism

3. Cylinder sticking mechanism

**************************************

Files format contains

-solidworks 2017

-step

-iges

-stl

-obj

-3ds

-Fbx

-3dmax

- and other formats

**************************************

If you like,you can buy for you to get this models or if you have any questions also you can email to me.

Designed with SolidWorks 2017, render with PhotoView 360

**************************************

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 1,029,978
  • Vertices: 2,061,660

Tags

Machine Industry Industrial Equipment Manufacture Factory Automatic Mechanic Engine Tool Part Device Robot Tray Stacking Cylinder Loading Unloading Feeding Industrial machine Industrial part Industrial factory Industrial robot
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.
  • SolidWorks () (2 files)6.72 MBVersion: 2017
  • 3D Studio ()20.2 MB
  • STEP ()9.67 MB
  • Autodesk FBX ()43.3 MB
  • Stereolithography ()98.3 MB
  • OBJ ()122 MB
  • IGES ()24.7 MB
  • Autodesk 3ds Max ()64.6 MB
  • Solid Edge ()5.63 MB
