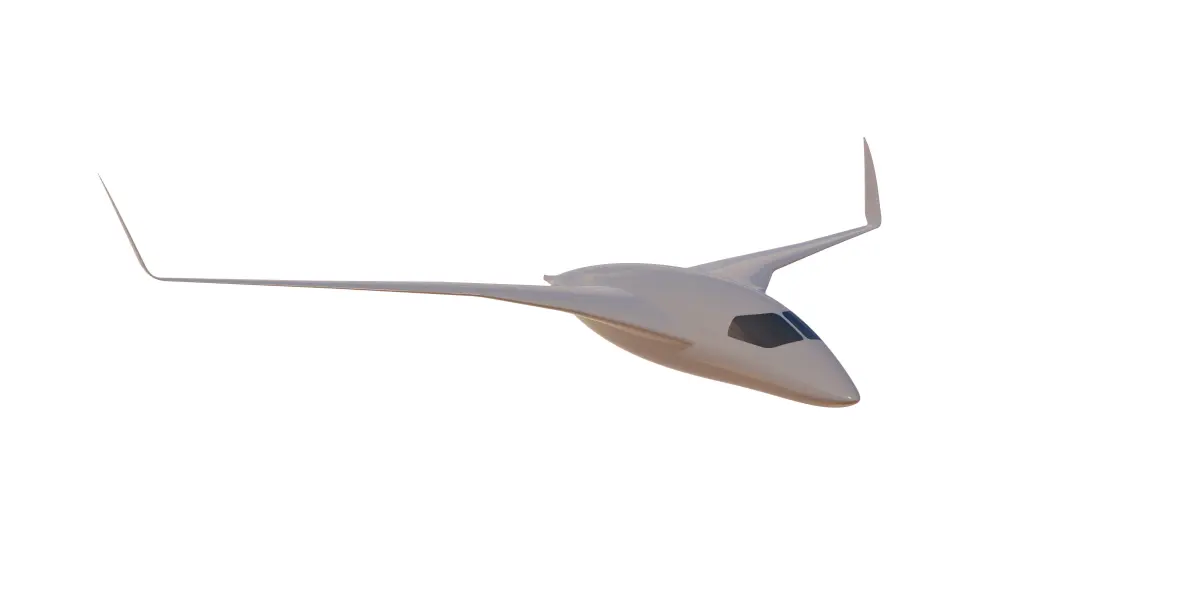

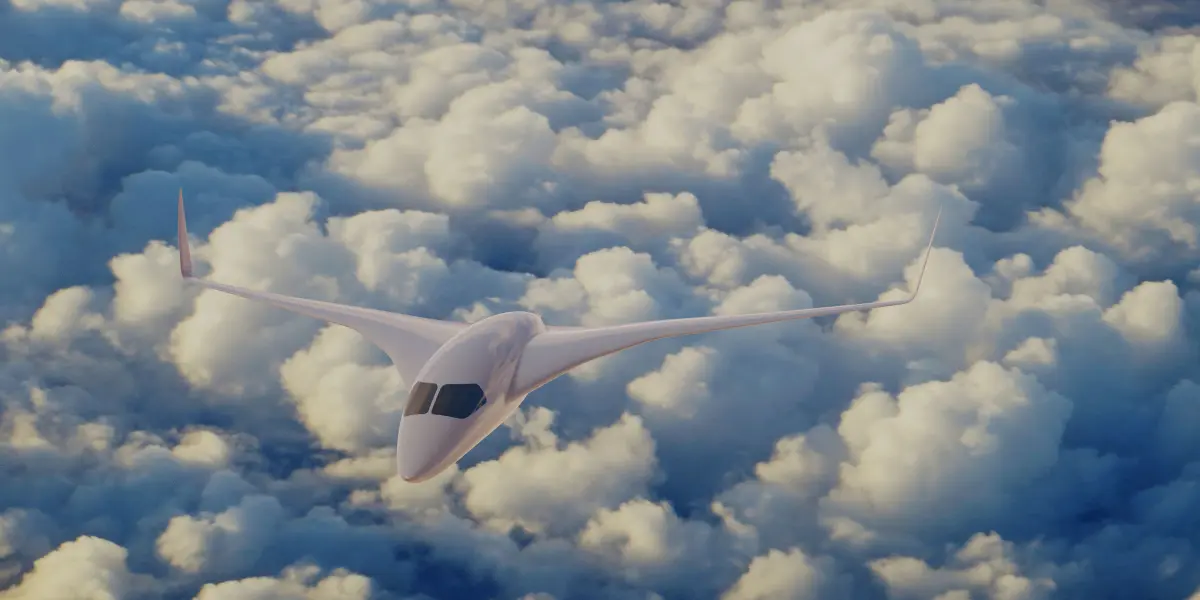

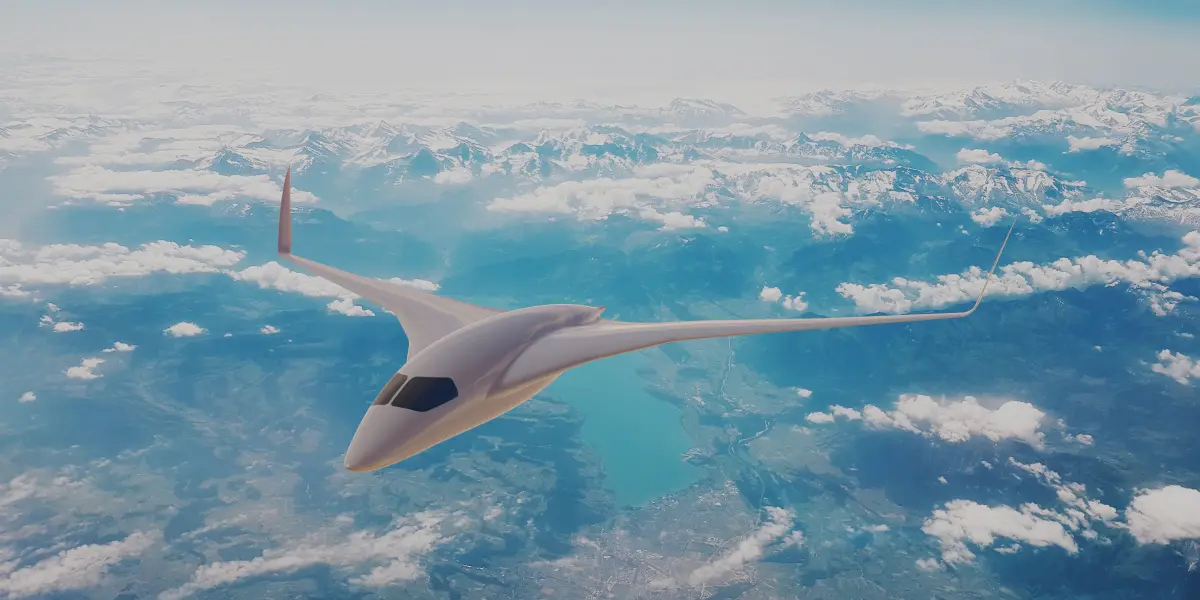

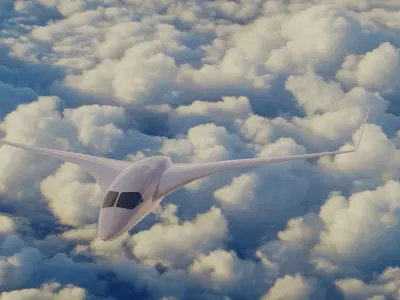

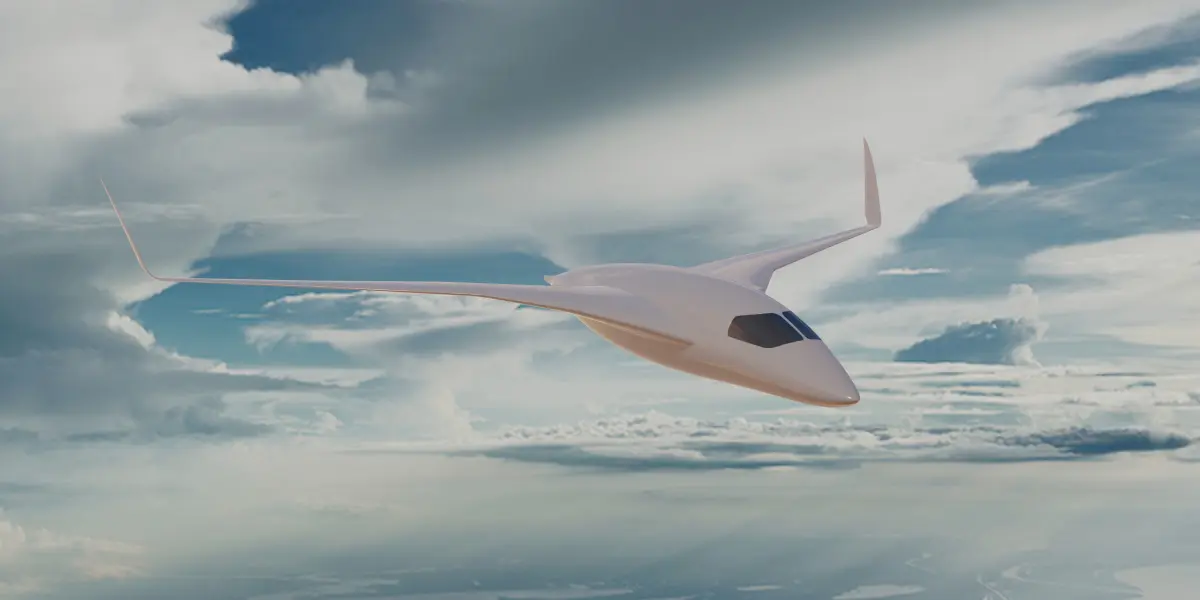

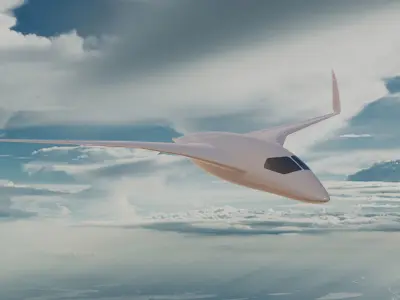

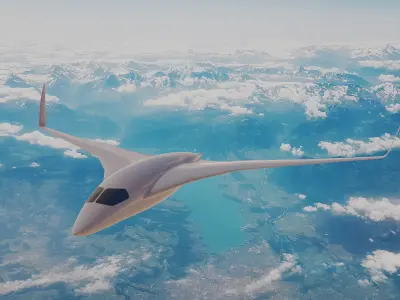

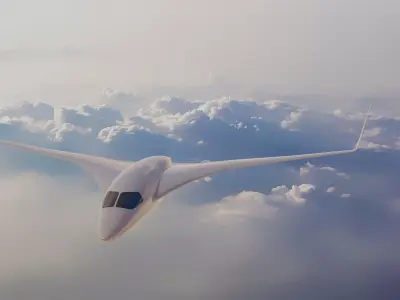

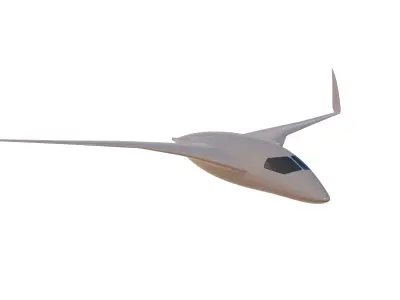

BWB EVO M 3D model

Description

BWB EVO M (Mid Wing) one several of my BWB models, this one is not yet tested in XFLR5 (the wing has) to fly stable without trim with a CG calculated as if all was made of one material like for instance foam. If motors was added on top of the back, the cg is to shift. A CAD file with the specially developed slightly positive cm & low drag low Reynolds profiles in position is available as a CAD file. This model is most possibly flyable. Lots of possible control surfaces is shown. A blended wing ons smaller aircraft can result in a more conventional body that can have large fillets on the connection to the wing - more than here. Fibonacci design priciples is used extensively. All surfaces on wings and fugelage is true airofoil profiles. CAD file is included with the low moment. low drag airfoil ribs. This model has a large loading capacity. - This is a High poly & CAD files version -

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 0
Vertices: 0
