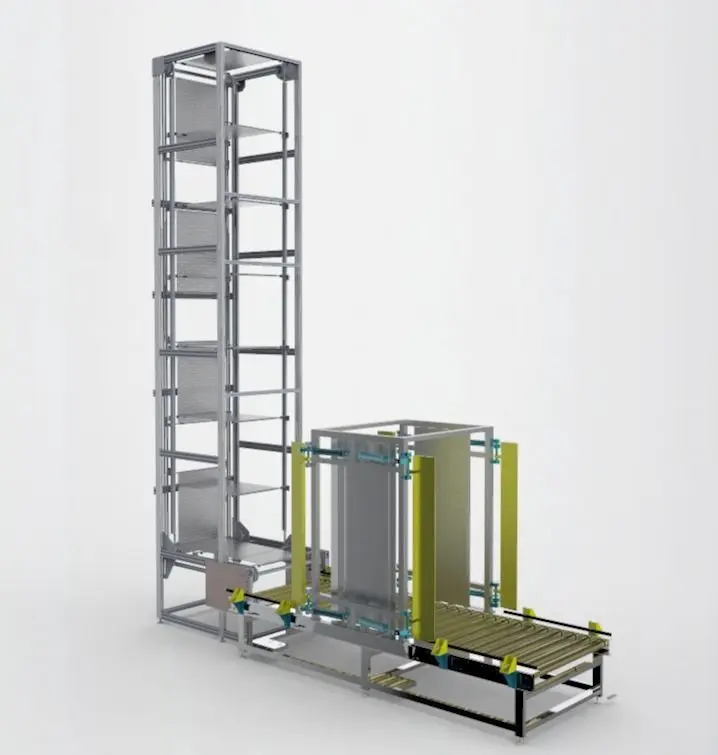

Chain hoist 3D model

Description

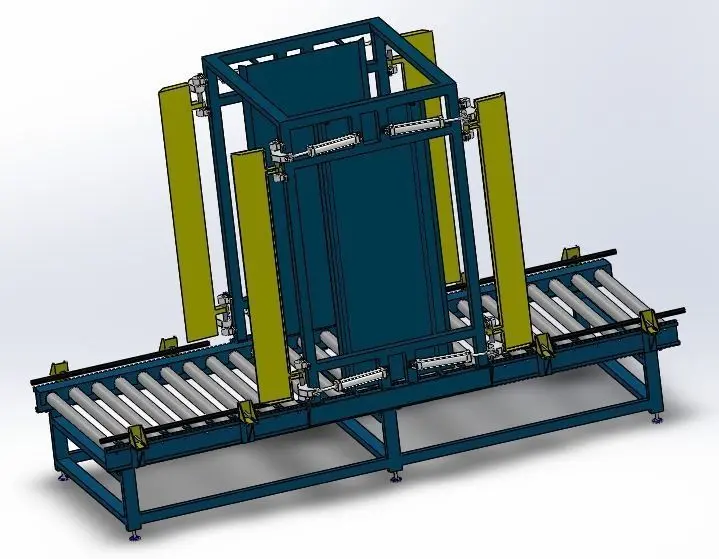

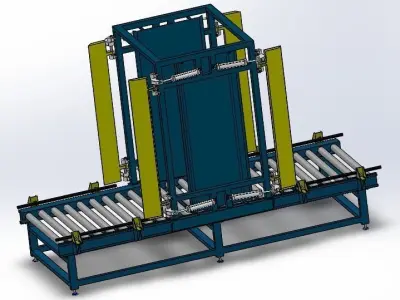

Door Roller line, through the hinge switch mechanism, the use of the cylinder drive mechanism to switch on and off the door combination, with the transmission line, the product can be timed transmission and monitoring functionMechanism include

Cylinder opening and closing mechanism

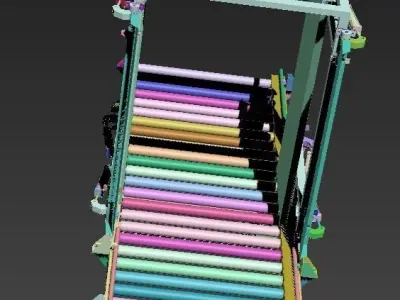

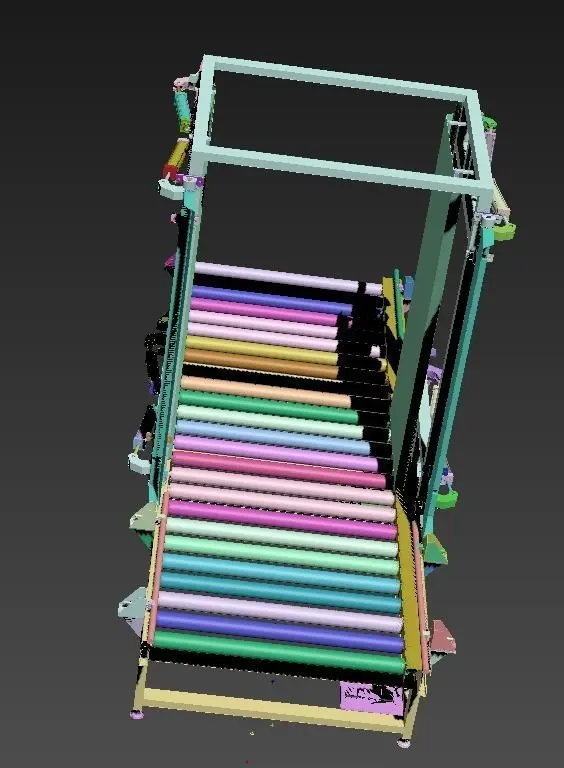

Drum line conveying mechanism

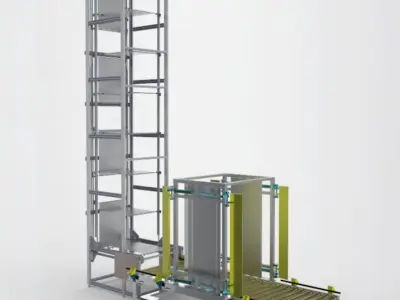

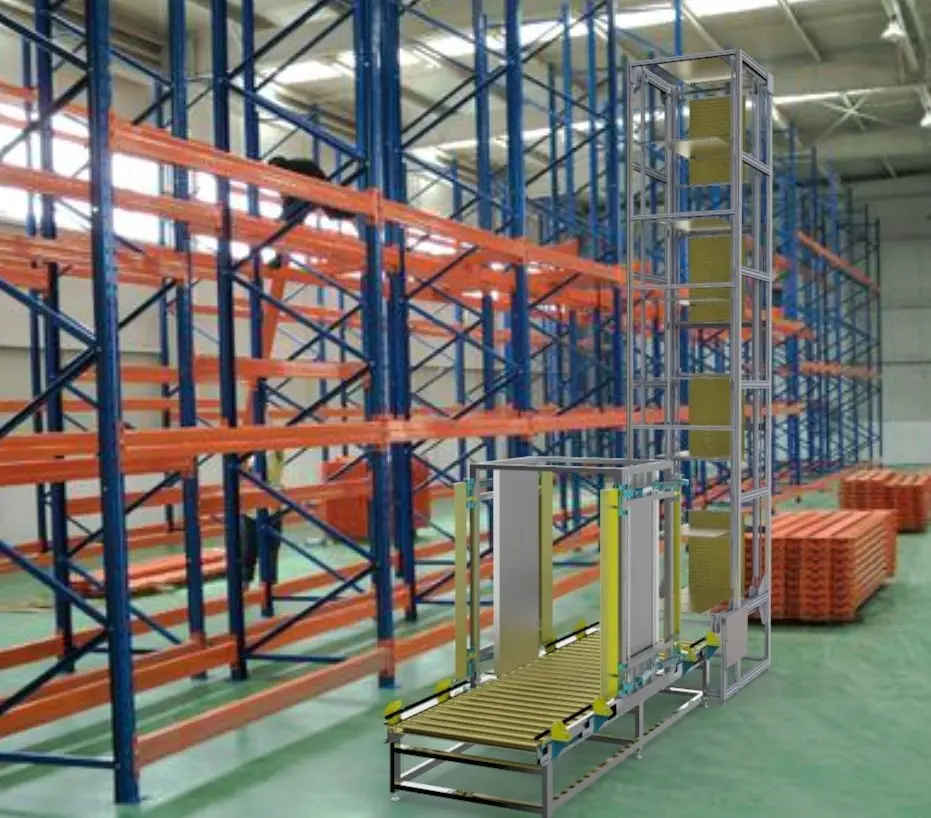

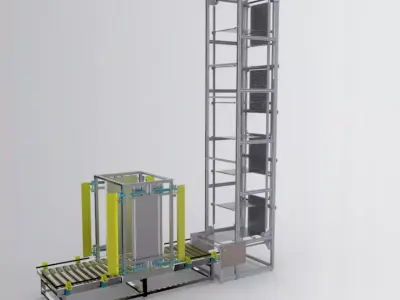

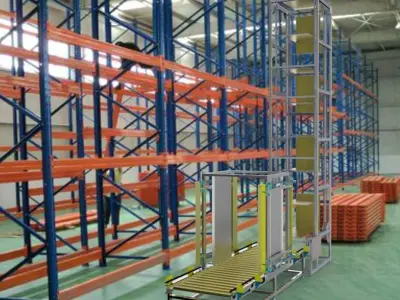

Chain hoist, through the double sprocket mechanism to travel the loop hoist, can be connected to the platform for object transfermechanism include

Double sprocket mechanism

2. Lifting plate chain mechanism

Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

- and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.If you have any questions about the details and design of the model, you can email me at any time, and I will give you all the answers as soon as possible.This is especially true after the purchase.

Designed with SolidWorks 2017；vray with keyshot
