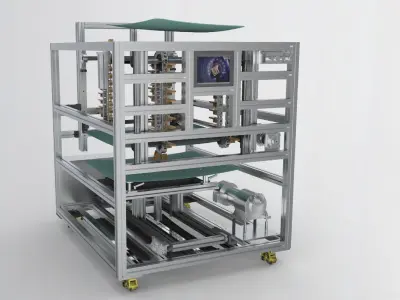

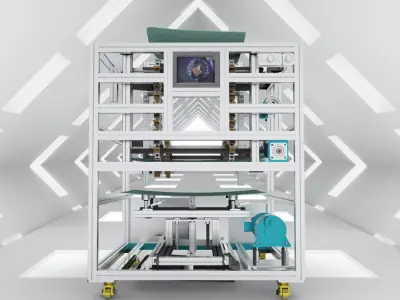

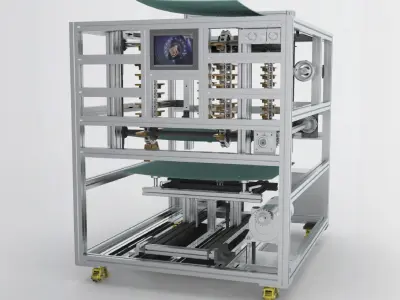

Chain-structure-stacking-machine teflon coating machine 3D model

Description

Chain-structure-stacking-machine

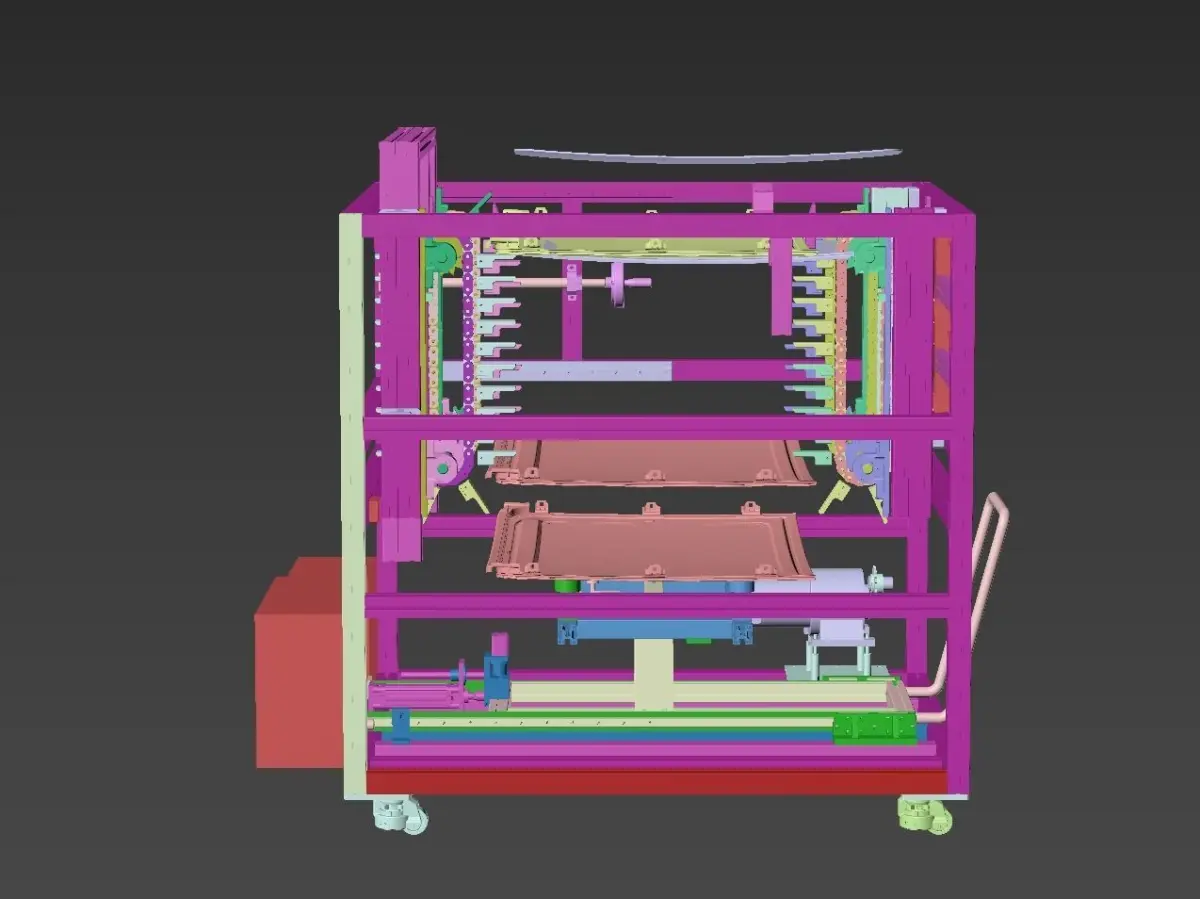

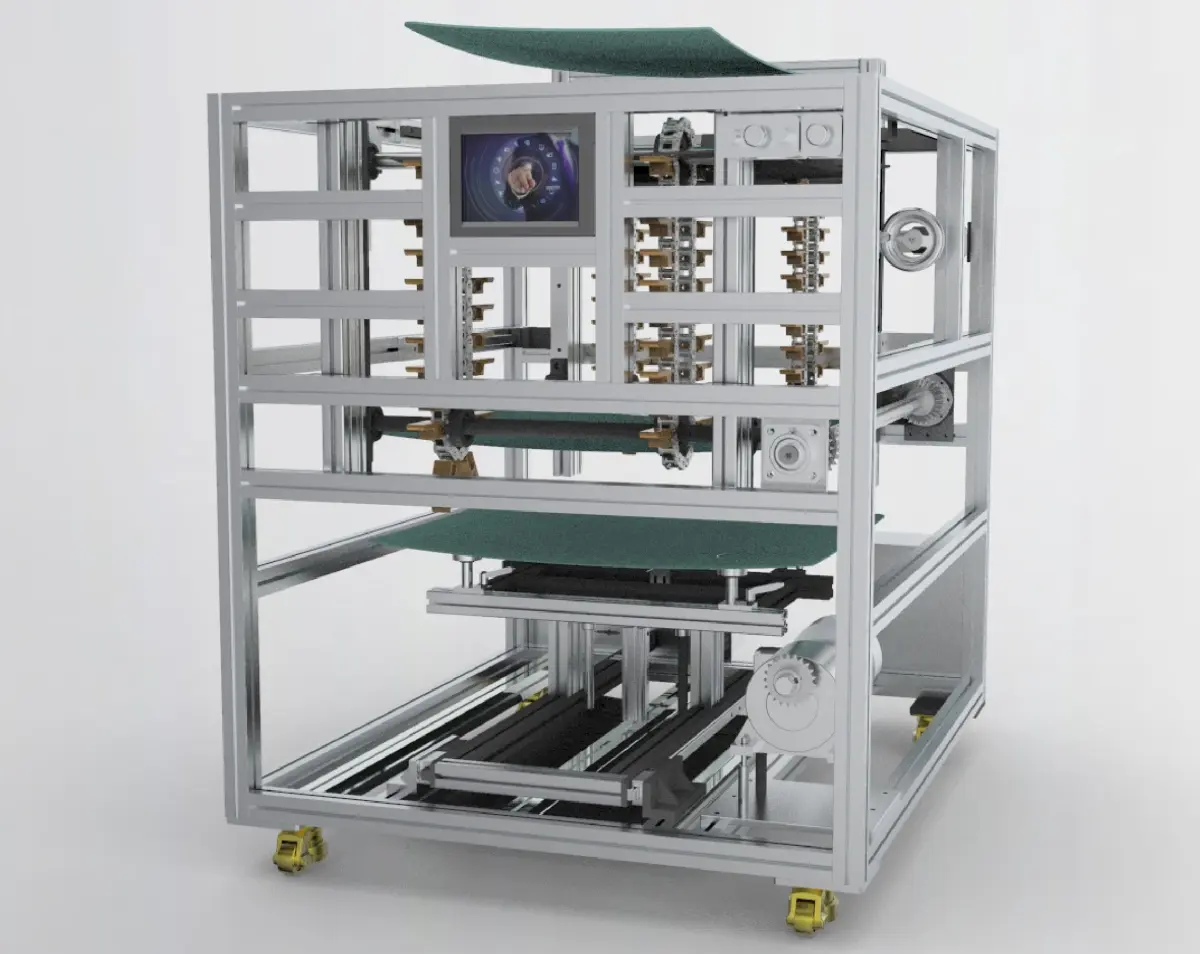

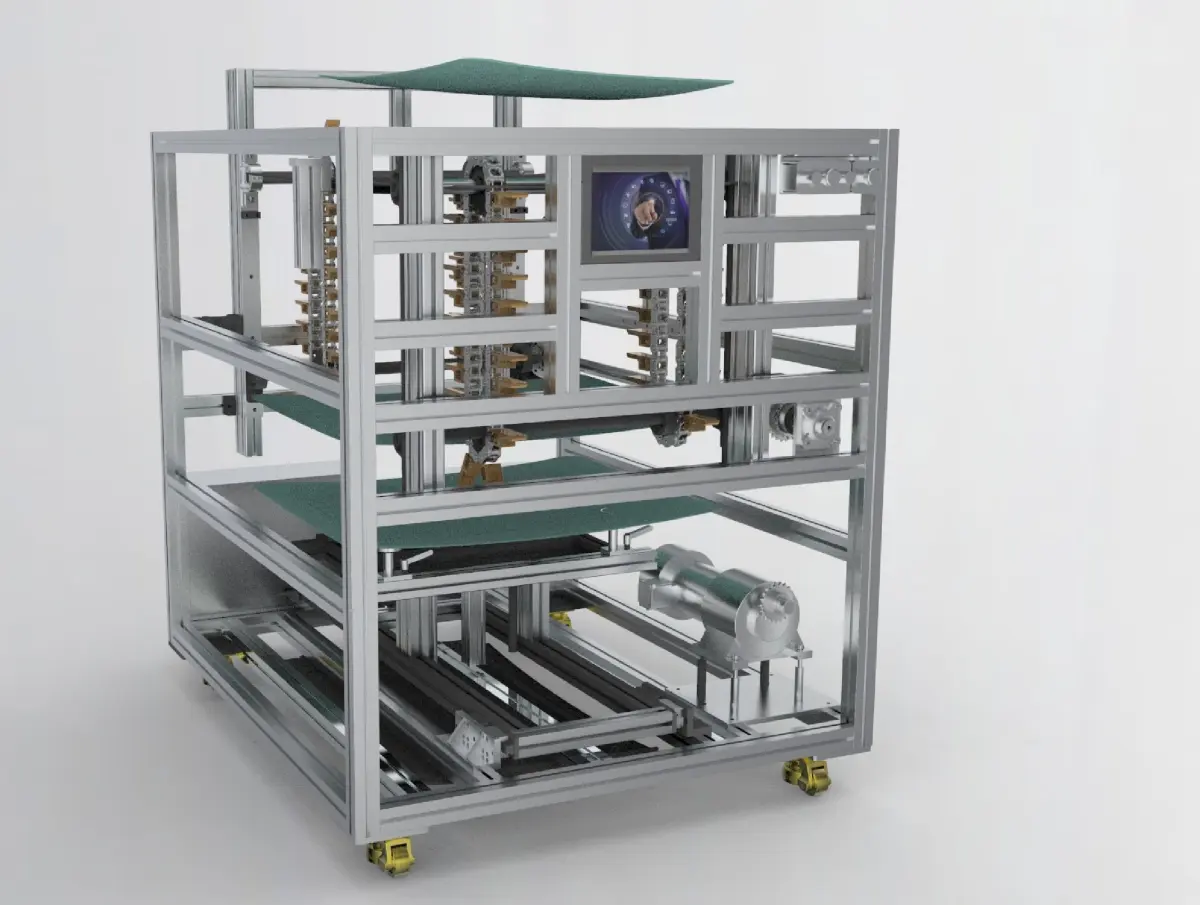

This is a chain mechanism to achieve stacking feeder. In the mechanism, the product is sent to the working position through the lifting mechanism, and the supporting volume of the product is realized through the rotating chain, and the isometric stack structure can be realized, and the function of the isometric hoist can be realized.
The device is a stack elevator, which can realize isometric stack function and realize the function of storage materials
The equipment is an automatic feeding mechanism, which can be combined with the loading and unloading mechanism to realize the automatic loading and unloading of incoming materials
The equipment is a pneumatic elevator, through the pneumatic control mechanism to achieve isometric lifting material.
The mechanism is fully functional and contains bom and drawing for production. It is mass production equipment and can be directly used in industrial production.

polygons: 6029256

Vertice: 12062173

Files format contains

-solidworks 2017-step-iges-3ds-Fbx-3dmax

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 6,029,256
Vertices: 12,062,173
