Diesel exhaust - Urea injection 3D model

Publication date: 2014-09-30

Diesel exhaust - Urea injection 3D model

$39

License: Royalty Free License

author:

jvr3D

Description

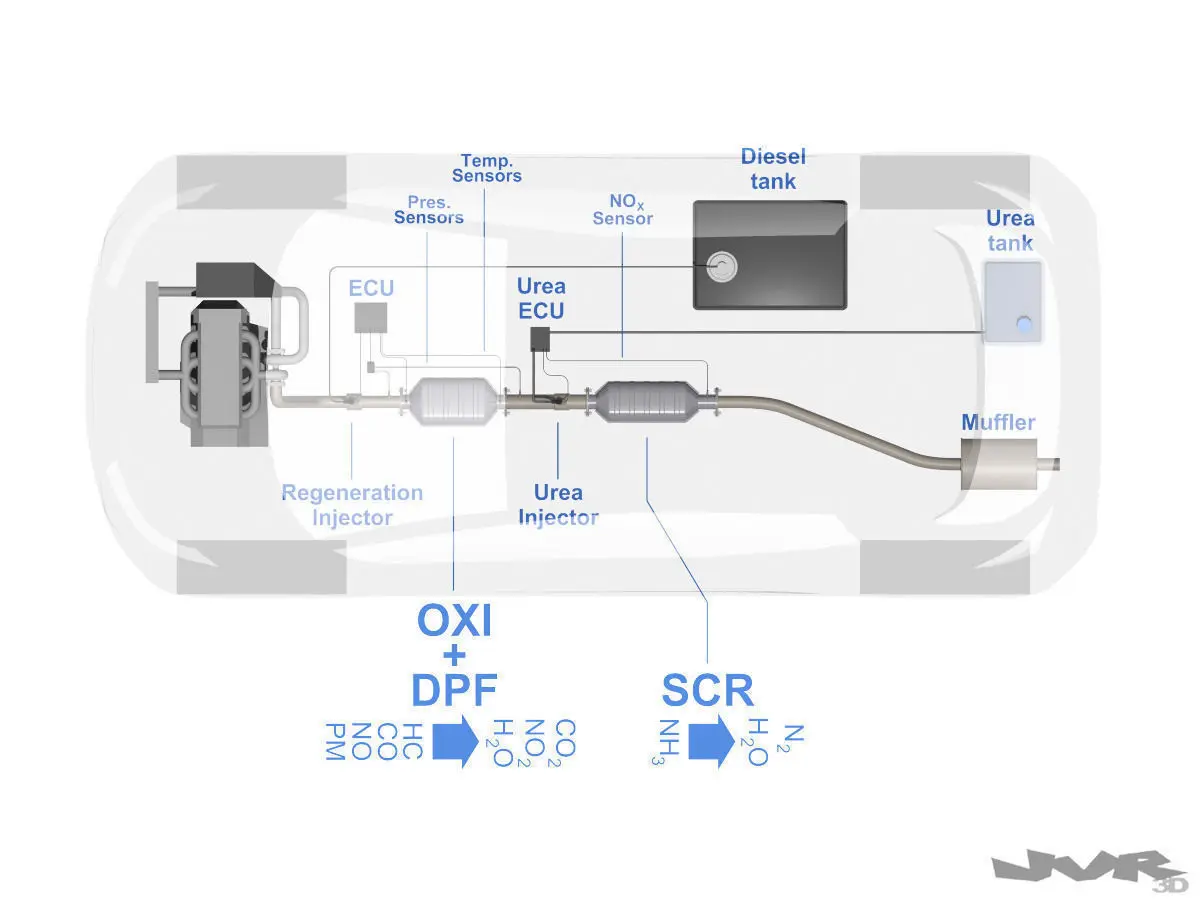

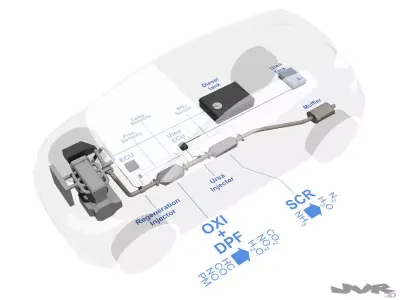

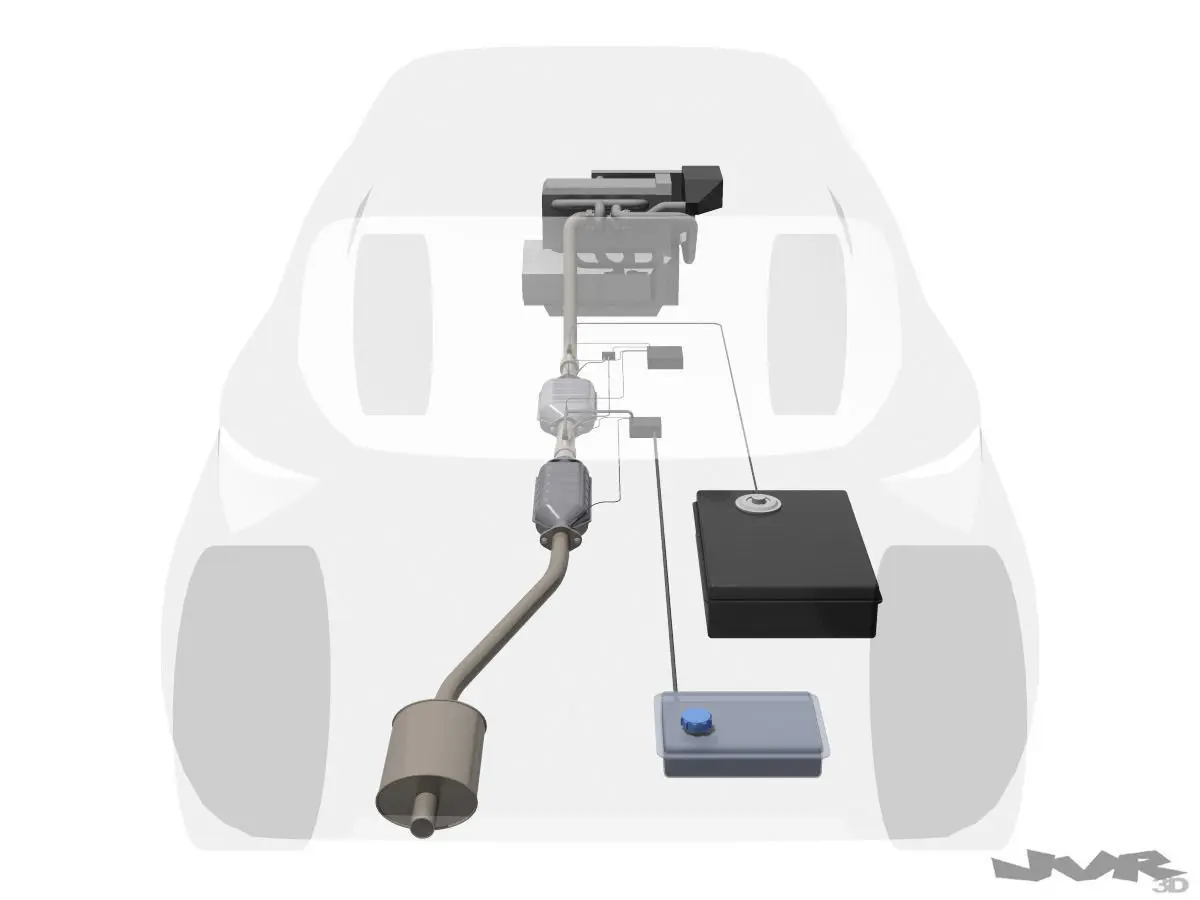

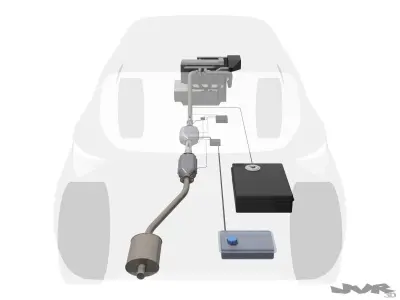

3D Scheme of diesel exhaust including:

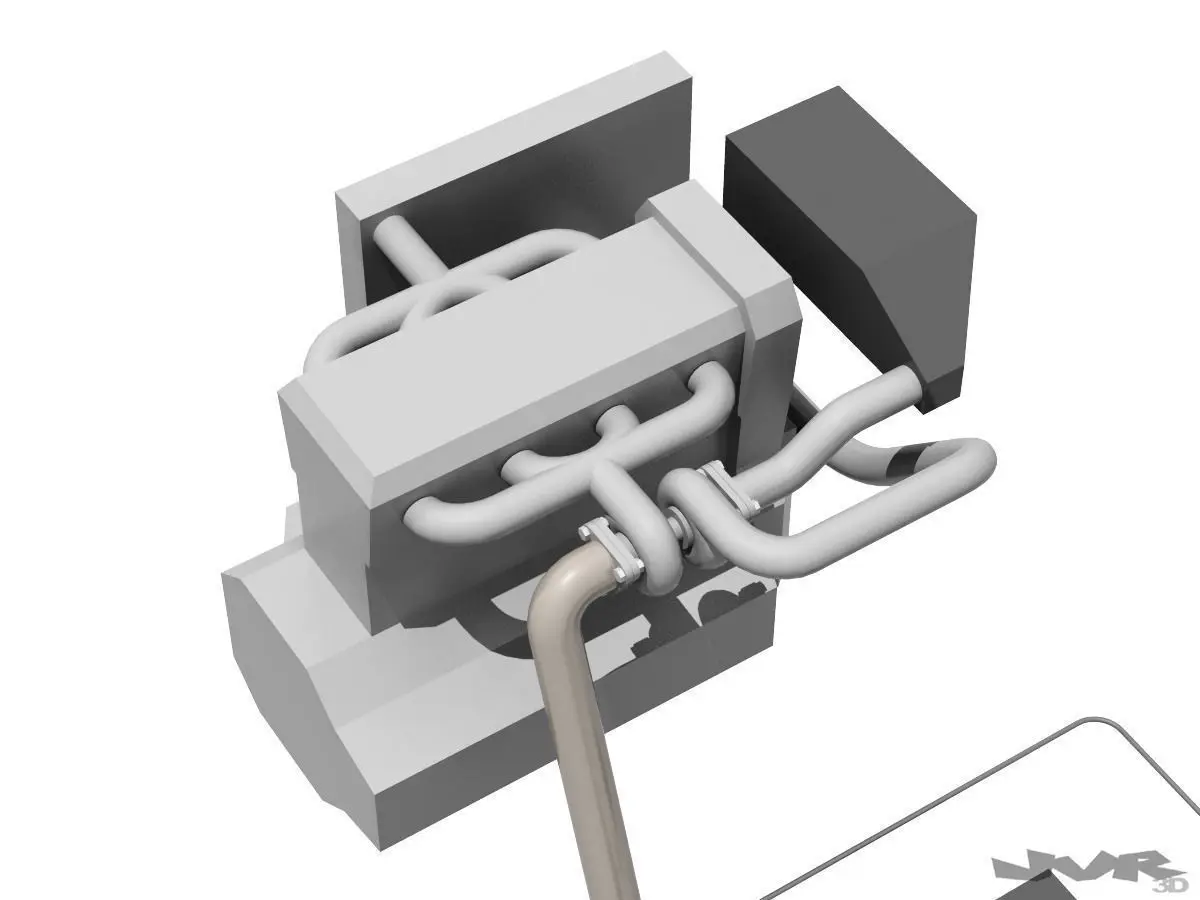

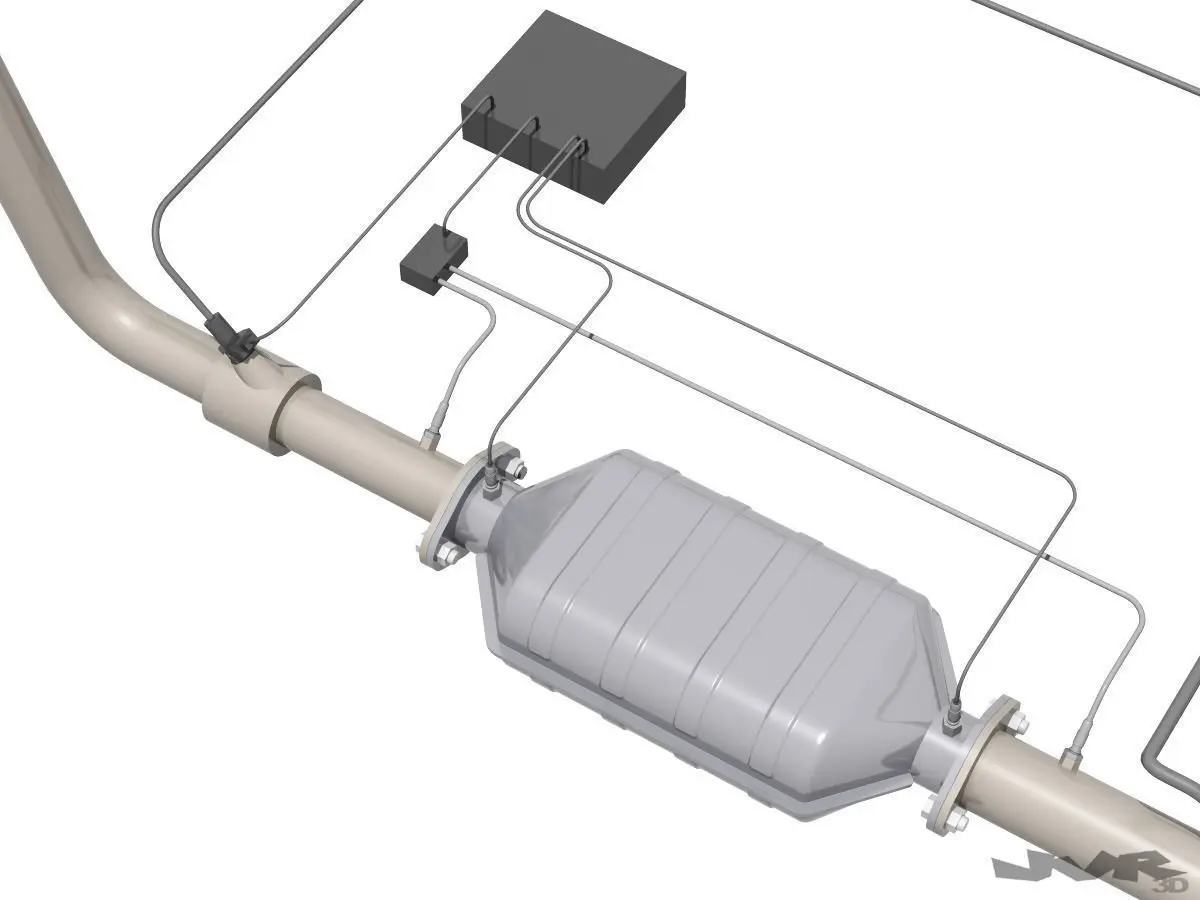

- Urea injection with SCR (Selective Catalytic Reduction)- Oxidation and DPF (Diesel Particle Filter)- Schematic four cylinder turbo diesel engine with intercooler.- Generic ghost car- Explanatory text

PDF file with instructions is included.

Notes:- Images generated with native MAX mental ray file. Standard material version also included in MAX format.- 3DS, OBJ and FBX need some material adjustments.- This is a polygonal model and is not prepared to be imported into parametric CAD software.- This model is not optimized for 3D printing.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 114,000
Vertices: 64,000
