Double axle shifting load fine tuning platform 3D model

Description

Double axle shifting load fine tuning platform

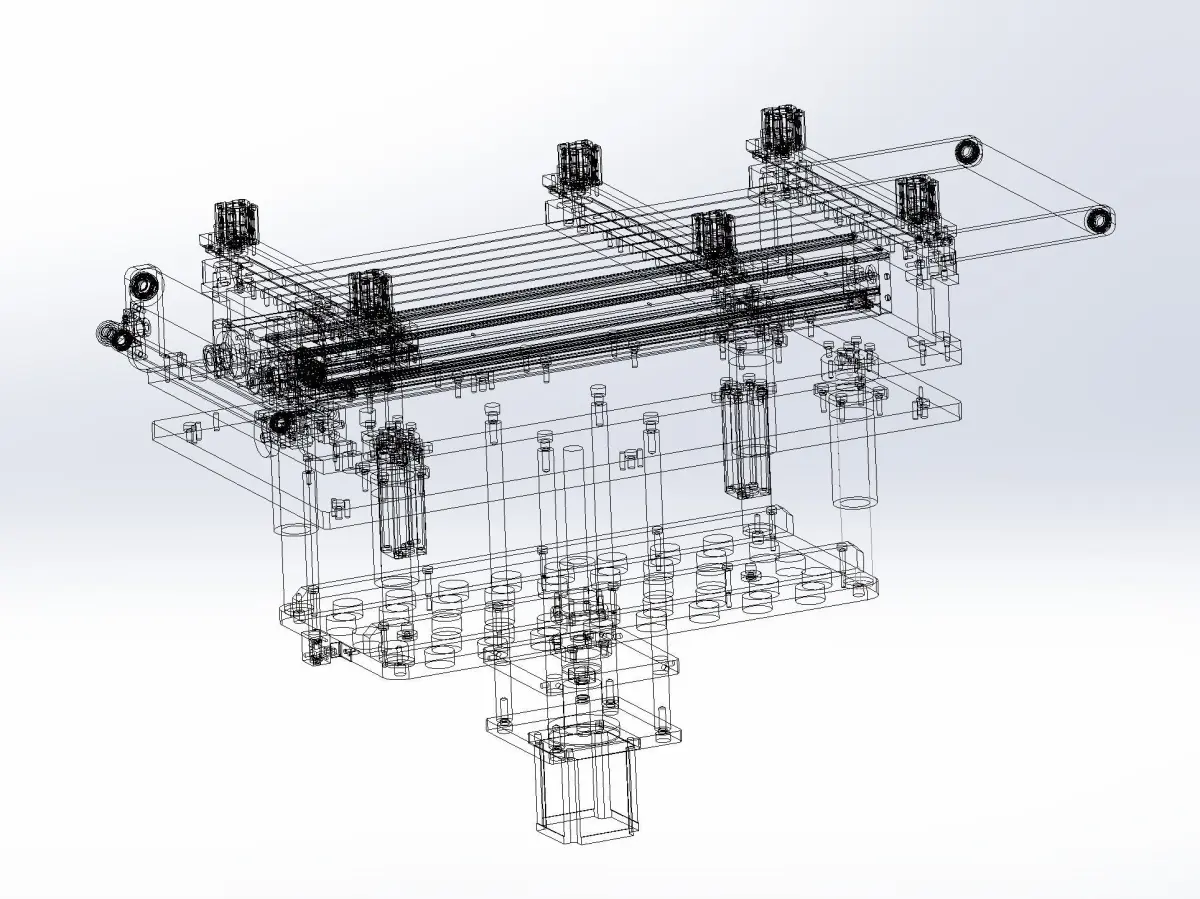

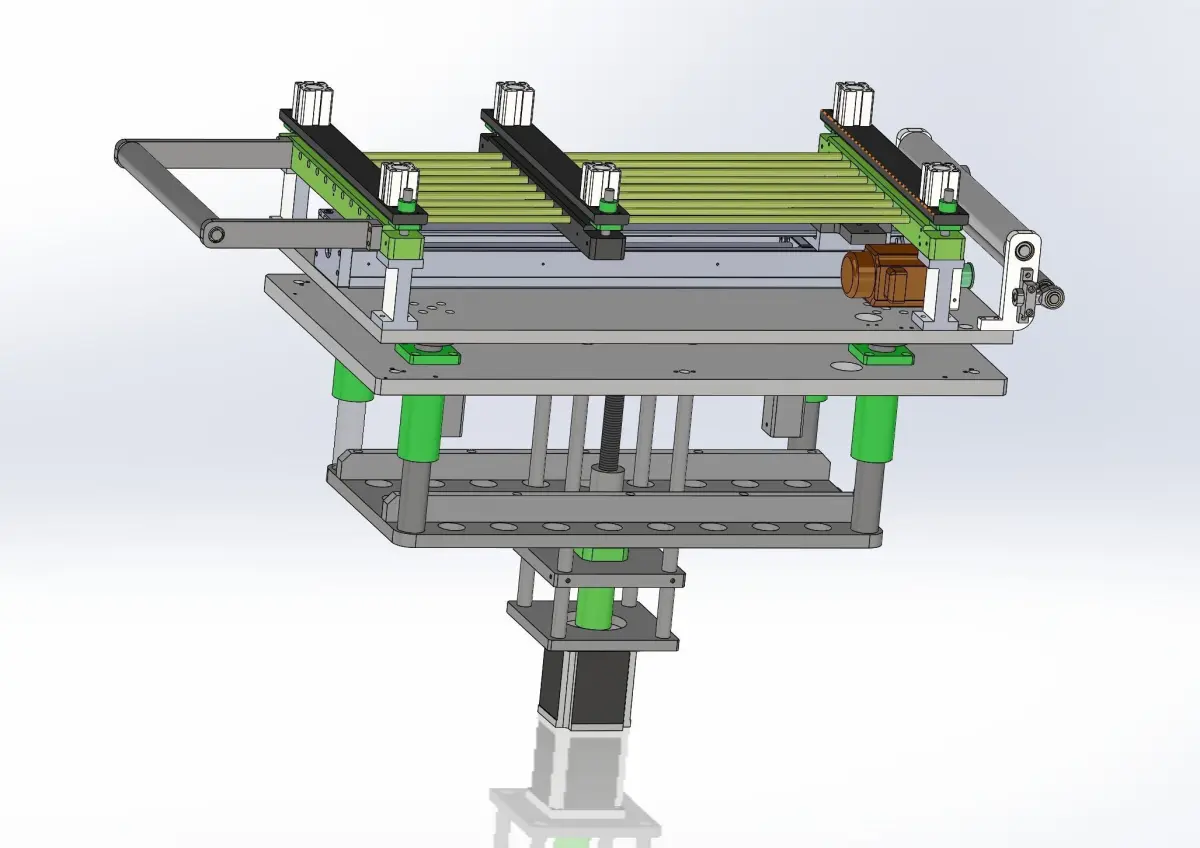

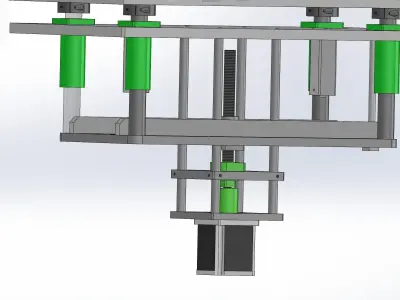

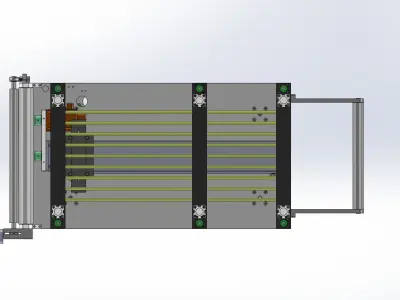

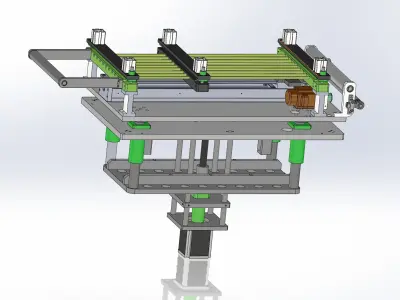

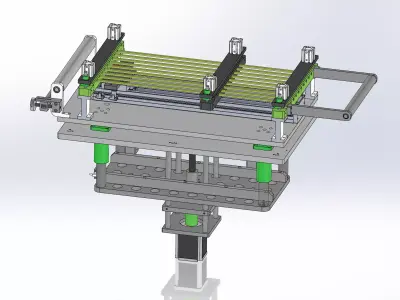

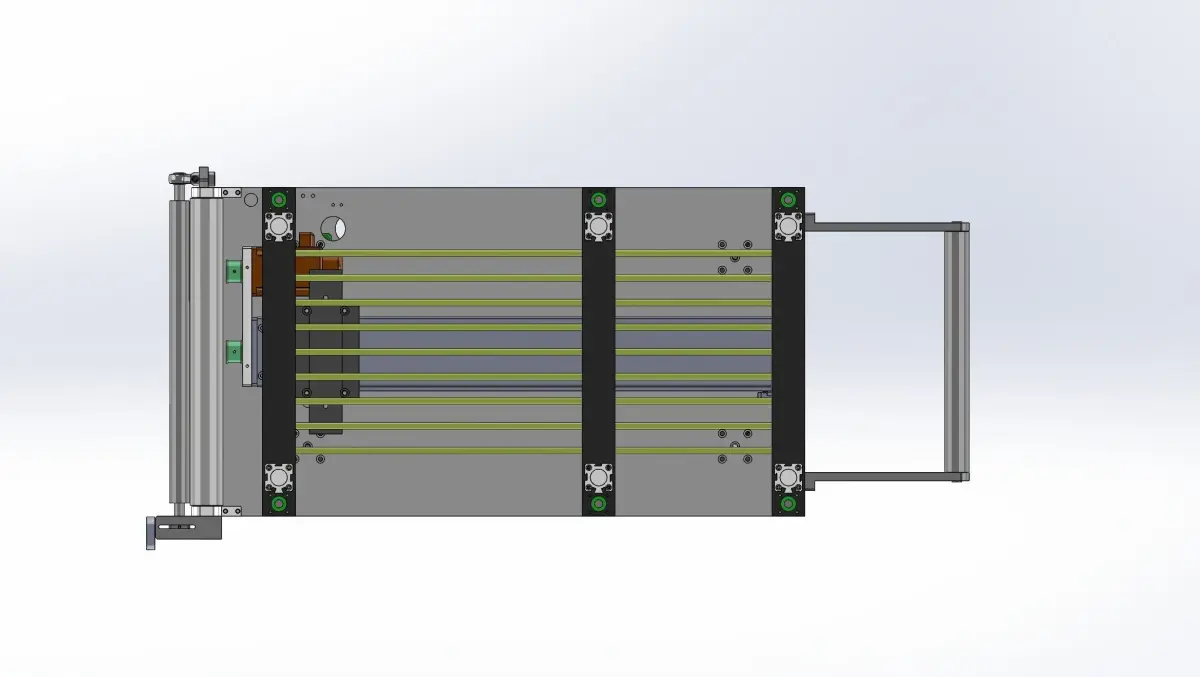

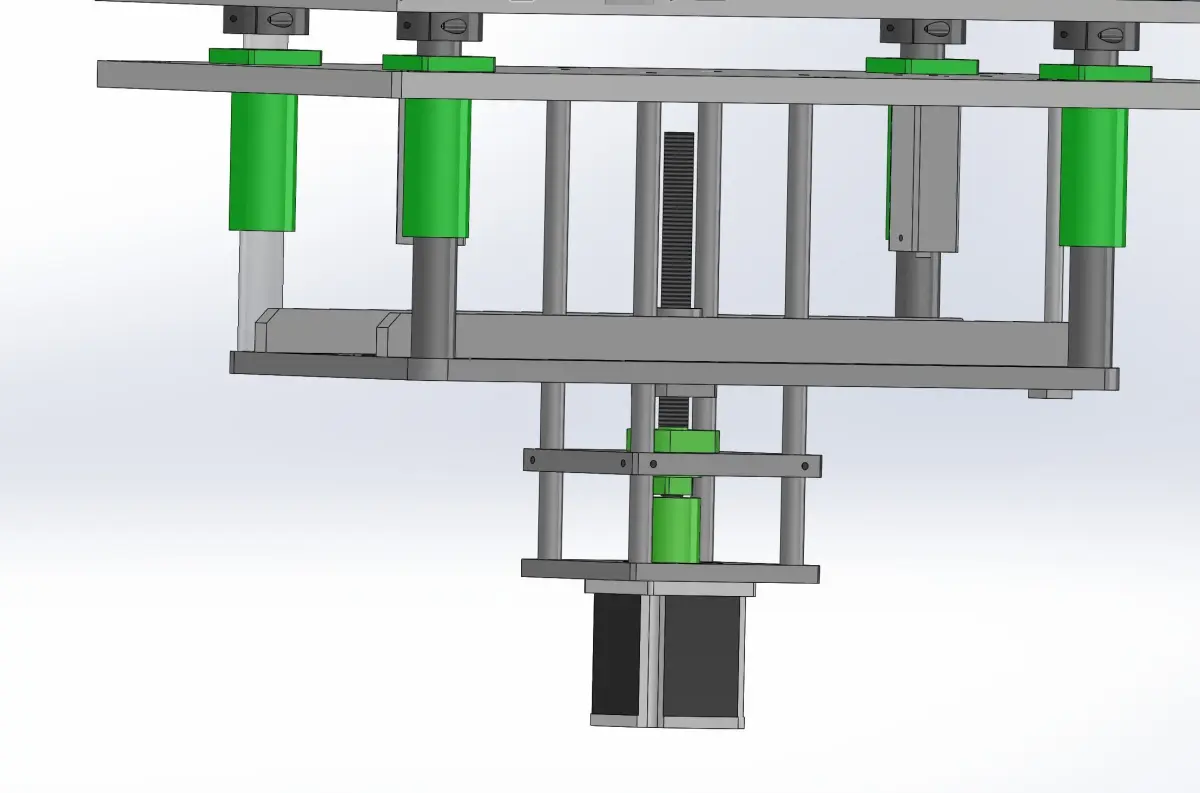

The platform is composed of a fine tuning mobile platform mechanism by a lead screw and a slide rail mechanism. The platform mechanism includes two axis moving mechanisms, one of which is Z-axis moving mechanism and the other is Y-axis moving mechanism, which can be used as a fine tuning mechanism for displacement. It is a good reference model

polygons: 1988991

Vertice:3840242

Files format contains

-solidworks 2017-step-iges-3ds-Fbx-3dmax

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 1,988,991
Vertices: 3,840,242
