Publication date: 2023-09-10

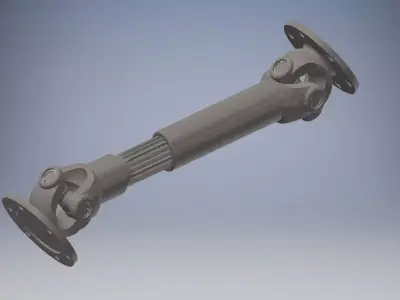

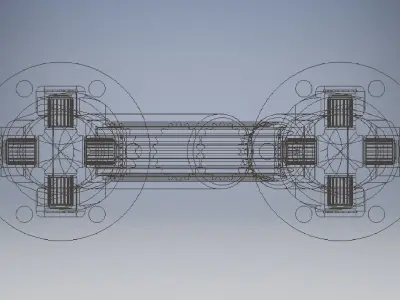

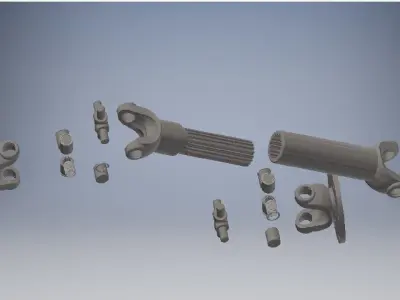

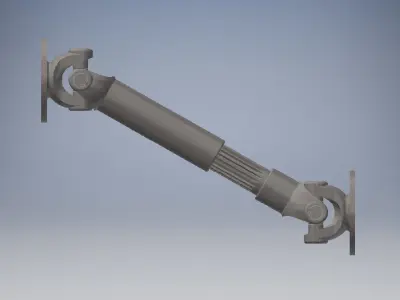

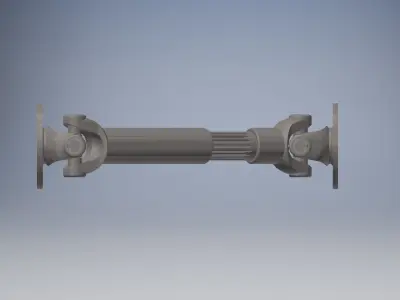

Double Cardan Shaft 3d model 3D model

$12

License: Royalty Free License

author:

boysitinh-thanhdung

Description

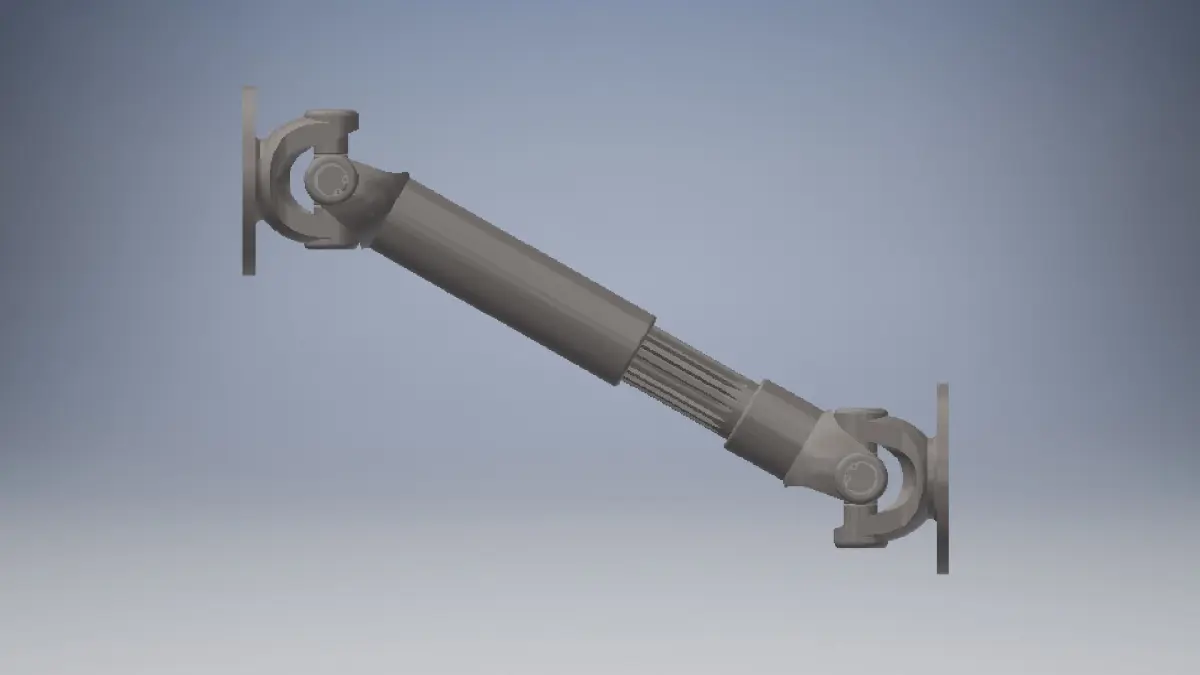

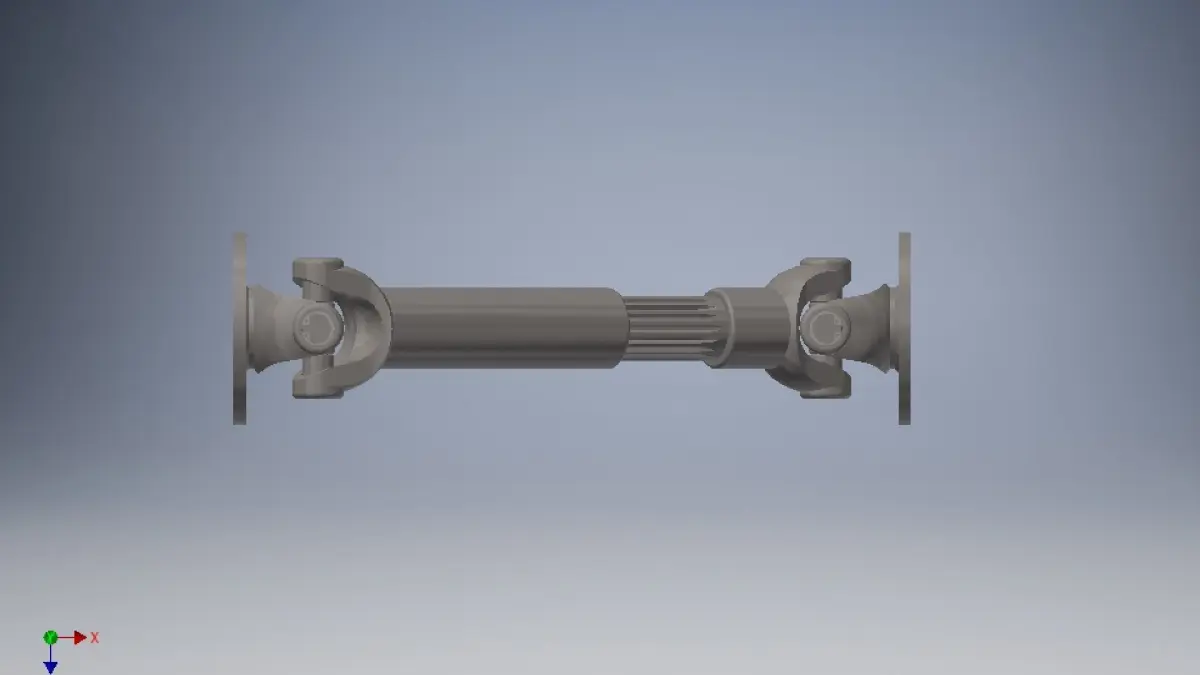

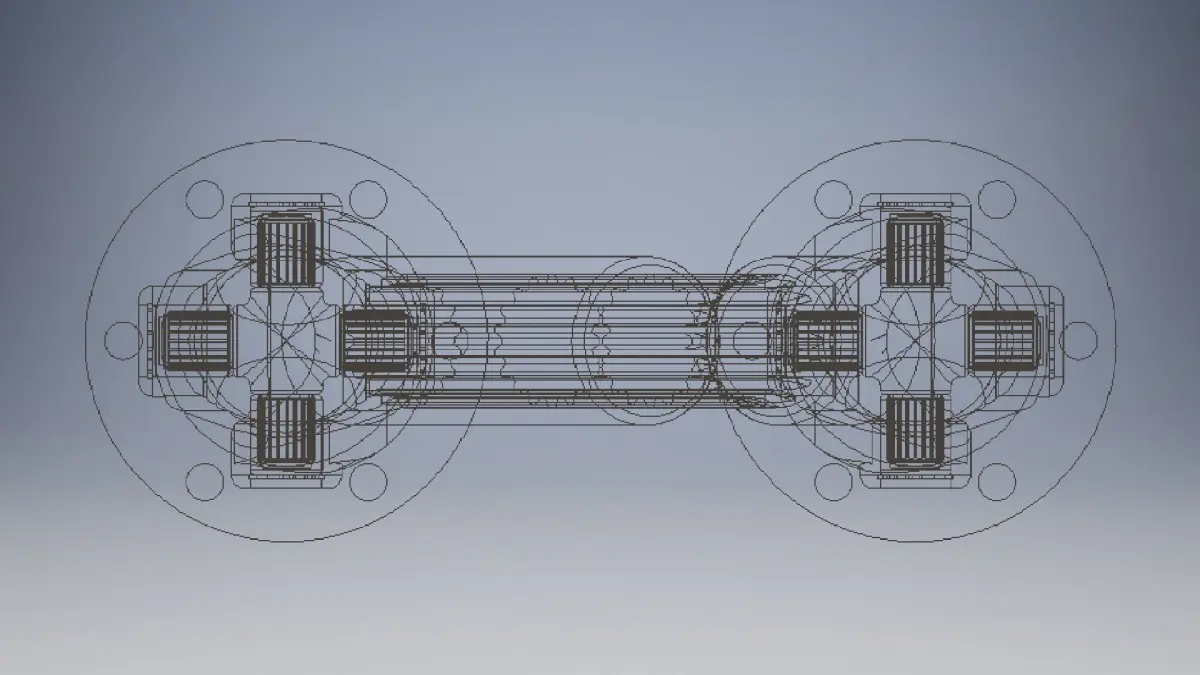

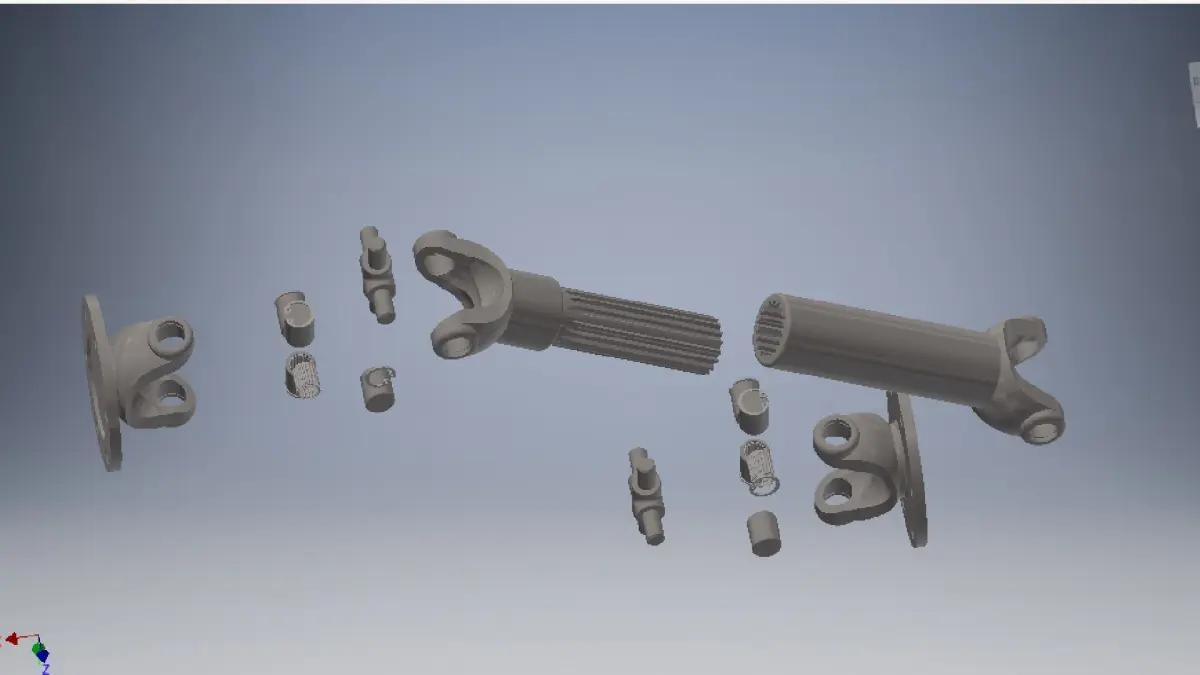

This configuration uses two U-joints joined by an intermediate shaft, with the second U-joint phased in relation to the first U-joint to cancel the changing angular velocity. In this configuration, the angular velocity of the driven shaft will match that of the driving shaft, provided that both the driving shaft and the driven shaft are at equal angles with respect to the intermediate shaft and that the two universal joints are 90 degrees out of phase.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: 23,154
Vertices: 22,841

Tags

Shaft Power Car Joints Driving Vihicle Vehicle Part Vehicle part

All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «boysitinh-thanhdung». CGhub does not claim copyright ownership over the content used.
