Film laser alignment cutting machine Low-poly 3D model
Film laser alignment cutting machine Low-poly 3D model
Film laser alignment cutting machine Low-poly 3D model
Film laser alignment cutting machine Low-poly 3D model
Film laser alignment cutting machine Low-poly 3D model

Publication date: 2019-07-06

Film laser alignment cutting machine Low-poly 3D model

$85

License: Royalty Free License

author:

forestlsls

Buy at www.cgtrader.com - $85 Add to Wishlist
  • Description
  • Formats
Description

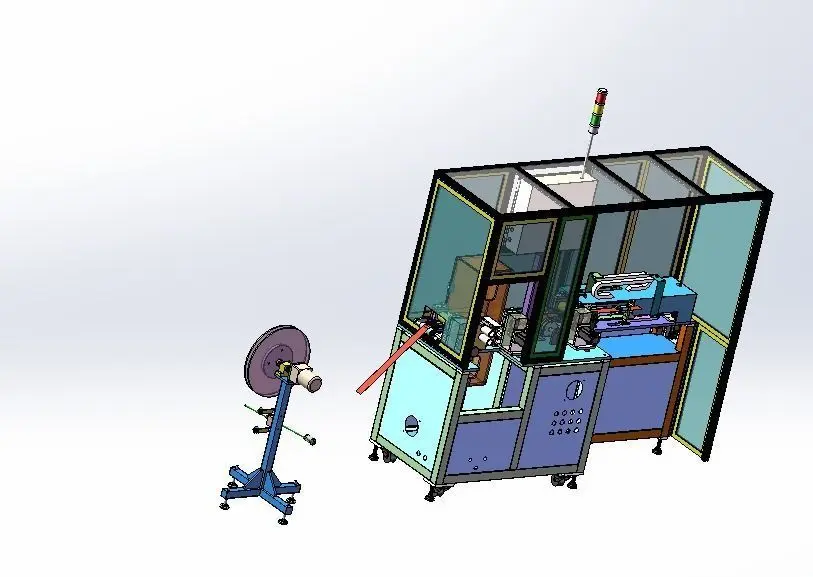

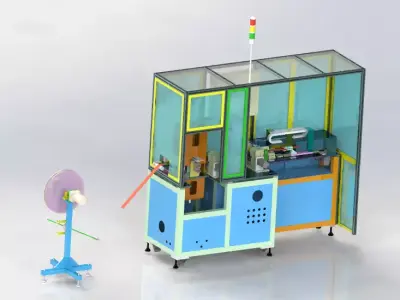

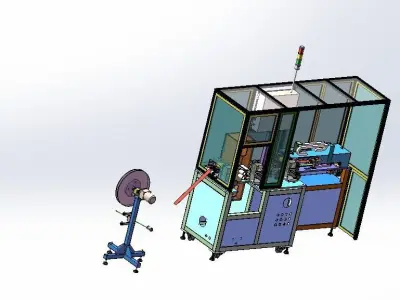

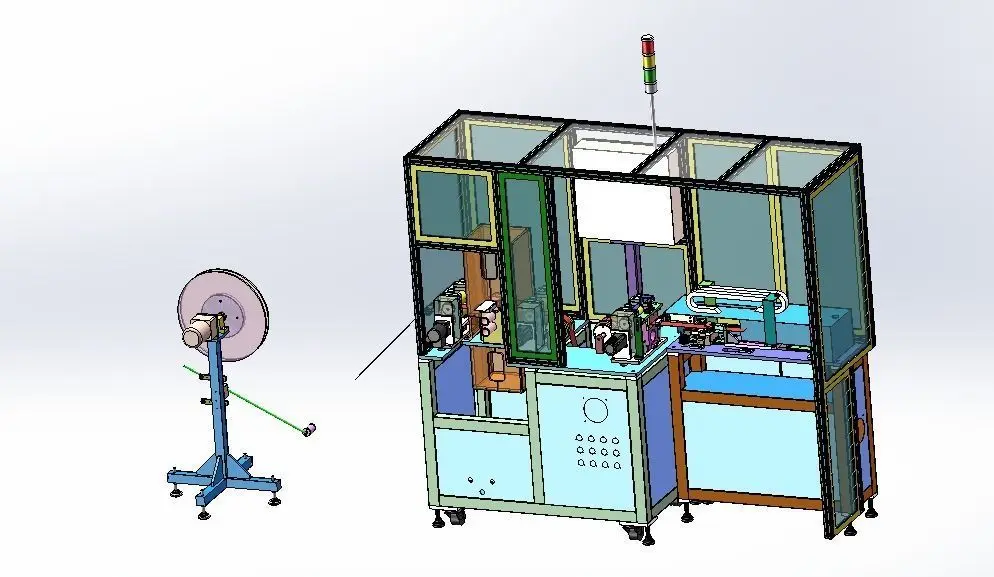

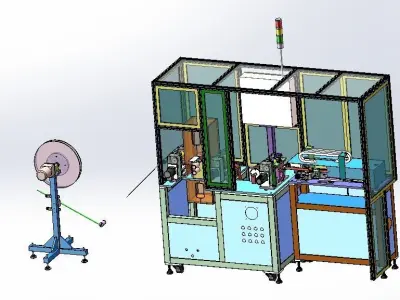

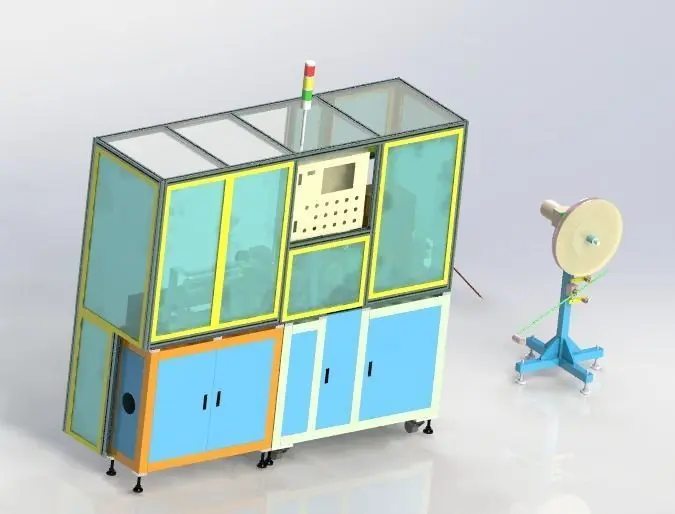

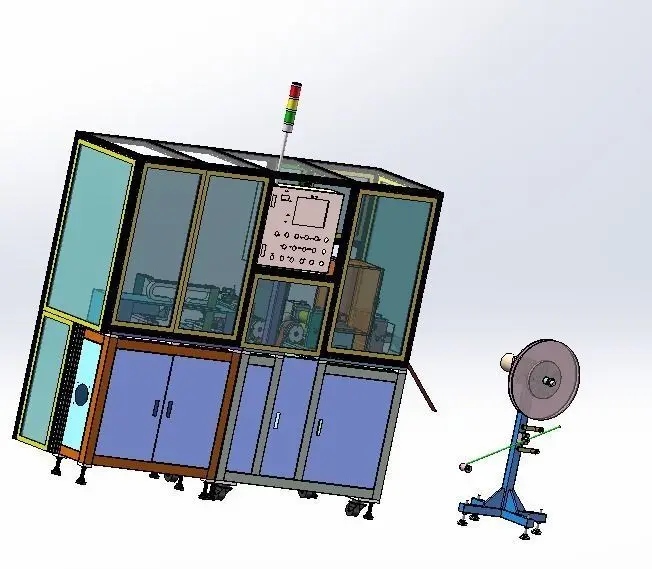

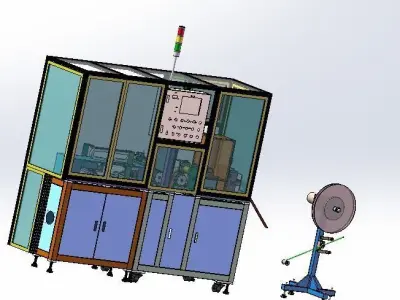

Film laser alignment cutting machine, the equipment through the whole roll film material, through laser alignment positioning, roller guide will straighten the material, into the cutting mechanism, cut a fixed length of film material at the same time through a set of feeding clamping device, film material can be fixed grasp, move to the required positionThe device contains

  1. Film winding and retracting device
  2. Laser alignment device
  3. Roller wheel guide device
  4. Cutting mechanism
  5. Transplanting mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax
  6. and other formats************************************** If you like,you can buy for you to get this models or if you have any questions also you can email to me.If you have any questions about the details and design of the model, you can email me at any time, and I will give you all the answers as soon as possible.This is especially true after the purchase.Designed with SolidWorks 2017, render with PhotoView 360**************************************

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: -
  • Polygons: 1,028,399
  • Vertices: 1,156,213
  • Plugins used

Tags

Industrial Production Assembly Factory Mechanic Engine Tool Part Device Robot Film Cut Laser Alignment Roller Cutting Flexible Circuit Machine Industrial machine Industrial part Industrial factory Industrial robot
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.
  • SolidWorks ()64.7 MBVersion: undefinedRenderer: Mental Ray
  • STEP ()62.5 MB
  • 3D Studio ()33 MB
  • Autodesk 3ds Max ()303 MBVersion: undefinedRenderer: Default (Scanline)
  • Autodesk FBX ()35.2 MB
  • IGES ()123 MB
  • OBJ () (2 files)116 MB
