Publication date: 2024-06-22

Geneva drive - Maltese cross 3D model

$2

License: Royalty Free License

author:

Atypical-Engineer

Description

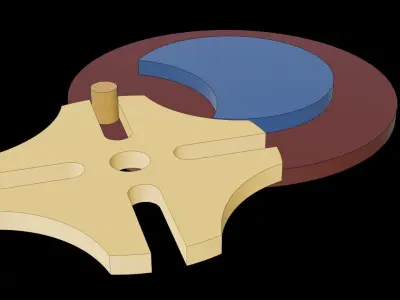

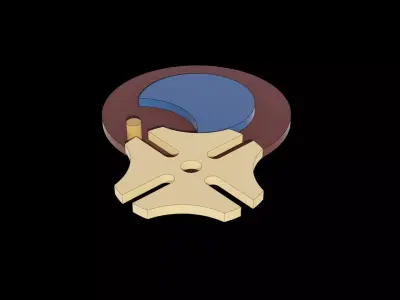

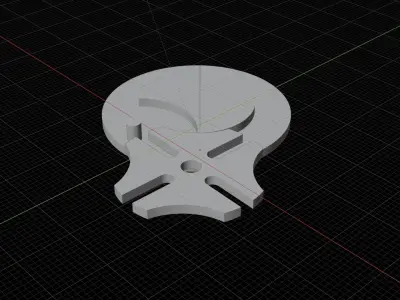

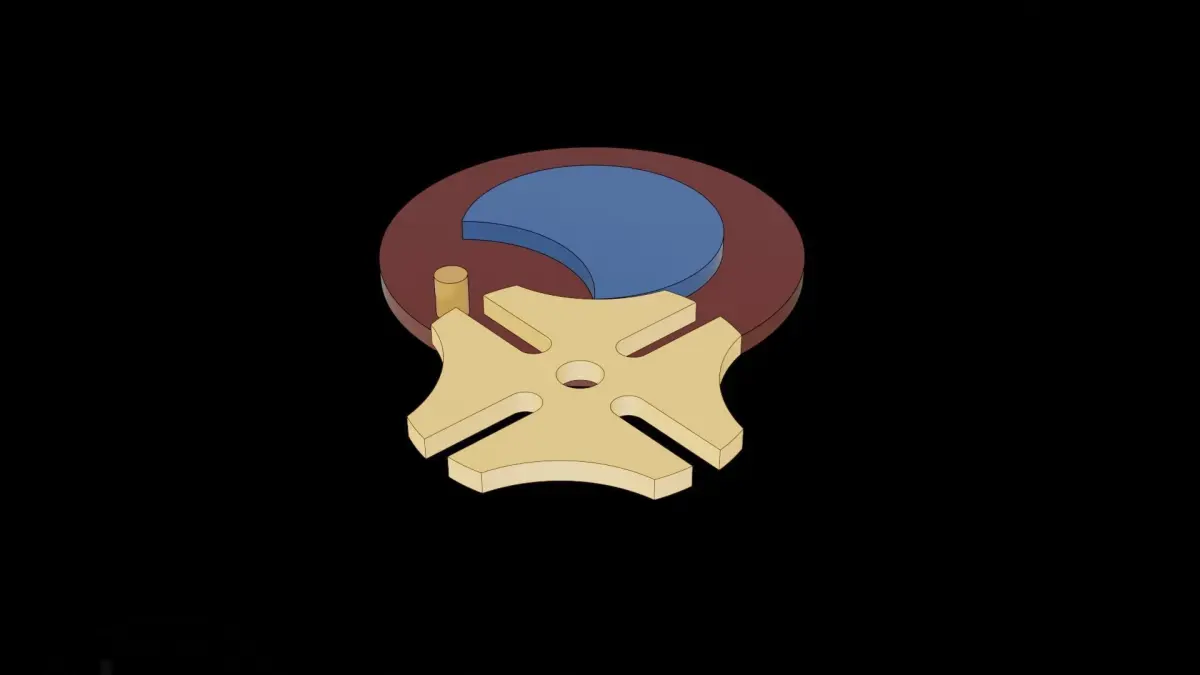

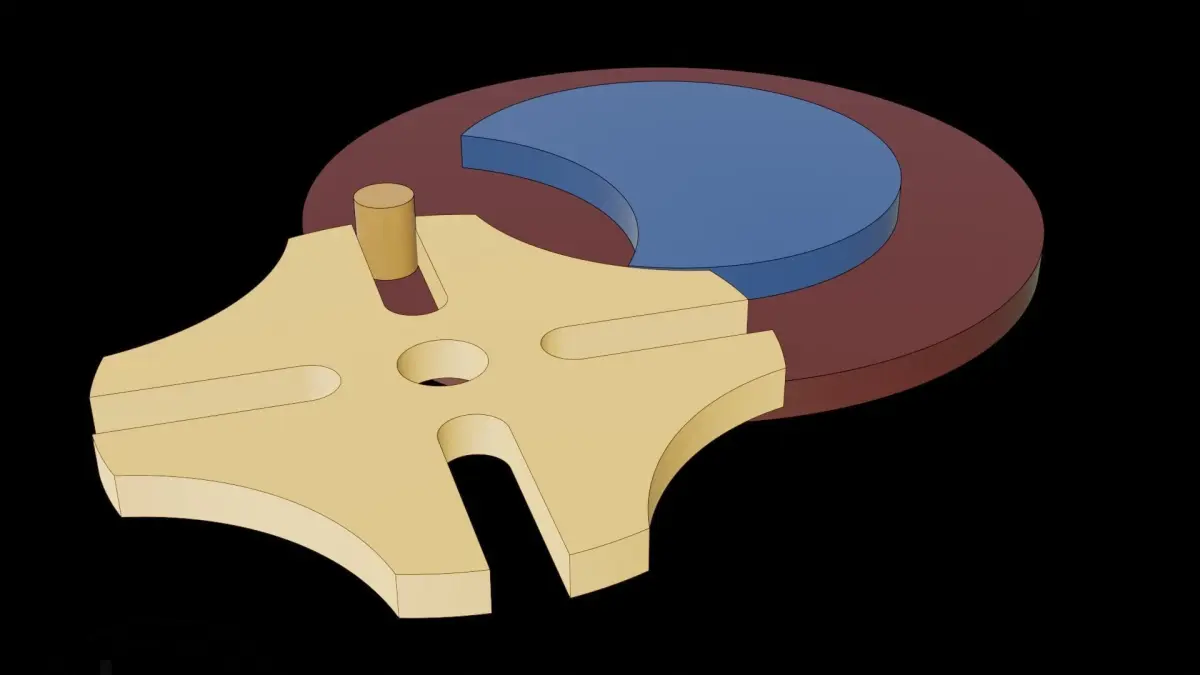

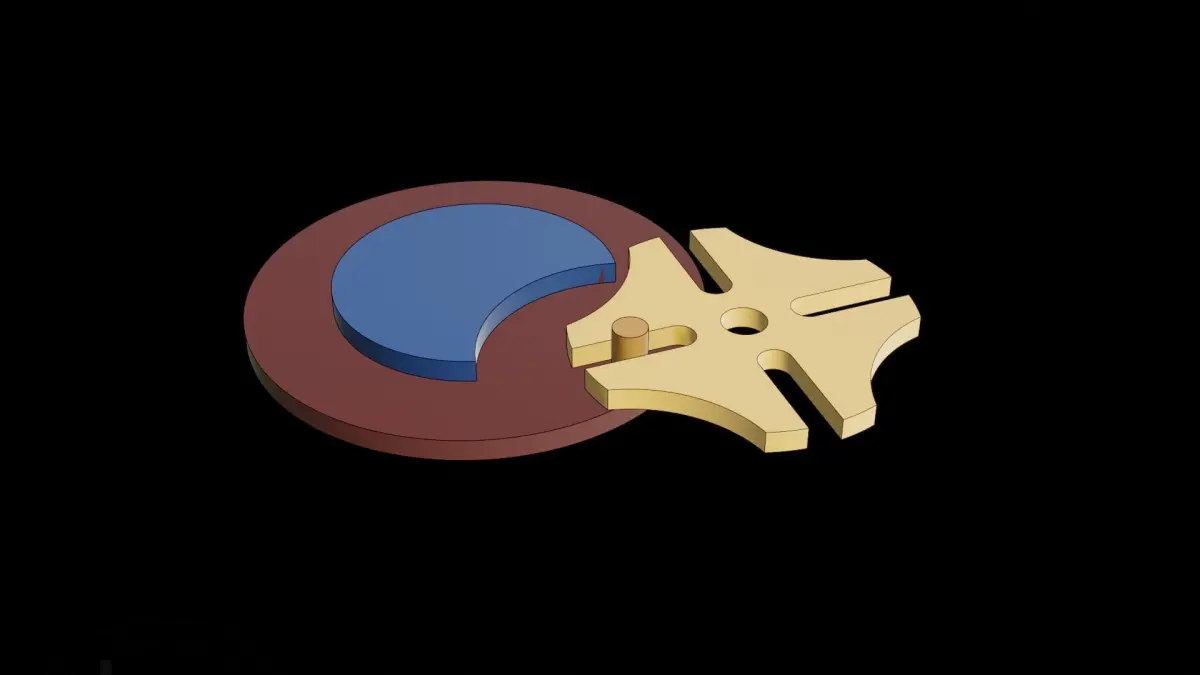

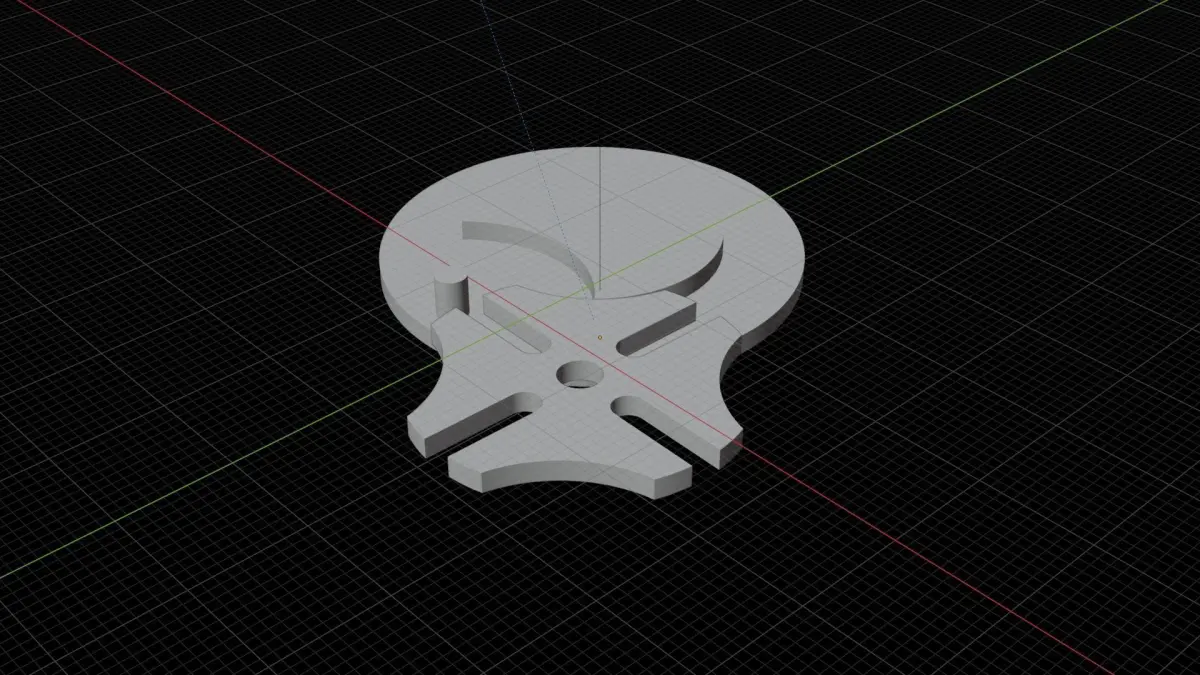

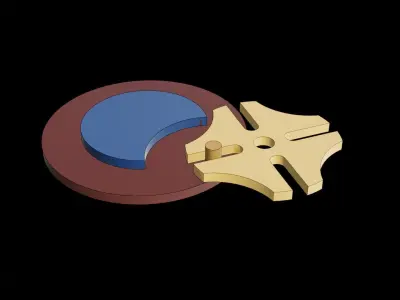

The Geneva drive, also known as the Maltese cross mechanism, is a popular mechanical system used to convert continuous rotational motion into intermittent rotational motion. This mechanism comprises a drive wheel with a pin that engages with slots in a wheel shaped like a Maltese cross.

Files: Blend, OBJ (I can convert it to any format you want - Just leave a message)

Check video for animation.

ANIMATED, PBR

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: 0
Vertices: 0

Tags

Gears Machinery Wheel Precision Mechanism Steel Machine Technology Industrial Part Mechanical Cog Engineering Worm Geneva Drive Maltese Industrial part

All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Atypical-Engineer». CGhub does not claim copyright ownership over the content used.
