Heavy Duty Welded Support Structure - Industrial Frame 3D model

Heavy Duty Welded Support Structure - Industrial Frame 3D model

Publication date: 2025-09-07

Heavy Duty Welded Support Structure - Industrial Frame 3D model

$8

License: Royalty Free License

author:

Lucasbox

Description

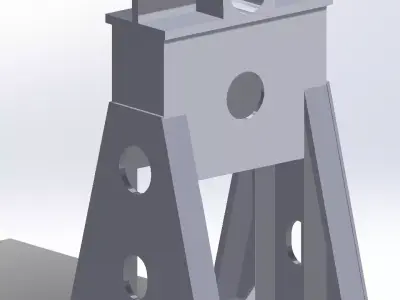

3D CAD model of a welded industrial support structure, designed with plates, reinforcements, and through-holes.This model includes the full 3D CAD geometry.

Features:

Clean and optimized geometry.
Real-world scale in millimeters.
Includes hole details (M10, Ø135 mm, etc.).
Suitable for CNC, laser cutting, fabrication, or finite element analysis (FEA).
Can be easily imported into SolidWorks, Fusion 360, Inventor, CATIA, and other CAD software.

Applications:

Structural design and mechanical engineering projects.
Prototyping and industrial equipment design.
Technical visualization and assembly documentation.
Manufacturing reference for welding and fabrication.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: 0
Vertices: 0

Tags

Engineering Industrial Support Welded Structure Steel Frame Mechanical Part Cnc Fabrication Heavy Duty Drawing Base Plate Structural Machine Industrial machine

All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lucasbox». CGhub does not claim copyright ownership over the content used.
