Hinge locating mechanism 3D model
Home Catalog Aircraft part Hinge locating mechanism 3D model
Hinge locating mechanism 3D model
Hinge locating mechanism 3D model
Hinge locating mechanism 3D model
Hinge locating mechanism 3D model
Hinge locating mechanism 3D model

Publication date: 2018-05-11

Hinge locating mechanism 3D model

$18

License: Royalty Free License

author:

forestlsls

Buy at www.cgtrader.com - $18 Add to Wishlist
  • Description
  • Formats
Description

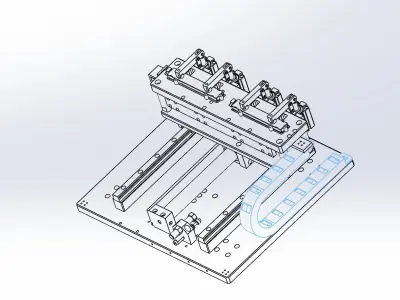

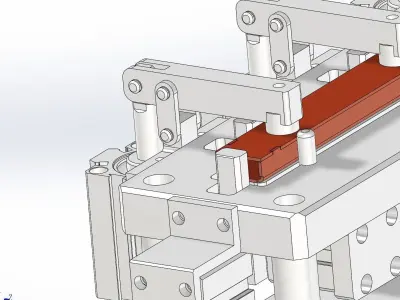

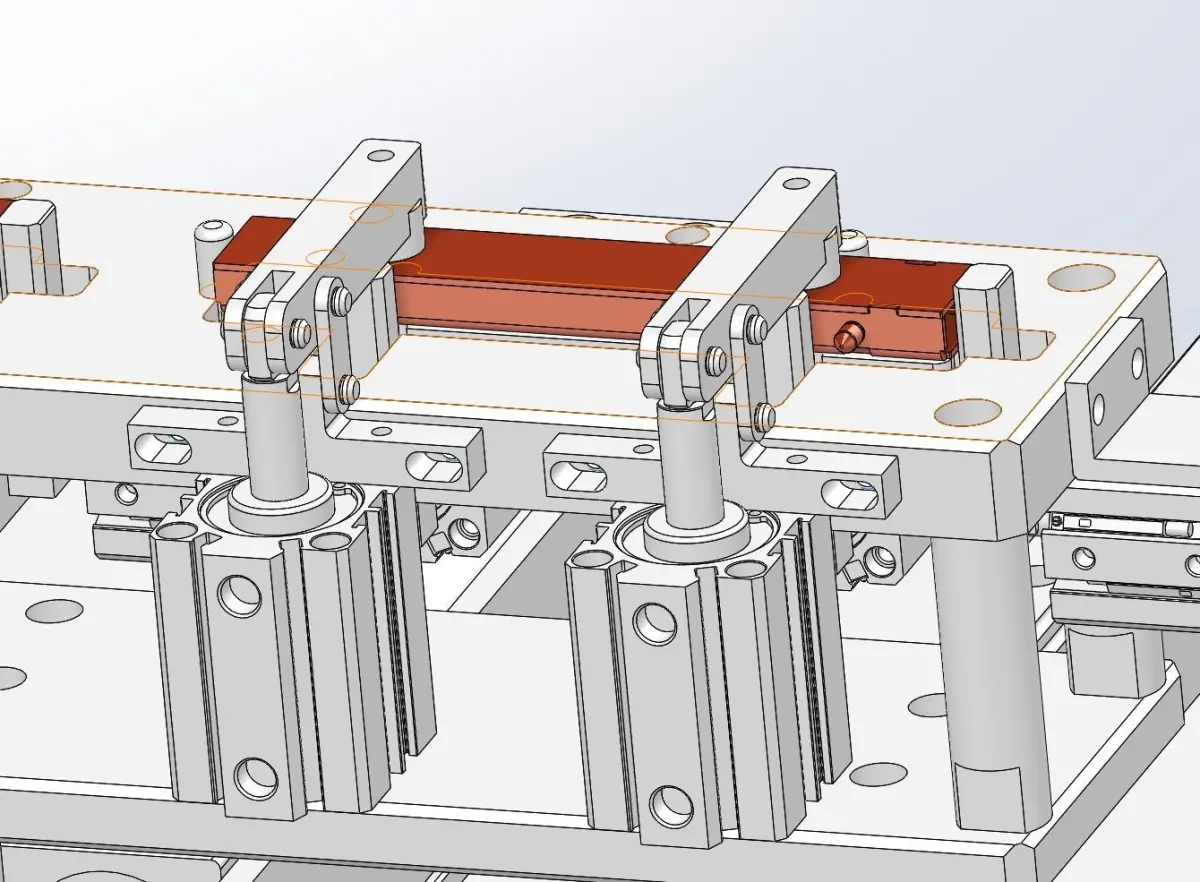

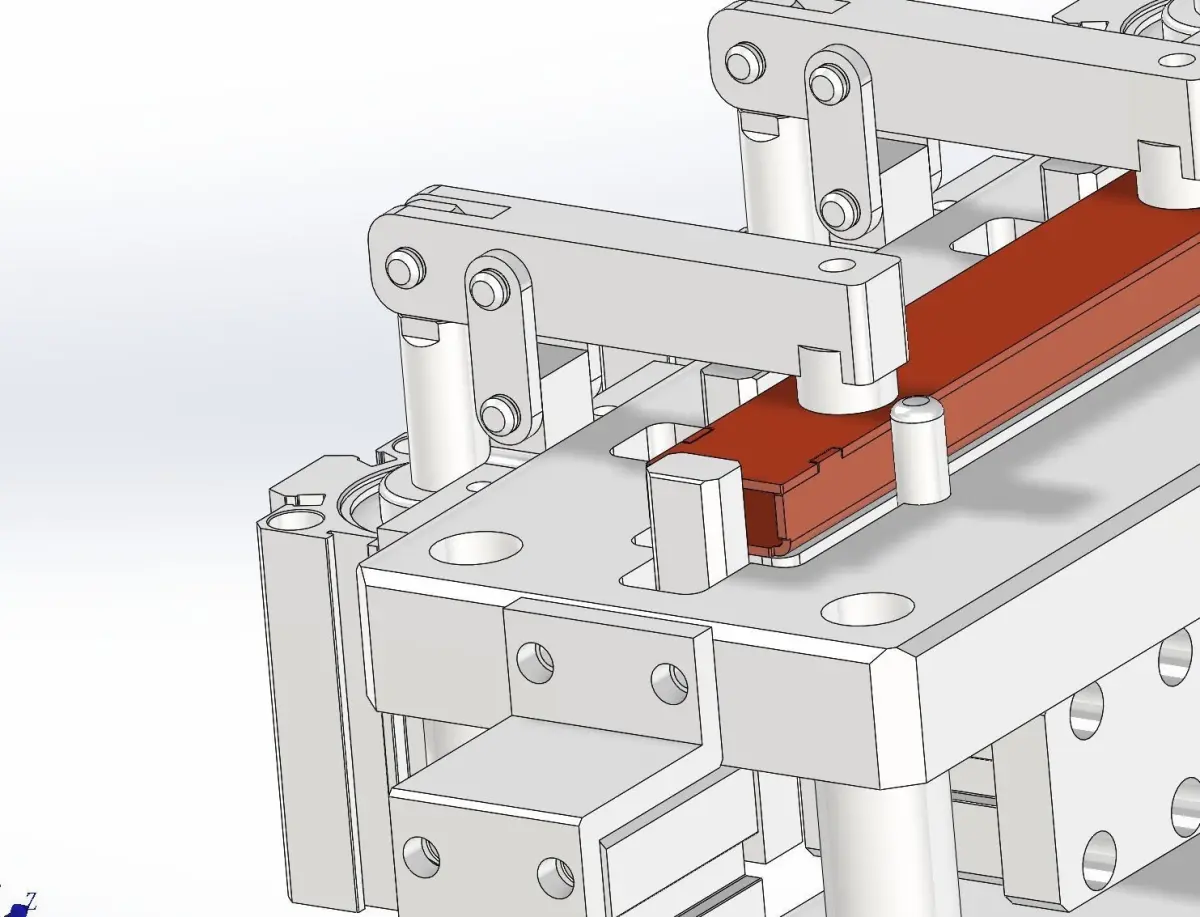

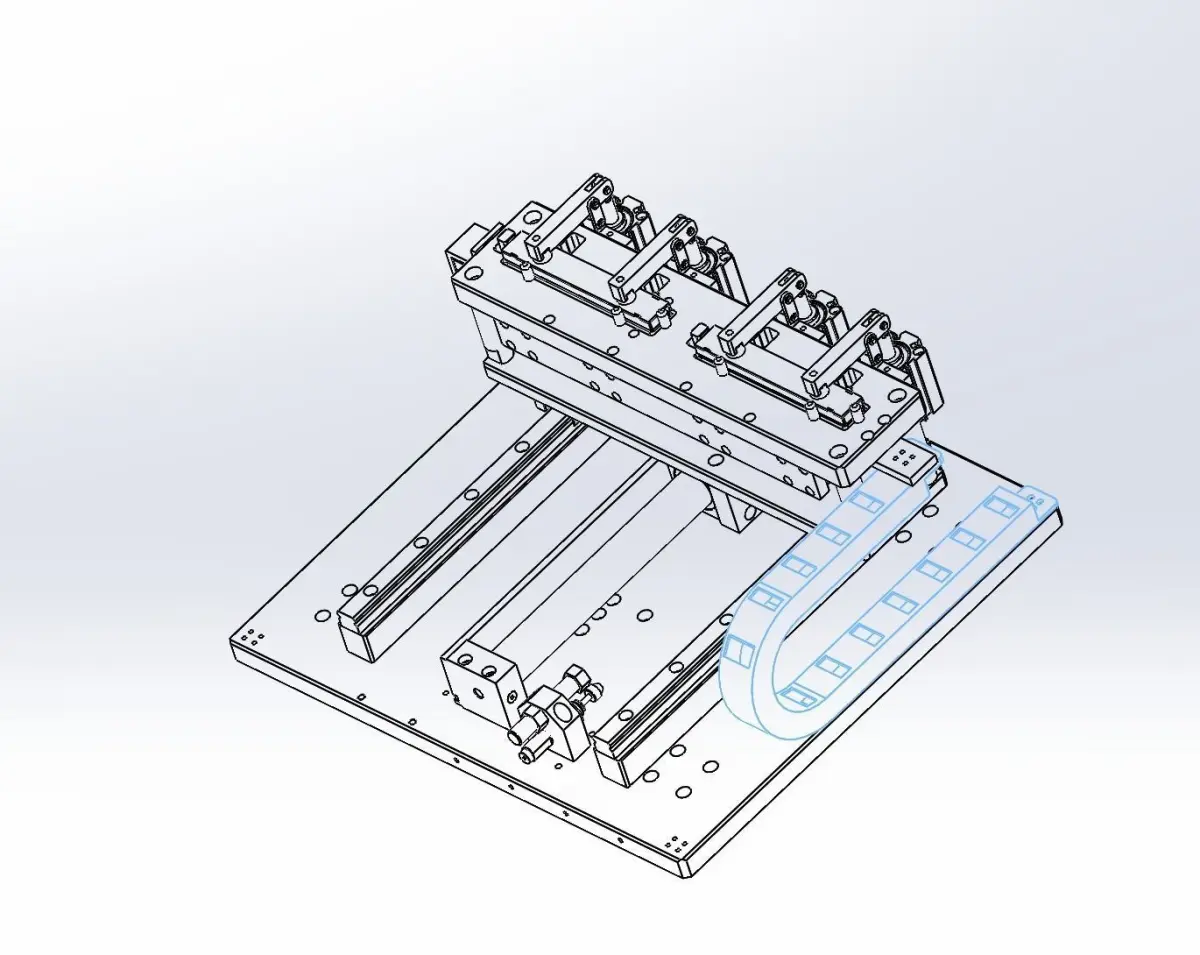

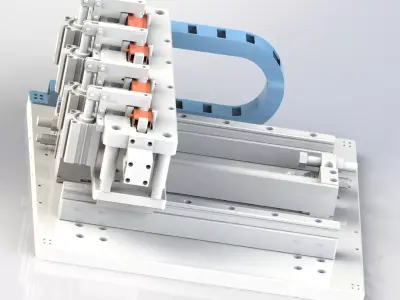

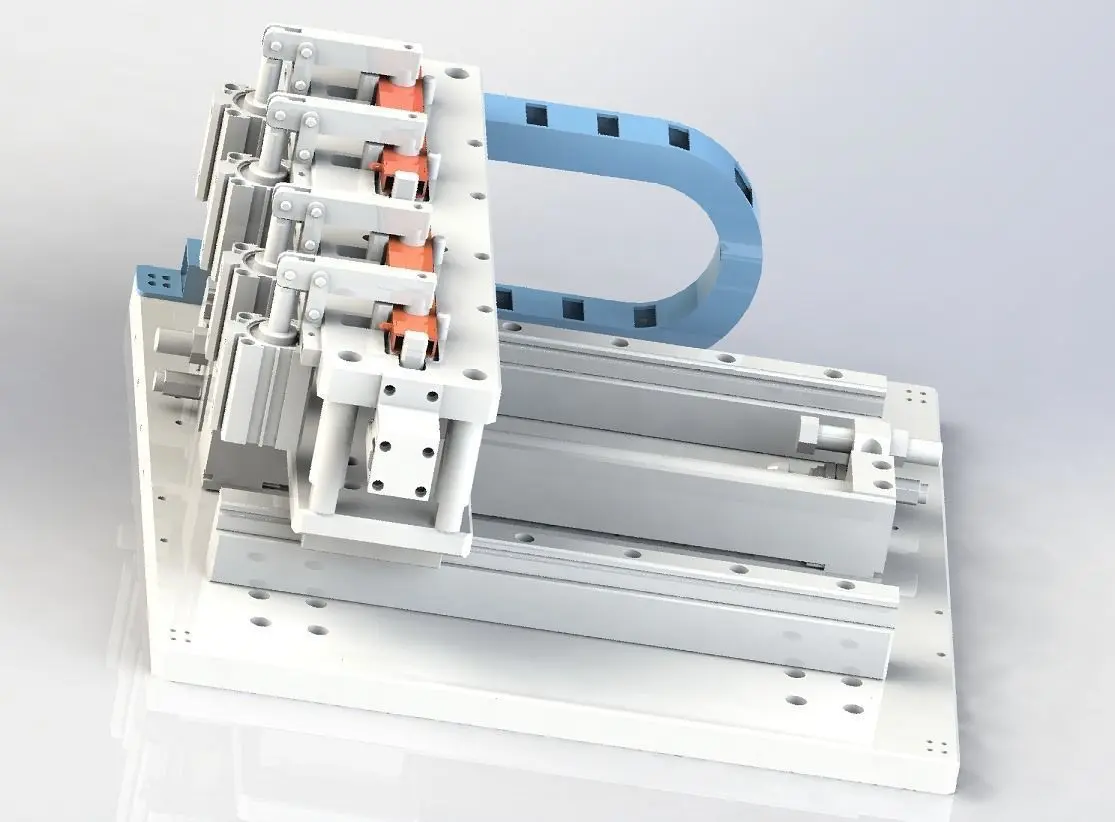

Hinge locating mechanism, the mechanism through a set of pneumatic cylinders double slide form the slider mechanism, at the same time on the sliding table is group of hinge point, through the cylinder and rotating hinge connecting form, it can be used in loading module, the product into the positioning fixture, cylinder push hinge press and hold the productmechanism include

  1. Hinge mechanism
  2. Sliding table mechanism
  3. Compression mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds-max-Fbx
  4. and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 163,630
  • Vertices: 327,110

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Hinged Slider Table Industrial machine Industrial part Industrial factory
