Description

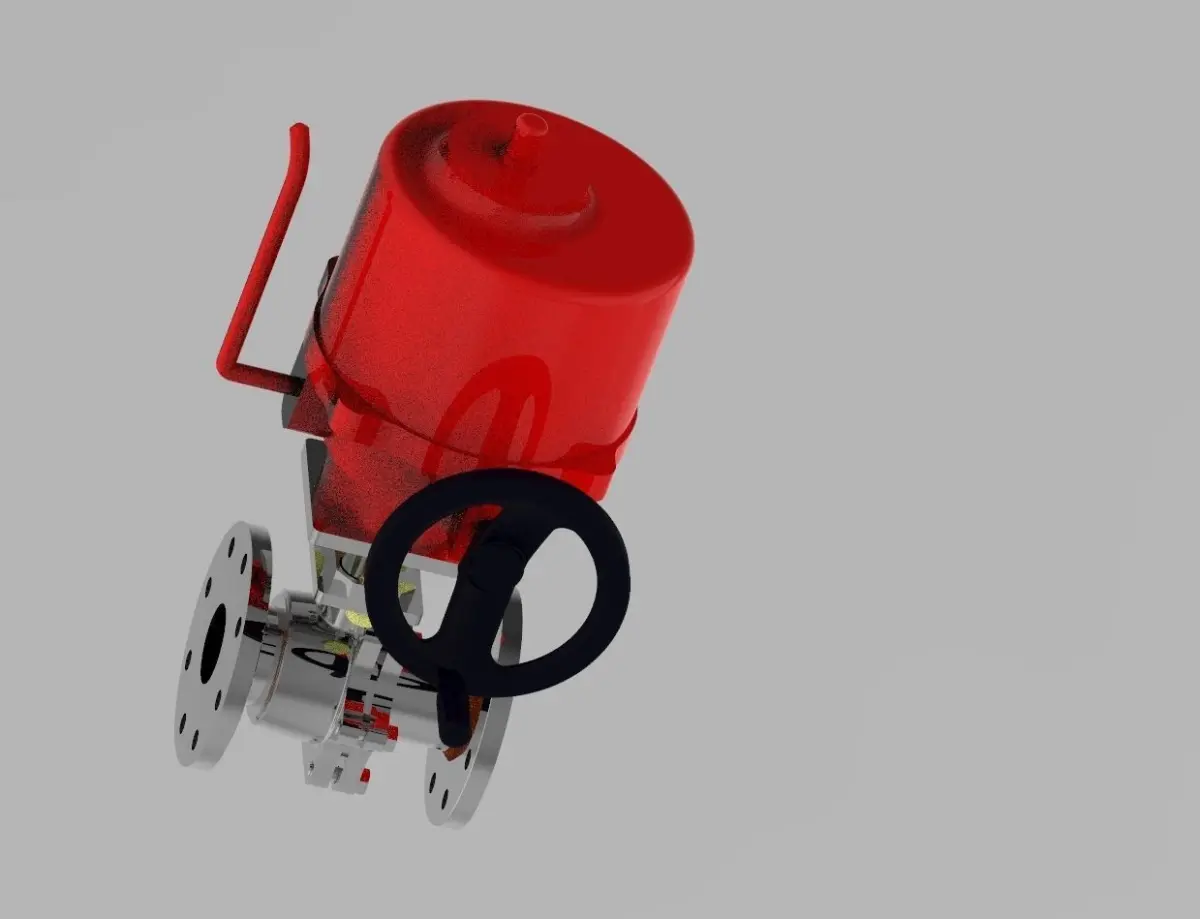

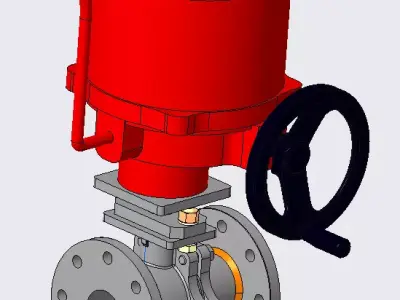

HQ series electric actuator is specially designed for quarter turn operating applications such as Ball, Butterfly, Plug valves, Dampers and similar usages. - It's variation in wide range of output torque control options fit your specific requirement. - HQ series electric actuator provides high reliability and performance for your automation plan. - Compact and low weight due to high grade aluminum alloy for housing. - High corrosion resistance due to hard anodizing on inside & outside and polyester coating on external surface. - Various output torque from 80Nm to 3000Nm. - Wide range of voltage available - Self locking with minimum backlash in the transmission - Rugged construction with o-ring system giving water and explosionproof. (optional : explosionproof/Exd IIB T4, IP68) - Handwheel for manual operation engaged by a manual/auto lever arranged for power preference - Easy mounting base standard to ISO5211 - Standard 4 limit switches. 2 for operation, 2 for extra (dry contacts) - Torque switches (except for HQ-008) - LED lamps on indicator monitoring valve position and operation (option) - Space heater with thermostat for preventing overheat - Removable drive bushing with under hung for easy machining and tight connection.
- Low weight & Robust design
Motor Power : DC24V AC110/220V, 1PH, 50/60Hz ±10% AC220/380/440/460/480V, 3PH, 50/60Hz ±10%
Flexible option : LCU, RBP, PCU, etc
Enclosure : weather proof - IP67, IP68 explosion proof - Ex d IIB T4(IECEx, ATEX ...)
4x limits switches(standard) - except HQ-008/010
2x torque switches(standard) - except HQ008/010
Reversible fan cooling motor
ON/OFF or Modulating
ISO 5211 mounting base
