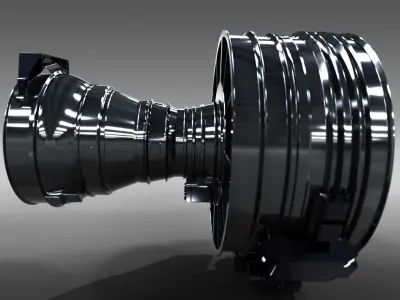

Jet Engine CFM56 International - 3d layout 3D print model

Publication date: 2021-02-03

Jet Engine CFM56 International - 3d layout 3D print model

$16.99

License: Royalty Free License

author:

warxen

Description

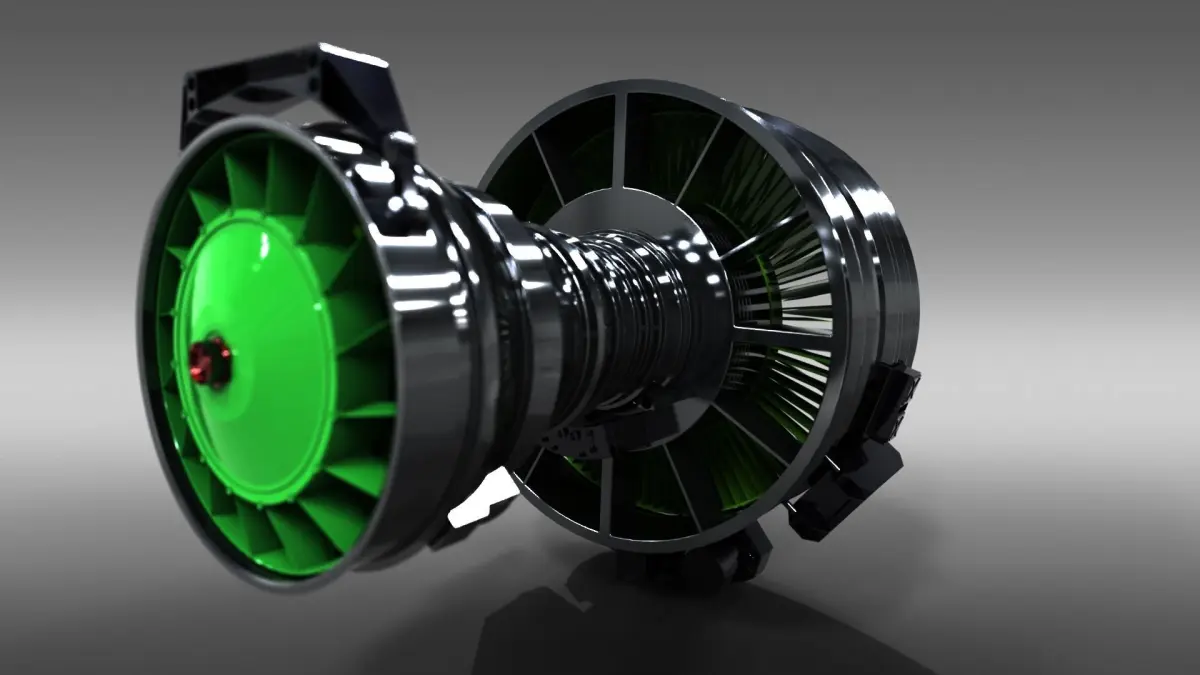

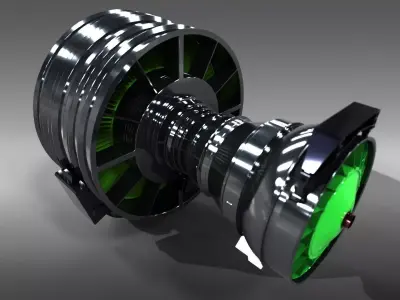

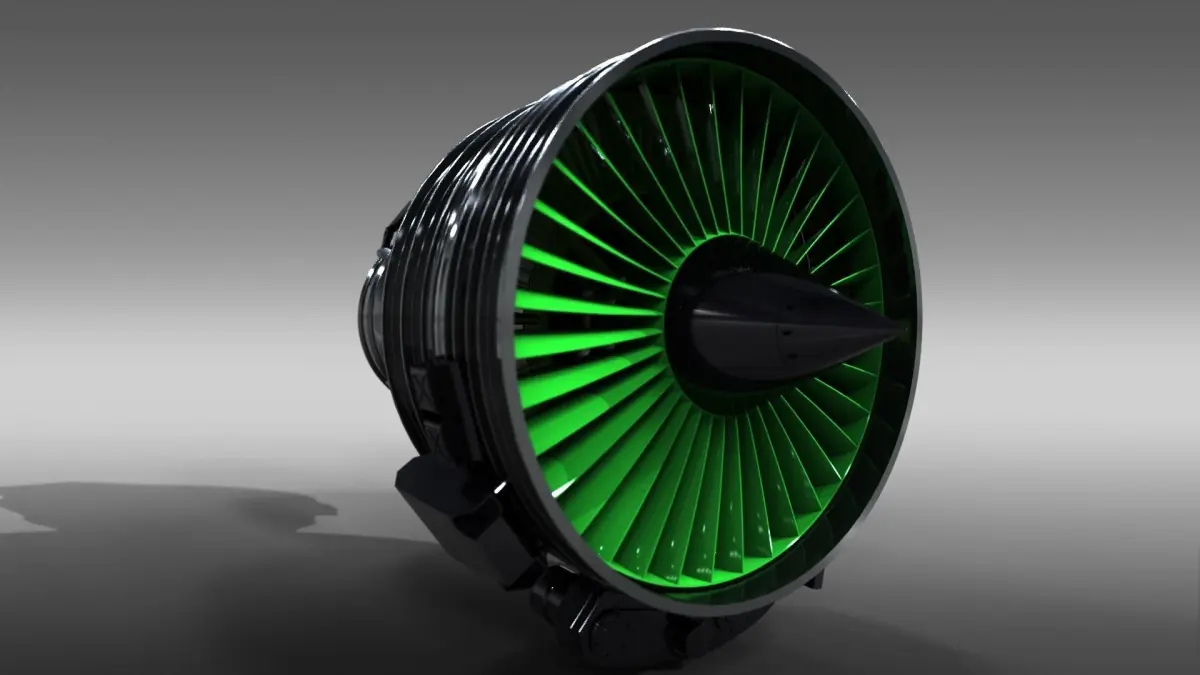

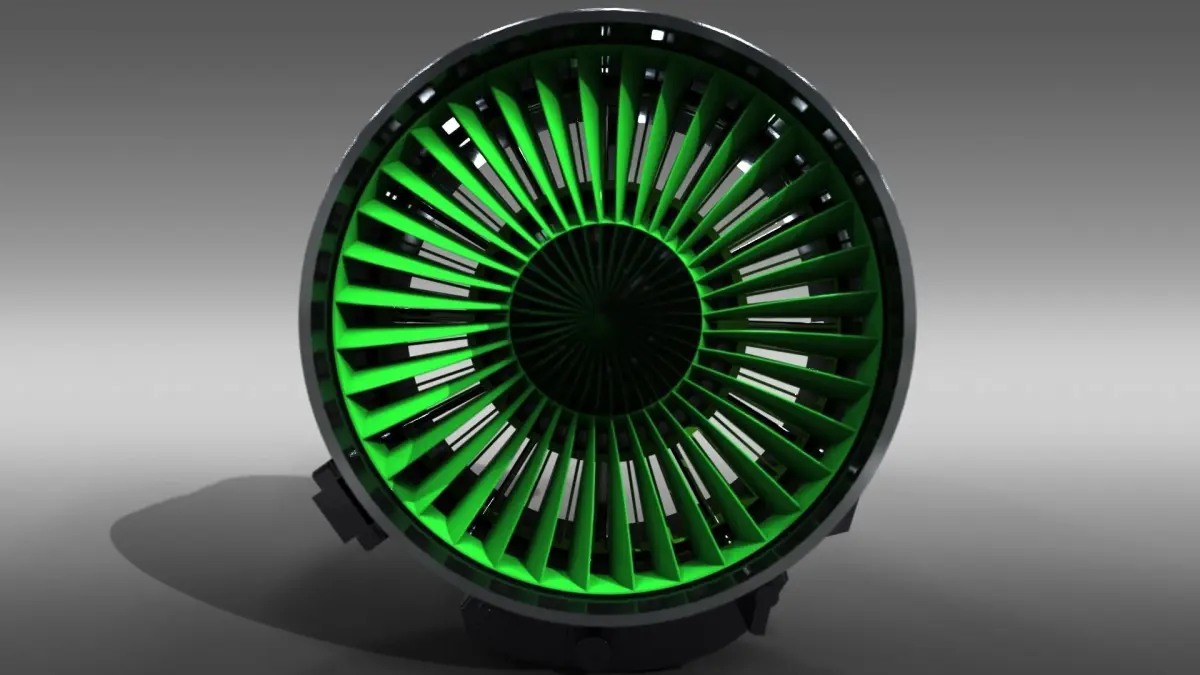

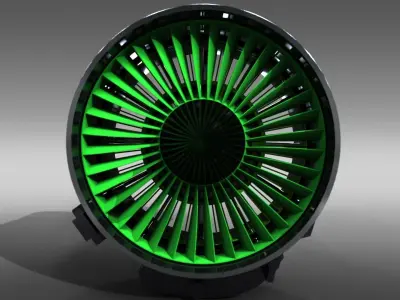

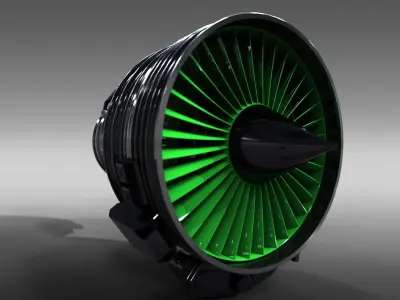

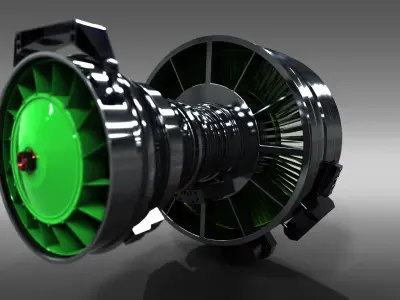

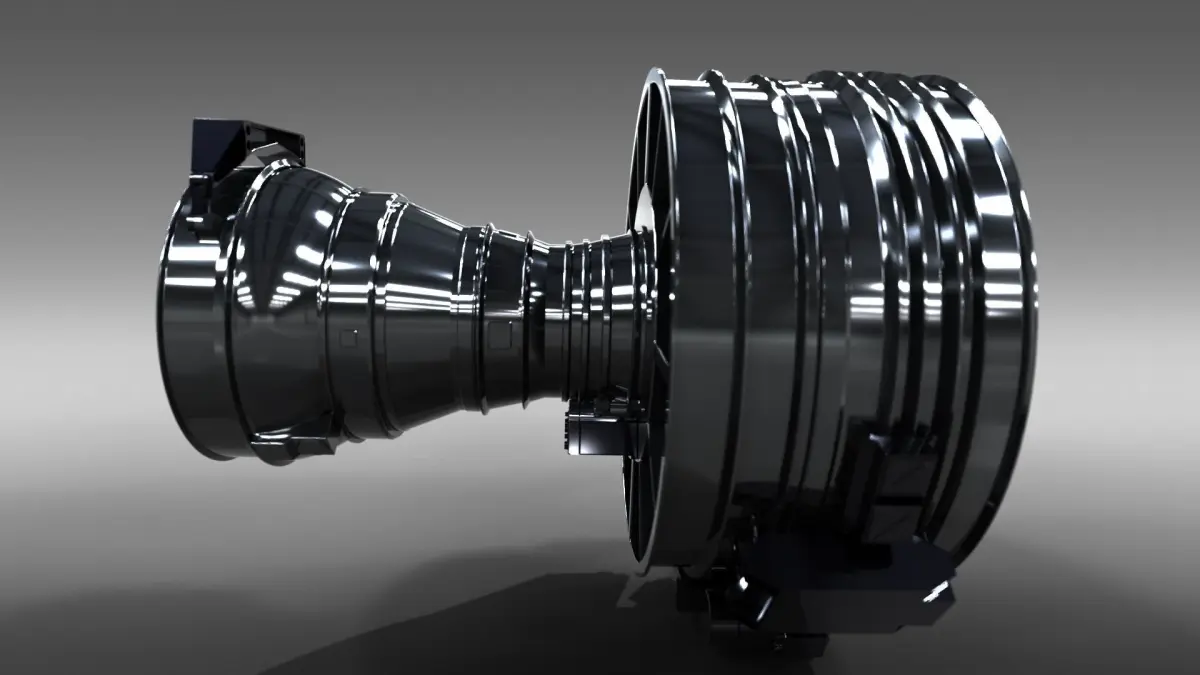

Simplified 3d model of CFM56 International JEt Engine (1:10 and 1:15). 3D print model.CFM56 is a high-bypass turbofan engine (most of the air accelerated by the fan bypasses the core of the engine and is exhausted out of the fan case) with several variants having bypass ratios ranging from 5:1 to 6:1, generating 18,500 to 34,000 lbf (80 kN to 150 kN) of thrust.Developed in Solidworks 2017. Converted to STL and STP (STEP)Ready for 3D print. M3 screws and glue are used for assembly Available formats: sldasm/sldprt, STL, STEP

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: Unknown
Vertices: Unknown

Tags

Cfm56 Print Printable Layout Jet Engine Plane Science Engineering Mechanical Jet engine
