Large laser cutting machine 3D model

Description

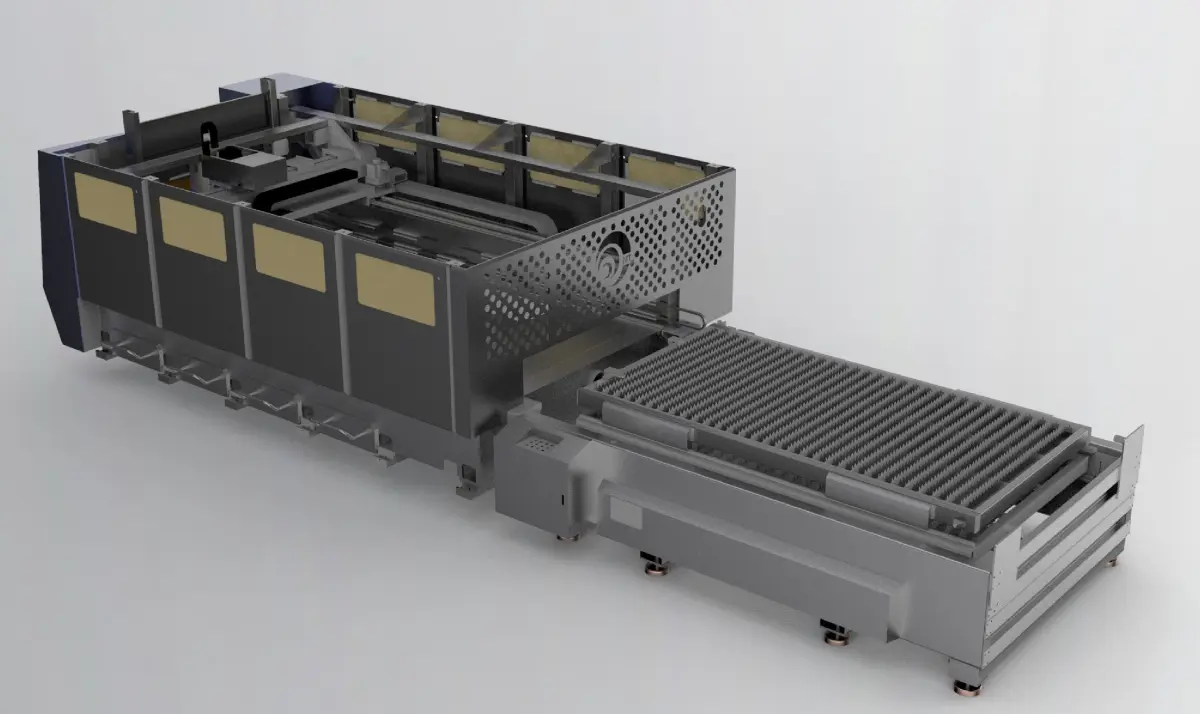

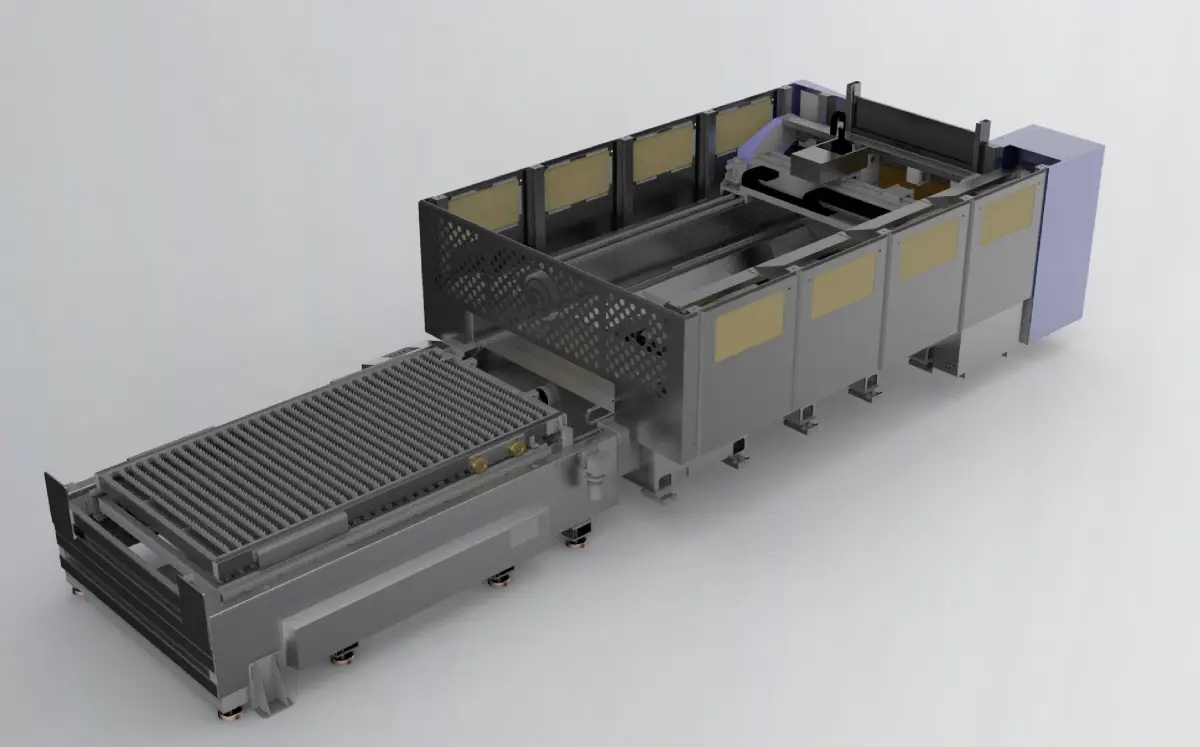

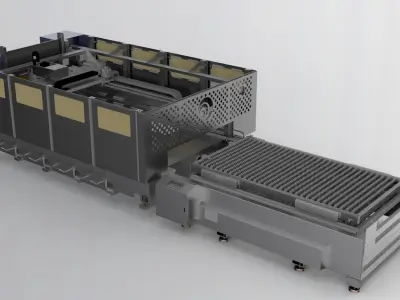

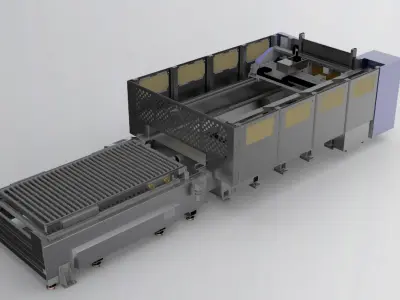

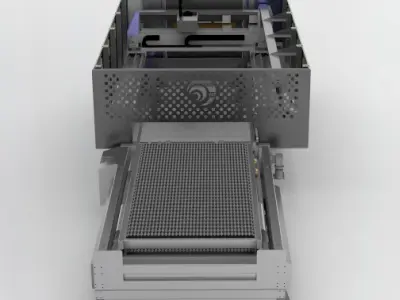

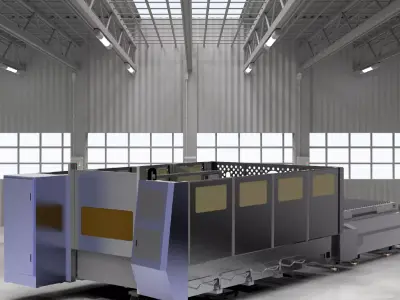

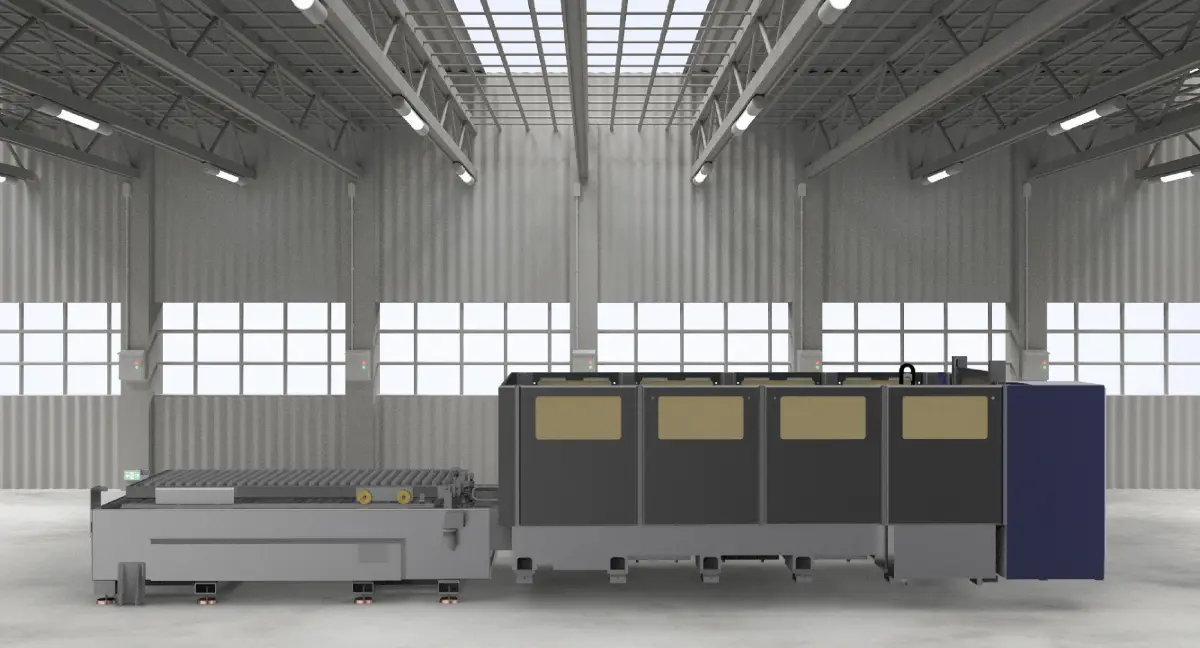

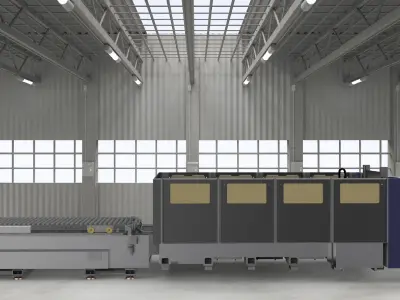

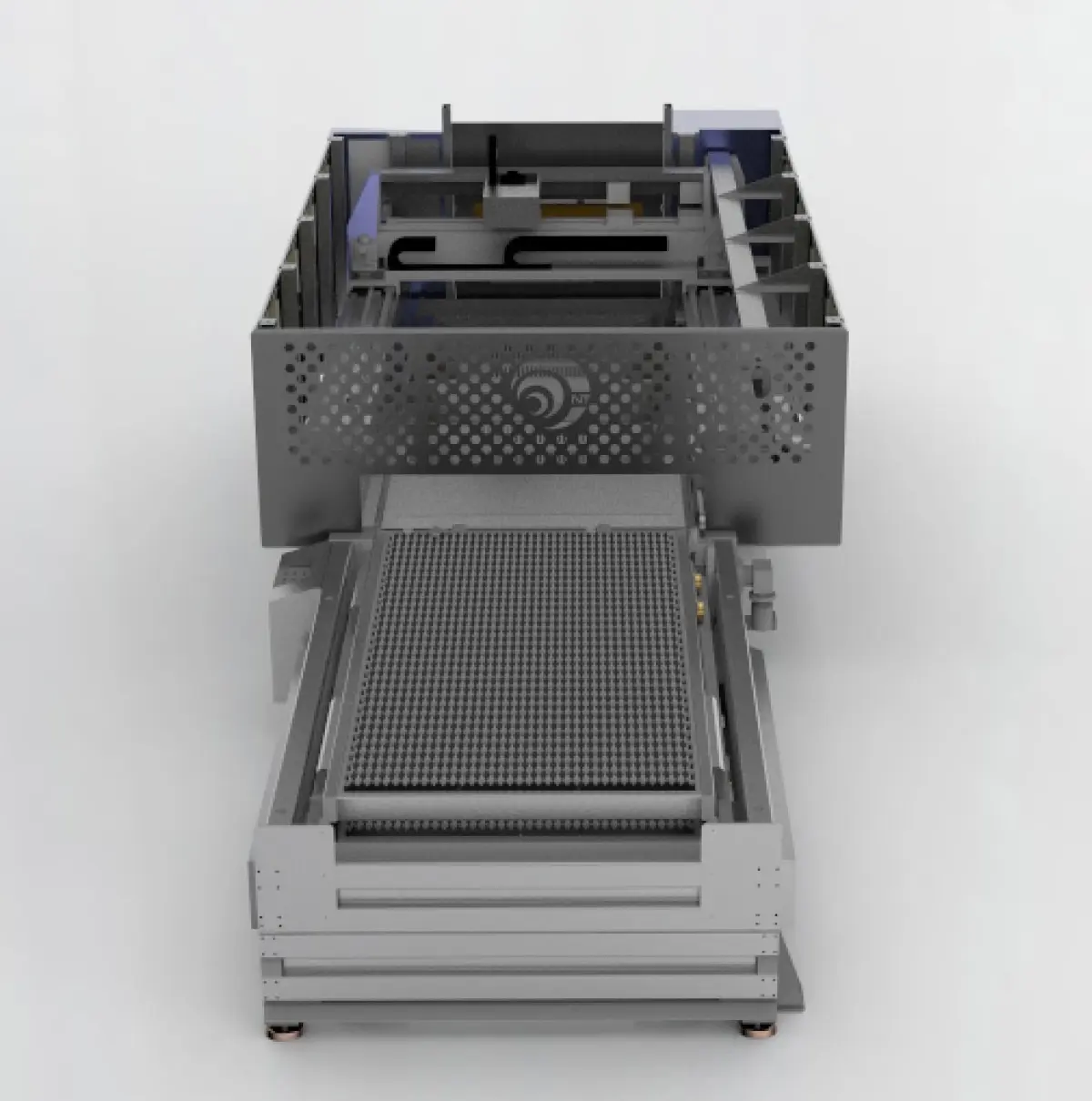

Large laser cutting machine

The machine comprises a plate feeder and a laser cutting machine, which uses a three-axis gantry mechanism to drive the laser head to cut products.High power density laser beam is used to irradiate the cut material, so that the material is quickly heated to the vaporization temperature, evaporation to form holes, with the movement of the light beam on the material, the holes continuously form a very narrow width (such as 0.1mm or so), to complete the cutting of the material.The mechanism includes:

Three-axis load shifting mechanism of gantry
Laser head mechanism
Feeding mechanism
Electrical machinery

polygons: 12507172

Vertice: 25005060

Files format contains

-solidworks 2017-step-iges-Fbx-3dmax

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 12,507,172
Vertices: 25,005,060
