Description

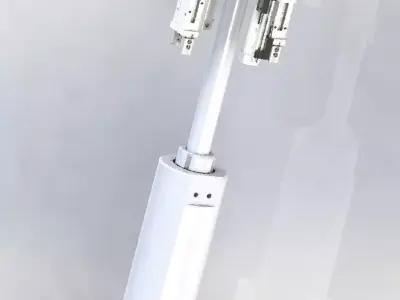

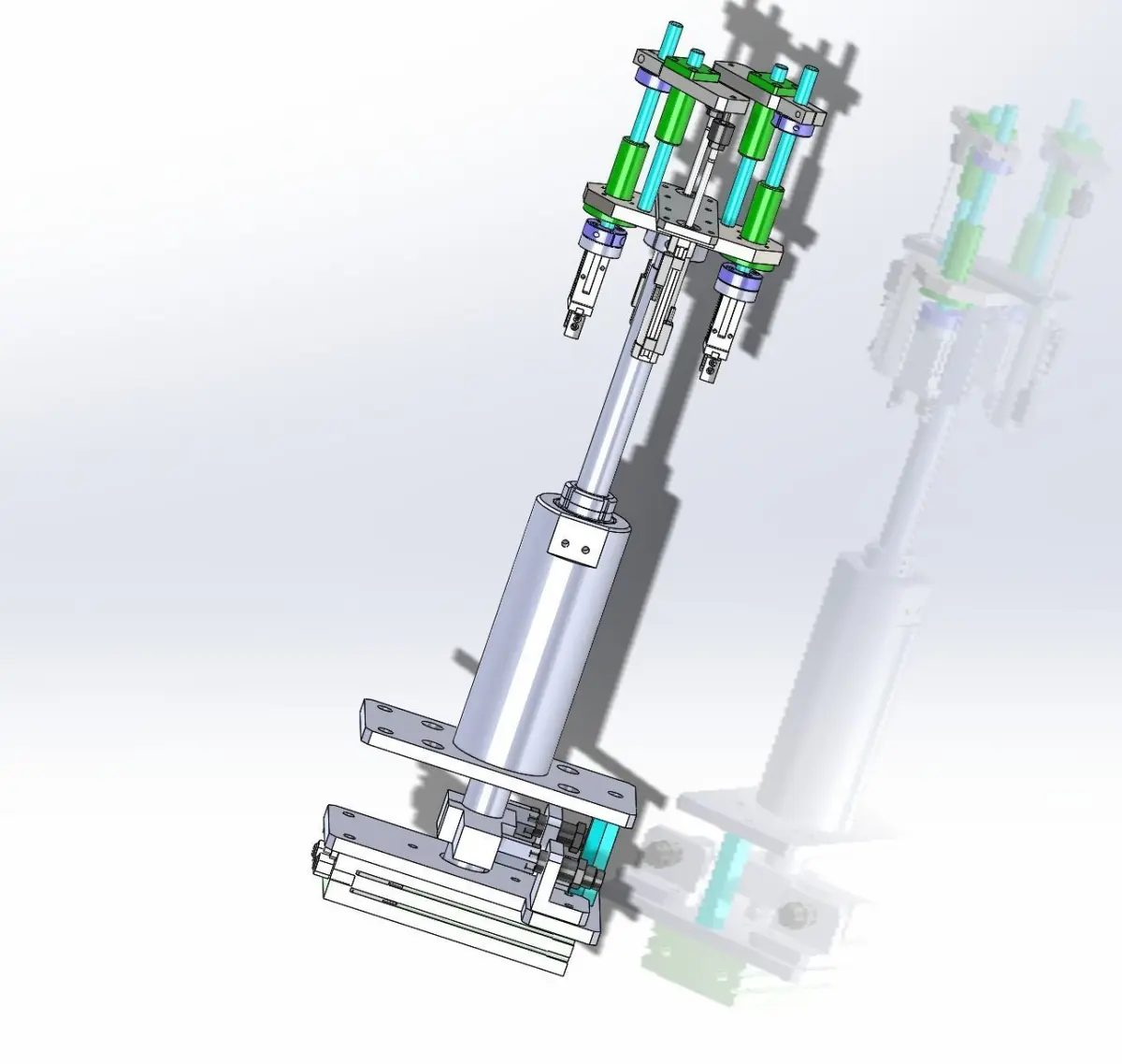

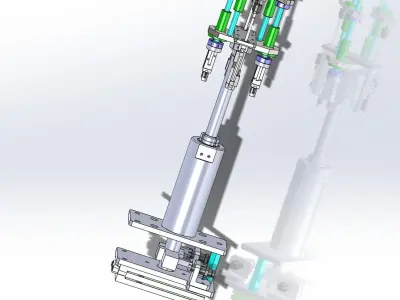

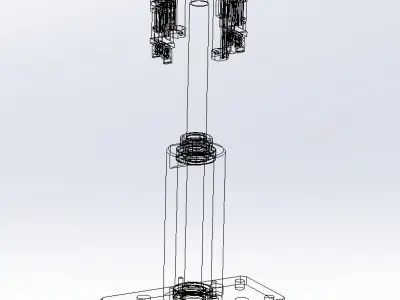

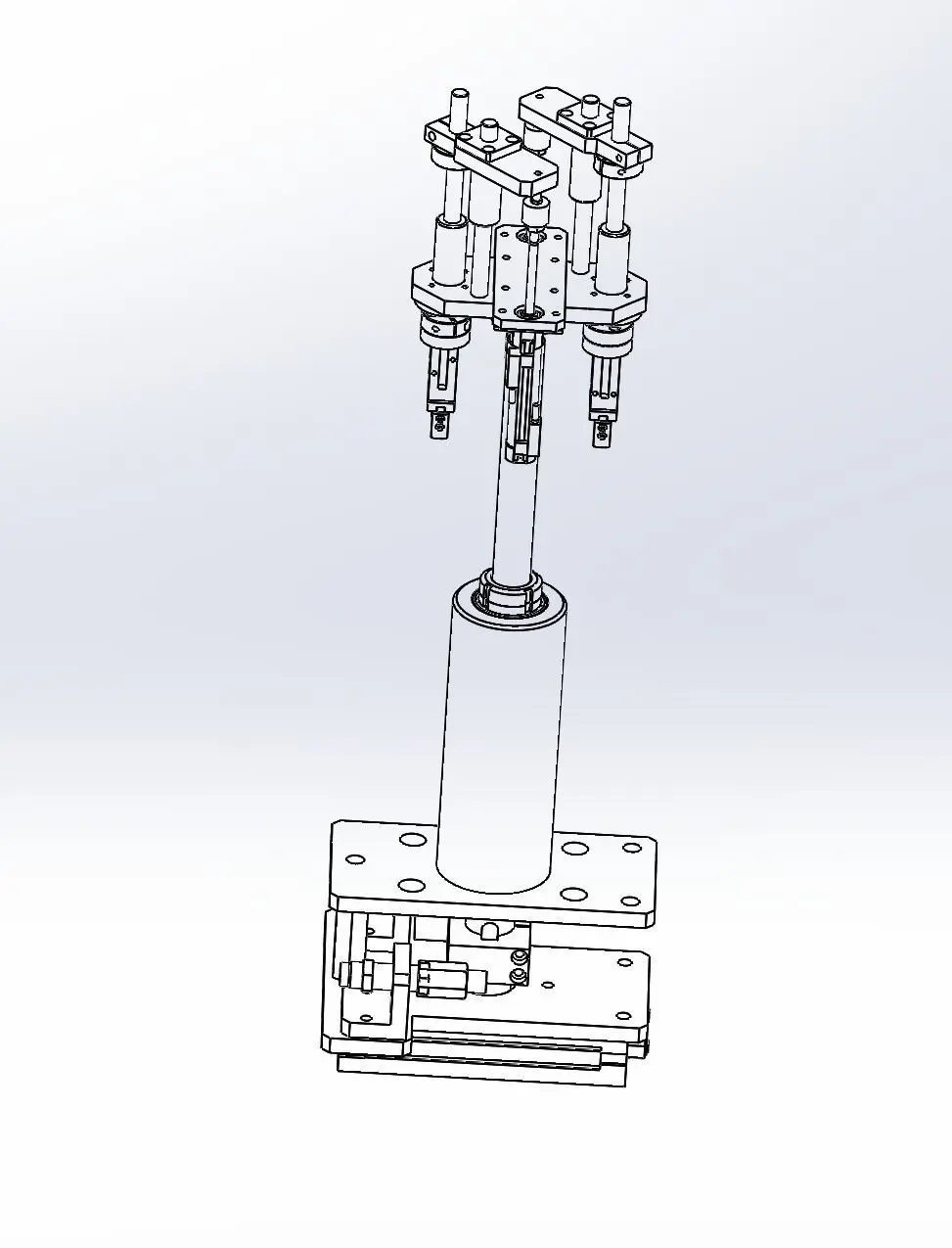

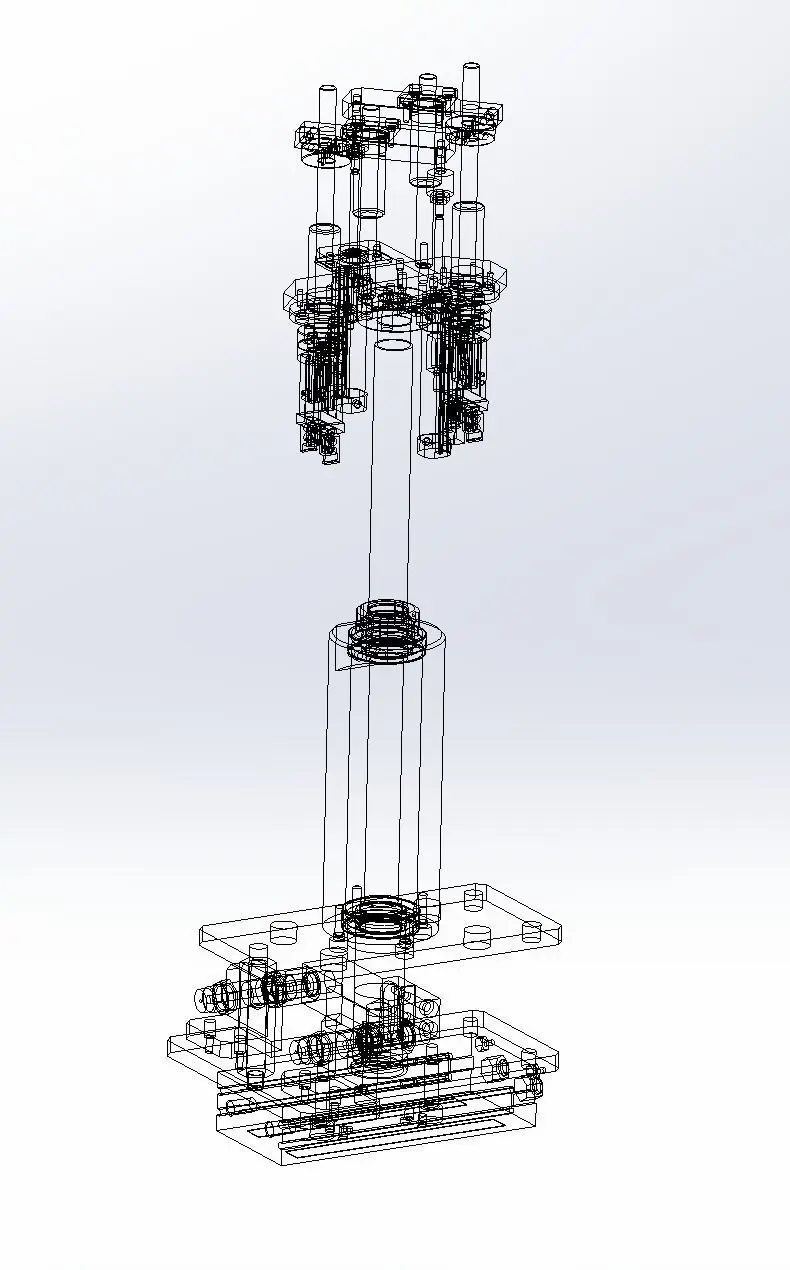

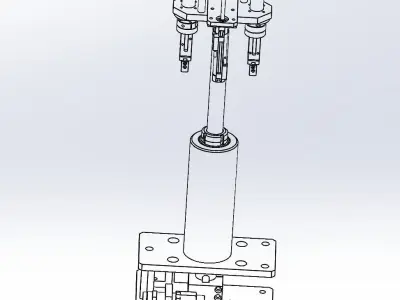

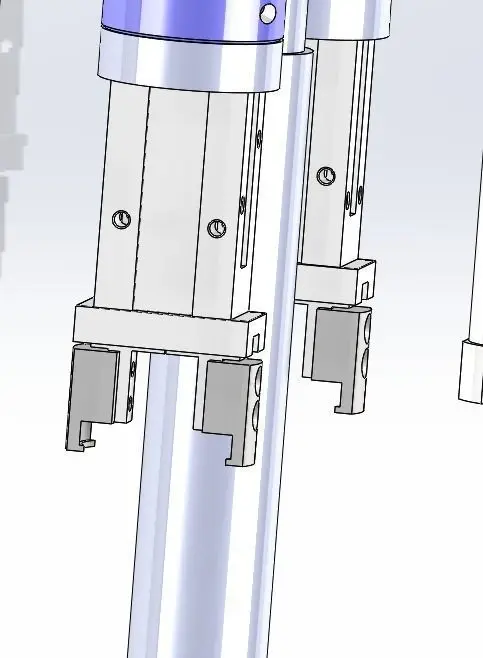

Long stroke cylinder application mechanism，the mechanism by the guide rail and linear bearings, which converts the different side of the cylinder with the lateral structure, reduces the installation distance, using the rotating cylinder structure, to be clamping jaw mechanismmechanism include

  1. Rotating mechanism

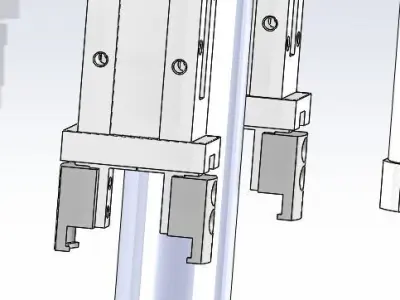

  2. Position structure of cylinder transfer.
  3. Clamping mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds
  4. and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************
