Publication date: 2013-08-28

Master brake fluid tank 3D model

$15

License: Editorial No Ai License

author:

fabelar

Buy at www.cgtrader.com - $15 Add to Wishlist
  • Description
  • Formats
Description

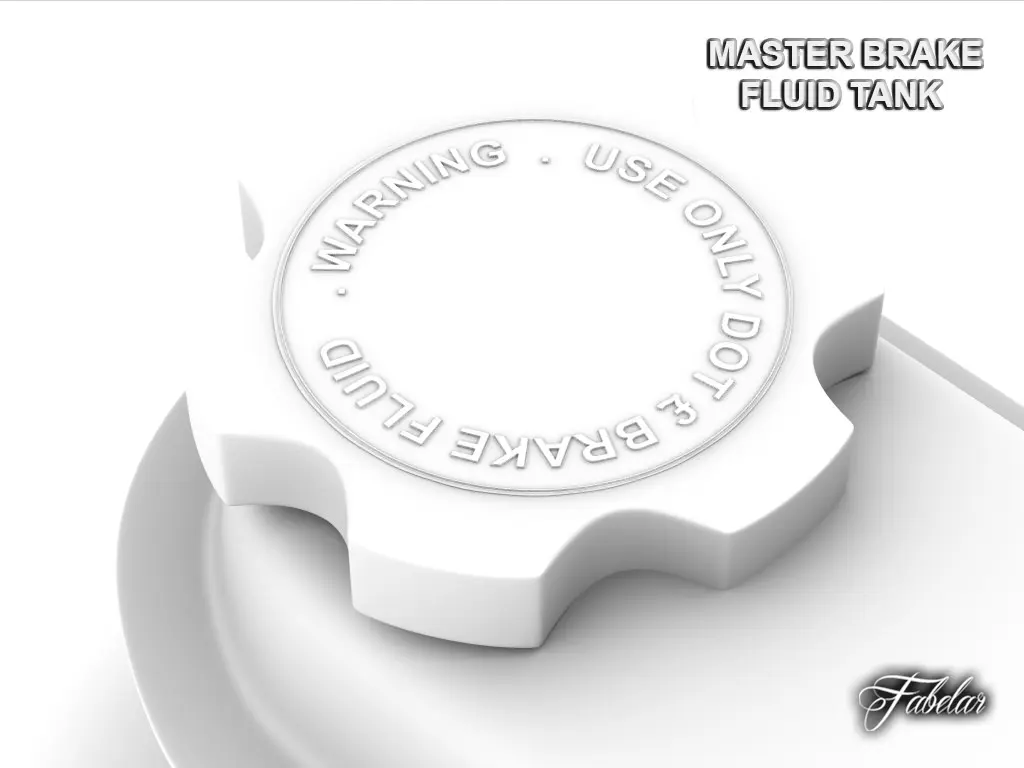

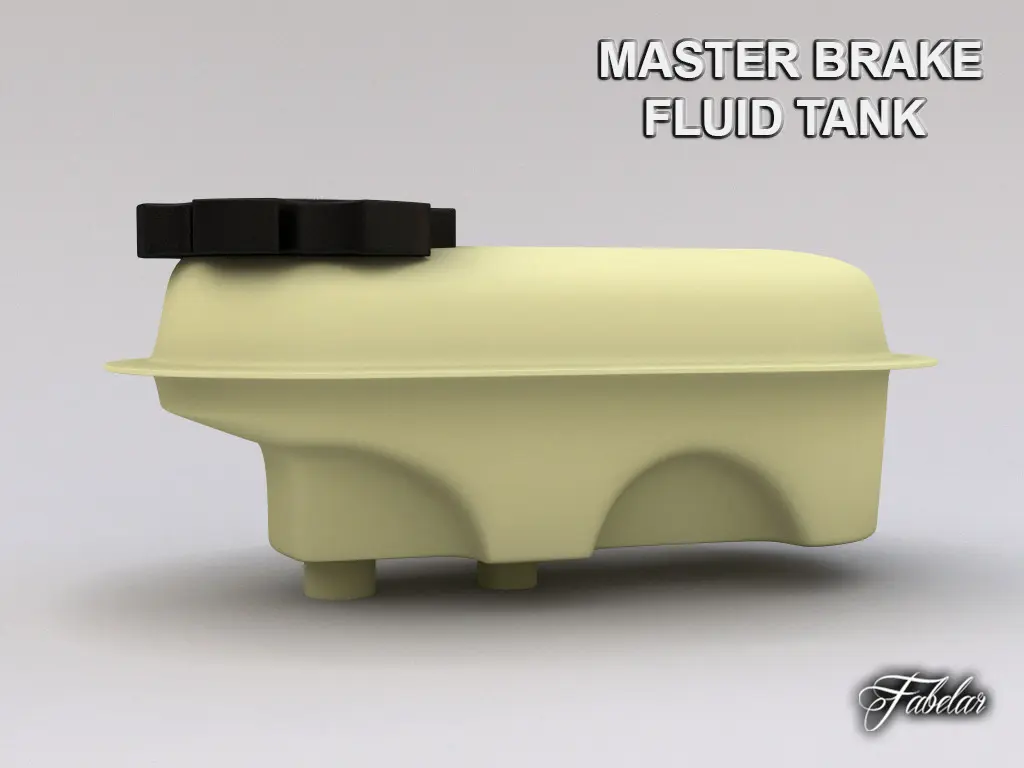

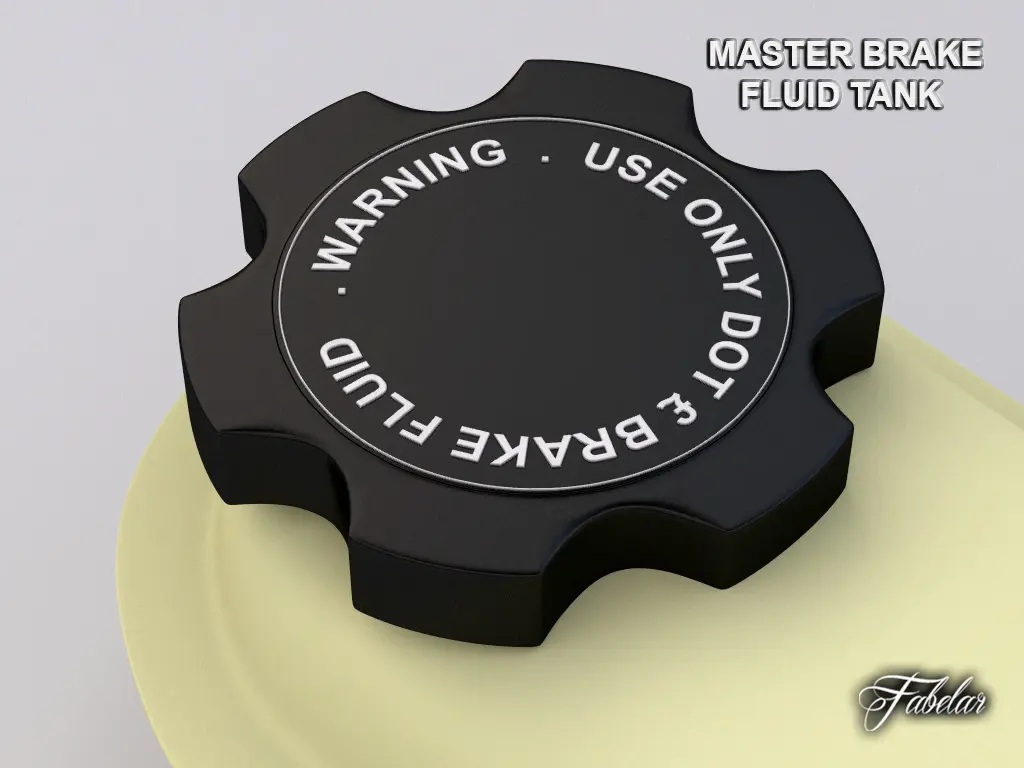

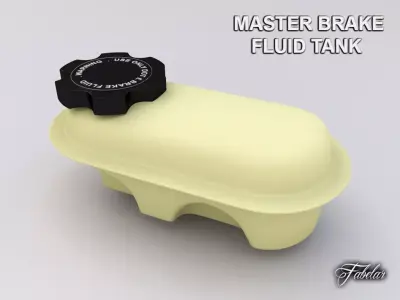

Master brake fluid tank 3D model. Multiple formats

Original lowpoly geometry preserved.

Element of the modern hydraulic brake system on vehicles.

In a hydraulic brake system, when the brake pedal is pressed, a pushrod exerts force on the piston in the master cylinder, causing fluid from the brake fluid reservoir to flow into a pressure chamber through a compensating port. This results in an increase in the pressure of the entire hydraulic system. This forces fluid through the hydraulic lines toward one or more calipers where it acts upon one or two caliper pistons sealed by one or more seated O-rings which prevent the escape of any fluid from around the piston.

max 2010 vray and mentalray

3ds

obj

fbx

collada

c4d

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown

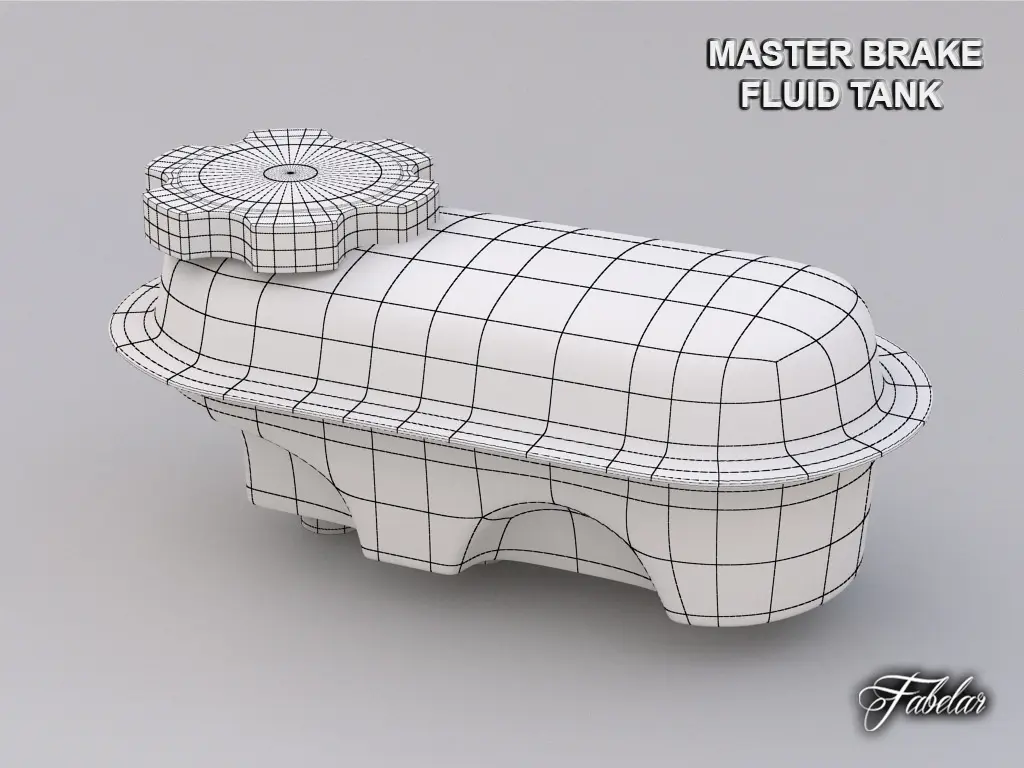

  • Geometry: Subdivision ready
  • Polygons: 1,922
  • Vertices: 1,889

Tags

Brake Fluid Tank System Hydraulic Car Vehicle Abs Esp Traction Drive Oil Liquid Plastic Components Element Technology Pressure Caliper Disc Master Brakes Brembo Part Blackfriday Dae Vehicle part Oil tank Brake caliper Brake disc Car fbx Car part Element car
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «fabelar». CGhub does not claim copyright ownership over the content used.
  • 3D Studio ()526 KB
  • Cinema 4D 12 ()650 KBVersion: 12Renderer: Default
  • Autodesk 3ds Max () (2 files)456 KBVersion: 2010Renderer: Mental Ray Version: 2010Renderer: V-Ray 2
  • Collada ()1.05 MB
  • Autodesk FBX ()731 KB
  • OBJ ()763 KB
