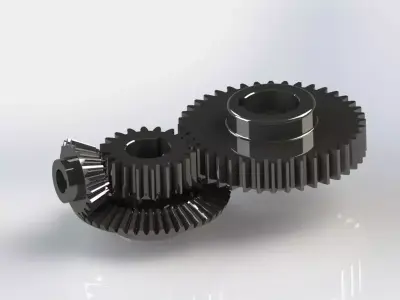

Meshing Gears - Gear Mechanism 3D model

$4

License: Royalty Free License

author:

PinoCAD

Description

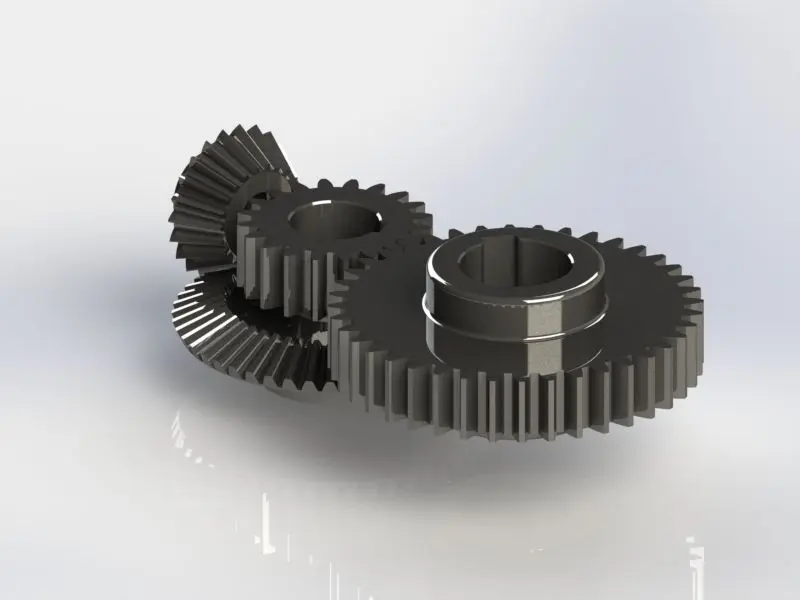

This meshing gears are completely designed and animated by me using Dassault SolidWorks. The gears are very detailed and realistic. It's perfect for your project. The specified gears mechanism is reducer.

It can be used for different project in mechanical scope. It can also be useful for student or companies who are looking for a meshing gears assembly or parts.

In the files there is also the assembly project (.sldasm) with the animation mates that are what you can see in the video.

Please contact me for any questions about or for help!

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 600,000
Vertices: 650,000
Plugins used

Tags

Gears Gearwheel Mechanical Hardware Mechanic Hard Part Tool Engine Technology Shift Gearshift Shaft Crankshaft Camshaft Motor Pinion Transmission Gearbox Industrial Industrial part

All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «PinoCAD». CGhub does not claim copyright ownership over the content used.

Native

SolidWorks () (5 files)3.2 MBVersion: 1.0Renderer: Mental Ray 1.1Version: 1.0Renderer: Mental Ray 1.1Version: 1.0Renderer: Mental Ray 1.1Version: 1.0Renderer: Mental Ray 1.1Version: 1.0Renderer: Mental Ray 1.2

Exchange

3D Manufacturing File () (4 files)687 KBVersion: 1.0Version: 1.0Version: 1.0Version: 1.0
DXF 1.0 ()552 KB
amf () (4 files)3.69 MBVersion: 1.0Version: 1.0Version: 1.0Version: 1.0
Stereolithography () (4 files)1.76 MBVersion: 1.0Version: 1.0Version: 1.0Version: 1.0
Autodesk FBX () (4 files)12.6 KBVersion: 1.0Version: 1.0Version: 1.0Version: 1.0
OBJ () (4 files)460 BytesVersion: 1.0Version: 1.0Version: 1.0Version: 1.0
AutoCAD () (3 files)1.05 MBVersion: 1.0Renderer: Octane 1.0Version: 1.0Renderer: Octane 1.0Version: 1.0Renderer: Octane 1.0
