NAS1153 Full set of screws 63 pcs 3D print model

Publication date: 2020-08-09

NAS1153 Full set of screws 63 pcs 3D print model

$29

License: Royalty Free License

author:

fotantonich

Description

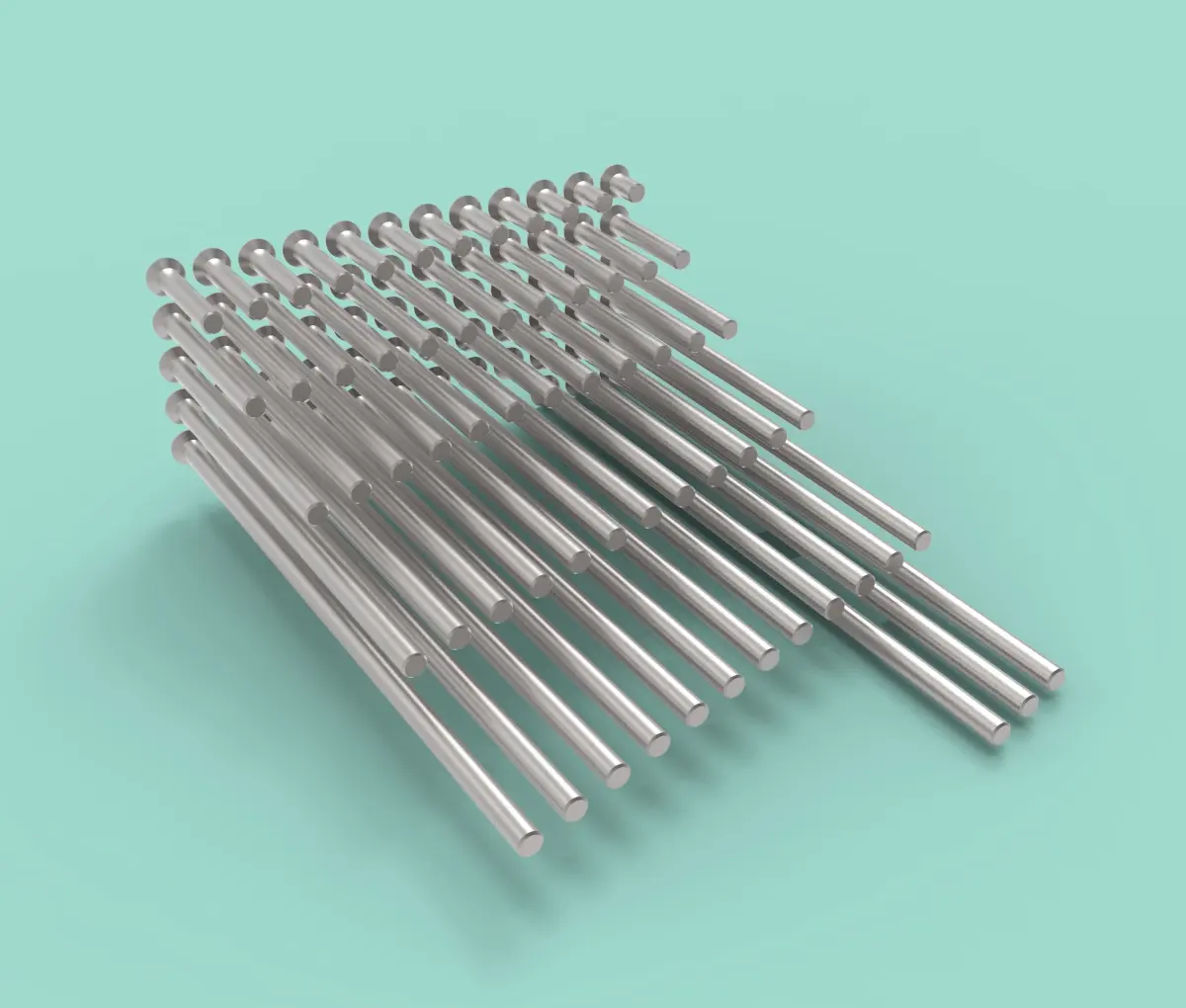

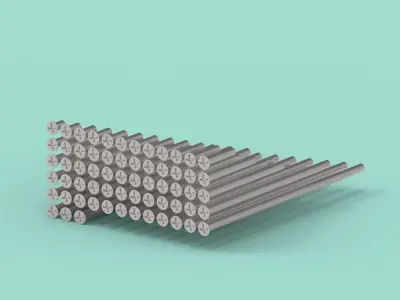

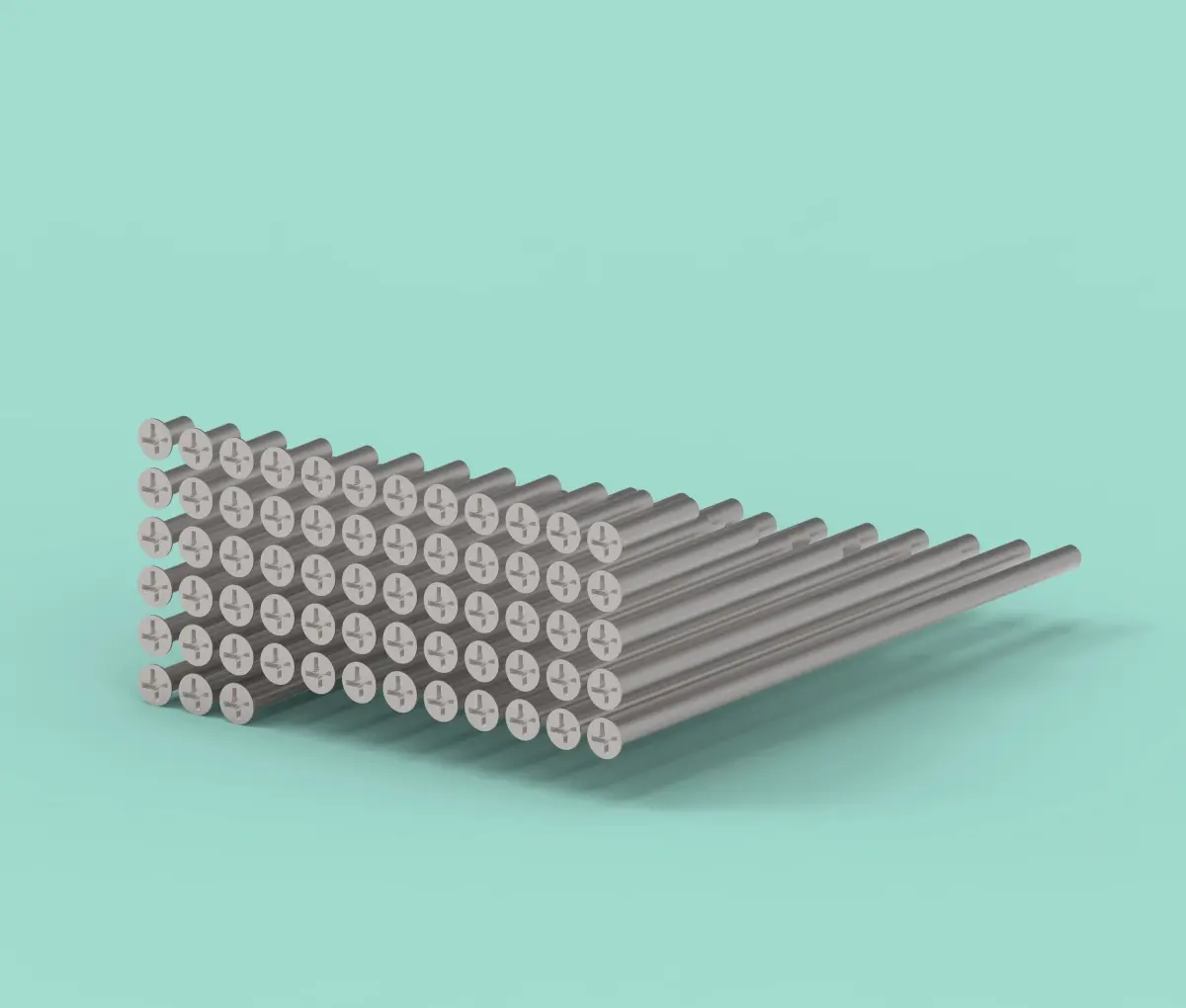

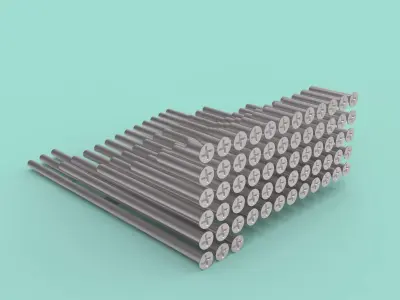

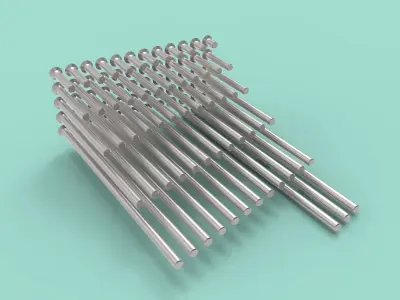

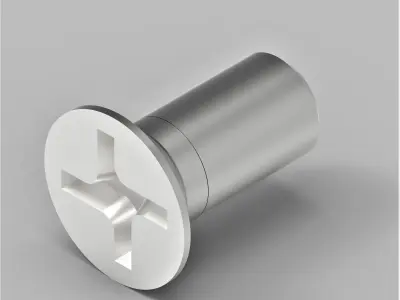

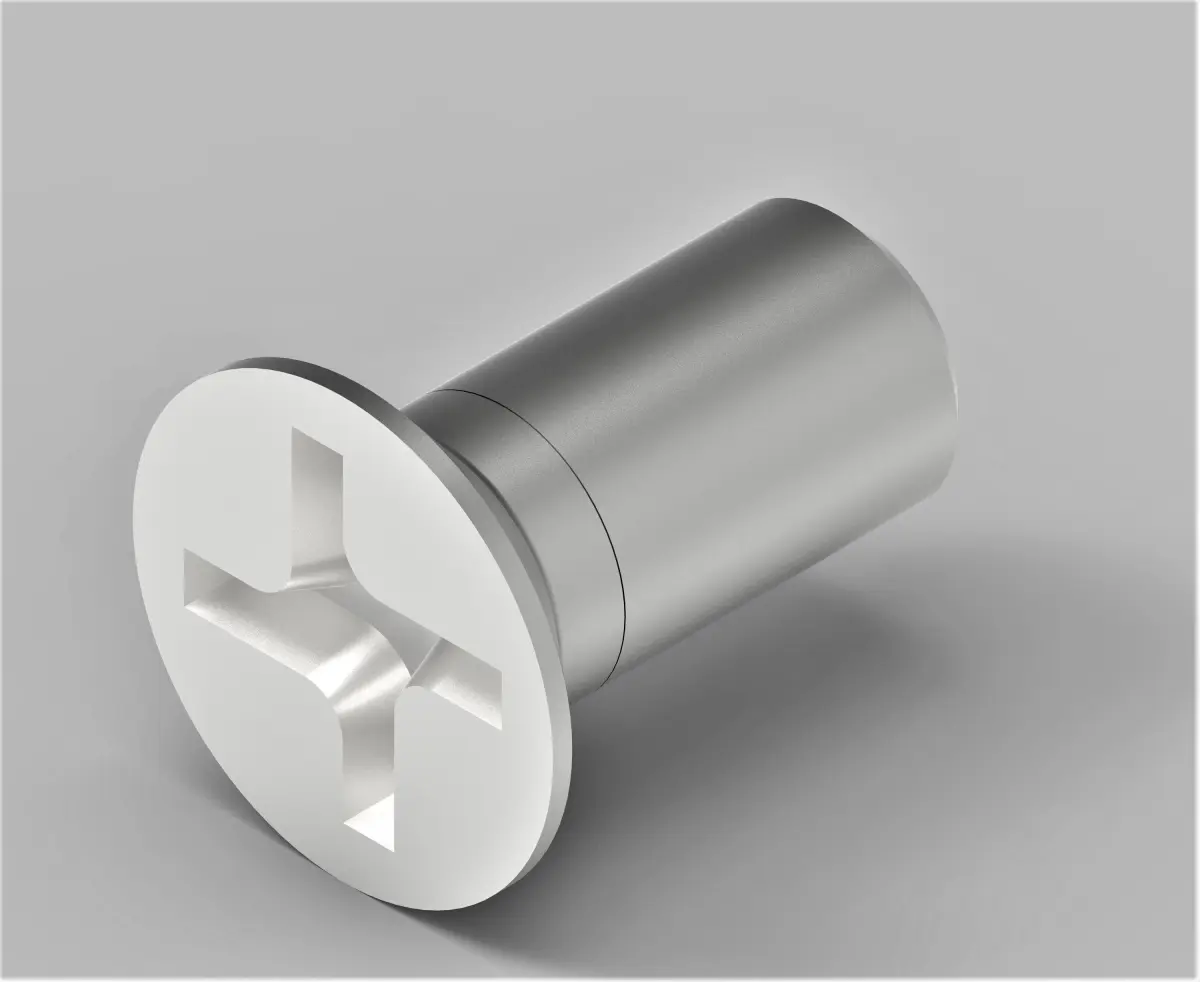

NAS1153 Full set of screws (63 screws).

Used as fasteners in aerospace field.

Designed with fully accordance to the National Aerospace Standard 1153.

Thread size: .1900-32 UNJF-3A

Dash number: -2…-96 (63 screws)

Material: Steel AISI 4140

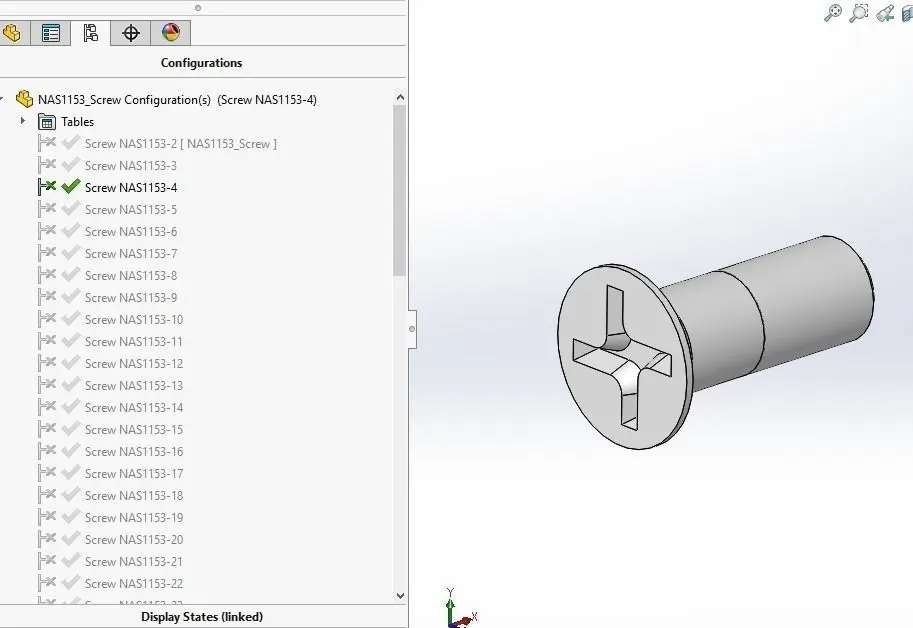

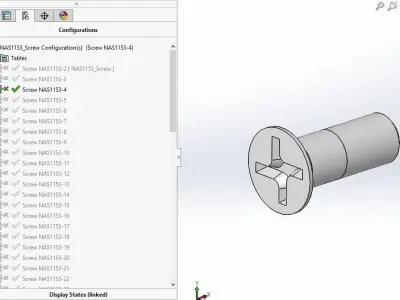

You will receive native Solid Works model (version 2017), with configuration, so in one part you download full set of screws.Model is simplified for drawings, without exact shape of threads, just with specified length of thread for each configuration.

On your demand I am able to provide you next formats for each screw: STL, x_t, STEP, OBJ, etc.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: Unknown
Vertices: Unknown

Tags

Screw Aerospace Aircraft Fasteners Solid Cad Engineering Nas Technology Science
