P-38 Lightning Landing Gear 3D print model

Publication date: 2023-12-30

P-38 Lightning Landing Gear 3D print model

$64

License: Editorial No Ai License

author:

historical-aviation

Description

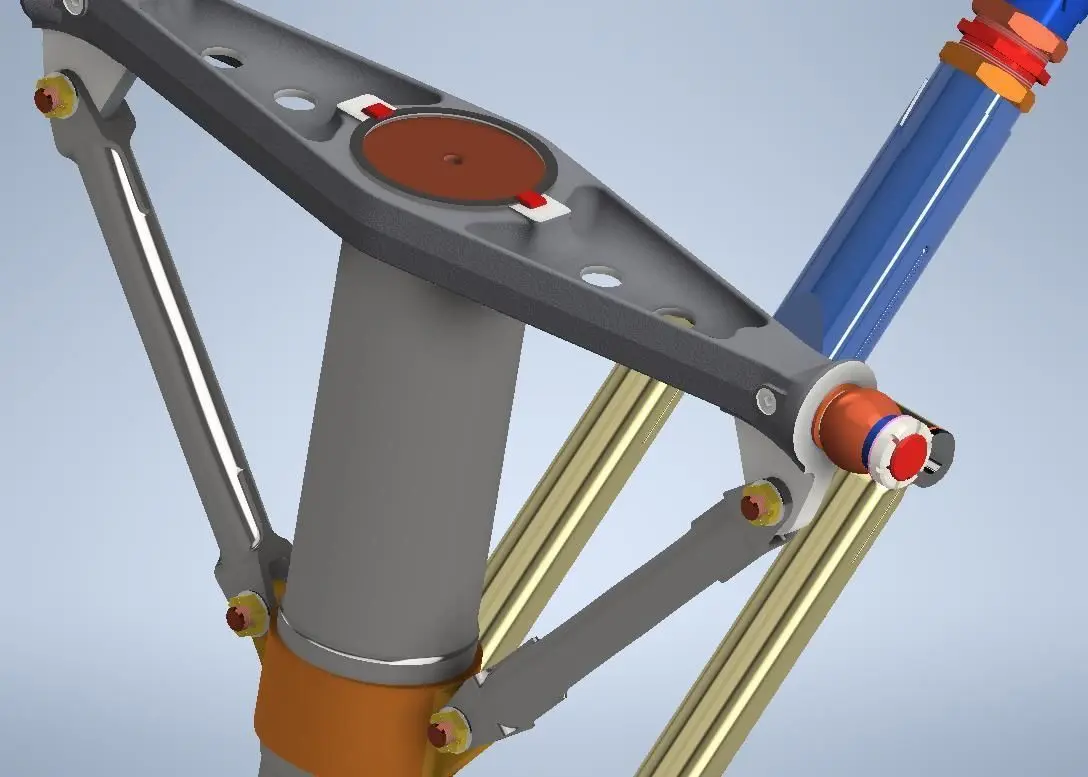

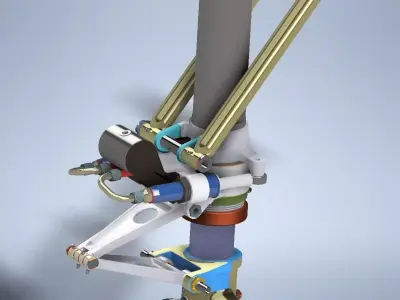

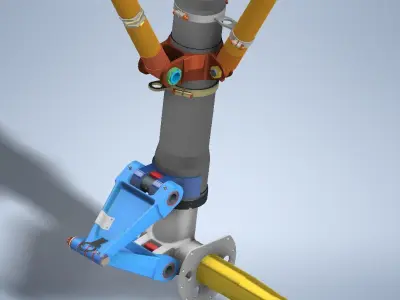

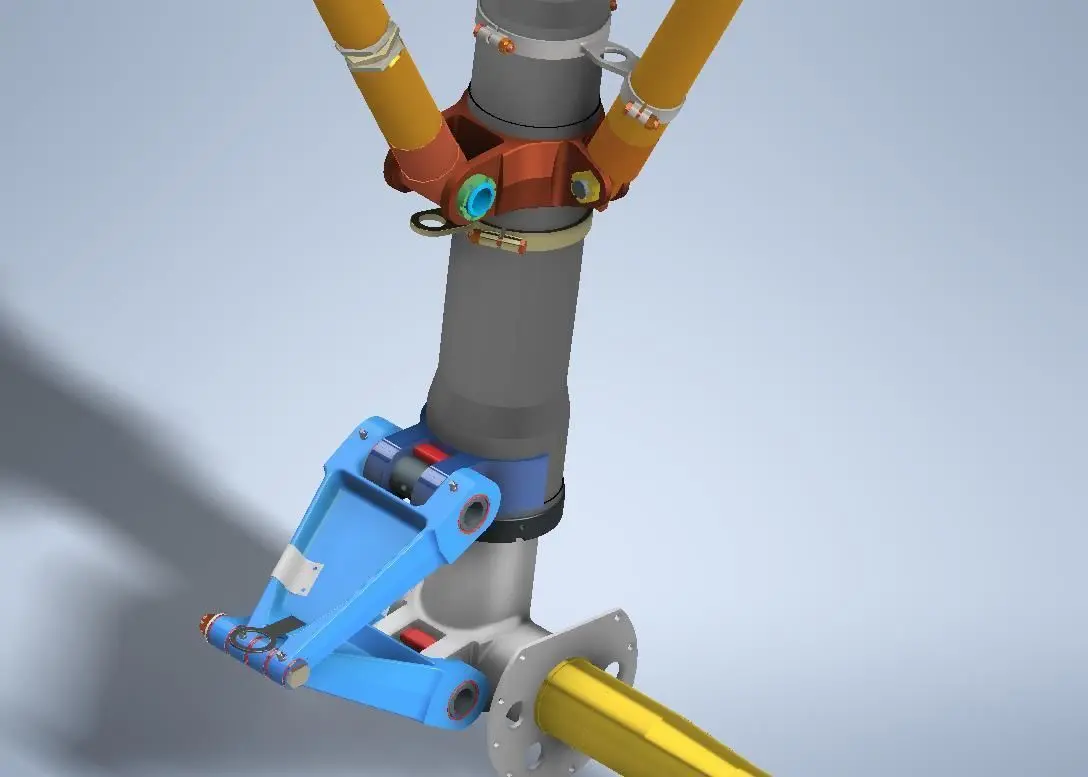

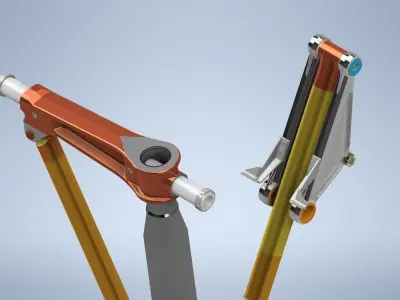

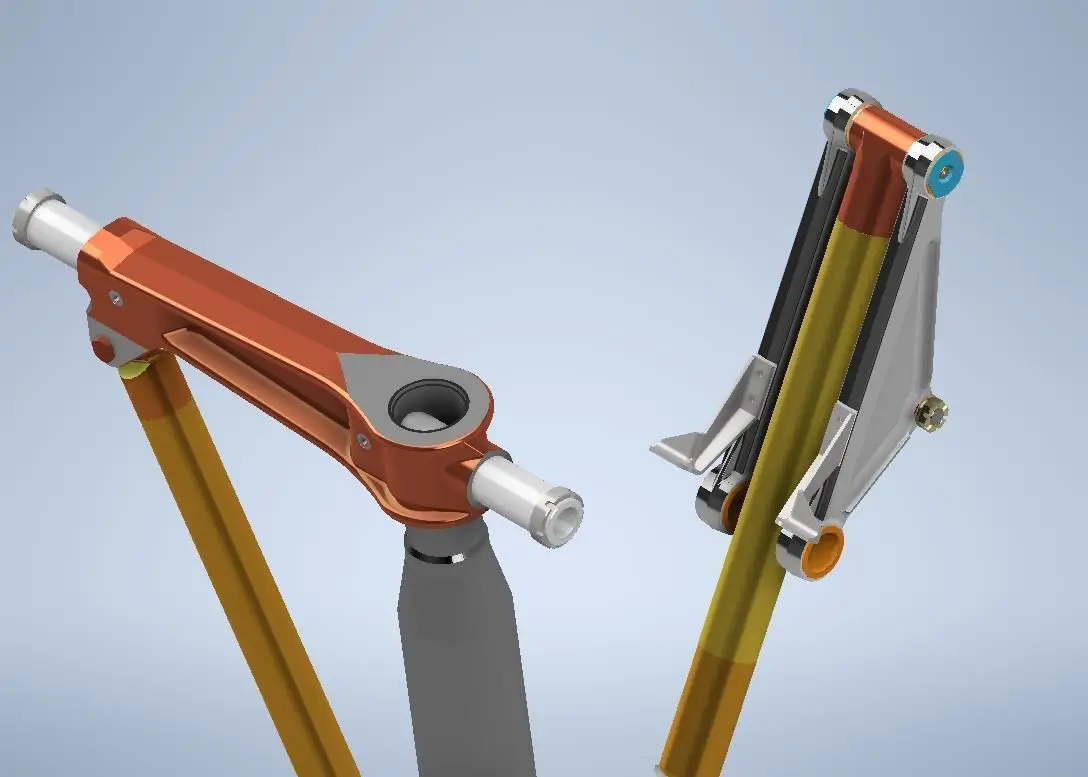

DescriptionP-38 Lightning Landing Gear: Full Size 1:1 For P-38 F,G,H,J

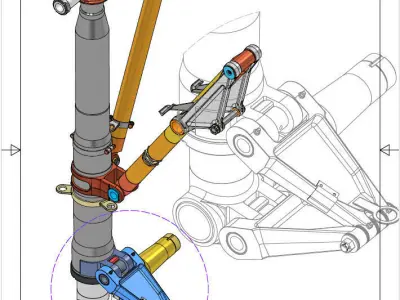

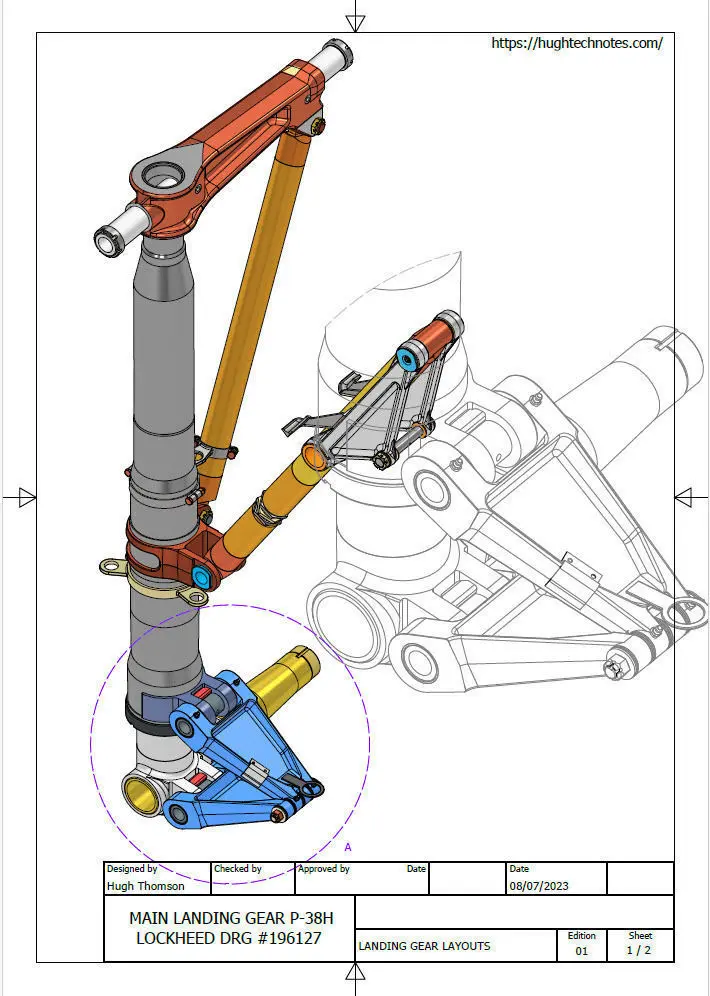

All parts; including nuts, bolts, washers, etc; were accurately modeled to original Lockheed drawings and AN, MS, and NASM specifications. The package includes the 3D CAD model in DWG (2018), STL, STP, and Parasolid X-B (editable) formats; and a 2D PDF.

The model can be used as a reference for maintenance, restoration purposes, research, and teaching.

The P-38 Lightning Project: Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-38 Lightning has been one of our main subjects for research for which we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

The 3D CAD models are professionally developed; some of which are now being made available publicly for the first time.

The original ipt and iam Autodesk Inventor cad files can be made available on special request.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: Unknown
Vertices: Unknown

Tags

Landing gear P 38 Lightning Cad Aircraft Lockheed Stp Aviation Mechanical Hydraulic Science Engineering
