P-51BC and Early D Mustang Tail Wheel Shock Housing Sub Assembly 3D print model

Publication date: 2019-10-23

P-51BC and Early D Mustang Tail Wheel Shock Housing Sub Assembly 3D print model

$43

License: Editorial No Ai License

author:

historical-aviation

Description

P-51B/C and Early D Mustang: Tail Wheel Shock Housing Sub Assembly. Full Size 1:1

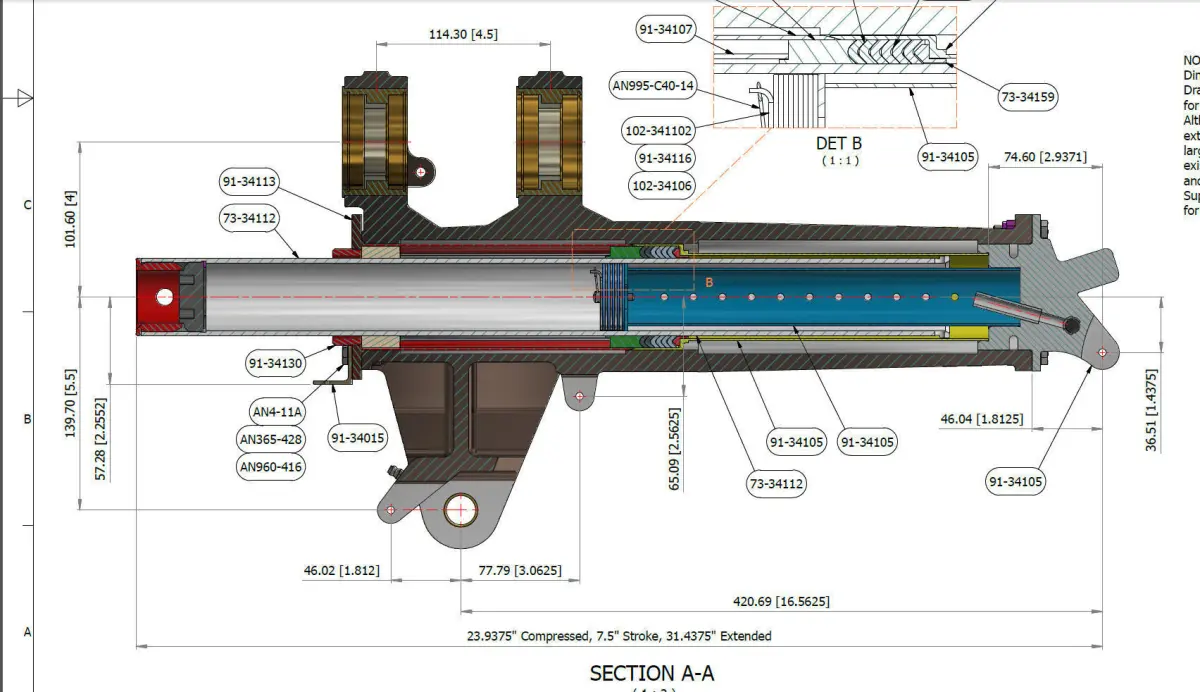

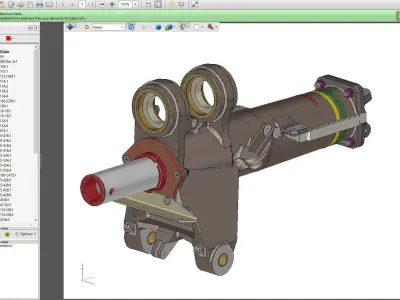

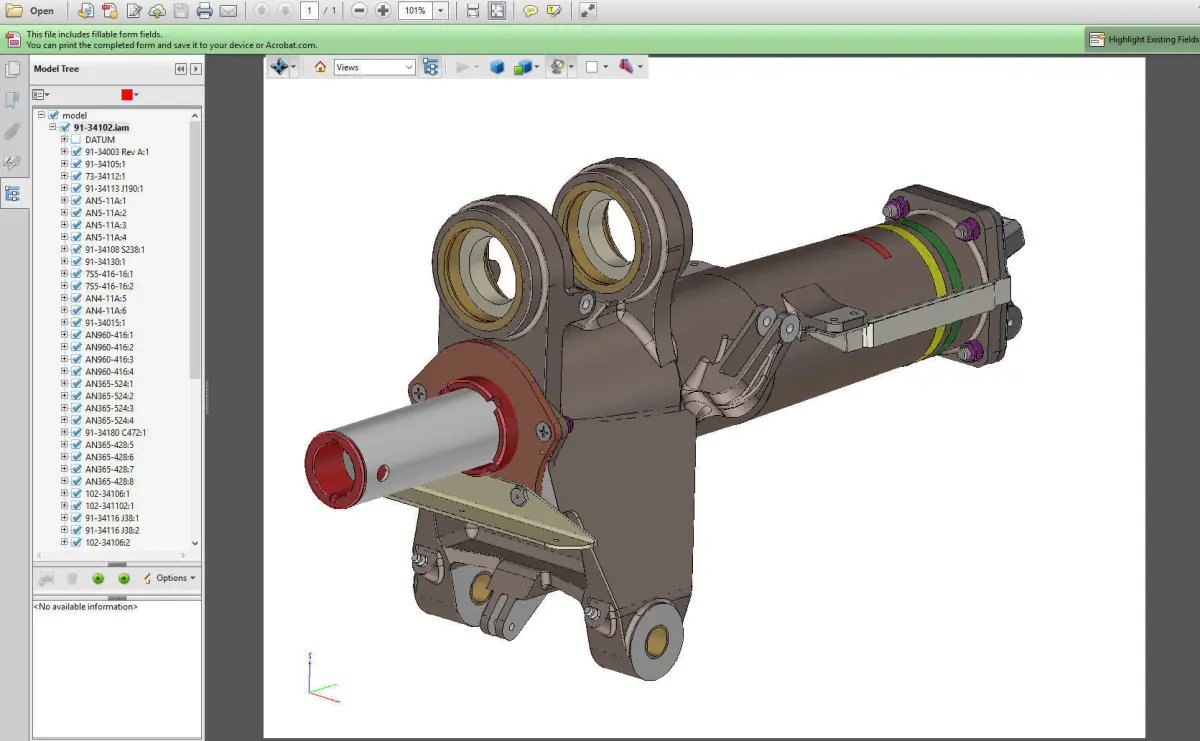

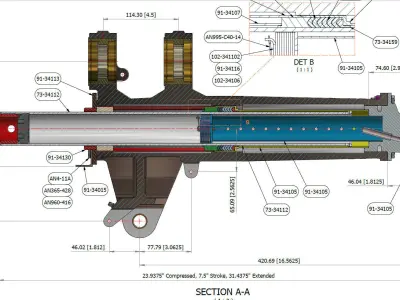

All parts; including nuts, bolts, washers etc; accurately modeled to original North American Aviation drawings and AN, MS, NASM specifications. The package includes the CAD model in DWG (2018), STL, STP, and Parasolid X-B formats; a 3D PDF of the model, and a 2D PDF of the parts list as generated. NAA reference drawing 91-34102.Fully detailed internal components.

The model can be used as a reference for maintenance, restoration purposes, research, and teaching.

The P-51 Mustang Project:Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

The original ipt and iam Autodesk Inventor cad files can be made available on special request.
