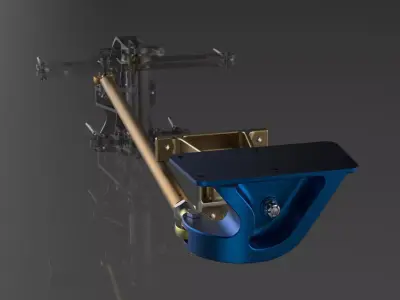

P-51D Mustang Rudder Lower Hinge and Connecting Control Rod 3D print model

Publication date: 2019-10-31

P-51D Mustang Rudder Lower Hinge and Connecting Control Rod 3D print model

$26

License: Editorial No Ai License

author:

historical-aviation

Description

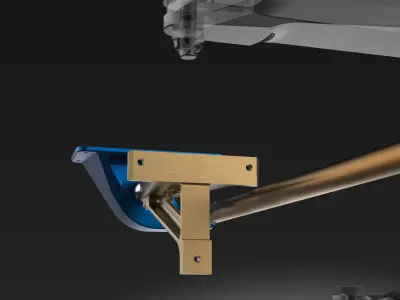

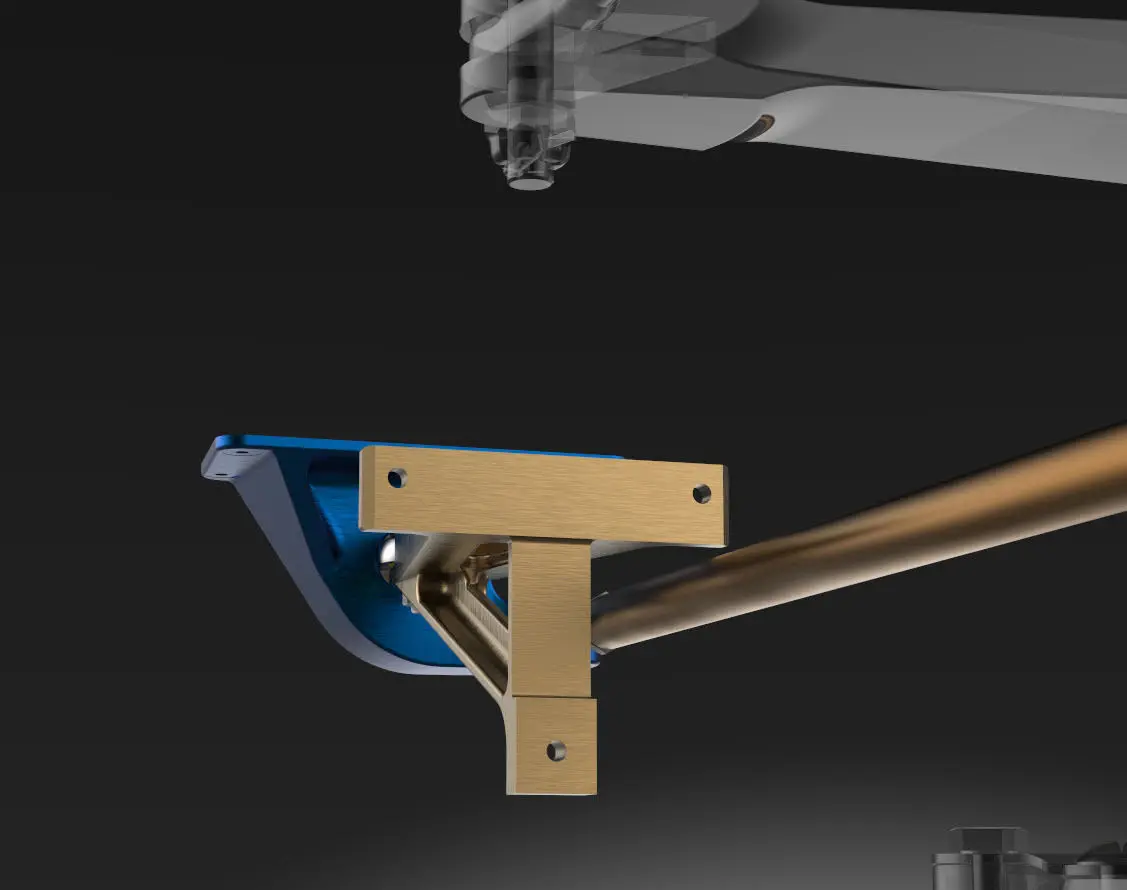

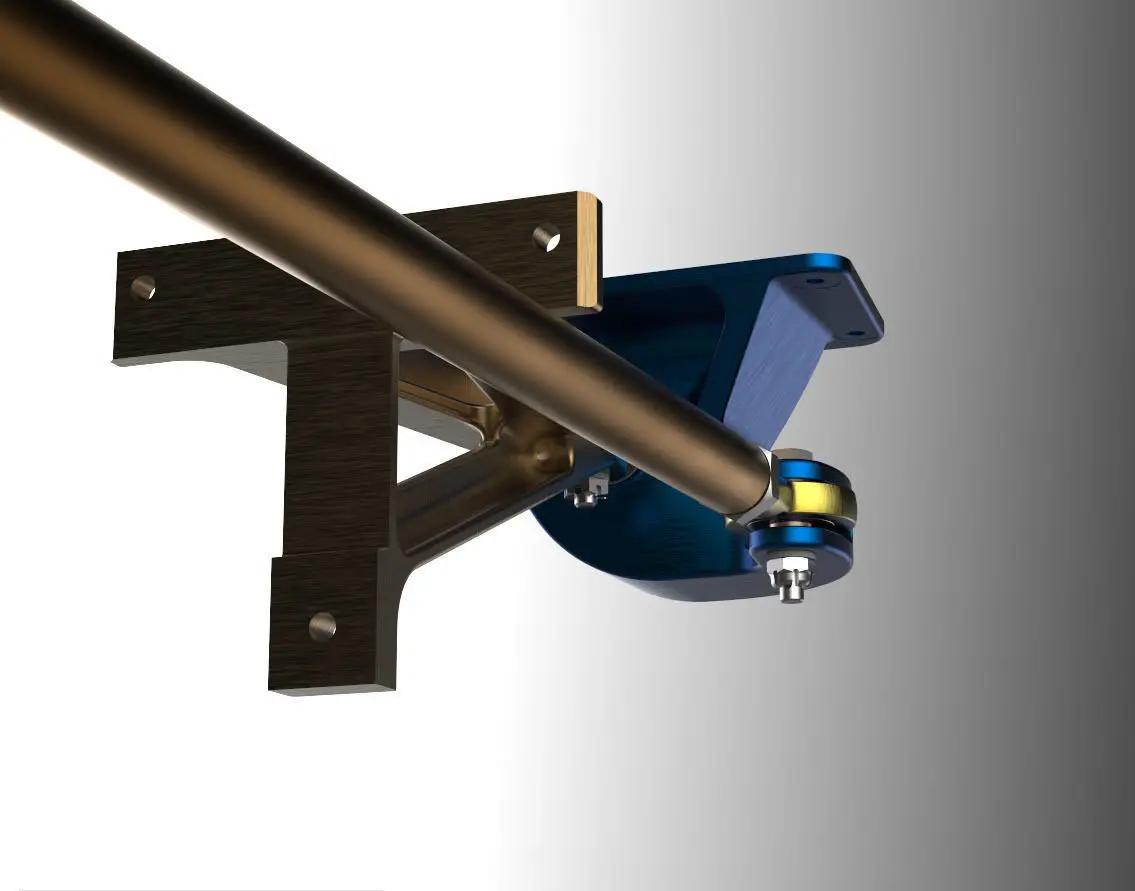

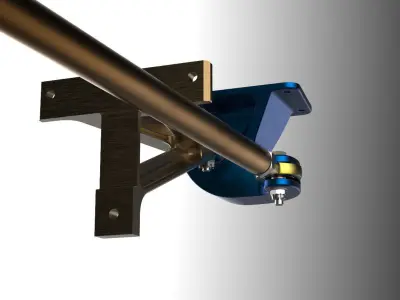

P-51D Mustang Rudder Lower Hinge and Connecting Control Rod Full Size 1:1

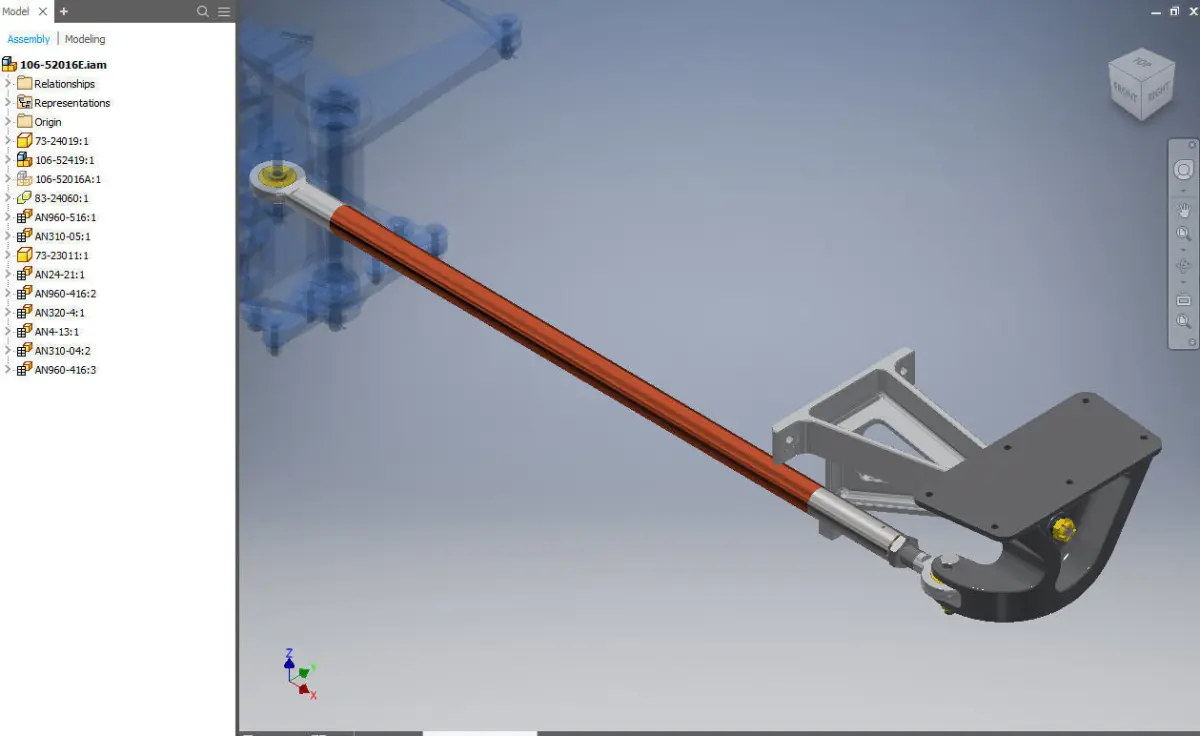

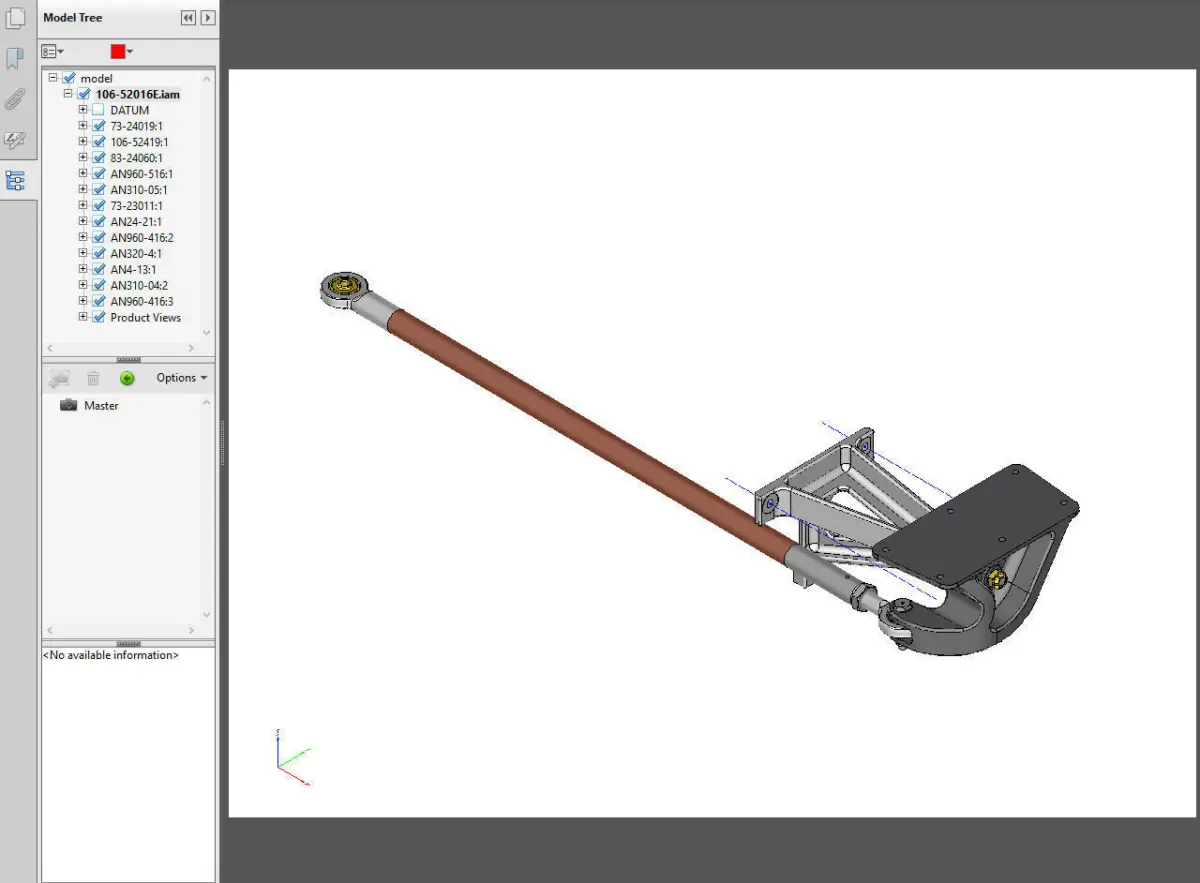

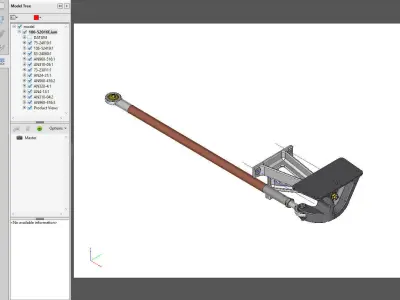

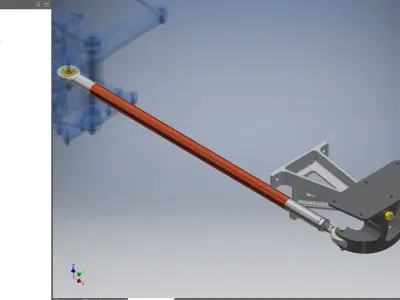

All parts; including nuts, bolts, washers, etc; accurately modeled to original North American Aviation drawings and AN, MS, NASM specifications. The package includes the CAD model in DWG (2018), STL, STP, and Parasolid X-B formats; 3D PDF of the model and 2D PDF of the parts list as generated. Model sub-assembly reference NAA drawing 106-52016 and 73-20001. Assembly for P-51 B & C is similar. Fully detailed internal components.

The model can be used as a reference for maintenance, restoration purposes, research, and teaching.

The P-51 Mustang Project:Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

The original ipt and iam Autodesk Inventor cad files can be made available on special request.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: Unknown
Vertices: Unknown

Tags

Mustang P 51 Raf Air Ww2 Rudder Hinge Mechanical Inventor Autodesk Fighter Aircraft Aircraft part Science Engineering
