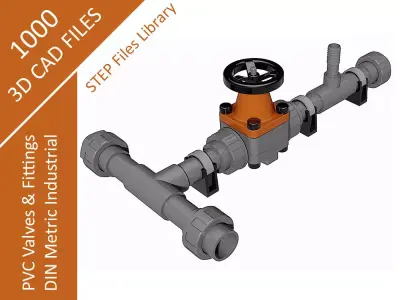

PVC METRIC - VALVES AND FITTINGS INDUSTRIAL - STEP 3D model

All 3D CAD files that you need to design a complete PVC piping system according to the DIN standards.

ABOUT THE LIBRARY:

More than 1000 high-quality 3D CAD files, directly available from your own hard drive! That immediately provides you with a considerable time saving in your engineering projects.

You no longer need to download the CAD files one by one from your supplier's website (if available). Instead, you can become the owner of a neatly arranged, complete 3D CAD warehouse. All parts are available in complete diameter series and all CAD models are of professional engineering quality.

Our CAD libraries are made by qualified engineers from the Netherlands with Autodesk Inventor software. The dimensions of the parts are based on data supplied by the piping equipment suppliers.

To make the files compatible for all 3D Solid Modeling programs, we have opted for the Step file format. That is the most reliable file system for exchanging 3D CAD models between different software systems.

• All in one zip file (59Mb)

• PVC Metric Valves and Fittings DIN standardized.

• 63 Types in full range diameters.

• 1000+ Different CAD files.

• File format: Step(.stp), for use in Autodesk Inventor, Fusion 360, Solidworks, Catia, Solid Edge and more.

THE PARTS:

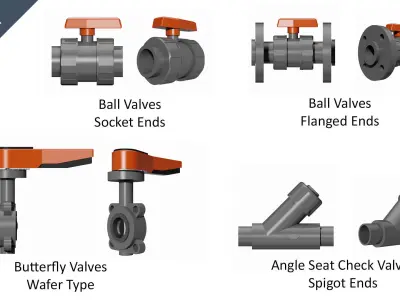

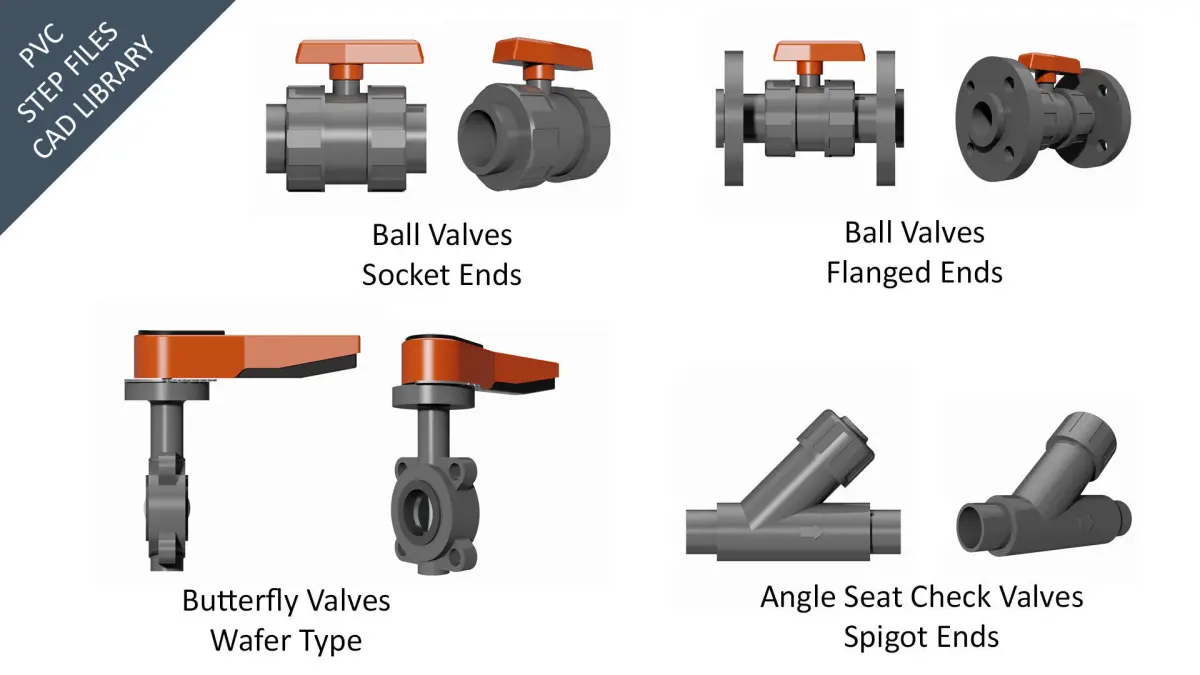

1. Ball valves - socket ends

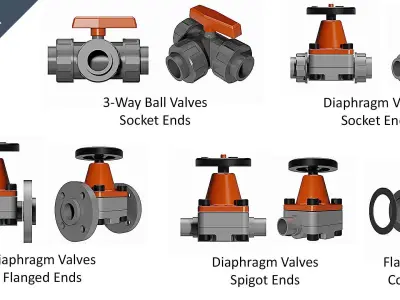

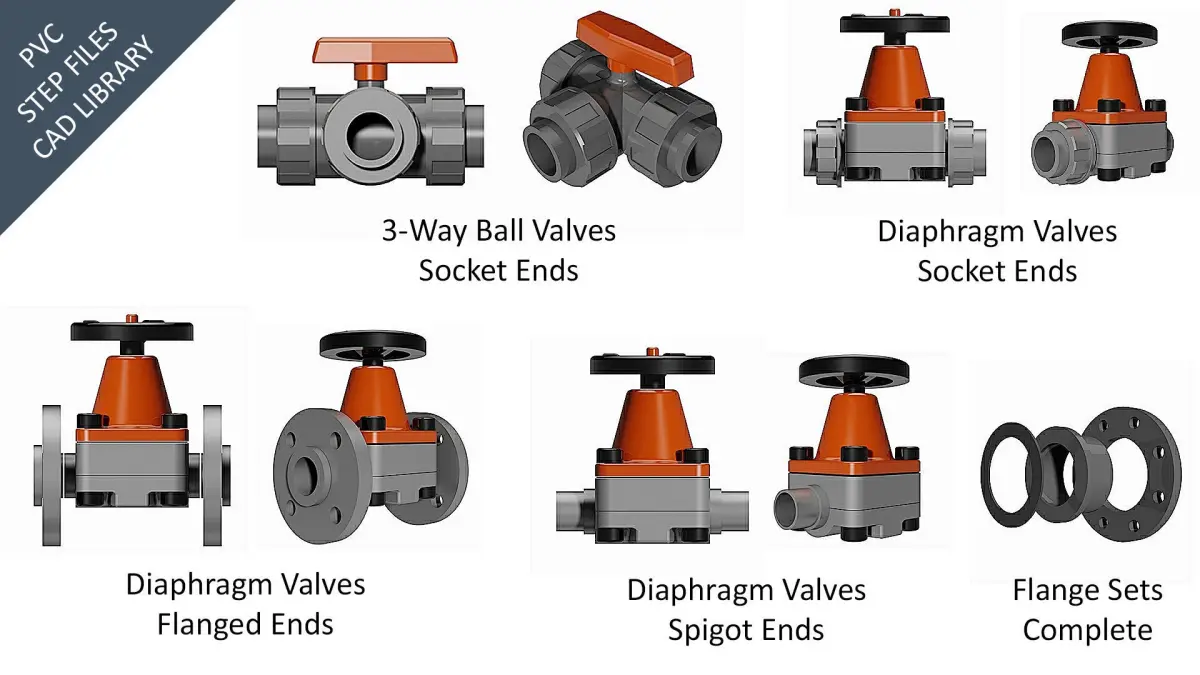

2. Three-way Ball valves - socket ends
3. Ball valves - flanged
4. Butterfly valves - wafer type
5. Diaphragm valves - solvent cement
6. Diaphragm valves - flanged
7. Diaphragm valves - socket ends
8. Angle seat valves - s.c. ends

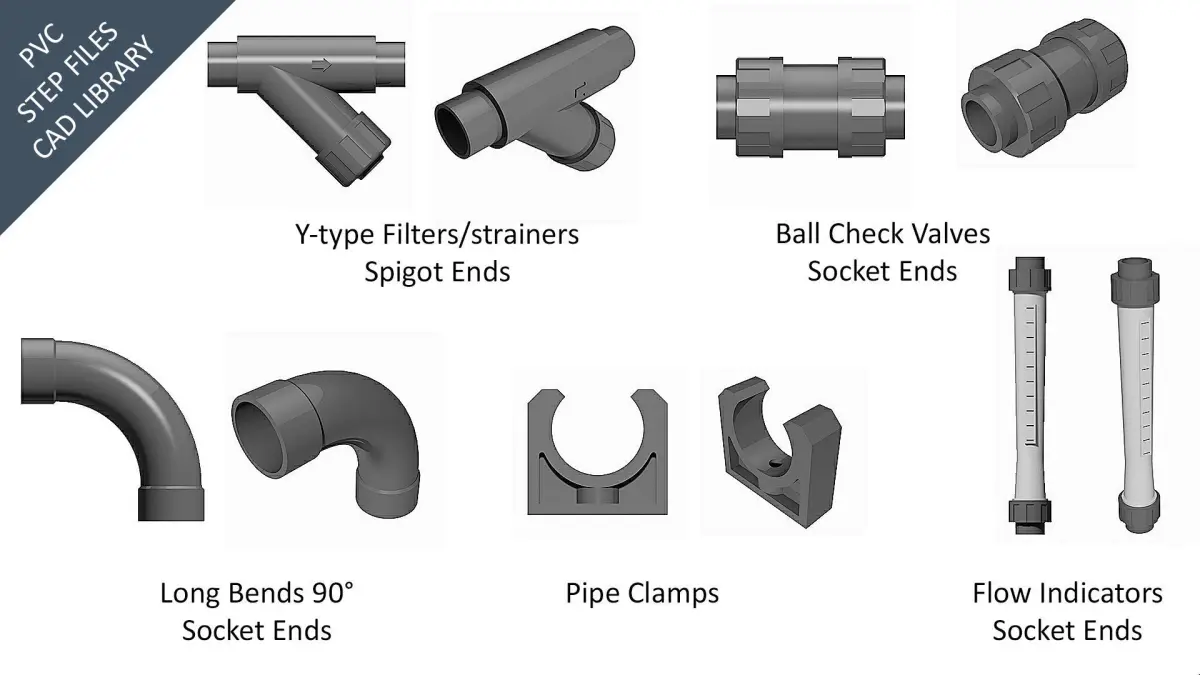

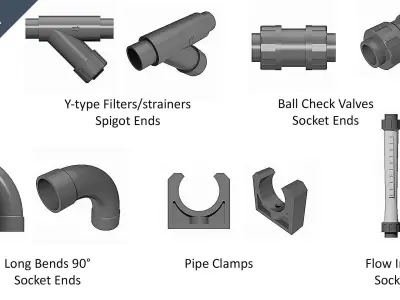

9. Ball type check valves - socket ends
10. Angle seat check valves - s.c. ends
11. Y-type filters - s.c. ends
12. Flow indicators - socket ends
13. Pipe clamps

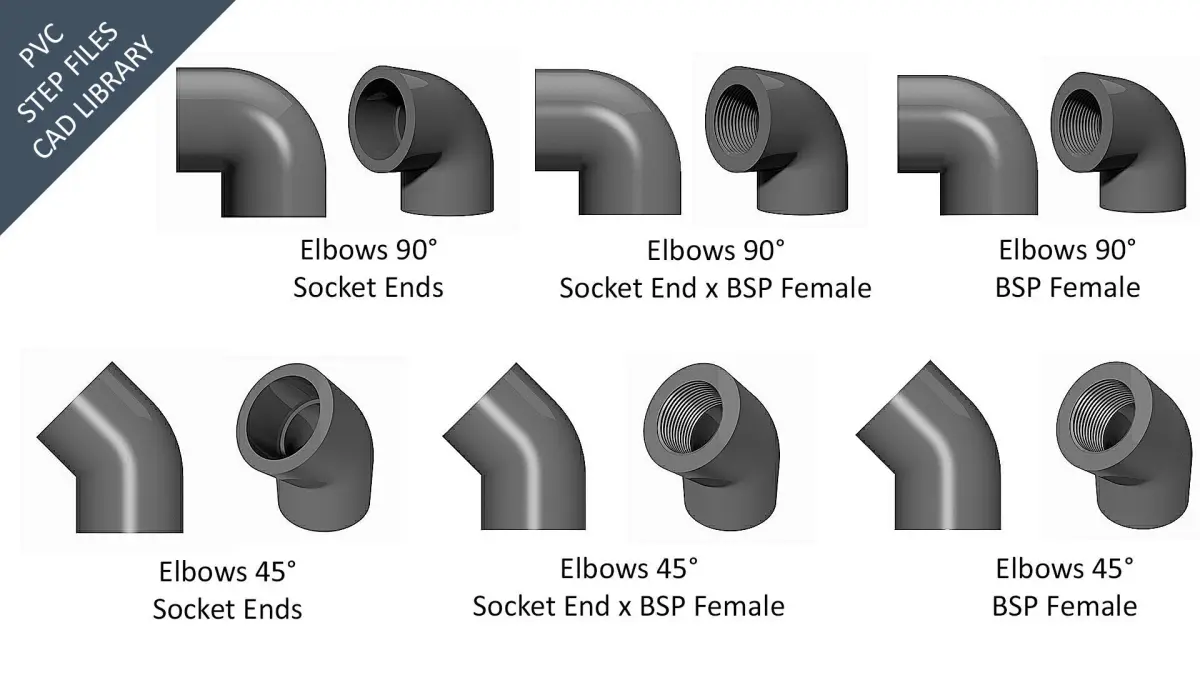

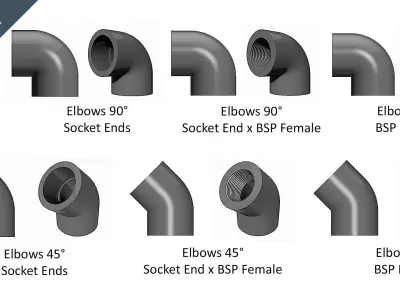

14. Elbows 90° - socket ends
15. Elbows 90° - BSP female
16. Elbows 90° - socket x BSP female
17. Bends 90° - socket ends
18. Short elbows 90° - socket ends
19. Elbows 45° - socket ends
20. Elbows 45° - BSP female
21. Elbows 45° - socket x BSP female
22. Short elbows 45° - socket ends
23. Equal tees - socket ends
24. Equal tees - socket x BSP female
25. Equal tees - BSP female
26. Short tees - socket ends
27. Reducing tees - socket ends
28. Reducing tees - socket x BSP
29. Crosses - socket ends
30. Tees 45° - socket ends
31. Short tees 45° - socket ends
32. Sockets
33. Short sockets
34. Reducing bushes - socket x s.c. end
35. Reducing sockets
36. Reducing bushes - s.c. end x socket
37. Short reducing sockets
38. Caps - socket end
39. Short caps - socket end
40. Flange adaptors - socket end
41. Loose flanges
42. Fixed flanges
43. BSP threaded flanges
44. Blind flanges
45. Hose adaptors - s.c. end
46. Hose adaptors - BSP male
47. Hose adaptors - BSP female
48. Unions - socket ends
49. Unions - socket x BSP female
50. Unions - socket x BSP male
51. Unions - BSP female
52. Unions - BSP female x BSP male
53. Adaptors - socket x BSP male
54. Threaded sockets - BSP female
55. Caps - BSP female
56. Hexagon nipples - BSP male
57. Hexagon plugs - BSP male
58. Adaptor sockets - socket x BSP
59. Reducing nipples - BSP male
60. O-ring flanges adaptors - socket
61. Flat gaskets
62. Pipe clips small diamters
63. Pipe clips large diameters
