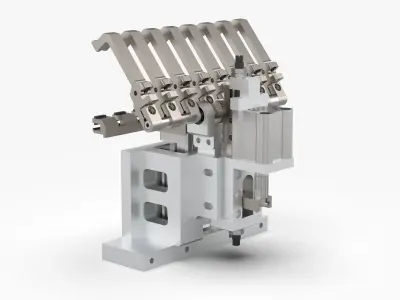

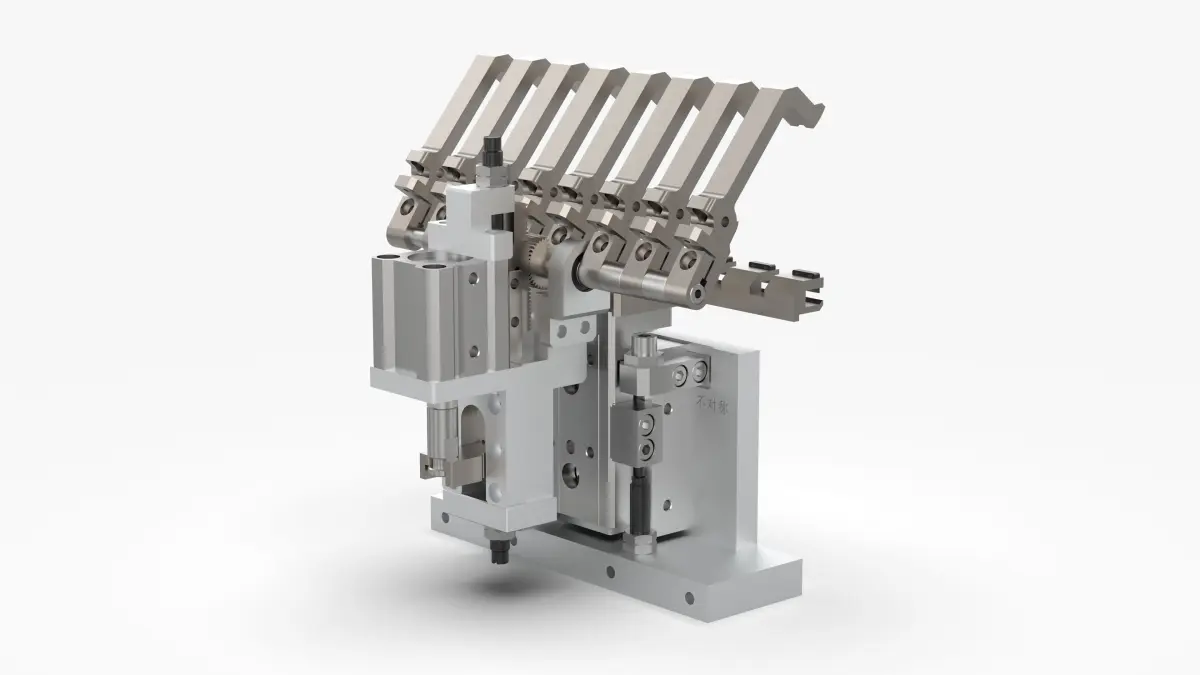

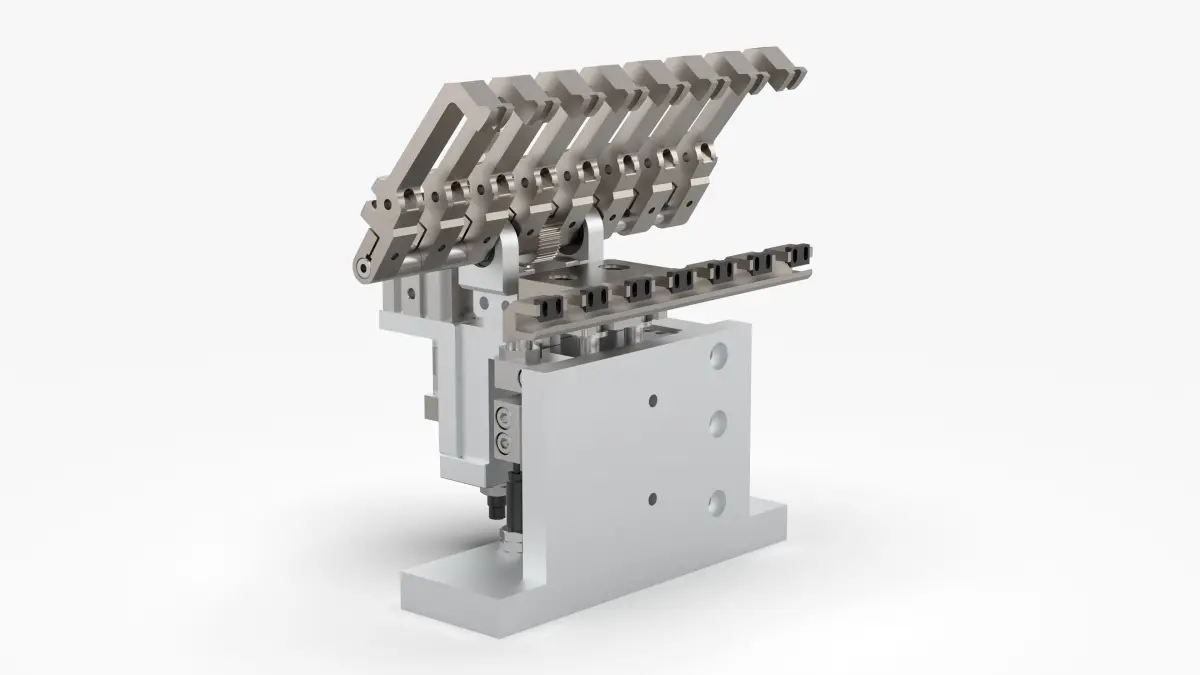

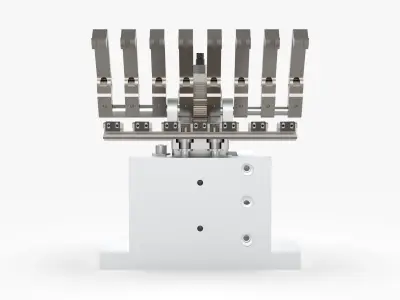

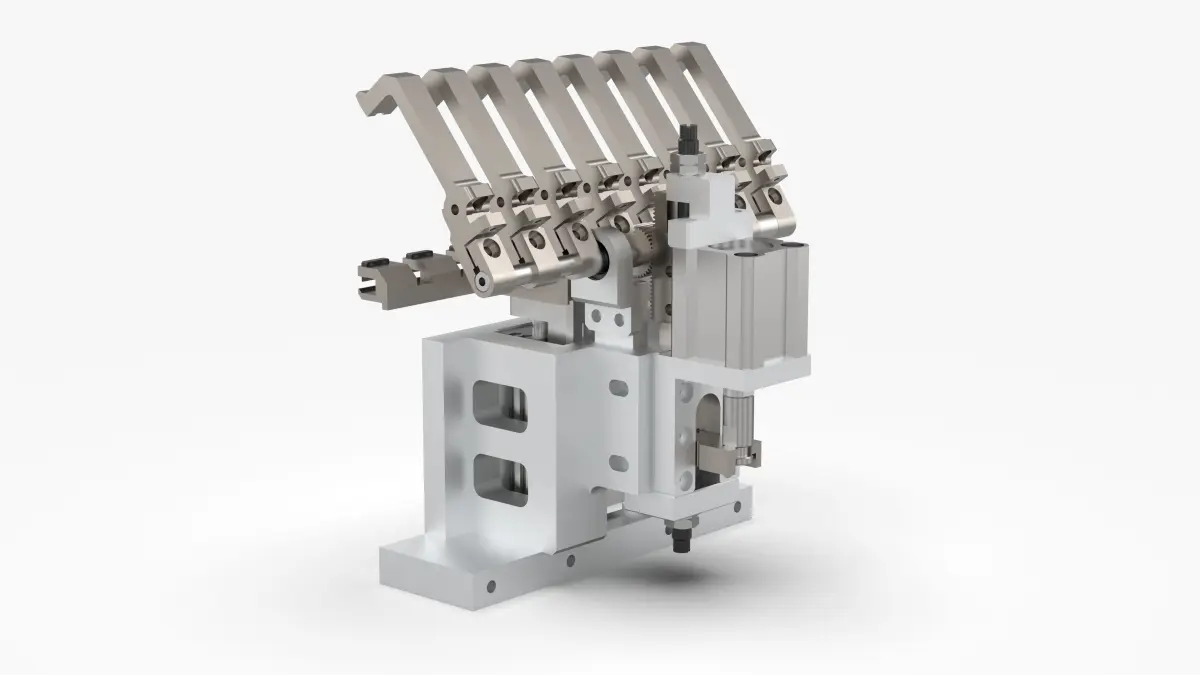

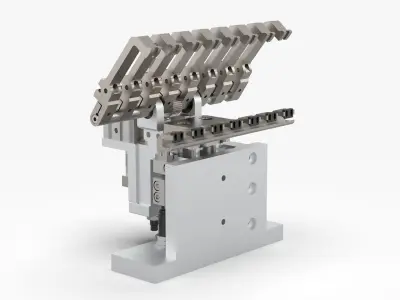

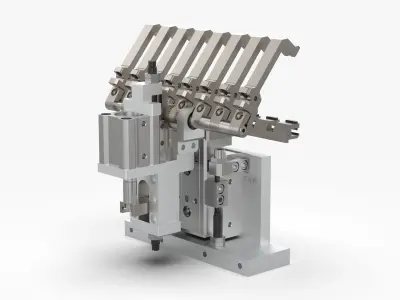

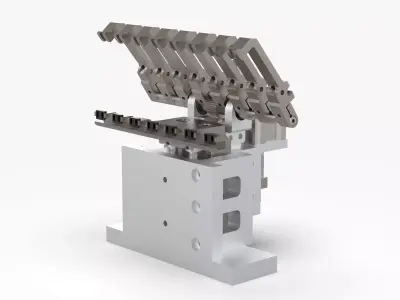

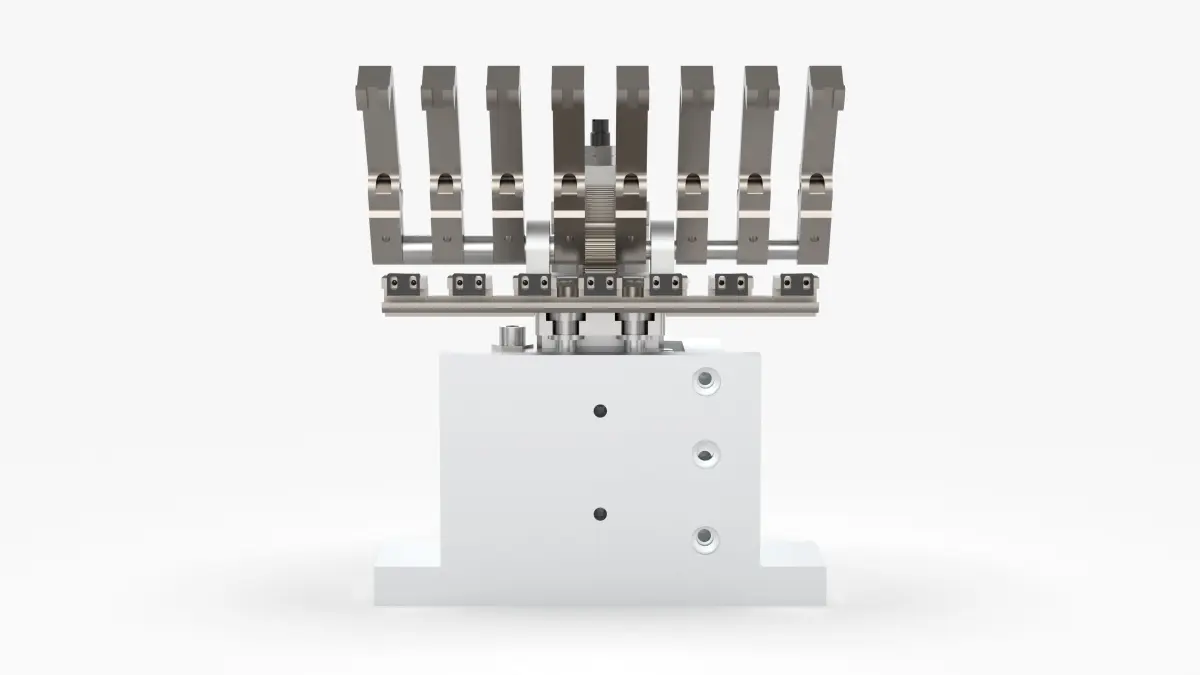

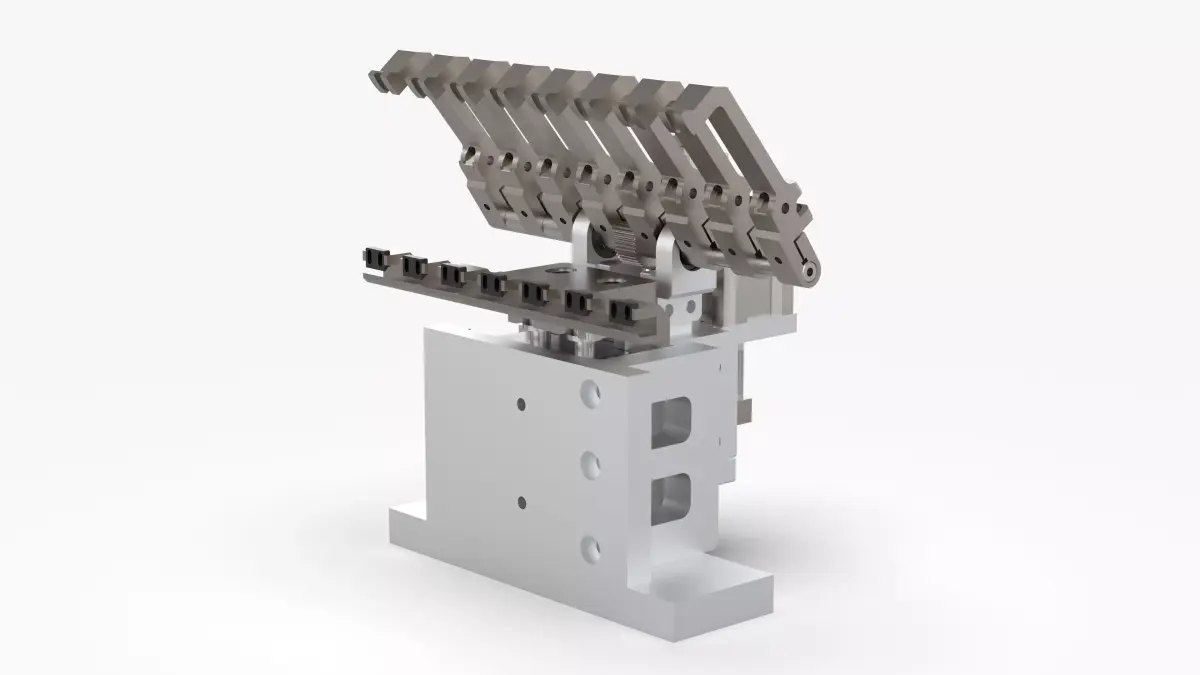

Rack and Pinion Gripper Mechanism

Introduction

The rack-and-pinion-driven gripper mechanism is based on a thin cylinder that simply jacks up the rack-and-pinion transmission gripper handling mechanism. The Z-axis slide table cylinder moves up and down. After clamping the product or carrier, it can be lifted, which is very common. Non-standard automatic handling mechanism.

File Formats

  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 124,054
  • Vertice: 372,162

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 124,054
  • Vertices: 372,162
  • Plugins used

Tags

Rack Pinion Gripper Mechanism Solidwork Design Assembly Modeling Automatic Automation Machinery Part Machine Line Production Robot Manufacture Drawing Industrial Industrial machine
