Soldering welding mechanism 3D model
Soldering welding mechanism 3D model
Soldering welding mechanism 3D model
Soldering welding mechanism 3D model
Soldering welding mechanism 3D model

Publication date: 2018-05-11

Soldering welding mechanism 3D model

$8

License: Royalty Free License

author:

forestlsls

Buy at www.cgtrader.com - $8 Add to Wishlist
  • Description
  • Formats
Description

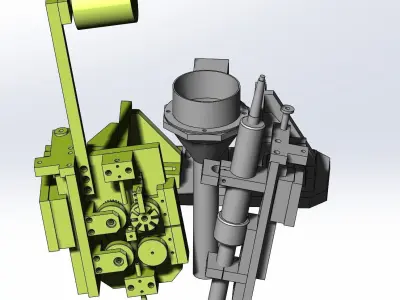

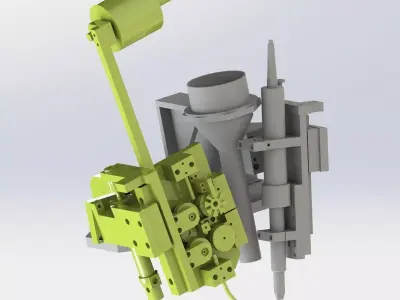

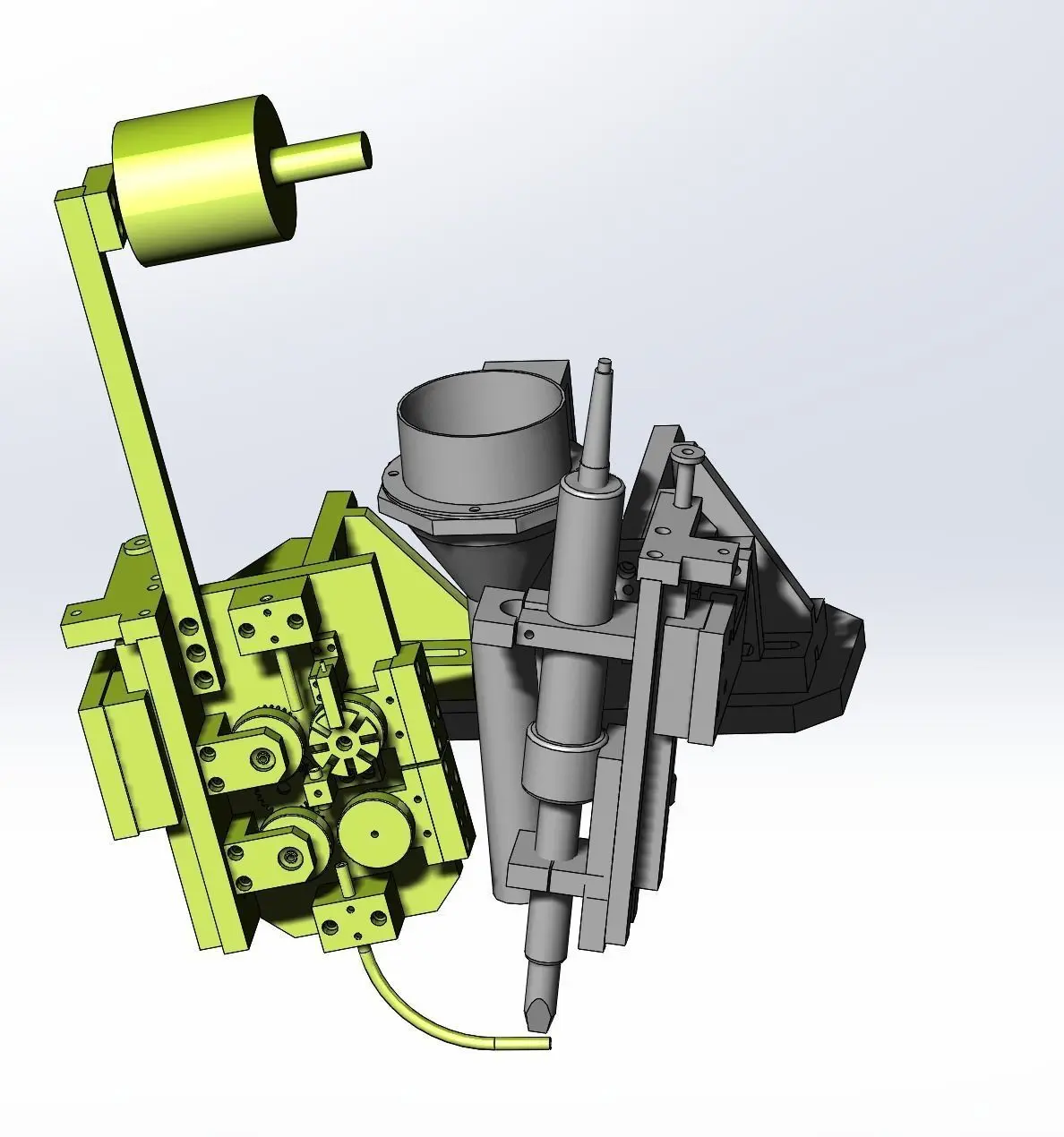

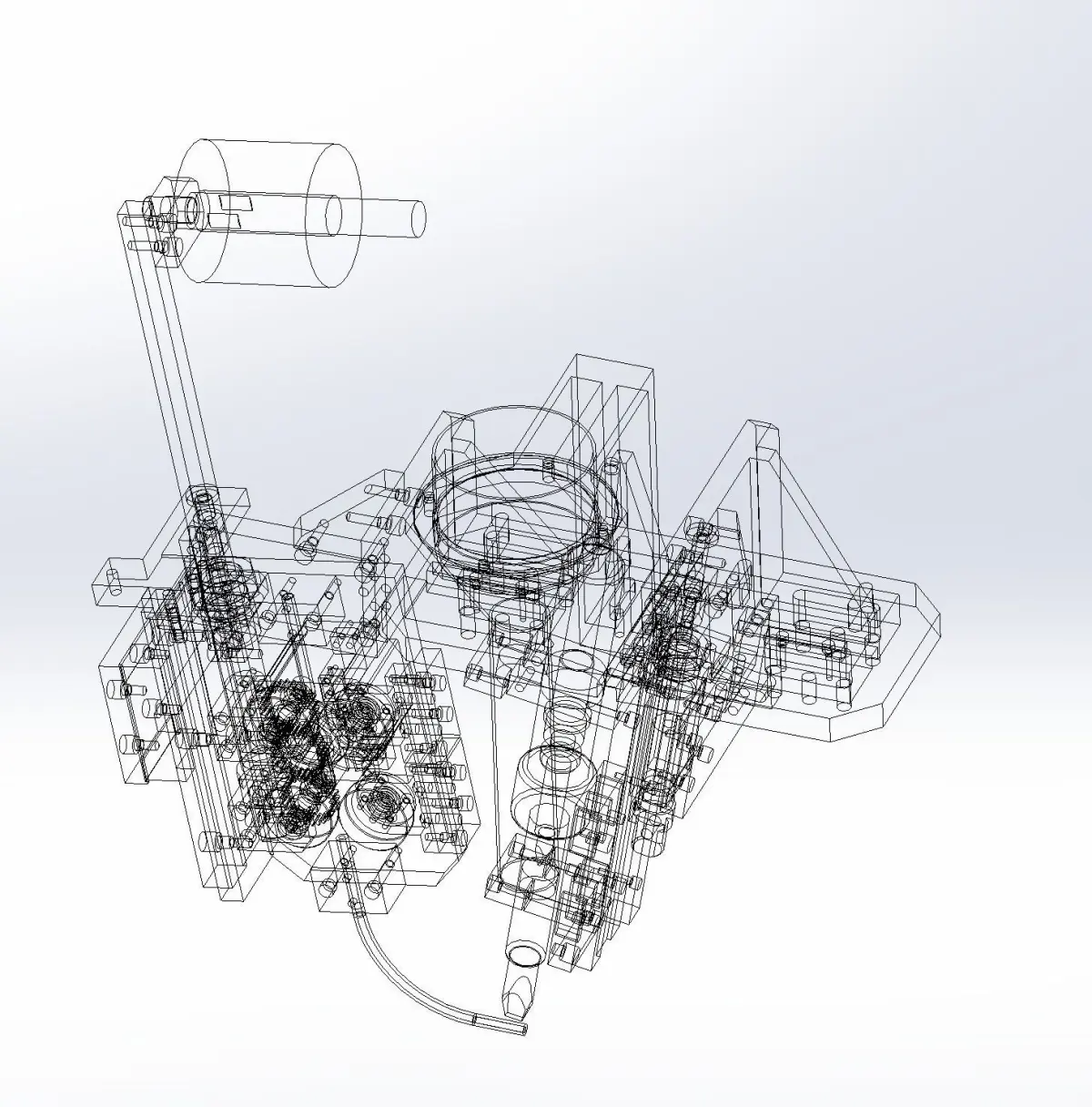

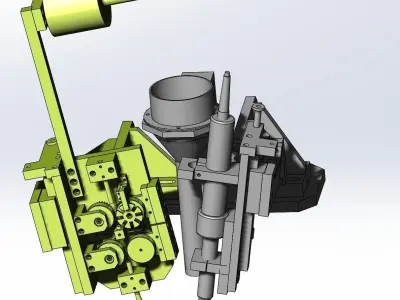

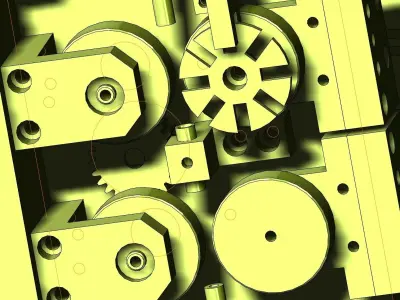

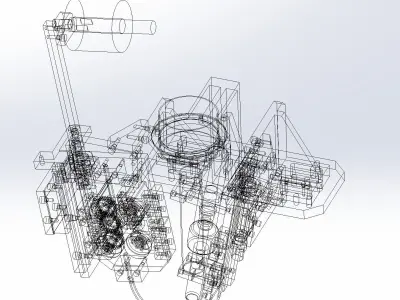

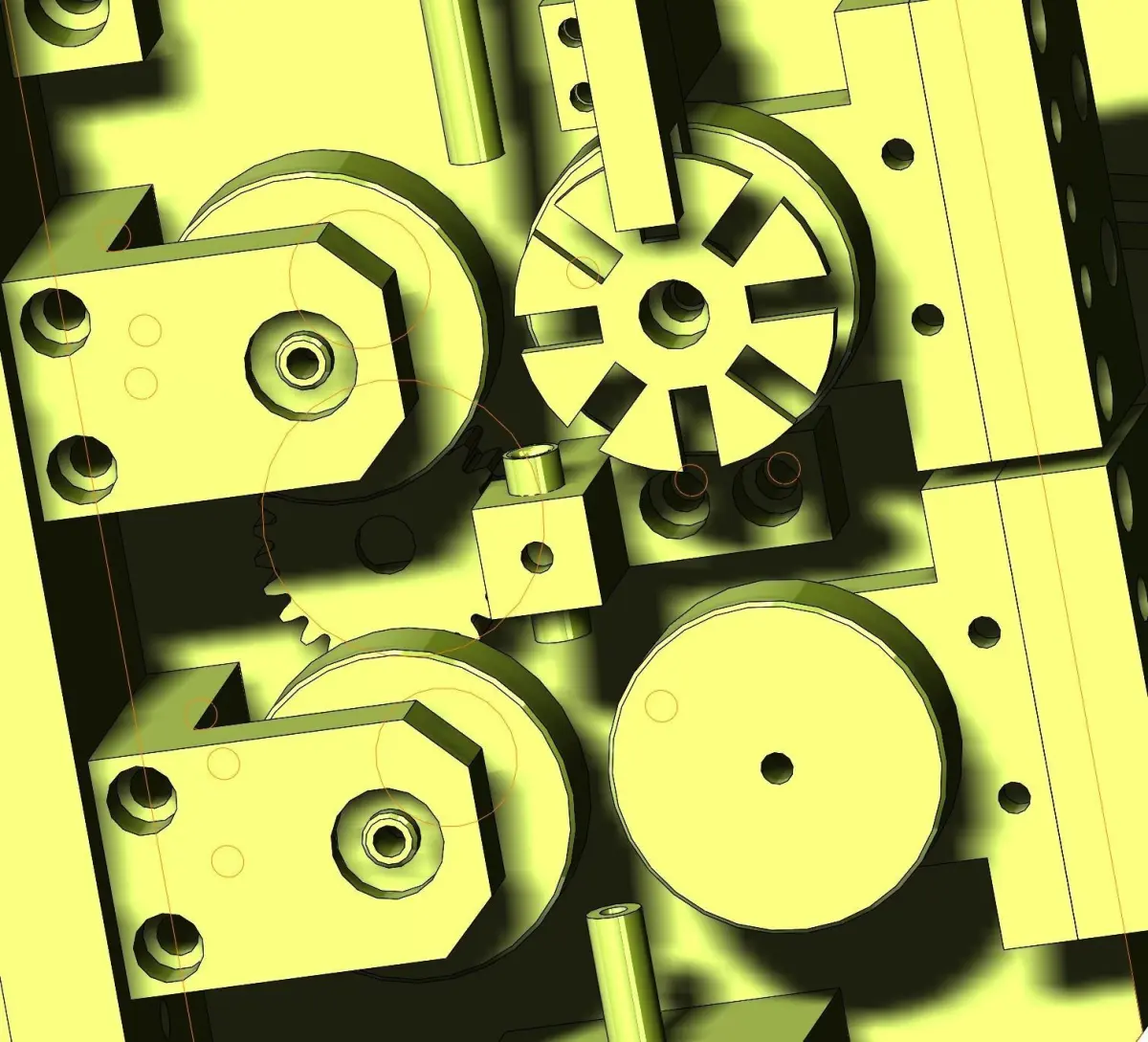

Soldering welding mechanism, this mechanism can be divided into wire conveying mechanism and welding torch connecting mechanism, Sewerage mechanism by motor driven gear will wire into the guide roll, welding torch down welding, complete the automatic soldering on the action mechanism is simple, high applicabilityThemechanism includes:

  1. Feeding mechanism
  2. Motor drive mechanism.
  3. Lower pressure mechanism
  4. Sewerage mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds
  5. and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 52,707
  • Vertices: 106,449

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Soldering Tin Wire Sewerage Roller Motor Industrial machine Industrial part Industrial factory
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.
  • SolidWorks ()3.01 MB
  • Autodesk 3ds Max ()3.22 MB
  • OBJ ()4.13 MB
  • 3D Studio ()4.47 MB
  • IGES ()15.3 MB
  • Autodesk FBX ()2.35 MB
  • STEP ()5.72 MB
  • Stereolithography ()5.12 MB
