Description

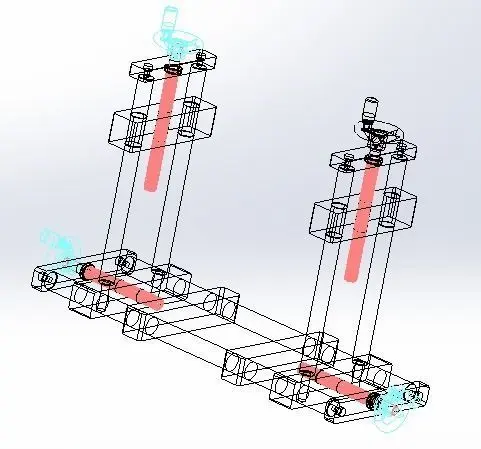

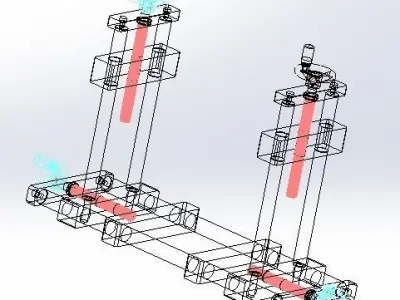

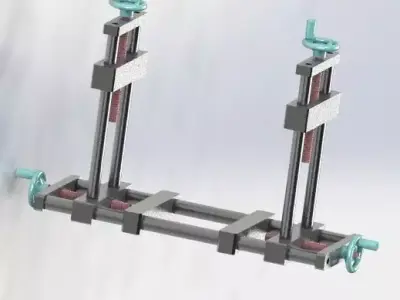

Symmetry trimming biaxial mechanical structure, the mechanism through the lead screw and guide rail combination principle, the mechanism symmetric fine-tuning, z axis and fine-tuning, can be used as an inspection agencies, feeding mechanism of fine-tuning mechanism to use.Themechanism includes:

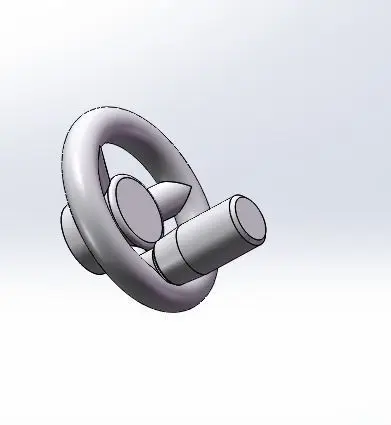

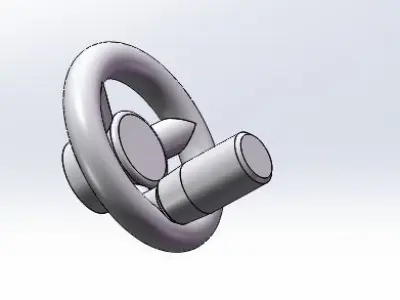

  1. Fine tuning mechanism

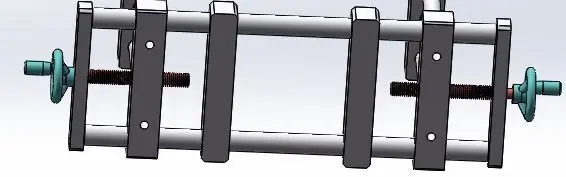

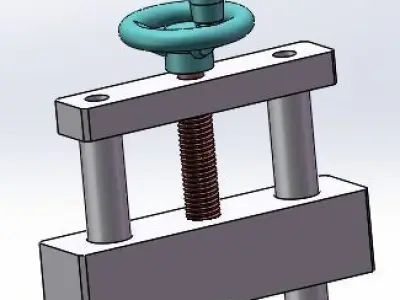

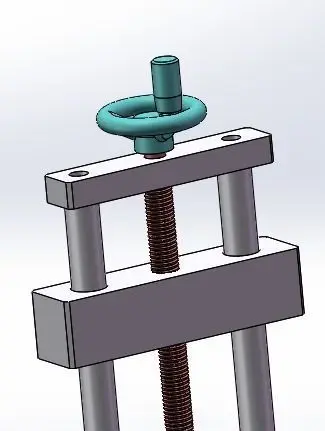

  2. Symmetric screw structure.

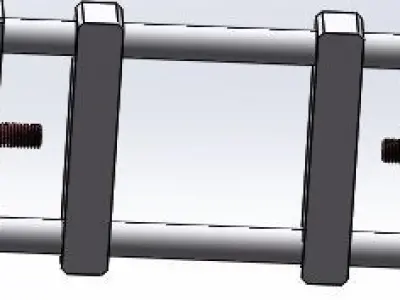

  3. Guide rail transfer mechanism.Symmetrical adjustment of screw guide.

Files format contains-solidworks 2017-step-iges-stl-obj-3ds

  • and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: -
  • Polygons: 130,000
  • Vertices: 258,608

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Symmetrical Adjustment Handle Guide Industrial machine Industrial part Industrial factory
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.
  • SolidWorks () (2 files)7.32 MB
  • 3D Studio ()10.9 MB
  • Autodesk FBX ()6.71 MB
  • IGES ()7.71 MB
  • Autodesk 3ds Max ()7.01 MB
  • OBJ ()10.5 MB
  • Other 19.8 MB
  • STEP ()5.48 MB
  • Stereolithography ()12.3 MB
