T-Motor AT4120 Long Shaft 560KV 3D print model

Publication date: 2023-02-23

T-Motor AT4120 Long Shaft 560KV 3D print model

$20

License: Royalty Free License

author:

-BlackLotus-

Description

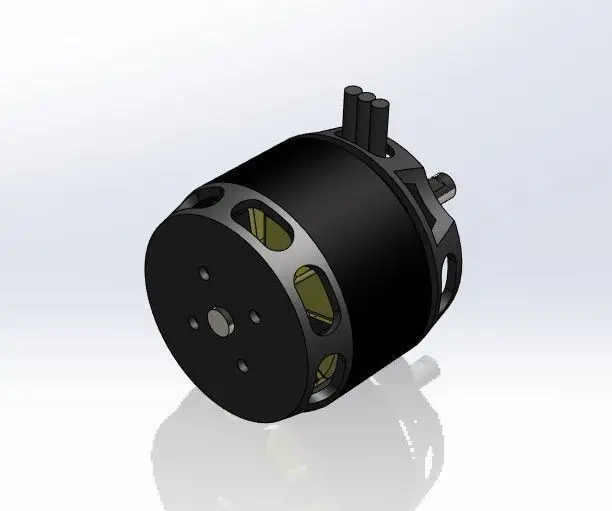

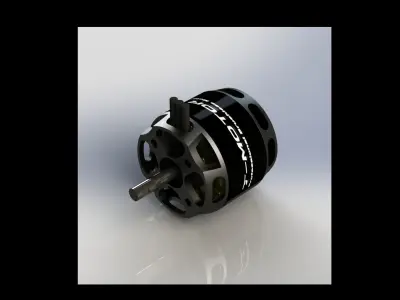

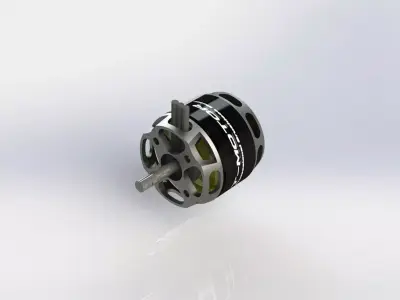

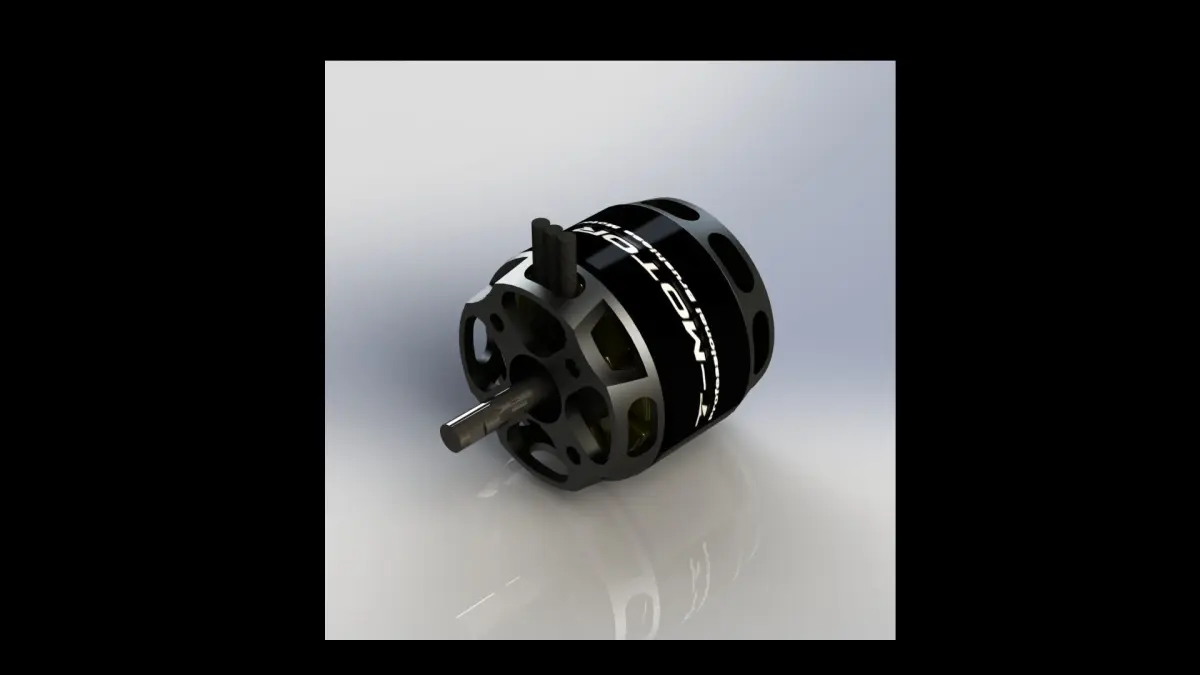

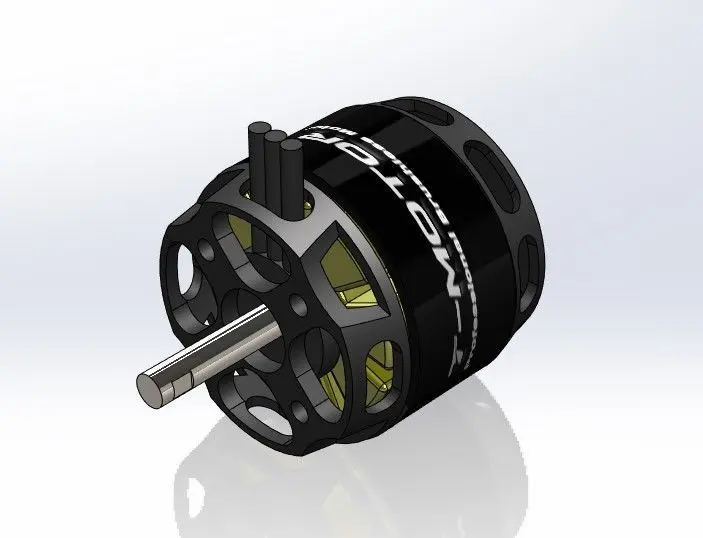

A 3D Model of the AT4120 BLDC Motor with a rotating shaft, created on Solidworks 2022. All the part and assembly files are included. The 3D model of the AT4120 BLDC motor created in Solidworks 2022 consists of an assembly of several parts, including the stator, rotor, shaft and casing. The stator has a cylindrical shape with teeth for the winding wire, while the rotor has a circular shape with permanent magnets arranged in a specific pattern. The shaft connects the rotor to the outside world, which is supported by bearings in the casing. The model allows for a detailed visualization of the motor's components and their interactions, as well as the ability to simulate its performance in various scenarios.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: Unknown
Vertices: Unknown

Tags

Solidwork Motor Design Drone Hobby Aircraft Aircraft part Rotation Science Engineering
