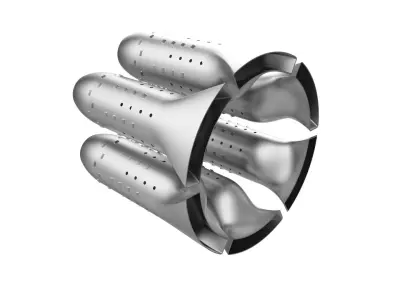

Turbojet engine combustion liner chamber 3D print model

Publication date: 2021-04-08

Turbojet engine combustion liner chamber 3D print model

$12.95

License: Royalty Free License

author:

AG-Design

Description

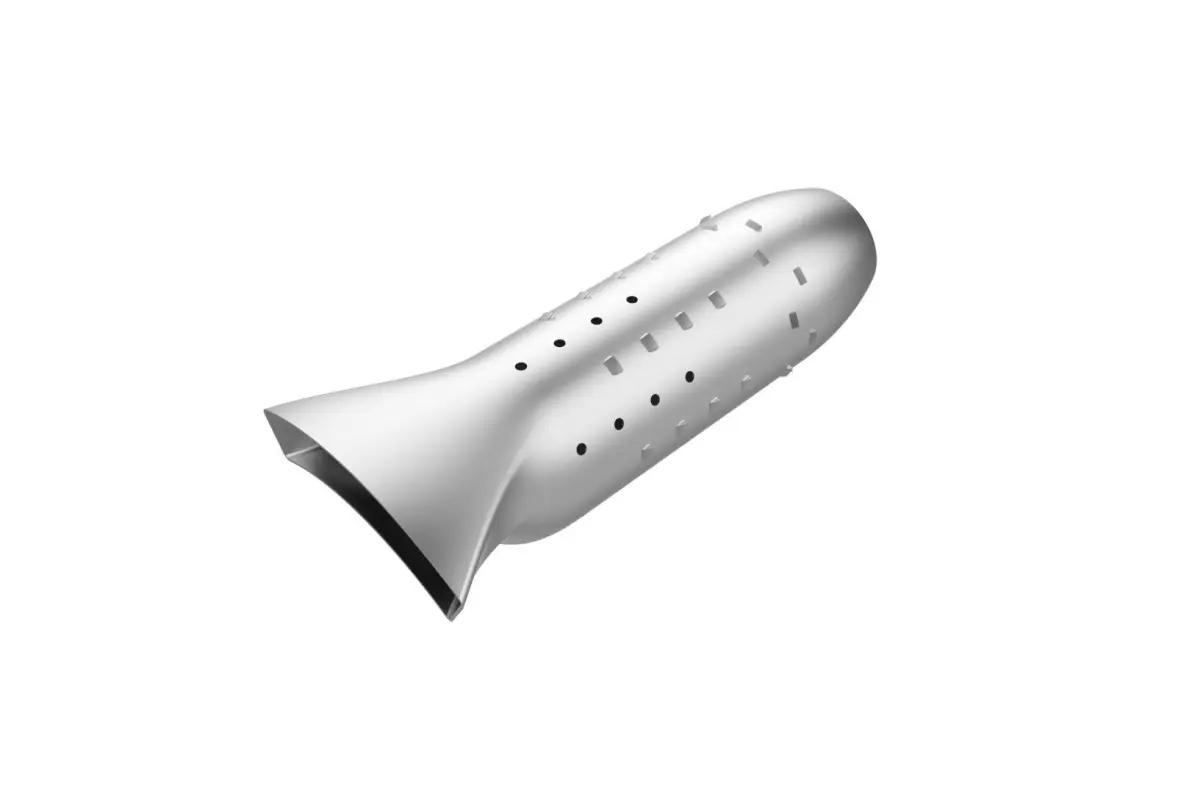

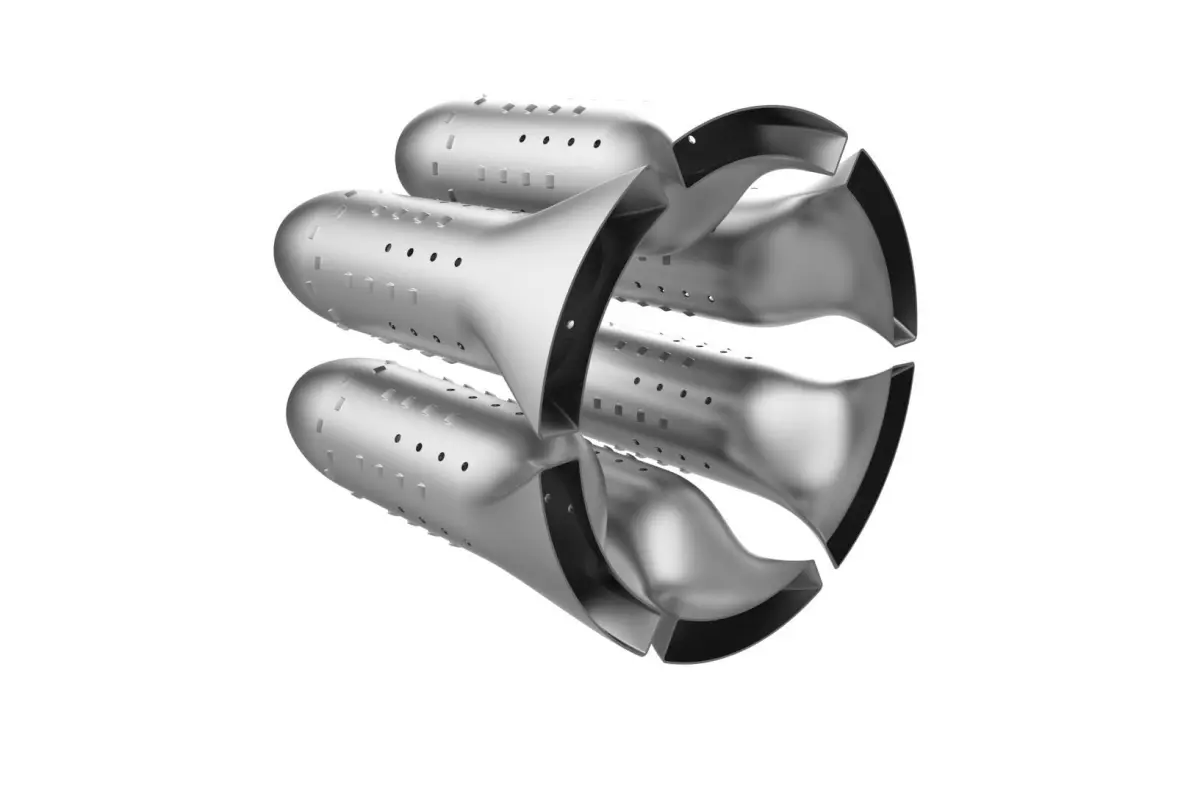

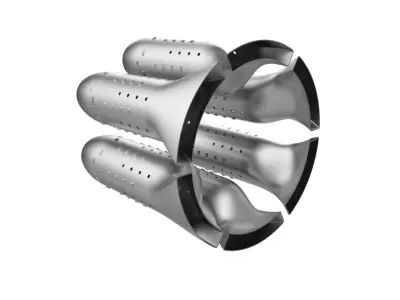

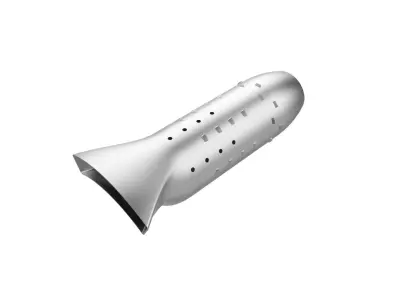

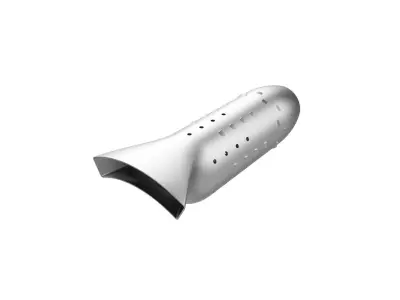

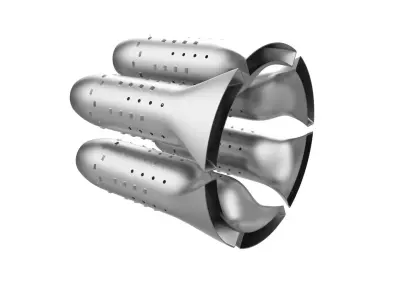

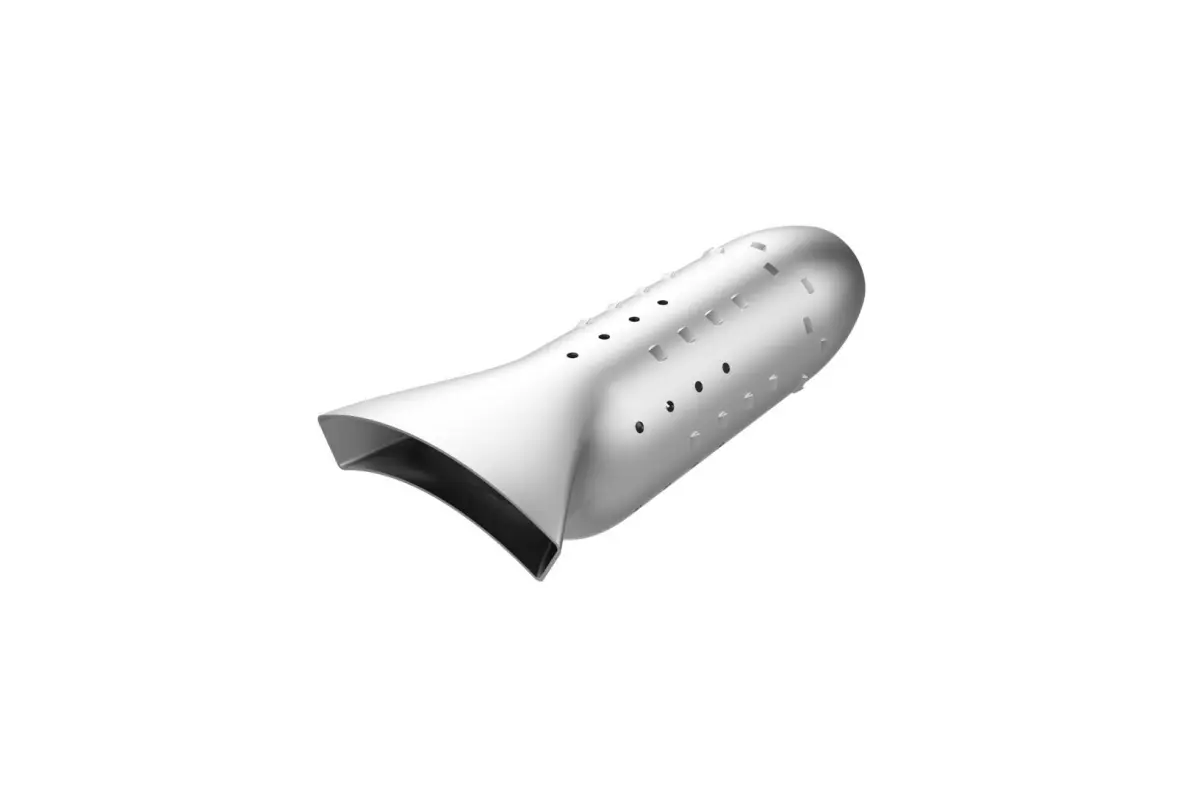

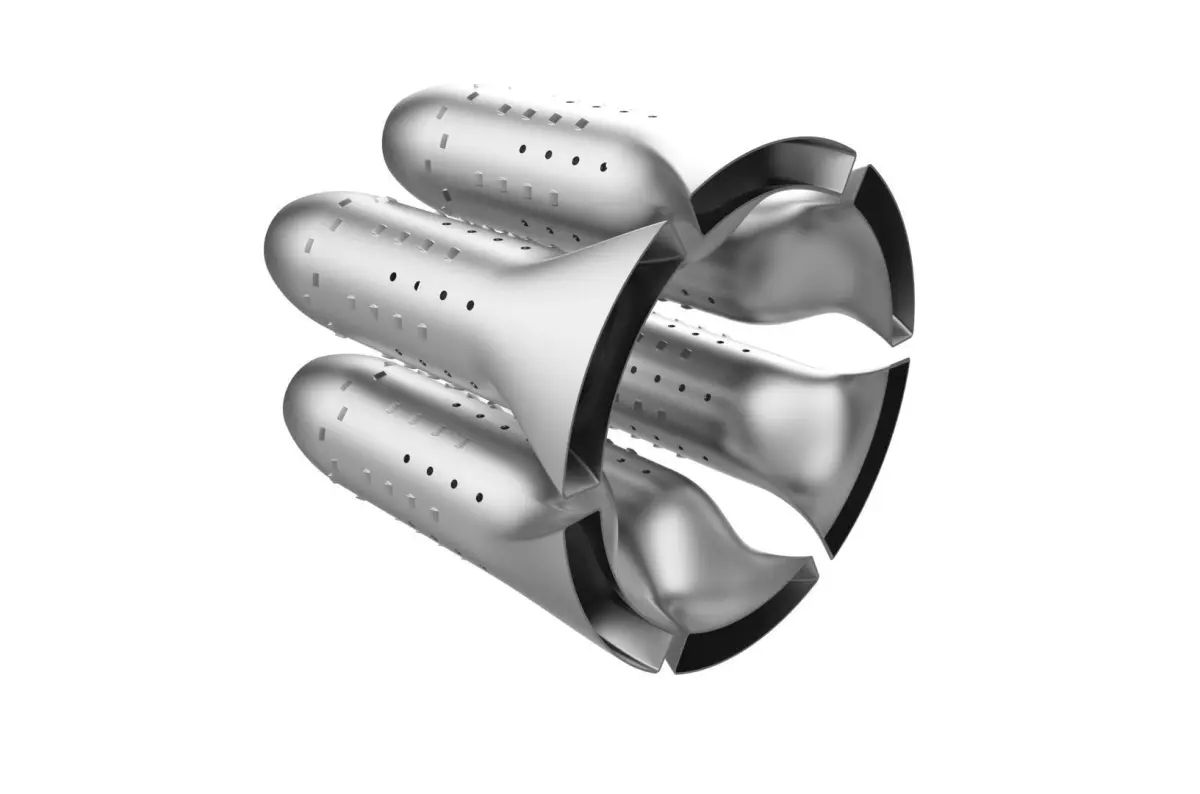

This is a 3D model of a turboject engine conbustion chamber (combustion liner).It is designed according to reference images that i have found on the internet.All of the basic features of a typical combustor liner are included. The model has been also tested in simulation for proper combustion feasibility and is OK.Size is random but can be scaled to whatever size you wish. Along with the native Solidworks file, you can also find parasolid, iges and step formats as well as stl, amf and 3mf. Polygon file is also attached. Can be used for 3D printing.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: Unknown
Vertices: Unknown

Tags

Combustion Chamber Liner Turbojet Engine Jet Aircraft Simulation Motor Internal Piston Cylinder Hobby Diy Hobby diy Mechanical Parts Mechanical parts Jet engine Aircraft engine Airplane engine Engine parts
