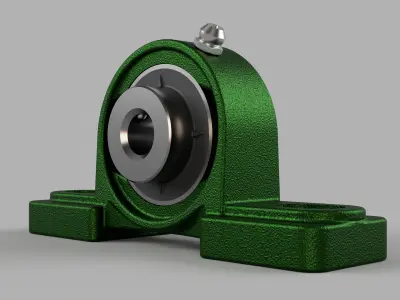

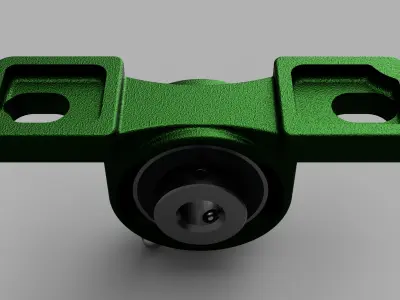

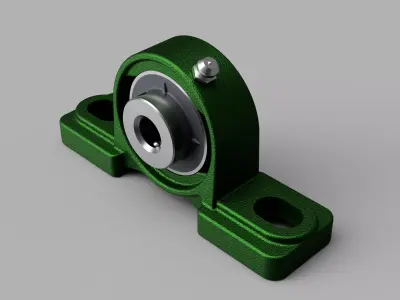

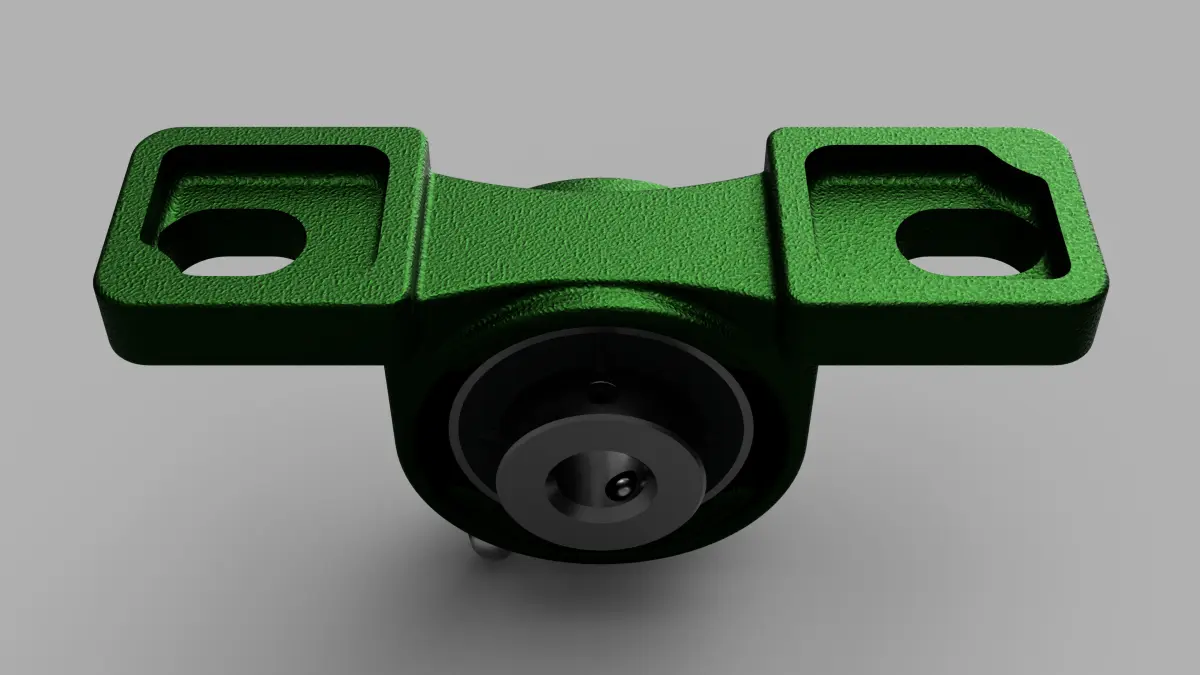

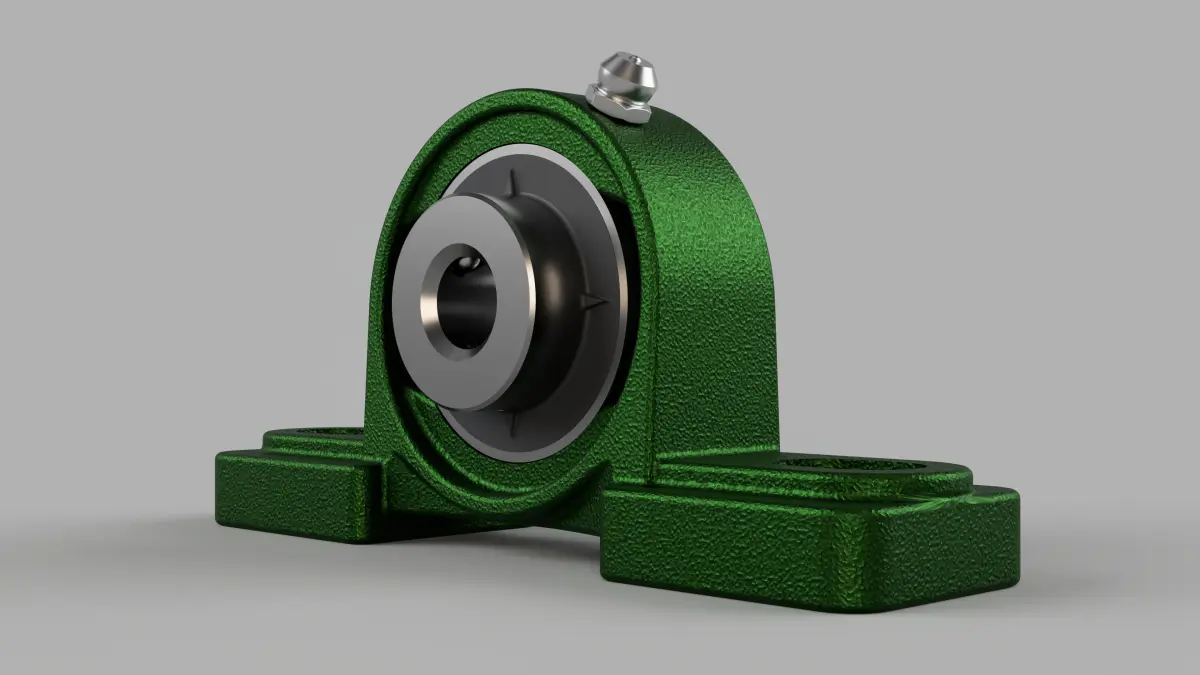

UPC 201 type 12mm Pillow Block Bearing 3D model

Publication date: 2023-04-13

UPC 201 type 12mm Pillow Block Bearing 3D model

$15

License: Royalty Free License

author:

vimalgeorge

Description

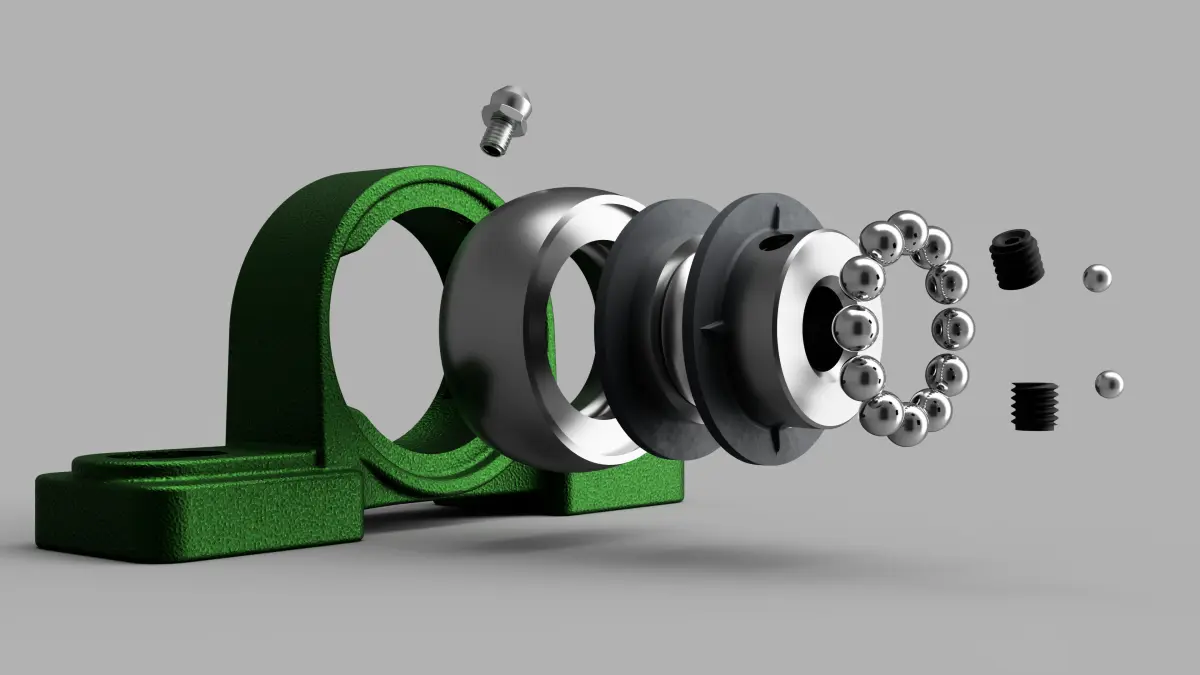

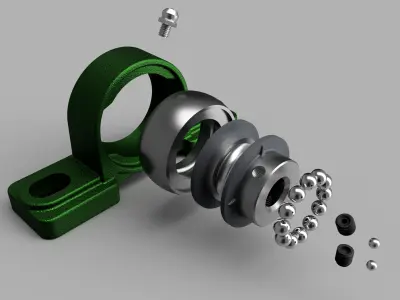

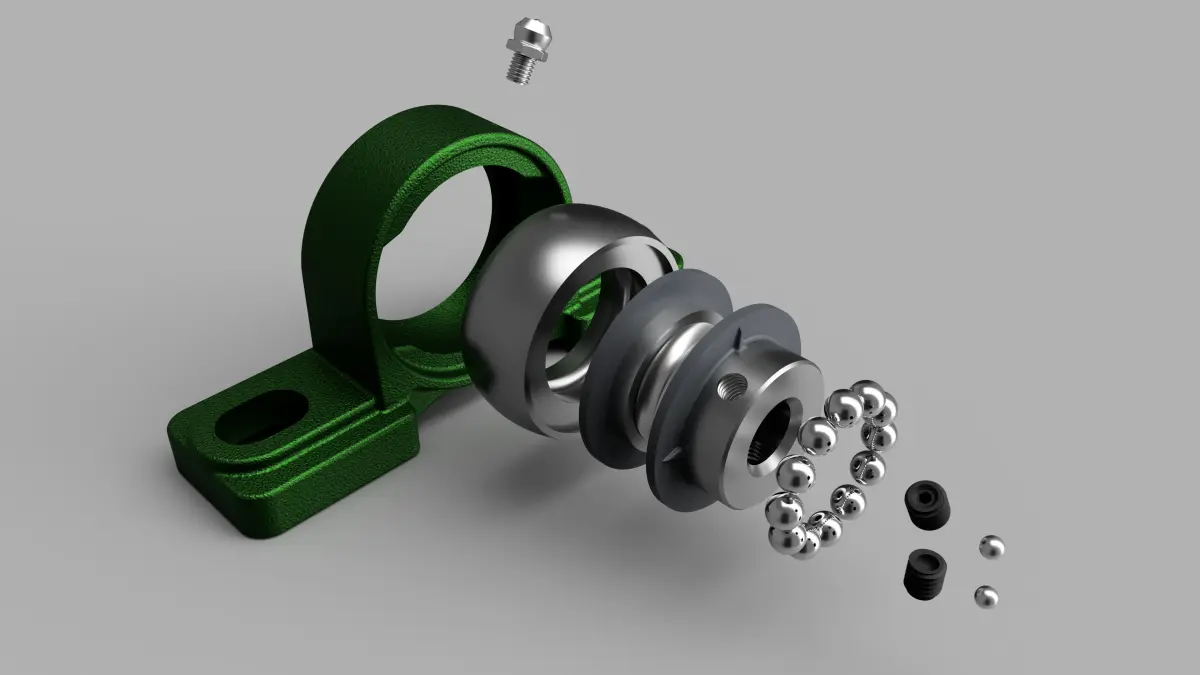

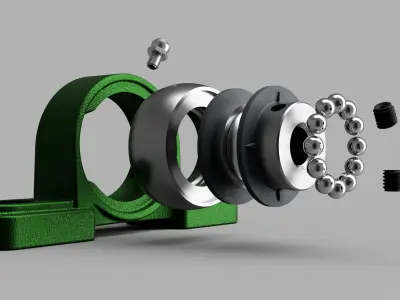

Reverse-engineered CAD model of Actual UPC 201 type of Pillow Block Bearing. Specification: Bore=12mm Housing Length= 124mm Housing Width= 35mm Bearing OD=46mm Hub Length=30 and so on. This is a self-aligning bearing and housing assembly and so the bearing can adjust itself within the housing depending on the axis of the shaft connected to it. 2 Hexagon Socket Ball End Grub Screw is provided to lock the shaft firmly inside the bore of the bearing. Also, a Lubrication lid is provided to lubricate the bearing hub’s outer and housing’s inner contact surfaces.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Other
Polygons: 0
Vertices: 0
