Worm gear motor NMRV 090 3D model
Worm gear motor NMRV 090 3D model
Worm gear motor NMRV 090 3D model
Worm gear motor NMRV 090 3D model
Worm gear motor NMRV 090 3D model

Publication date: 2024-02-14

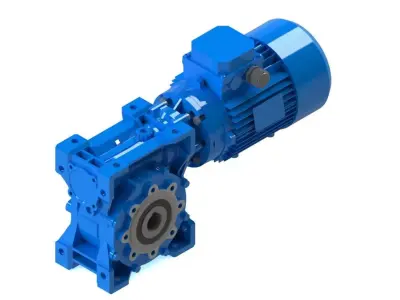

Worm gear motor NMRV 090 3D model

$5

License: Royalty Free License

author:

suxrob1994

Buy at www.cgtrader.com - $5 Add to Wishlist
  • Description
  • Formats
Description

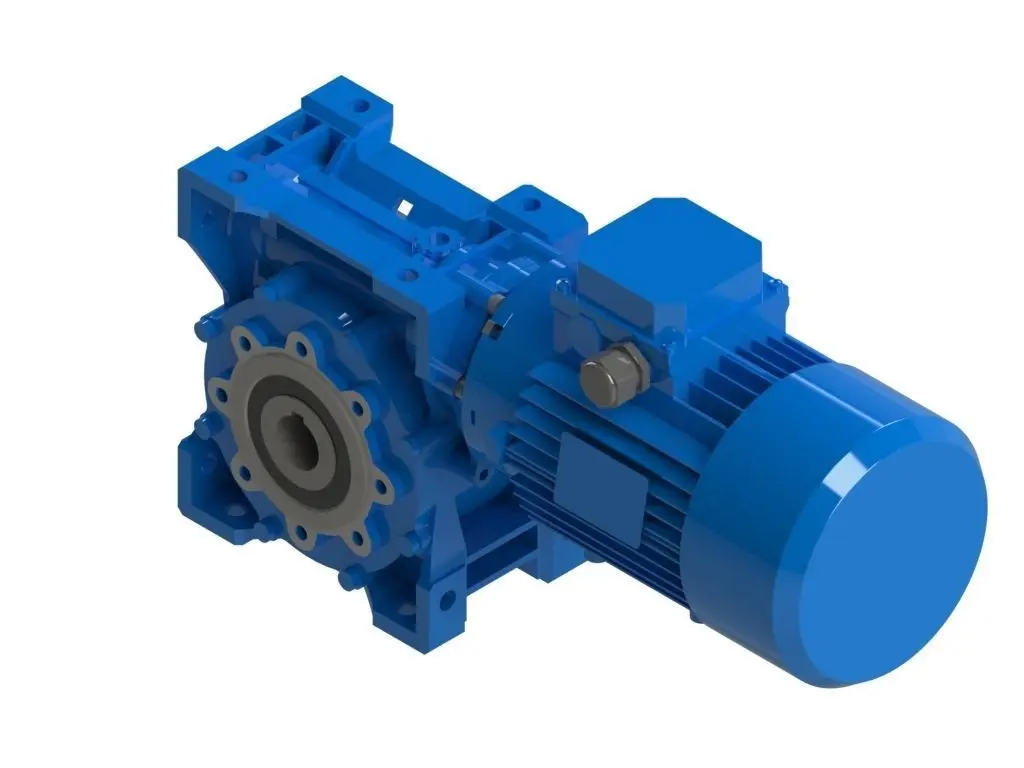

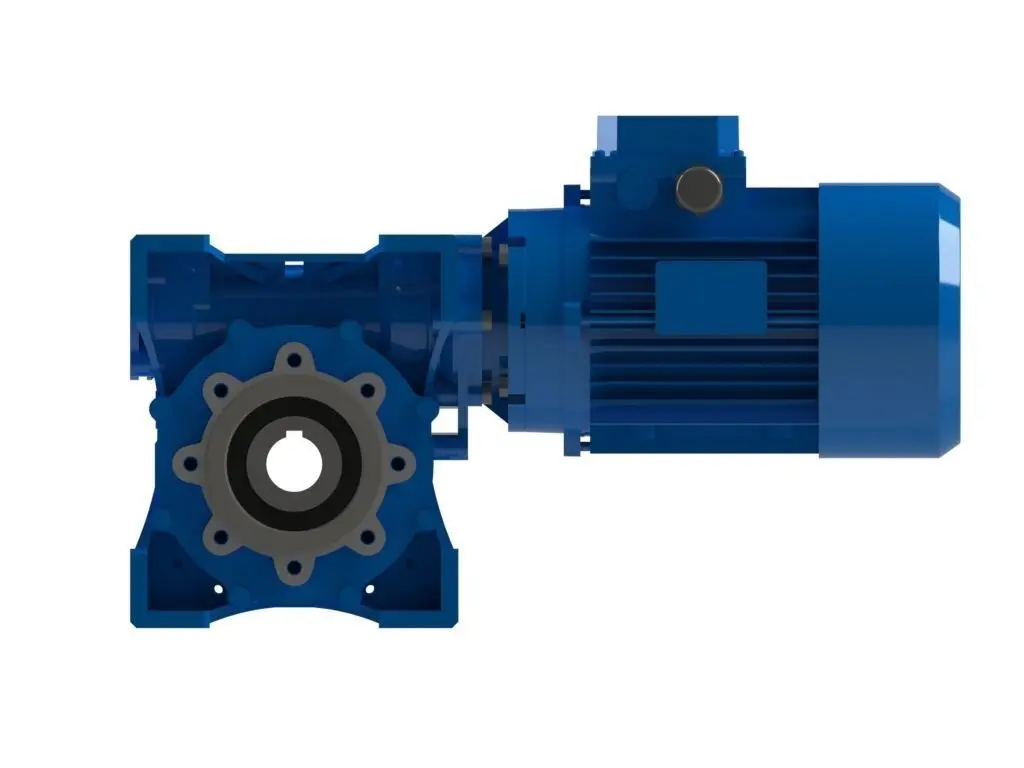

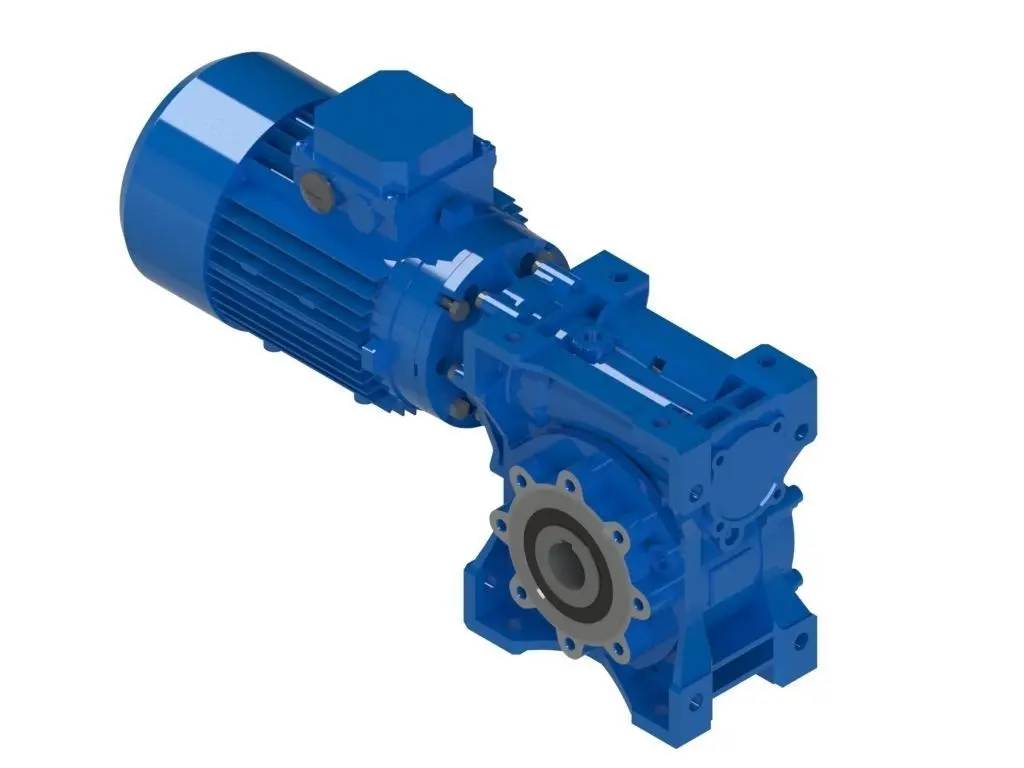

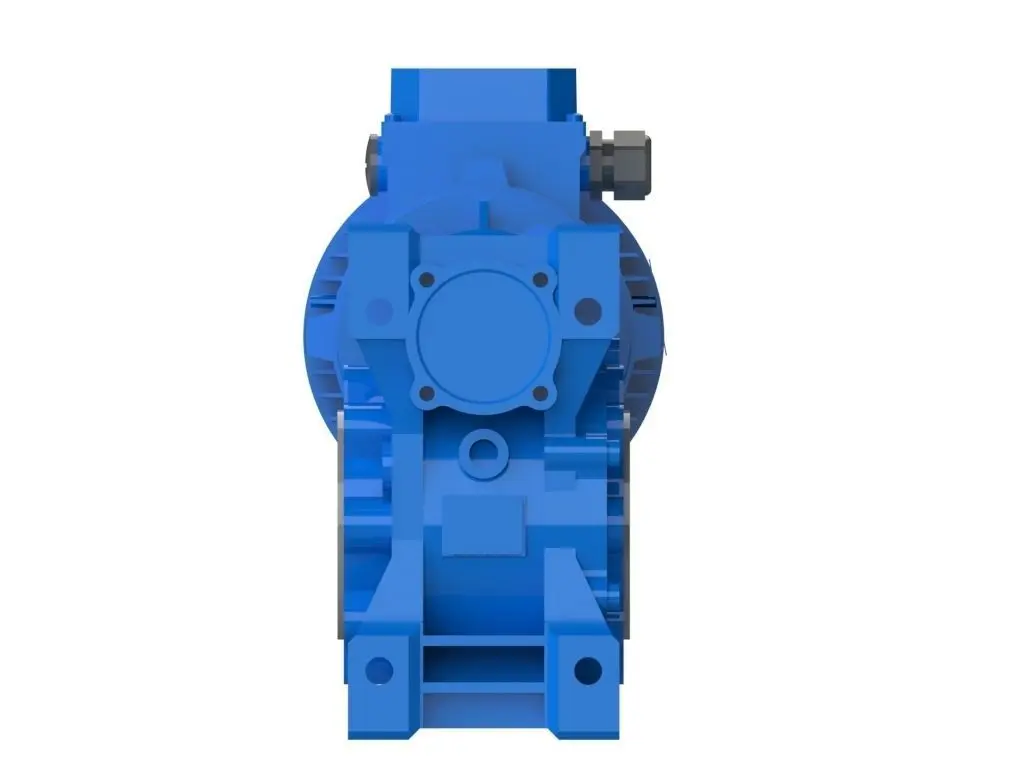

The NMRV 090 worm gear motor is an angular drive in which the input and output shafts are located at right angles to each other. A gearbox with one gear stage provides gear ratios of 7.5 - 100. Electric motor power: 0.37 - 4 kW. The drive can be installed in any spatial position. Mounting options: paws/flange/combo.

NMRV - 090 - 30 - 93.3 - 2.2 - B7

NMRV - worm gear motor
090 - standard size (center distance, mm)
30 - gear ratio
93.3 - output shaft rotation speed, rpm
2.2 - electric motor power, kW
B7 - installation position

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: -
  • Polygons: 0
  • Vertices: 0

Tags

Gearmotor Motor Gears Gearbox Worm Machine Industry Machinery Technology Engine Reduction Power Part Industrial Steel Shaft Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «suxrob1994». CGhub does not claim copyright ownership over the content used.
  • Blender ()29.6 MB
  • STEP ()1.13 MB
  • DXF ()2.51 MB
  • AutoCAD ()2.17 MB
  • 3D ACIS ()1.46 MB
  • IGES ()4.29 MB
  • Parasolid ()1.46 MB
  • Autodesk FBX ()10.7 MB
  • Coordinate 3D ()4.38 MB
  • OBJ ()8.55 MB
  • SolidWorks ()2.54 MB
  • Stereolithography ()9.15 MB
