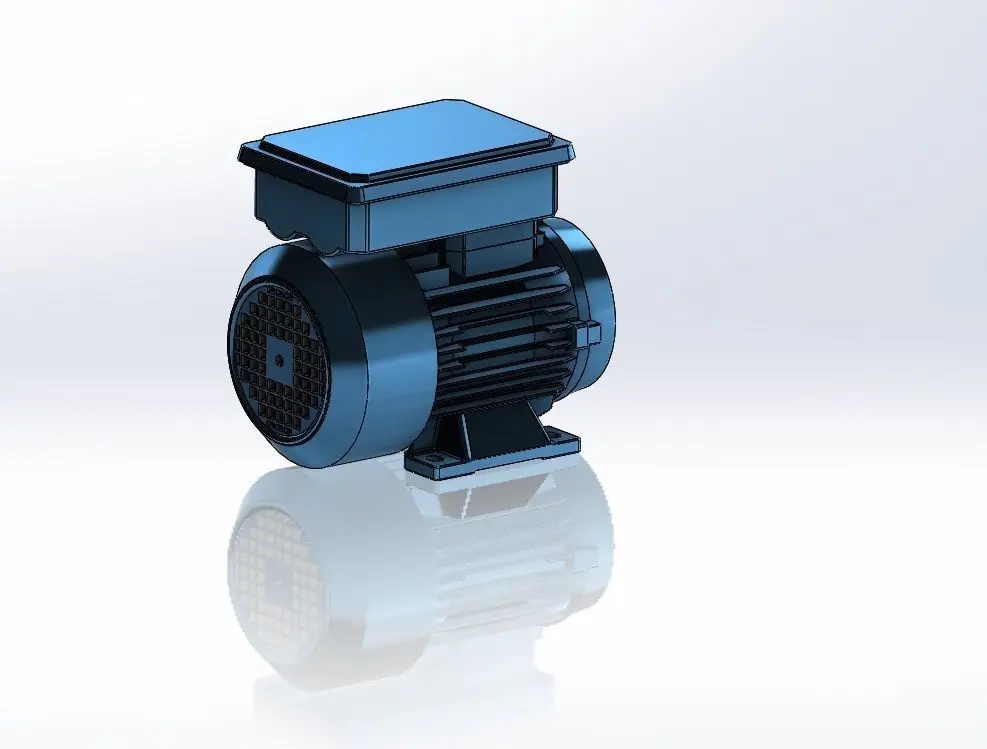

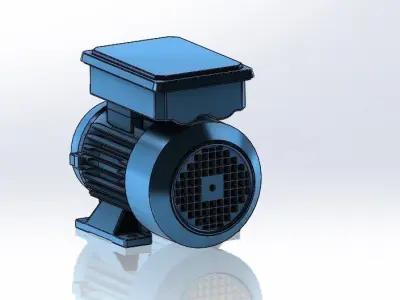

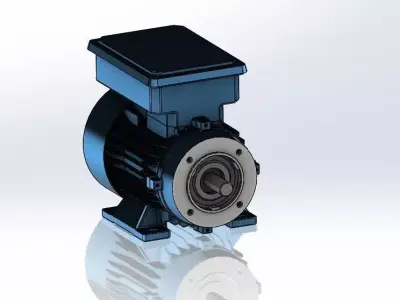

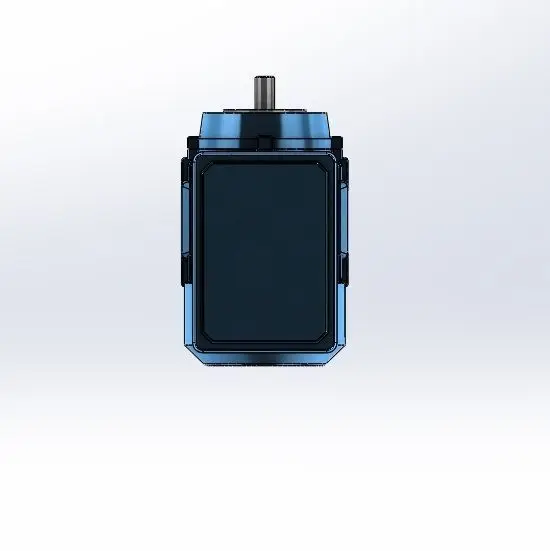

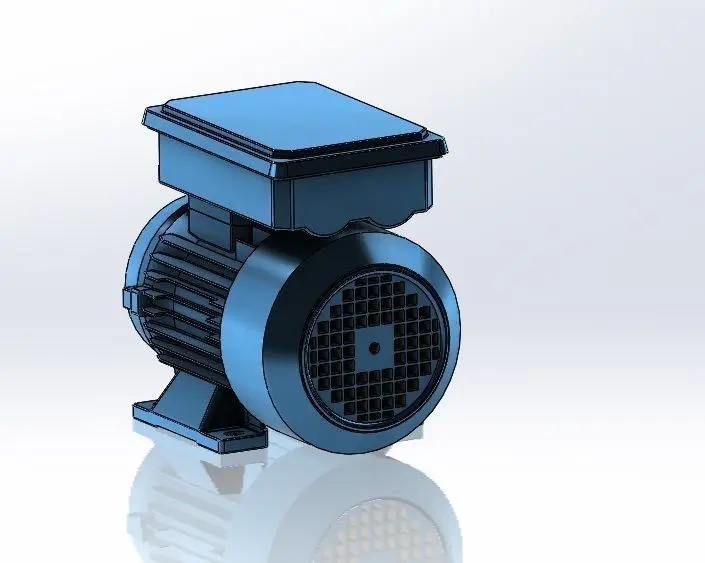

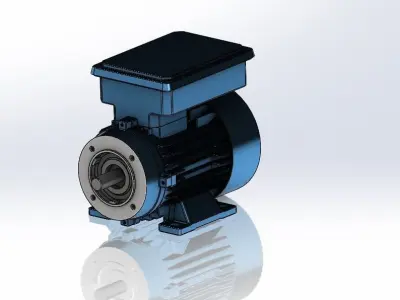

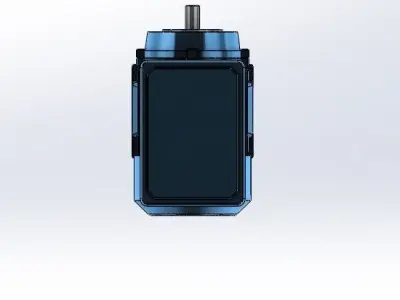

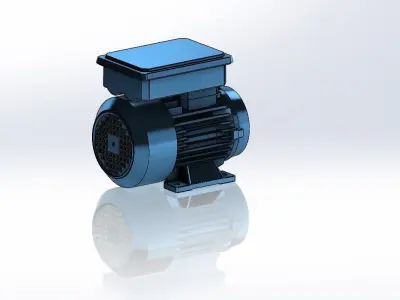

Dimensions are precision and can be trusted.You can use it all your machine design projects.Model was sketched in Solidworks 2016 version.
Please ask a question if you have a problem about model.
I m here all the time.
Thank you
Native Formats: SLDPRT (SolidWorks, filesize: 17.9 MB)
Exchange Formats: SLDPRT (SolidWorks, filesize: 17.9 MB), STL (Stereolithography, filesize: 18.8 MB), IGE (IGES, filesize: 28.1 MB), DWG (AutoCAD, filesize: 12.6 MB)
