1 MW Solar Tracker System Project Type 1

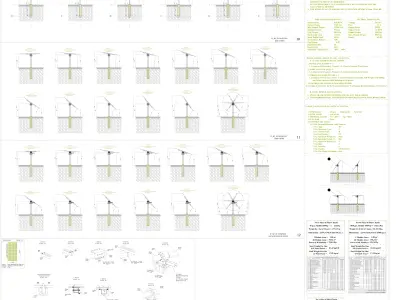

Static Steel Fabrication Project

20x20 Vertical Panel Layout

Ground Connection Type; With Concrete Friction Pile

Distance of Columns Below Ground 1300 mm.

Concrete Friction Pile Dimensions : Ø300 mm H= 1400 mm

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 22 kWp power in 1 hour

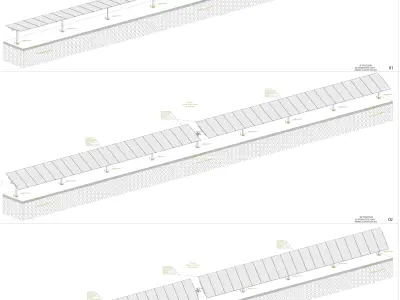

The system consists of 9 axles and the distance between each axle is 5750 mm.

Single Column.

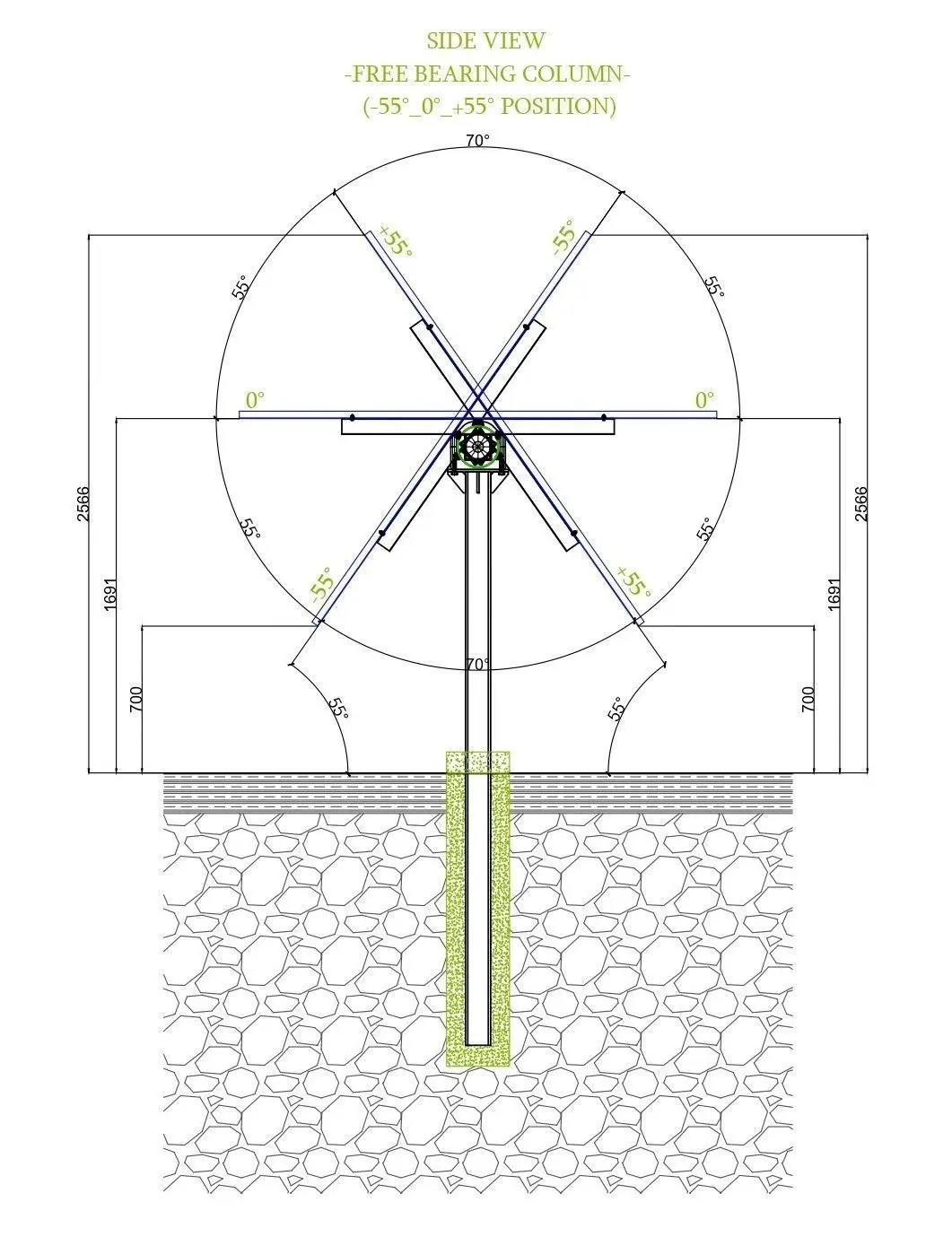

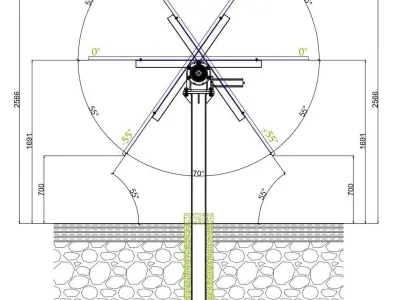

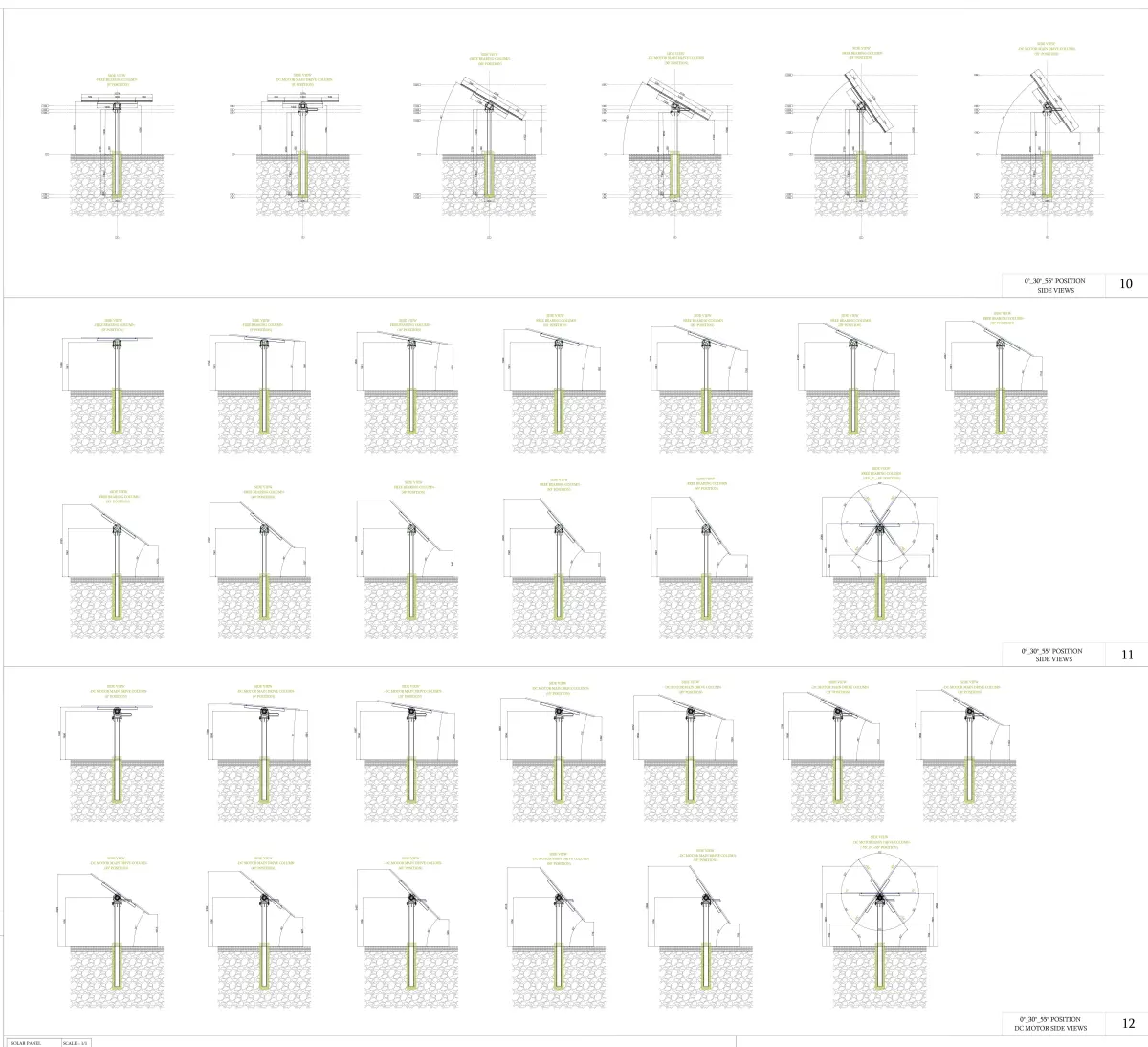

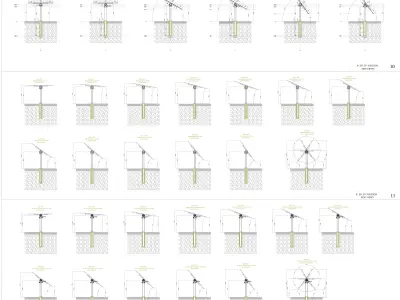

Horizantal angle of panel 0° _ +55° _ -55°

The closest distance of the panels to the floor 700 mm.

Prepared With AutoCAD Version 2021
