Publication date: 2023-07-27

100 kWp Solar Carport Project Type 10 3D model

$60

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $60 Add to Wishlist
  • Description
  • Formats

99,36 kWp Solar Carport Project Type 10

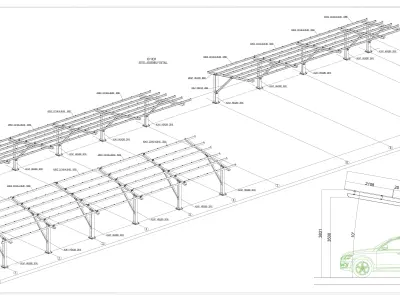

Static Steel Fabrication Project

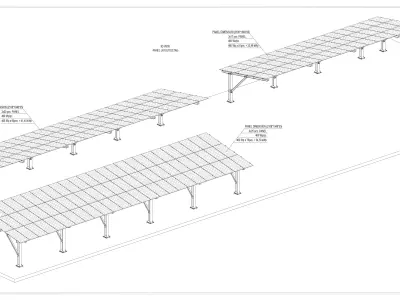

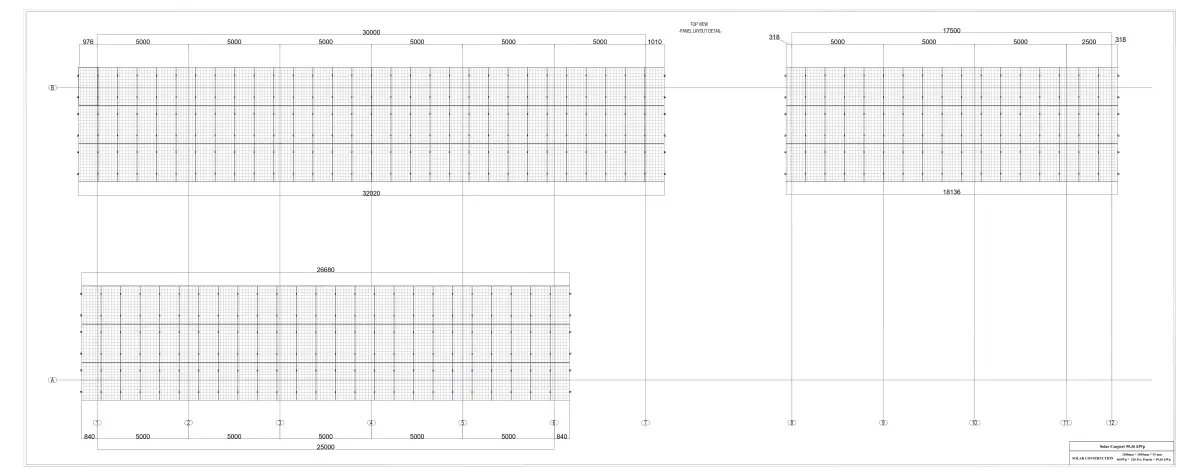

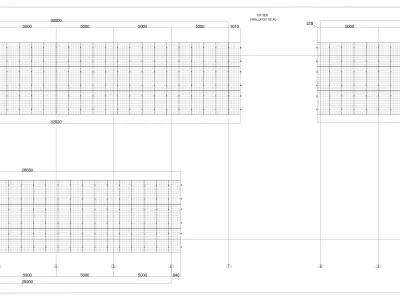

3x30 Vertical Panel Layout,

3x17 Vertical Panel Layout,

3x25 Vertical Panel Layout,

Ground Connection Type; With Anchor Plate

Panel Dimensions : 2108 x 1048 x 35 mm

Panel Power : 460Wp

1 solar carport steel construction produces 68,25 kWp power in 1 hour

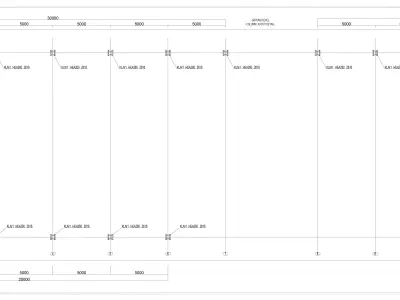

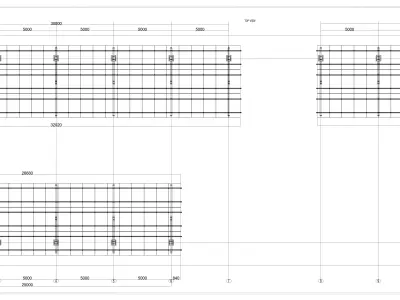

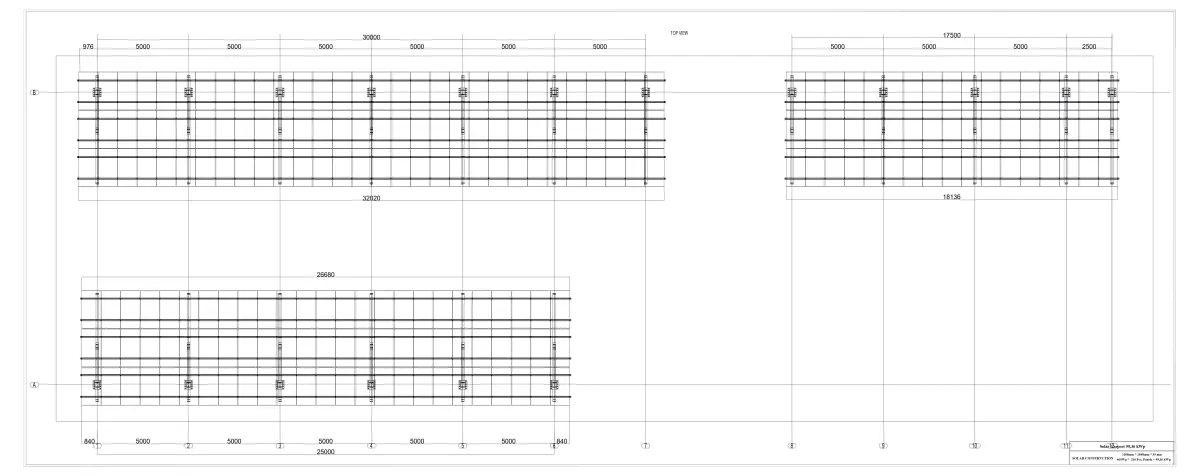

The system consists of 11 axles and the distance between each axle is 5000 mm.

Horizantal angle of panel 10°

The closest distance of the panels to the floor 2726 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 6.67 MB) Exchange Formats: DXF (DXF, filesize: 47.3 MB), PDF (PDF, filesize: 2.48 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Solar Energy Manufacturing Steel Project Dwg Dxf Autocad Static 2d Drawing Tracker Tracking Pdf Architectural Engineering
