100 kWp Solar Project Type 3

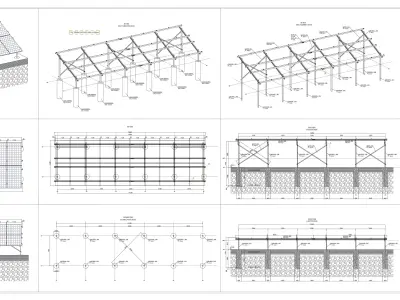

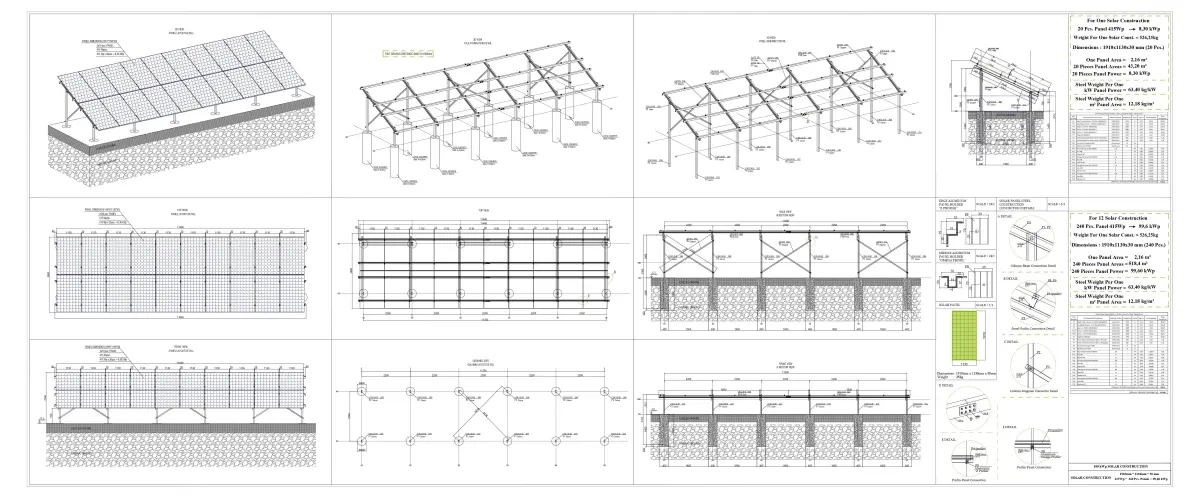

Static Steel Fabrication Project

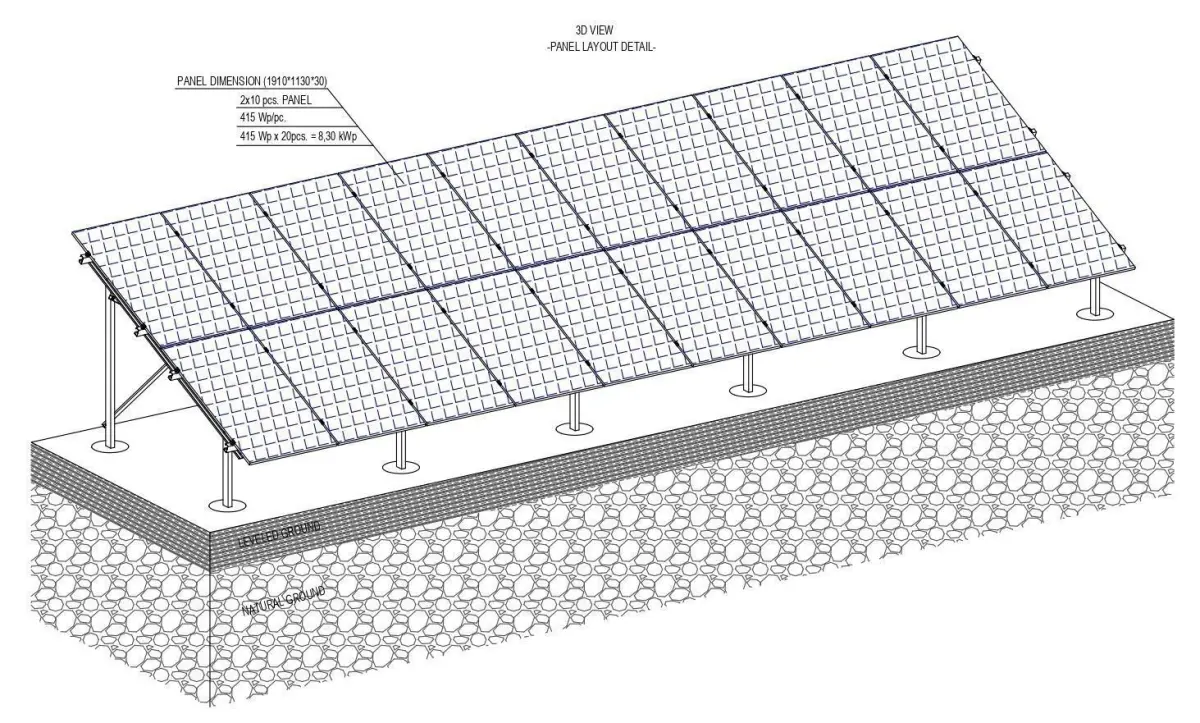

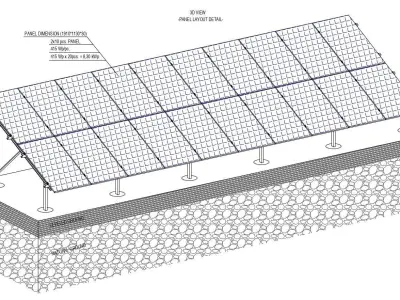

2x10 Vertical Panel Layout

Ground Connection Type; With Concrete Friction Pile

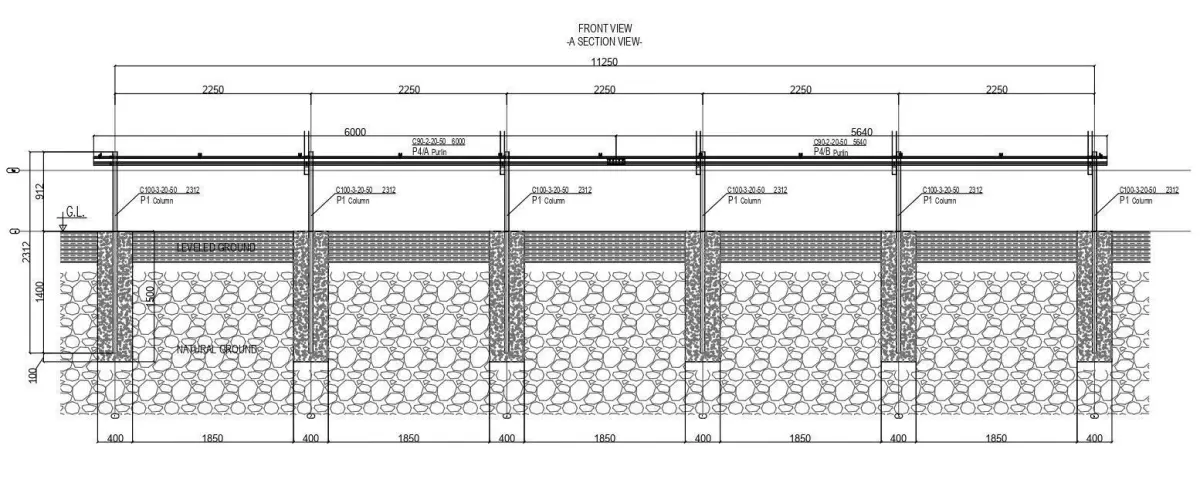

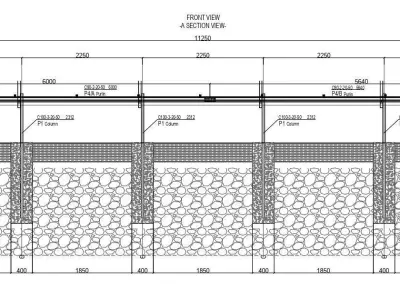

Distance of Columns Below Ground 1400 mm.

Concrete Friction Pile Dimensions : Ø400 mm H= 1500 mm

Panel Dimensions : 1910 x 1130 x 30 mm

Panel Power : 415Wp

1 solar panel steel construction produces 8,3 kWp power in 1 hour

The system consists of 6 axles and the distance between each axle is 2250 mm.

Distance between two columns 2300 mm.

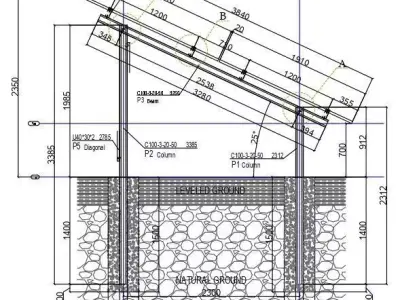

Horizantal angle of panel 25°

The closest distance of the panels to the floor 700 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 1.93 MB) Exchange Formats: DXF (DXF, filesize: 7.59 MB), PDF (PDF, filesize: 912 KB)
