10th scale RC Drift Car Ford Barra Engine for Rhinomax II 3D print model

$15

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

jiresva

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jiresva». CGhub does not claim copyright ownership over the content used.

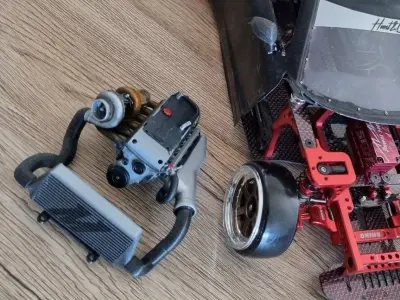

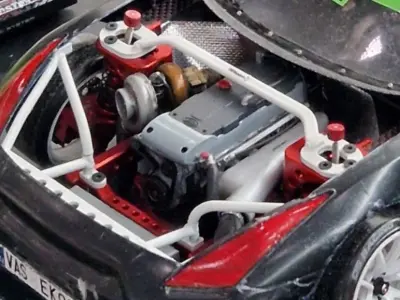

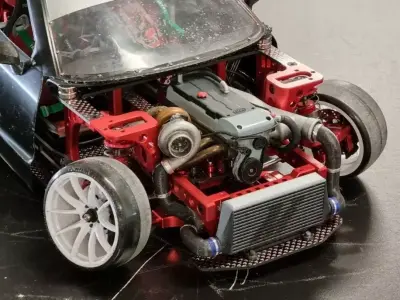

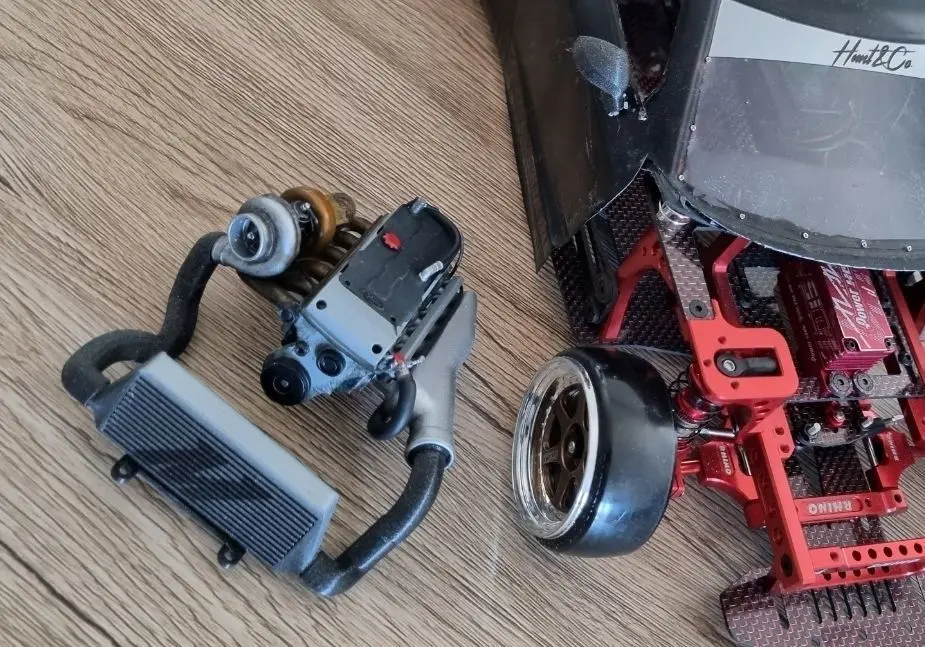

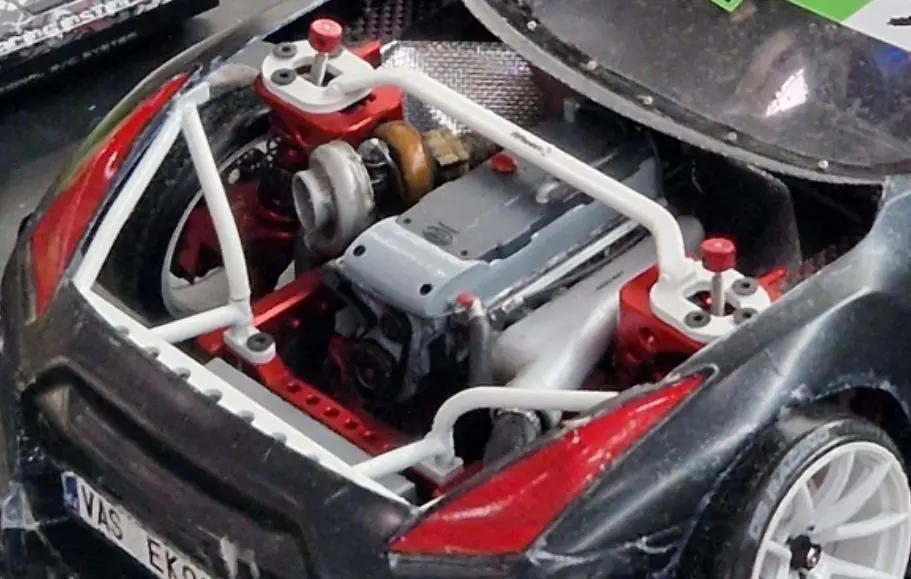

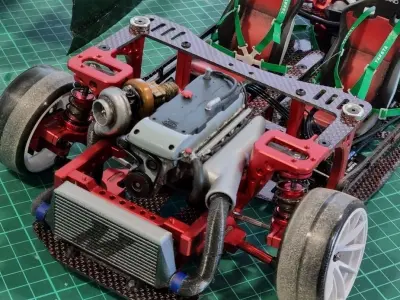

This is a Ford Barra engine model for Rhinomax II chassis.It consists of multiple parts, which need to be glued together after painting.Whole assebly can be detached any time by just undoing 2 bolts holding the intercooler brace to the chassis.

Steps:

Prepare the parts in your slicer, including supports etc. (it is advised to use a resin printer at least for the main part of the motor)
Print the parts and prepare for painting
Paint the parts

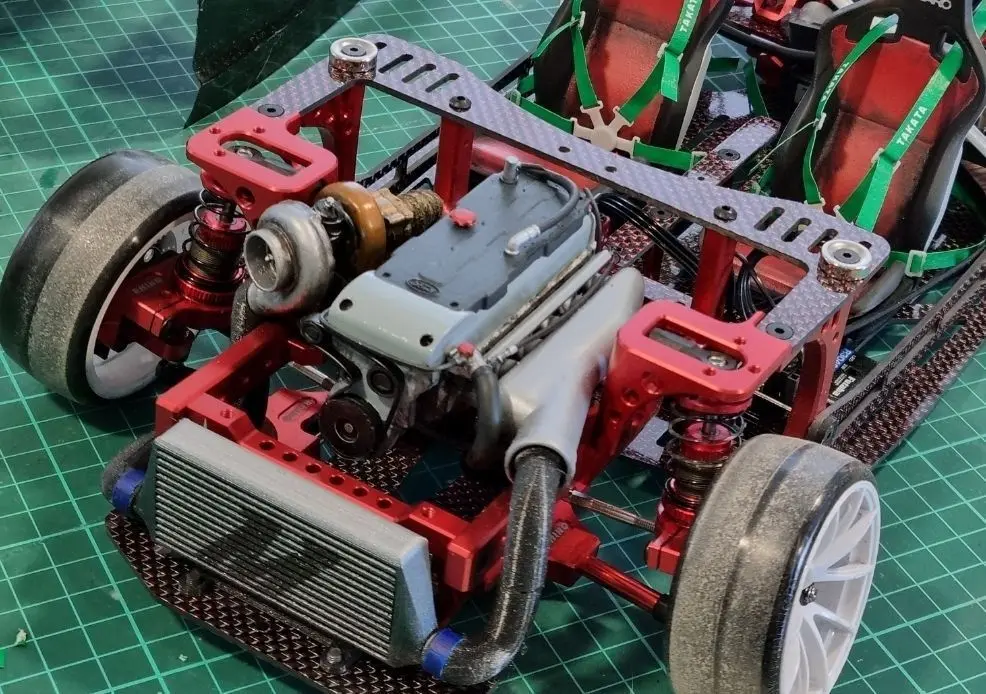

Adjust the fitment of the main engine part on the chassis (it should sit on the steering servo, some additional trimming around the turbo may be necessary)
Super glue the intercooler to the brace and use 2 M3 flat head bolts to attach it on the chassis
When both parts are on their places, mock up the fitment with the pipes and super glue everything together

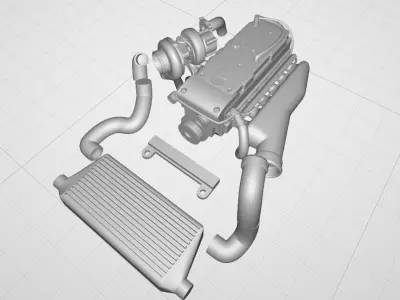

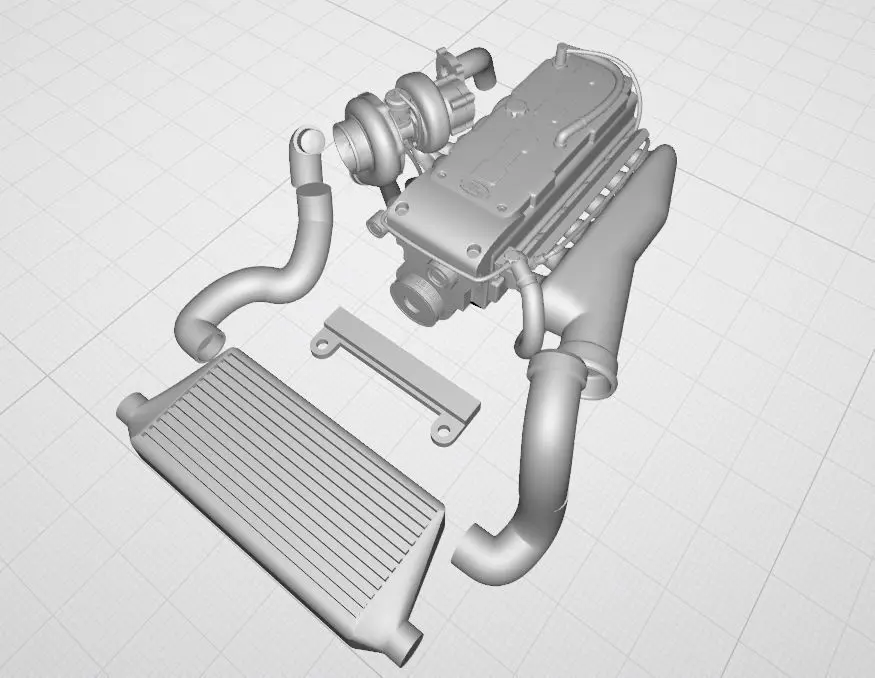

Parts of this kit:
