Publication date: 2023-07-27

12 kWp Solar Carport Project Type 1 3D model

$60

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $60 Add to Wishlist
  • Description
  • Formats

11,75 kWp Solar Carport Project Type 1

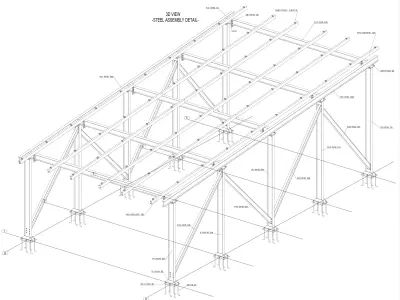

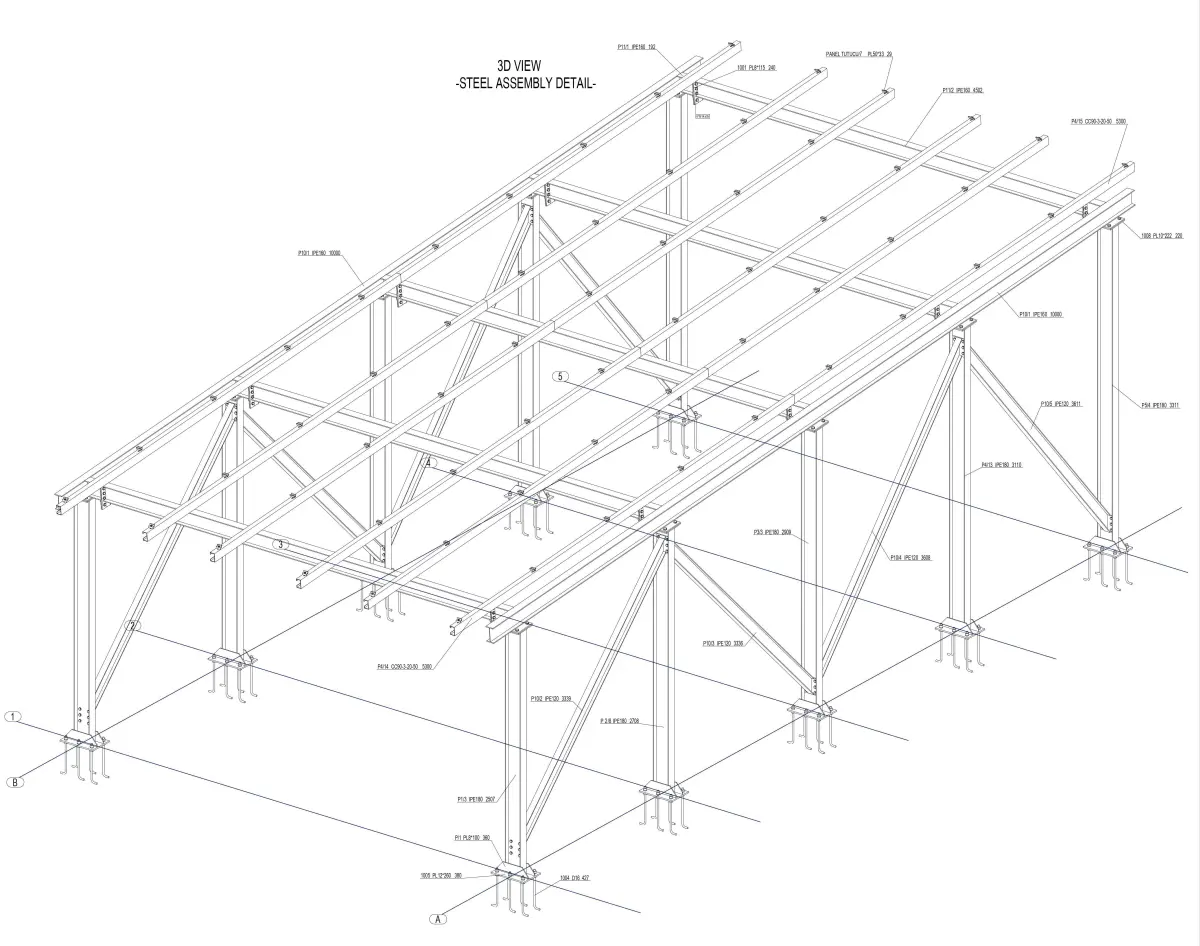

Static Steel Fabrication Project

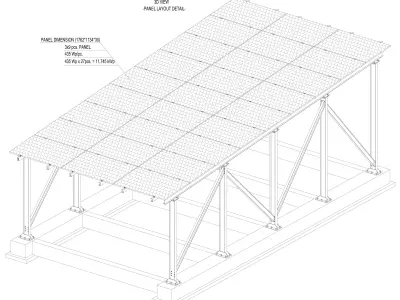

3x9 Horizontal Panel Layout

Ground Connection Type; With Anchor Plate

Panel Dimensions : 1762 x 1134 x 30 mm

Panel Power : 435Wp

1 solar carport steel construction produces 11,75 kWp power in 1 hour

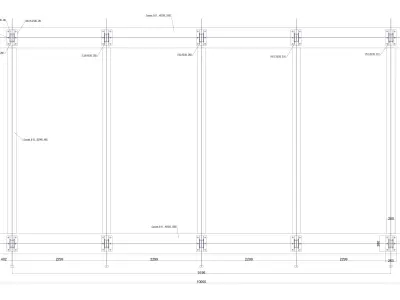

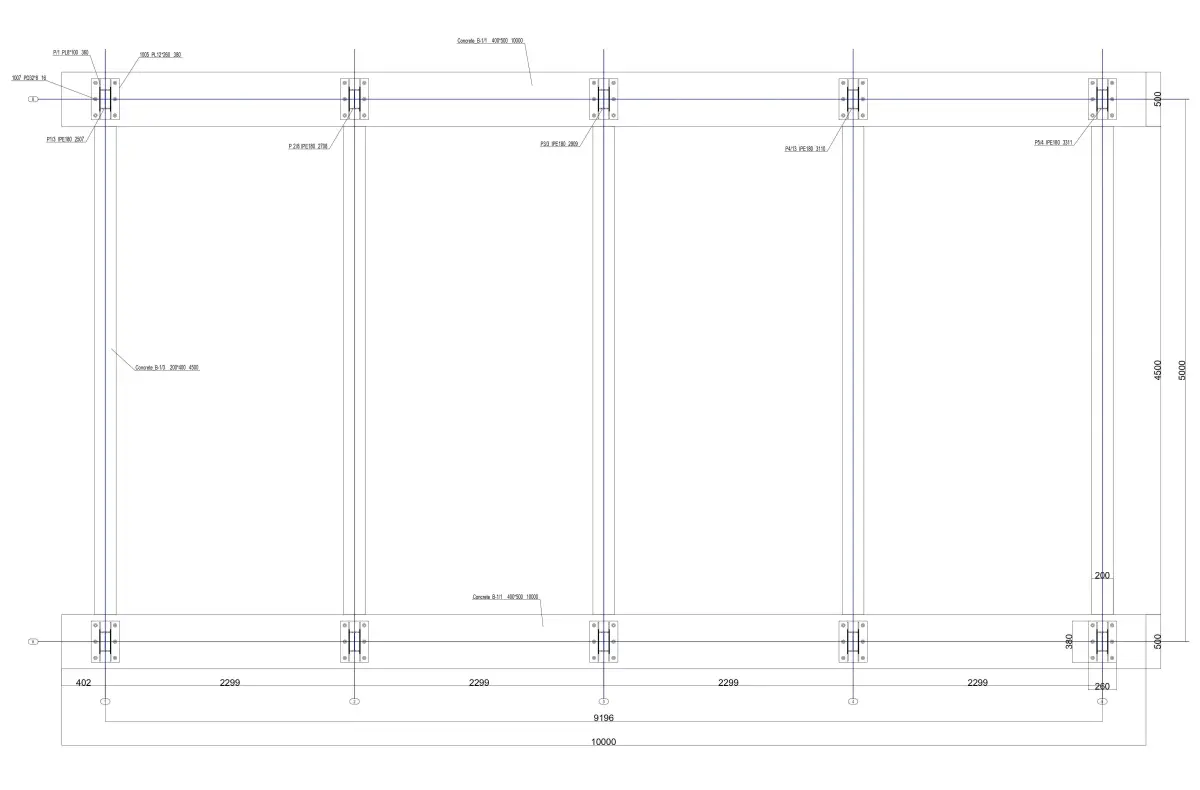

The system consists of 5 axles and the distance between each axle is 2300 mm.

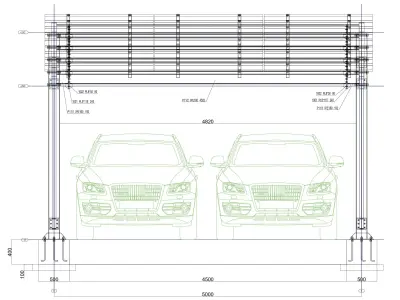

Distance between two columns 4500 mm.

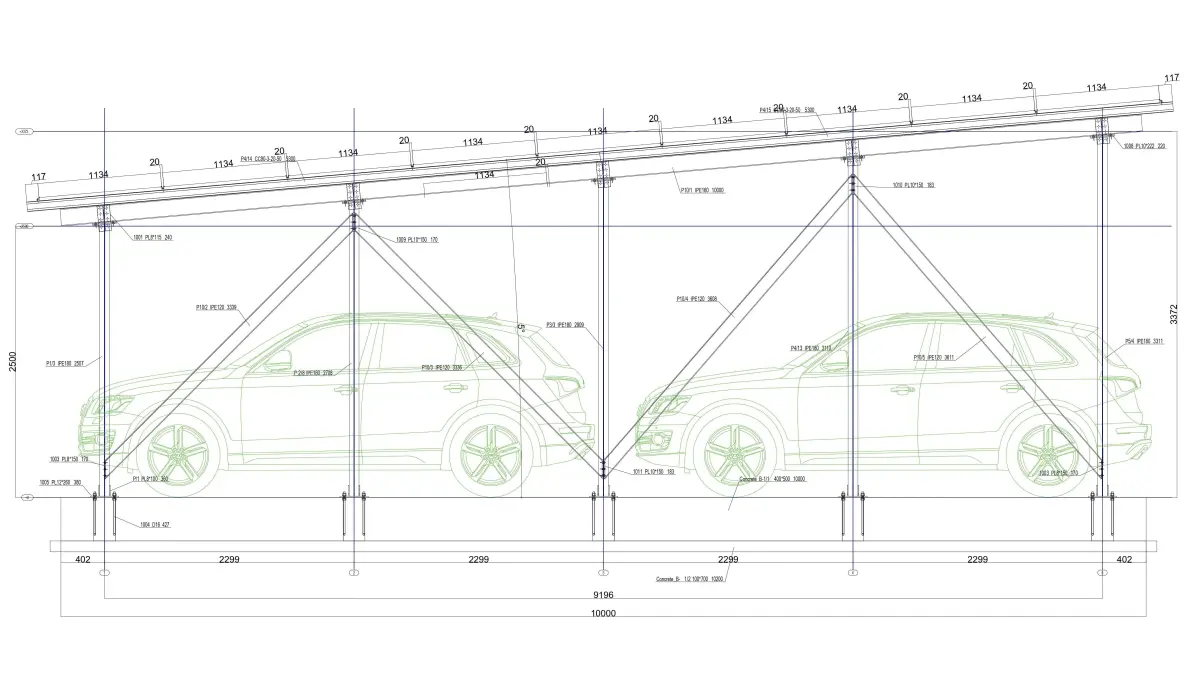

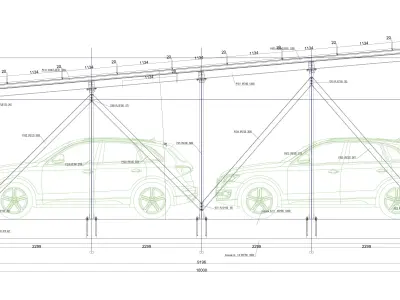

Horizantal angle of panel 5°

The closest distance of the panels to the floor 2735 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 1.71 MB) Exchange Formats: PDF (PDF, filesize: 9.77 MB), DXF (DXF, filesize: 11.1 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Solar Energy Manufacturing Steel Project Dwg Dxf Autocad Static 2d Drawing Tracker Tracking Pdf Architectural Engineering
