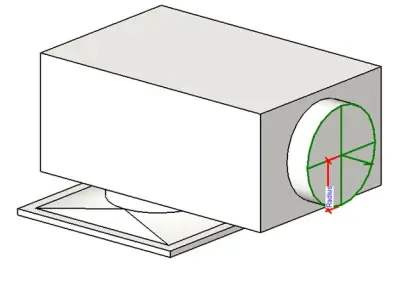

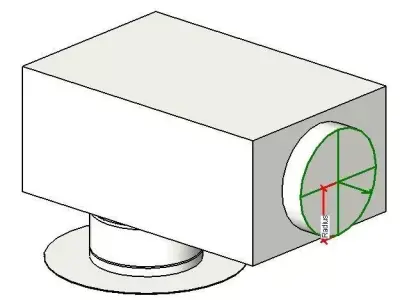

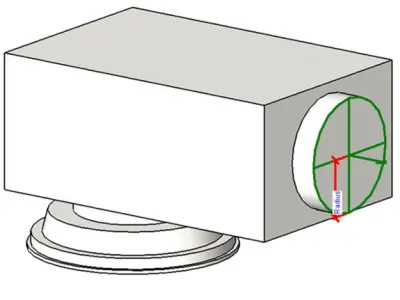

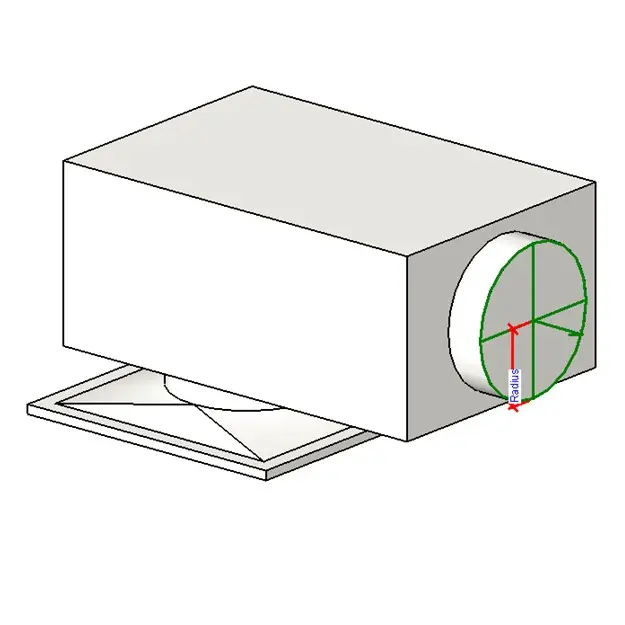

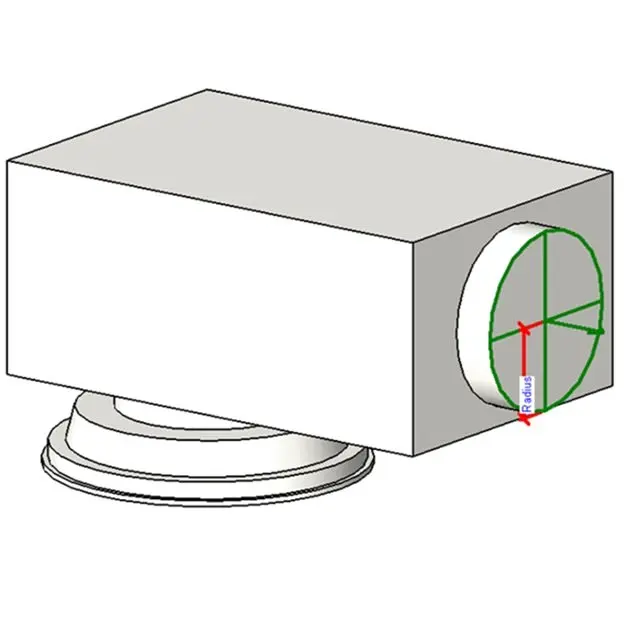

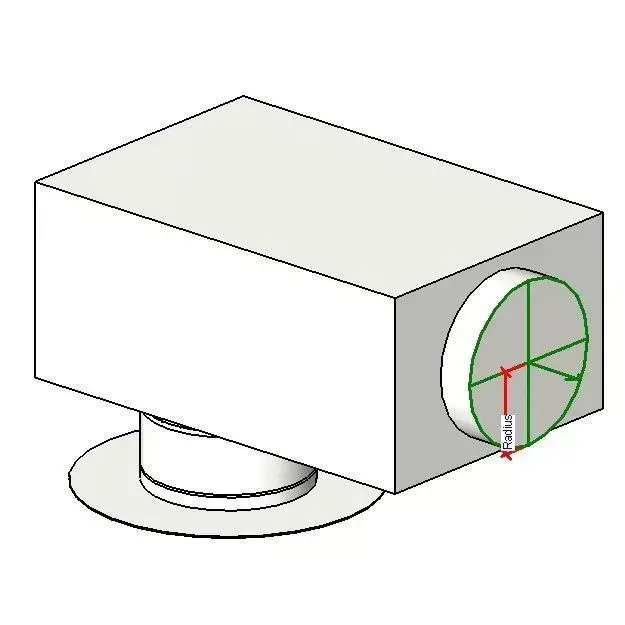

Buy 13 Lindab Integra Diffusers with Plenum Boxes 3D model

Compatible with Smart Diffusers extension.

Example of parameters from one family:

Type LKP-160+MBB-100-160-S LKP-125+MBB-125-125-S LKP-160+MBB-160-160-S Air Flow 0.00 L/s 0.00 L/s 0.00 L/s Arrow 300.0 300.0 300.0 Arrow Distance 0.0 0.0 0.0 Arrow Length 50.0 50.0 50.0 Arrow Visible True True True B 260.0 310.0 380.0 C 160.0 185.0 219.0 Ceiling Grid Opening Heigth 260.0 200.0 260.0 Ceiling Grid Opening Width 260.0 200.0 260.0 Default Elevation 1200.0 1200.0 1200.0 Description LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. Diffuser Depth 99.0 99.0 99.0 Diffuser Duct Diameter 160.00 mm 125.00 mm 160.00 mm Diffuser Duct Radius 80.0 62.5 80.0 Diffuser Height 595.0 595.0 595.0 Diffuser Width 595.0 595.0 595.0 Diffuser Width 2 520.0 520.0 520.0 Diffuser Width 3 445.0 445.0 445.0 Duct Diameter 100.00 mm 125.00 mm 160.00 mm Duct Radius 50.0 62.5 80.0 E 205.0 246.0 322.0 F 50.0 50.0 50.0 Free Area 0.008 0.012 0.020 H 230.0 255.0 289.0 H max 270.0 295.0 329.0 H min 230.0 255.0 289.0 H real 270.0 295.0 329.0 L 300.0 366.0 459.0 Manufacturer Lindab Lindab Lindab Max Flow 47.69 L/s 56.36 L/s 85.24 L/s MBZ Extension True True True MBZ Length 40.0 40.0 40.0 Min Flow 17.14 L/s 23.08 L/s 36.44 L/s Pressure Drop 0.00 Pa 0.00 Pa 0.00 Pa T4R_Created by www.Tools4Revit.com www.Tools4Revit.com T4R_Version 2011.12.27 2011.12.27 2011.12.27 Throw Visible False False False Throw_L02 1.0 1.0 1.0 Type Comments Ceiling plain diffuser Ceiling plain diffuser Ceiling plain diffuser URL www.lindab.com www.lindab.com www.lindab.com Velocity 0.00 m/s 0.00 m/s 0.00 m/s Type LKP-315+MBB-250-315-S LKP-250+MBB-160-250-S LKP-125+MBB-100-125-S Air Flow 0.00 L/s 0.00 L/s 0.00 L/s Arrow 300.0 300.0 300.0 Arrow Distance 0.0 0.0 0.0 Arrow Length 50.0 50.0 50.0 Arrow Visible True True True B 560.0 380.0 260.0 C 310.0 219.0 160.0 Ceiling Grid Opening Heigth 560.0 460.0 200.0 Ceiling Grid Opening Width 560.0 460.0 200.0 Default Elevation 1200.0 1200.0 1200.0 Description LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. Diffuser Depth 99.0 99.0 99.0 Diffuser Duct Diameter 315.00 mm 250.00 mm 125.00 mm Diffuser Duct Radius 157.5 125.0 62.5 Diffuser Height 595.0 595.0 595.0 Diffuser Width 595.0 595.0 595.0 Diffuser Width 2 520.0 520.0 520.0 Diffuser Width 3 445.0 445.0 445.0 Duct Diameter 250.00 mm 160.00 mm 100.00 mm Duct Radius 125.0 80.0 50.0 E 485.0 322.0 205.0 F 70.0 50.0 50.0 Free Area 0.049 0.020 0.008 H 380.0 289.0 230.0 H max 420.0 329.0 270.0 H min 380.0 289.0 230.0 H real 440.0 349.0 270.0 L 698.0 459.0 300.0 Manufacturer Lindab Lindab Lindab Max Flow 169.97 L/s 112.88 L/s 38.57 L/s MBZ Extension True True True MBZ Length 60.0 60.0 40.0 Min Flow 74.09 L/s 42.98 L/s 15.85 L/s Pressure Drop 0.00 Pa 0.00 Pa 0.00 Pa T4R_Created by www.Tools4Revit.com www.Tools4Revit.com www.Tools4Revit.com T4R_Version 2011.12.27 2011.12.27 2011.12.27 Throw Visible False False False Throw_L02 1.0 1.0 1.0 Type Comments Ceiling plain diffuser Ceiling plain diffuser Ceiling plain diffuser URL www.lindab.com www.lindab.com www.lindab.com Velocity 0.00 m/s 0.00 m/s 0.00 m/s Type LKP-250+MBB-250-250-S LKP-315+MBB-200-315-S LKP-160+MBB-125-160-S Air Flow 0.00 L/s 0.00 L/s 0.00 L/s Arrow 300.0 300.0 300.0 Arrow Distance 0.0 0.0 0.0 Arrow Length 50.0 50.0 50.0 Arrow Visible True True True B 560.0 460.0 310.0 C 310.0 260.0 185.0 Ceiling Grid Opening Heigth 460.0 560.0 260.0 Ceiling Grid Opening Width 460.0 560.0 260.0 Default Elevation 1200.0 1200.0 1200.0 Description LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. Diffuser Depth 99.0 99.0 99.0 Diffuser Duct Diameter 250.00 mm 315.00 mm 160.00 mm Diffuser Duct Radius 125.0 157.5 80.0 Diffuser Height 595.0 595.0 595.0 Diffuser Width 595.0 595.0 595.0 Diffuser Width 2 520.0 520.0 520.0 Diffuser Width 3 445.0 445.0 445.0 Duct Diameter 250.00 mm 200.00 mm 125.00 mm Duct Radius 125.0 100.0 62.5 E 485.0 394.0 246.0 F 70.0 50.0 50.0 Free Area 0.049 0.031 0.012 H 380.0 330.0 255.0 H max 420.0 370.0 295.0 H min 380.0 330.0 255.0 H real 440.0 390.0 295.0 L 698.0 565.0 366.0 Manufacturer Lindab Lindab Lindab Max Flow 131.27 L/s 145.16 L/s 67.06 L/s MBZ Extension True True True MBZ Length 60.0 60.0 40.0 Min Flow 63.17 L/s 60.42 L/s 26.29 L/s Pressure Drop 0.00 Pa 0.00 Pa 0.00 Pa T4R_Created by www.Tools4Revit.com www.Tools4Revit.com www.Tools4Revit.com T4R_Version 2011.12.27 2011.12.27 2011.12.27 Throw Visible False False False Throw_L02 1.0 1.0 1.0 Type Comments Ceiling plain diffuser Ceiling plain diffuser Ceiling plain diffuser URL www.lindab.com www.lindab.com www.lindab.com Velocity 0.00 m/s 0.00 m/s 0.00 m/s Type LKP-250+MBB-200-250-S LKP-200+MBB-200-200-S LKP-200+MBB-160-200-S Air Flow 0.00 L/s 0.00 L/s 0.00 L/s Arrow 300.0 300.0 300.0 Arrow Distance 0.0 0.0 0.0 Arrow Length 50.0 50.0 50.0 Arrow Visible True True True B 460.0 460.0 380.0 C 260.0 260.0 219.0 Ceiling Grid Opening Heigth 460.0 360.0 360.0 Ceiling Grid Opening Width 460.0 360.0 360.0 Default Elevation 1200.0 1200.0 1200.0 Description LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. Diffuser Depth 99.0 99.0 99.0 Diffuser Duct Diameter 250.00 mm 200.00 mm 200.00 mm Diffuser Duct Radius 125.0 100.0 100.0 Diffuser Height 595.0 595.0 595.0 Diffuser Width 595.0 595.0 595.0 Diffuser Width 2 520.0 520.0 520.0 Diffuser Width 3 445.0 445.0 445.0 Duct Diameter 200.00 mm 200.00 mm 160.00 mm Duct Radius 100.0 100.0 80.0 E 394.0 394.0 322.0 F 70.0 70.0 50.0 Free Area 0.031 0.031 0.020 H 330.0 330.0 289.0 H max 370.0 370.0 329.0 H min 330.0 330.0 289.0 H real 390.0 370.0 329.0 L 565.0 565.0 459.0 Manufacturer Lindab Lindab Lindab Max Flow 123.33 L/s 117.97 L/s 98.57 L/s MBZ Extension True True True MBZ Length 60.0 40.0 40.0 Min Flow 53.55 L/s 54.79 L/s 41.67 L/s Pressure Drop 0.00 Pa 0.00 Pa 0.00 Pa T4R_Created by www.Tools4Revit.com www.Tools4Revit.com www.Tools4Revit.com T4R_Version 2011.12.27 2011.12.27 2011.12.27 Throw Visible False False False Throw_L02 1.0 1.0 1.0 Type Comments Ceiling plain diffuser Ceiling plain diffuser Ceiling plain diffuser URL www.lindab.com www.lindab.com www.lindab.com Velocity 0.00 m/s 0.00 m/s 0.00 m/s Type LKP-200+MBB-125-200-S LKP-315+MBB-315-315-S Air Flow 0.00 L/s 0.00 L/s Arrow 300.0 300.0 Arrow Distance 0.0 0.0 Arrow Length 50.0 50.0 Arrow Visible True True B 310.0 560.0 C 185.0 375.0 Ceiling Grid Opening Heigth 360.0 595.0 Ceiling Grid Opening Width 360.0 595.0 Default Elevation 1200.0 1200.0 Description LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. LKP is a flush-mounted square diffuser with a square unperforated face plate for installation in ceiling systems. LKP can be used for both supply and exhaust air. LKP is suitable for the horizontal supply of cooled air and has a large dynamic range. Diffuser Depth 99.0 99.0 Diffuser Duct Diameter 200.00 mm 315.00 mm Diffuser Duct Radius 100.0 157.5 Diffuser Height 595.0 595.0 Diffuser Width 595.0 595.0 Diffuser Width 2 520.0 520.0 Diffuser Width 3 445.0 445.0 Duct Diameter 125.00 mm 315.00 mm Duct Radius 62.5 157.5 E 246.0 645.0 F 50.0 70.0 Free Area 0.012 0.078 H 255.0 445.0 H max 295.0 485.0 H min 255.0 445.0 H real 295.0 505.0 L 366.0 858.0 Manufacturer Lindab Lindab Max Flow 73.95 L/s 169.97 L/s MBZ Extension True True MBZ Length 40.0 60.0 Min Flow 29.02 L/s 85.09 L/s Pressure Drop 0.00 Pa 0.00 Pa T4R_Created by www.Tools4Revit.com www.Tools4Revit.com T4R_Version 2011.12.27 2011.12.27 Throw Visible False False Throw_L02 1.0 1.0 Type Comments Ceiling plain diffuser Ceiling plain diffuser URL www.lindab.com www.lindab.com Velocity 0.00 m/s 0.00 m/s

..
