Download 138 Lpp Container Ship Free 3D model

Name: 138 Lpp Container Ship Free 3D model
Brand: vaneesteren1997
SKU: 830351
Availability: InStock

free

License: Royalty Free No Ai

author:

vaneesteren1997

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «vaneesteren1997». CGhub does not claim copyright ownership over the content used.

This model was created for a second year project subject at the Delft University of Technology.

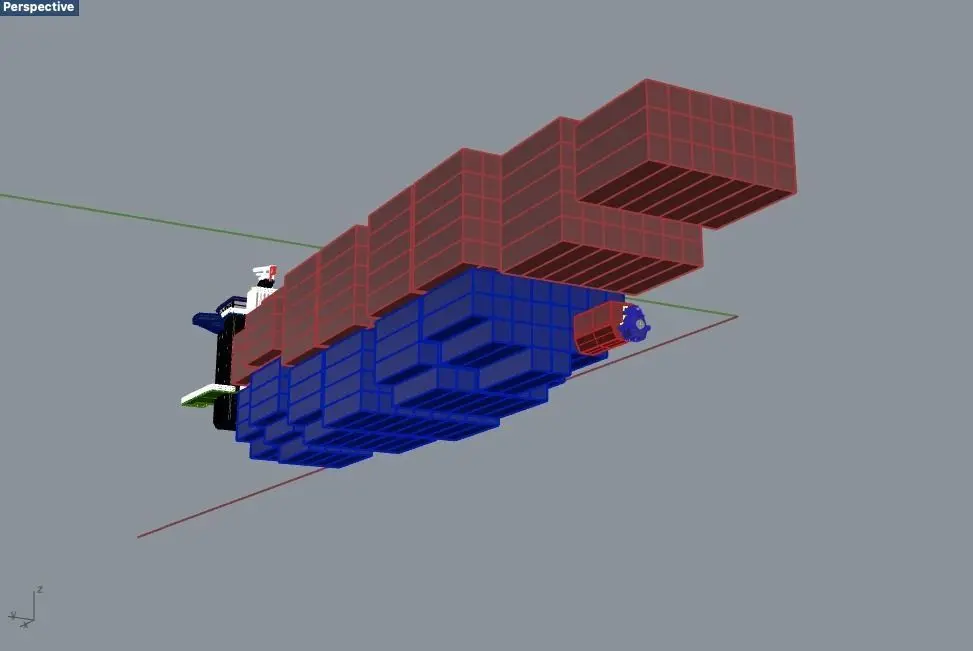

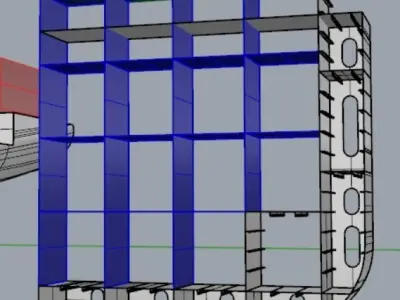

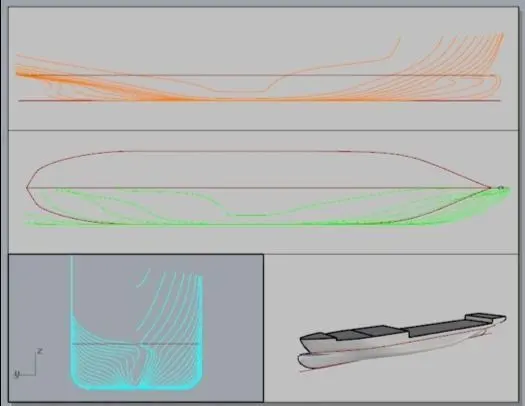

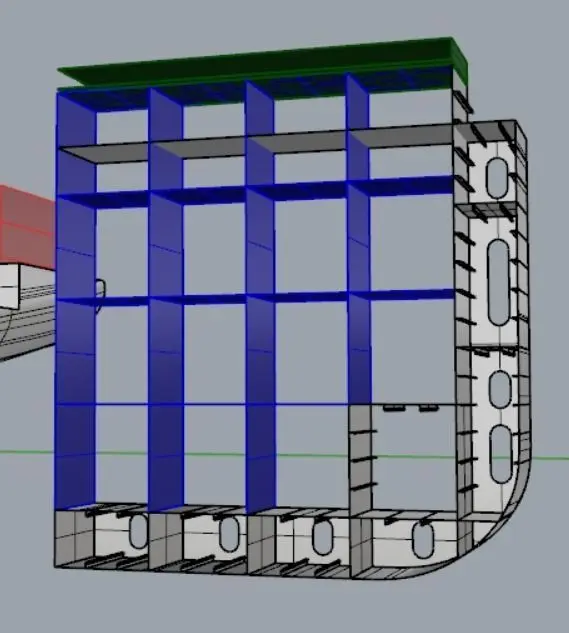

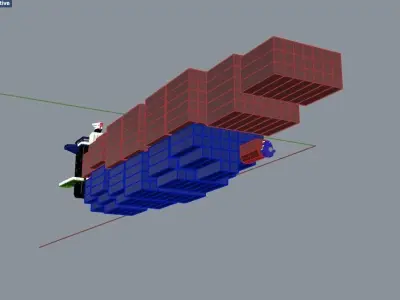

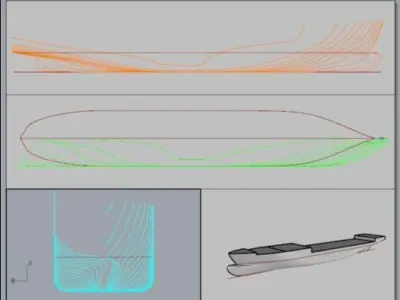

First, the ship specifications and hull were calculated according to the Bureau Veritas requirements. These were tested using MARS2000.After this, a test was run using PIAS - SARC to perform stability checks at different loading conditions using the multiple ballast tanks in the hull: departure, arrival and ballast conditions.To ensure hull strenght, a FEM (Finite Element Method) analysis was made using the program FEMAP.

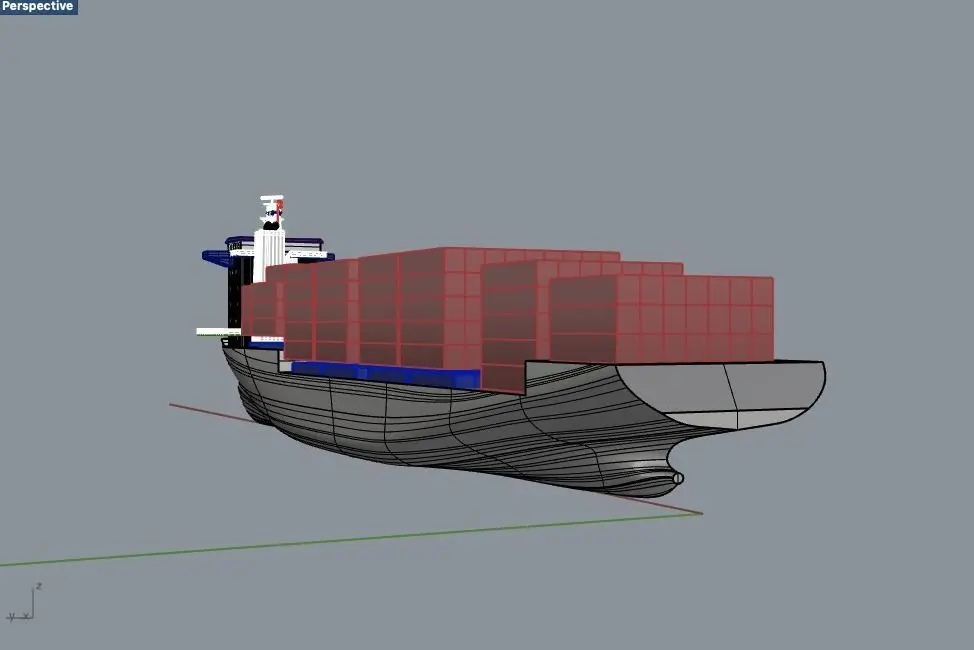

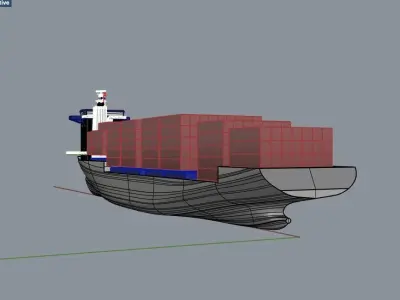

Container ship specs:Length overall: 142.99 metersLength between perpendiculars: 138.56 metersBeam: 22.51 metersDepth: 10.42 metersDraught: 7.83 metersBlock coefficient: 0.63Deadweight: 10424 tonnesCapacity TEU @14 tonnes: 675Minimum TEU positions: 925Service speed at design draught: 17.75 knotsPosition deck house: forwardCrew size: 14

This model is strictly NOT to be used for the Integratie Project 2 of the TU Delft!

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Unknown

Tags

Ship Containership Container Boat Yacht Marine Naval Architectural Watercraft Sea Ocean Storage Nautical Transport Transportation Industry Industrial Industrial watercraft – Download & Buy Shipping container – Download & Buy
