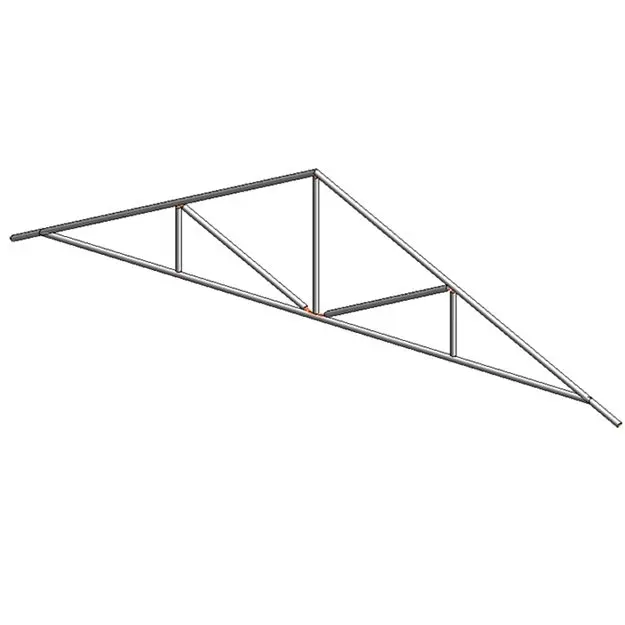

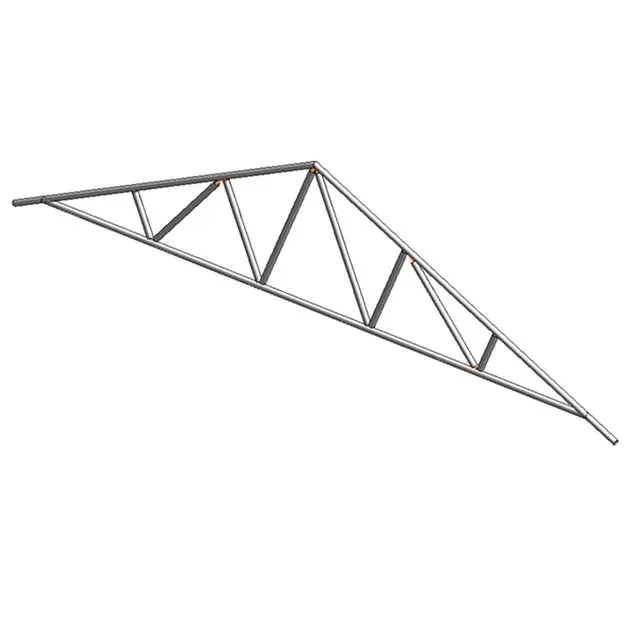

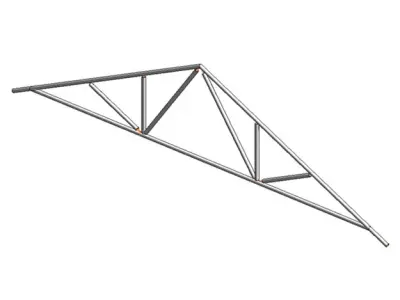

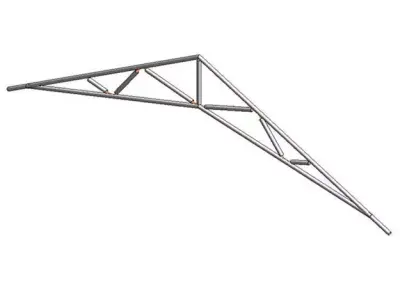

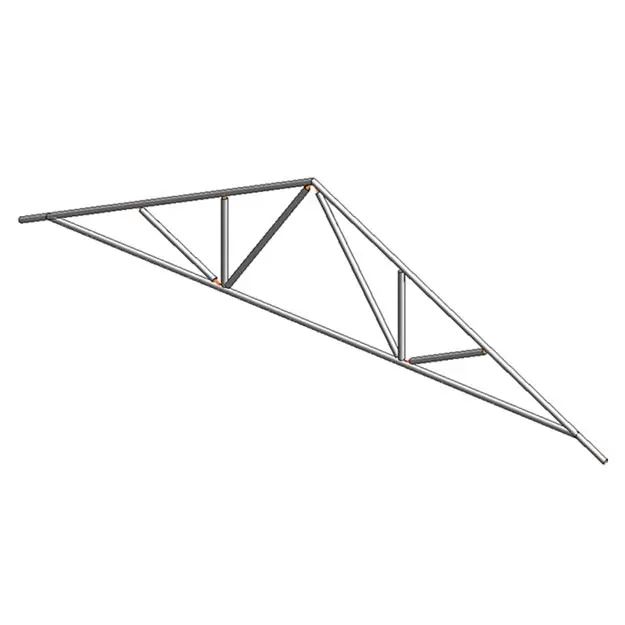

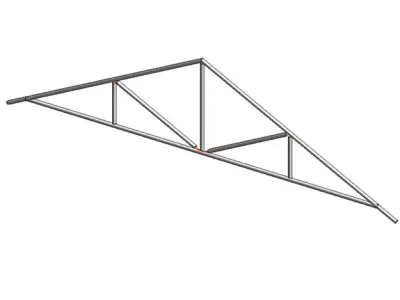

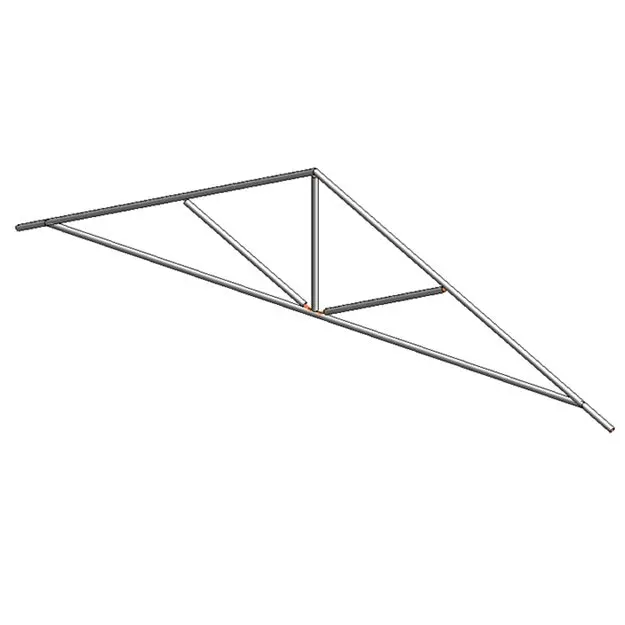

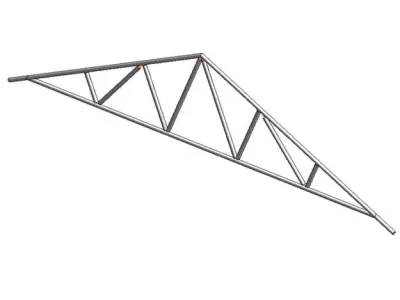

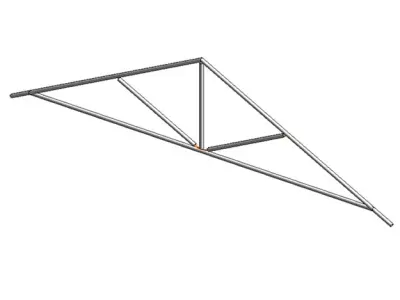

14 Common and Scissors Standard Trusses 3D model

$25

License: Editorial No Ai Html

author:

Tools4Revit

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Tools4Revit». CGhub does not claim copyright ownership over the content used.

Round profile of webs and chords are used as an example. It is simple changeable with Revit Truss properties edit command.

Example of parameters from one family:

Type W102_TCH102_VW102_DW102_BCH102 Analytical Vertical Projection Angle 0.000° Assembly Code BCH h 102.000 Cost Description DW h 102.000 End Release 1 Framing Member Girder Keynote M_Truss_SchType 120 M_Truss_Type 360 Manufacturer Maximum Span 11000.000 Minimum Span 9000.000 Model Overhang End 600.000 Overhang Start 600.000 Pitch 25.000° Start Release 1 Structural Framing Type HSS101.6X3.2 T4R_Created by www.tools4revit.com T4R_Version 2011.12.28 TCH h 102.000 Type Comments Truss Height 2098.384 Truss Length 9000.000 URL VW h 102.000 Web Orientation 0 Webs have symbolic cutback True
