16-Tooth Spur Gear 01 Free 3D print model

Description

16-Tooth spur gear, accurately modeled and ready for use in CAD, CGI, and 3D print applications. Modeled in Autodesk Inventor and provided in multiple file formats (STP, SAT, IGS, OBJ, FBX, 3DS, CAR, and STL). Perfect for both digital and physical mechanical design projects.

Gear specifications:

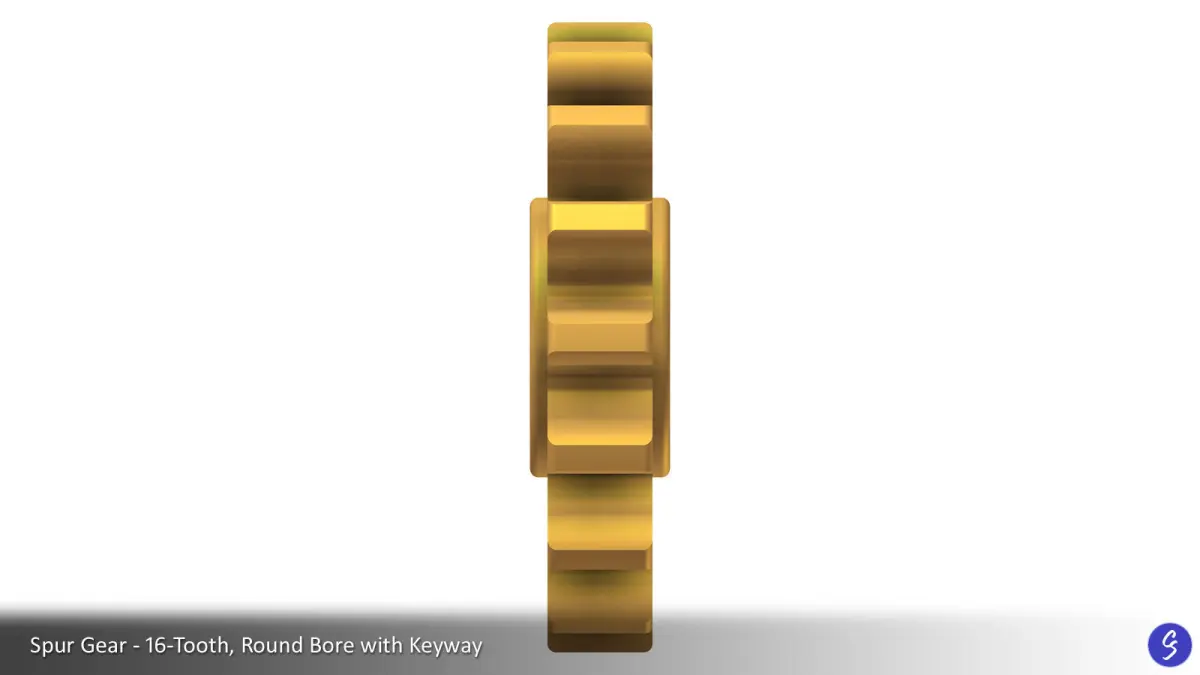

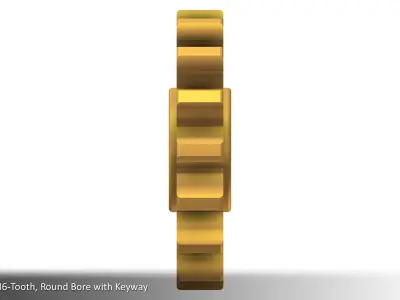

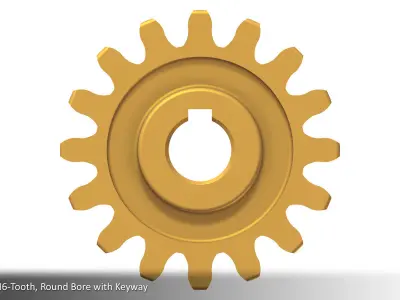

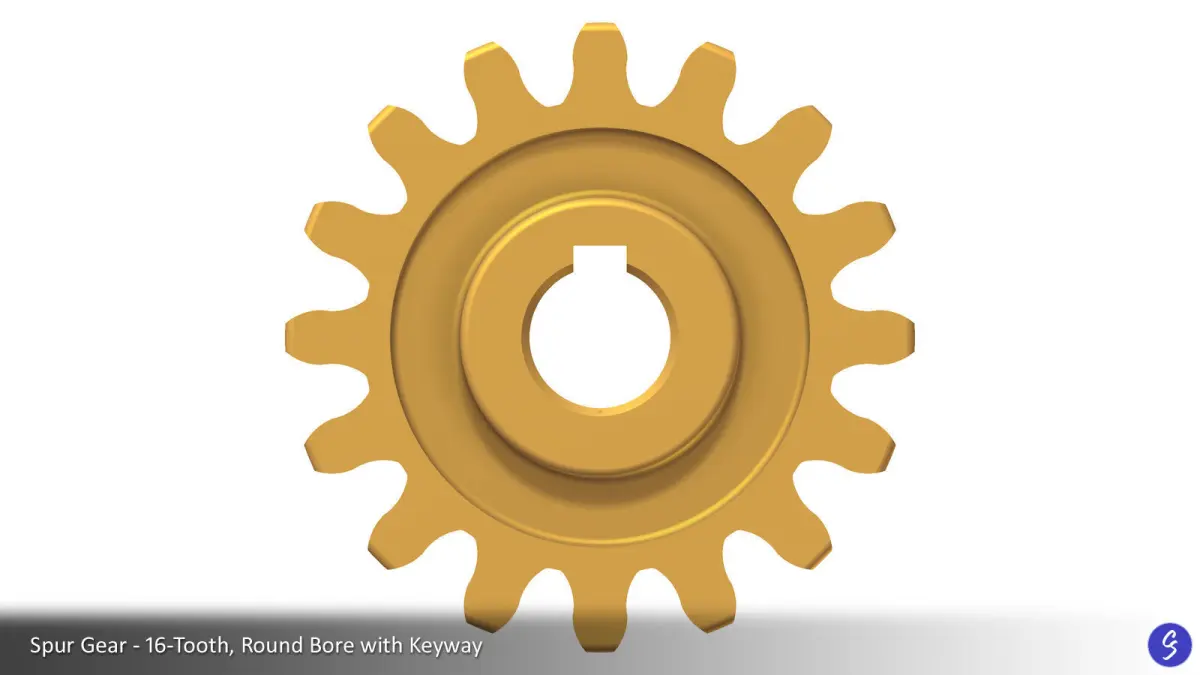

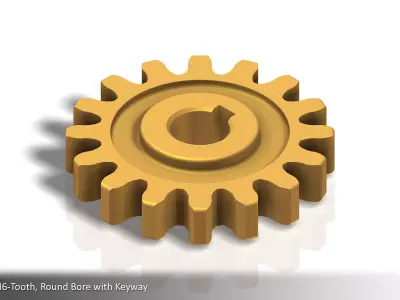

16-Tooth, round bore with keyway (1.00in pitch diameter, 25.4mm reference diameter)

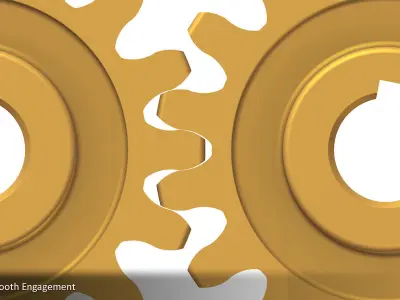

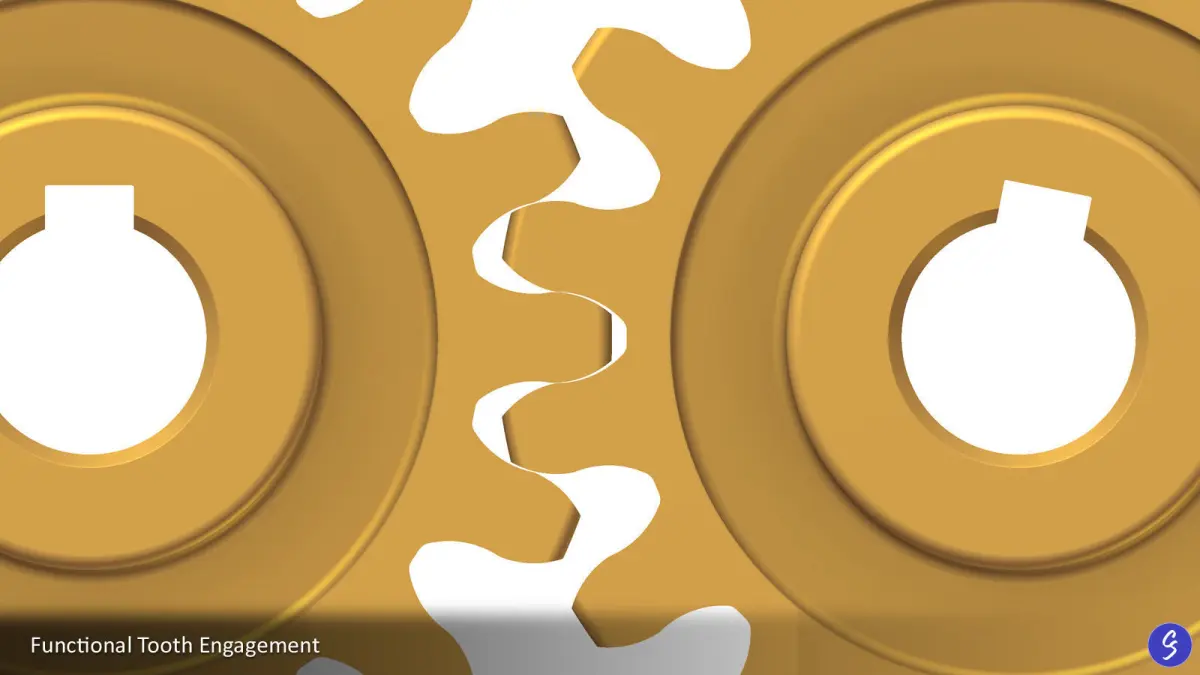

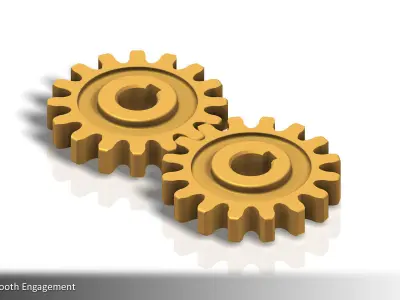

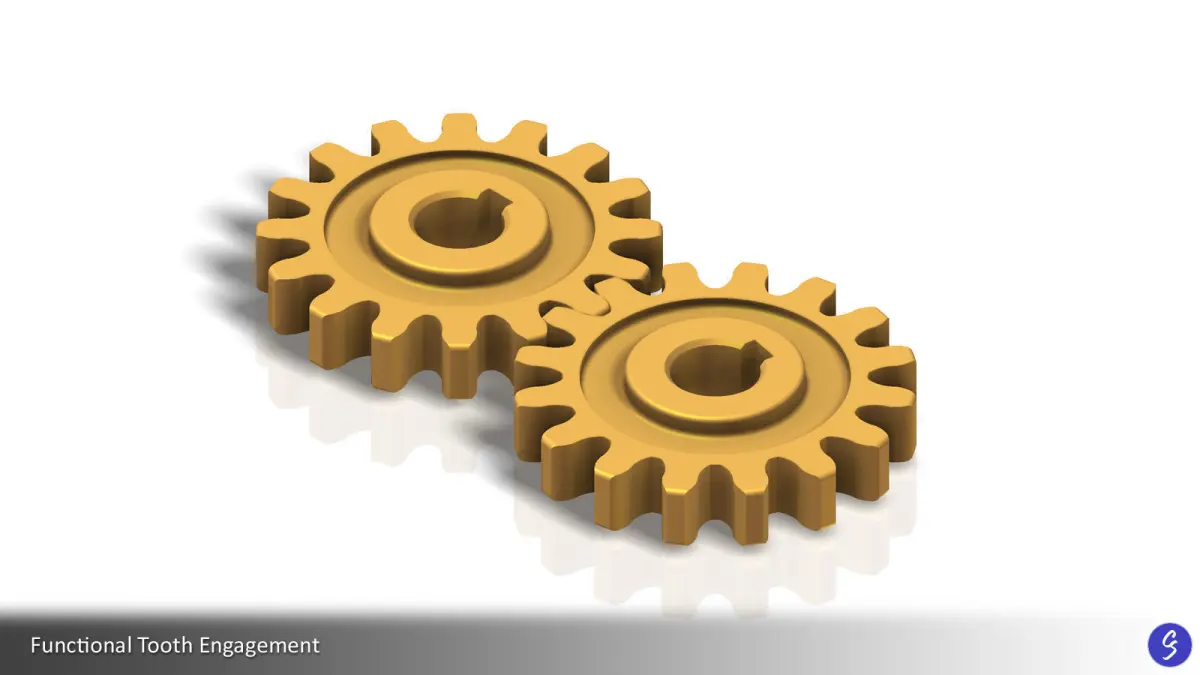

Gear tooth profile is precisely modeled with accurate arc-based geometry and a small amount of backlash to ensure proper engagement. Gear can be used as drive gear (rotationally locked to shaft) or idle gear (free spinning about shaft).

Gear is provided with a diametrical pitch of 16 teeth/inch (module 1.6). Gear bore is designed for a 0.25in (6.35mm) nominal shaft size. Gear has a 0.25in (6.35mm) face width. Gear can be easily scaled to create any diametrical pitch or module that you may need.

The centerline distance between any two mating gears is ( First Gear Pitch Diameter + Second Gear Pitch Diameter ) / 2.

Gear is provided in 8 file formats:

STP (general solid model format for CAD)
SAT (general solid model format for CAD)
IGS (general solid model format for CAD)
OBJ (general surface model format for CGI)
FBX (general surface model format for CGI)
3DS (general surface model format for CGI)
CAR (Carrara Studio format for CGI))
STL (general surface model format for 3D print)

Product also includes 2 drawings (DWG and PDF formats) and a Read Me text file (TXT format) detailing the physical dimensions of the gear.

Want more gears that are compatible with this product? Download additional gear collections:

Assorted Gear Collection 01 - https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/ultimate-gear-collection
Spur Gear Collection 01 - https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/spur-gear-collection
Planetary Gear Collection 01 - https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/planetary-gear-collection
Gear Accessory Collection 01 - https://www.cgtrader.com/3d-print-models/hobby-diy/mechanical-parts/gear-accessory-collection
