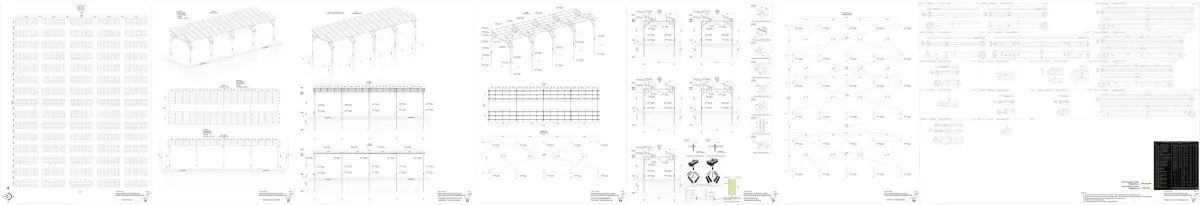

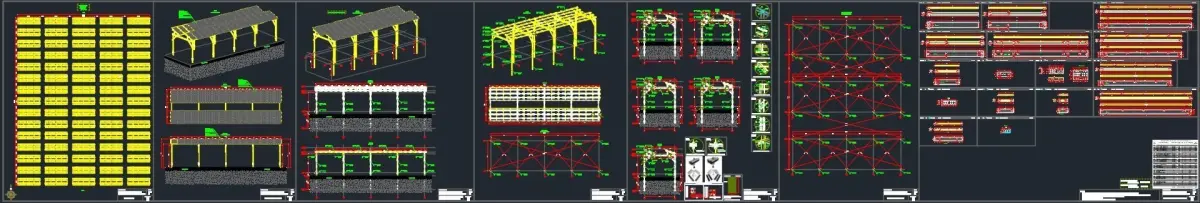

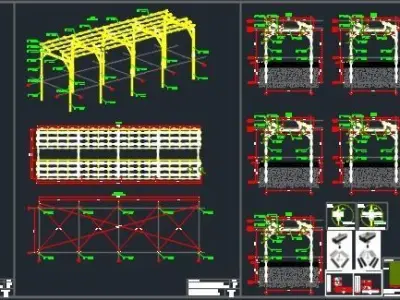

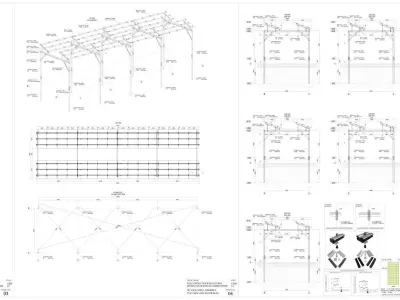

1MW Solar Energy Project on Farmland Type-1

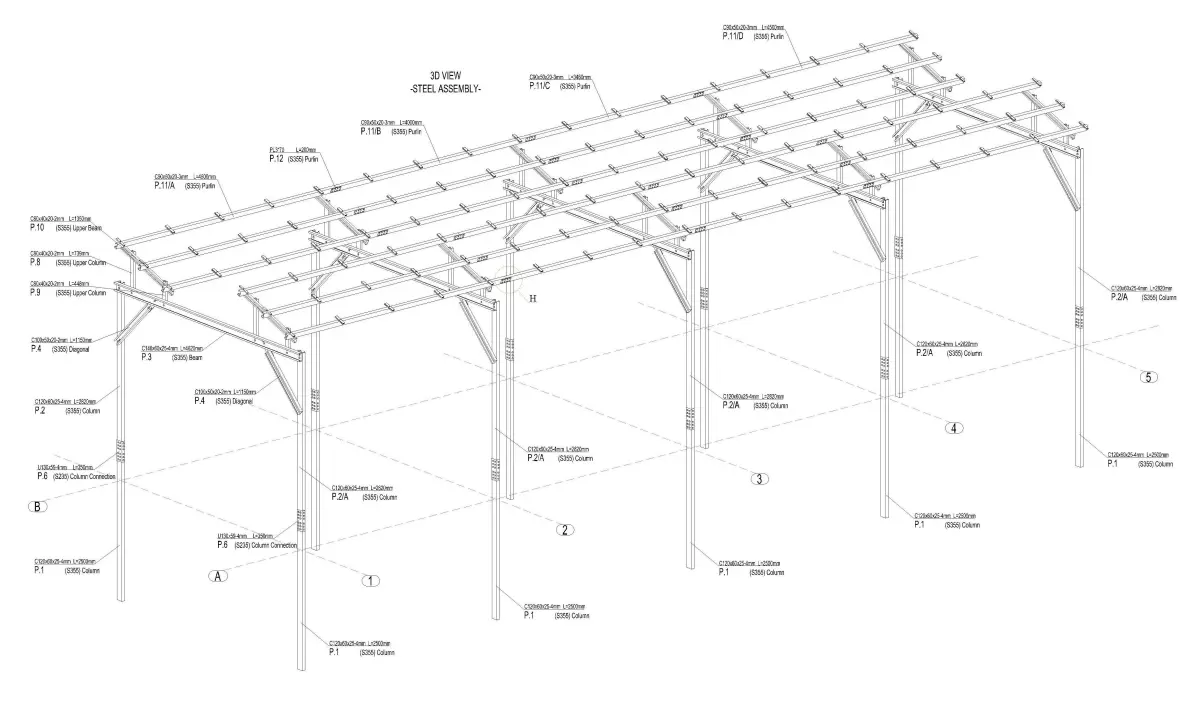

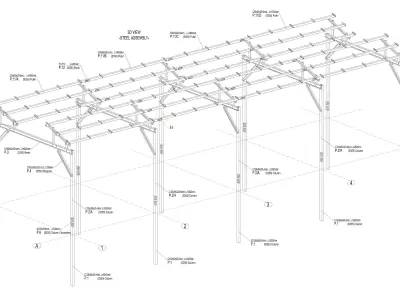

Static Steel Fabrication Project

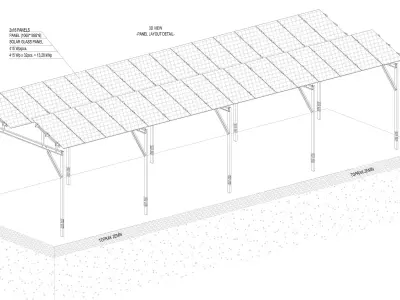

2x16 x 2 Vertical Panel Layout

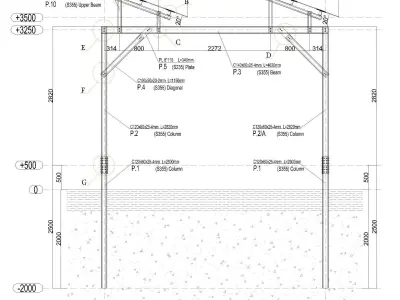

Ground Connection Type; Steel Driven Column

Distance of Columns Below Ground 2000 mm.

Solar Glass Panel Dimensions : 1992 x 1000 x 6 mm

Panel Power : 415Wp

1 solar panel steel construction produces 13,28 kWp power in 1 hour

The system consists of 5 axles and the distance between each axle is 4000 mm.

Distance between two columns 4500 mm.

Horizantal angle of panel 20°

The closest distance of the panels to the floor 3500 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 10.2 MB) Exchange Formats: PDF (PDF, filesize: 2.58 MB), DXF (DXF, filesize: 145 MB)
