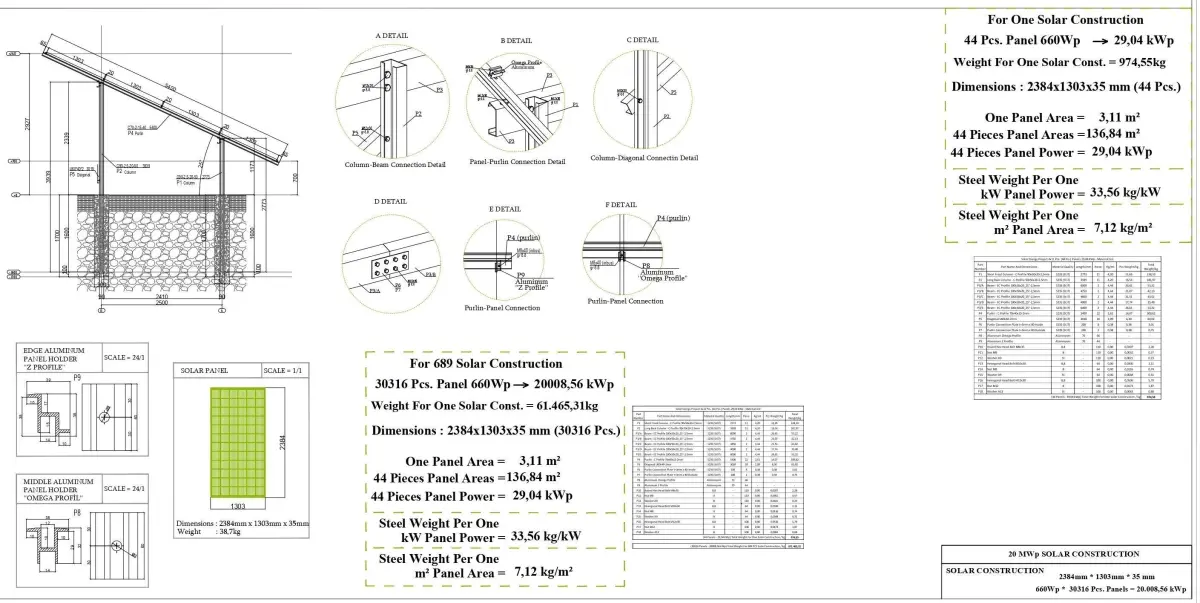

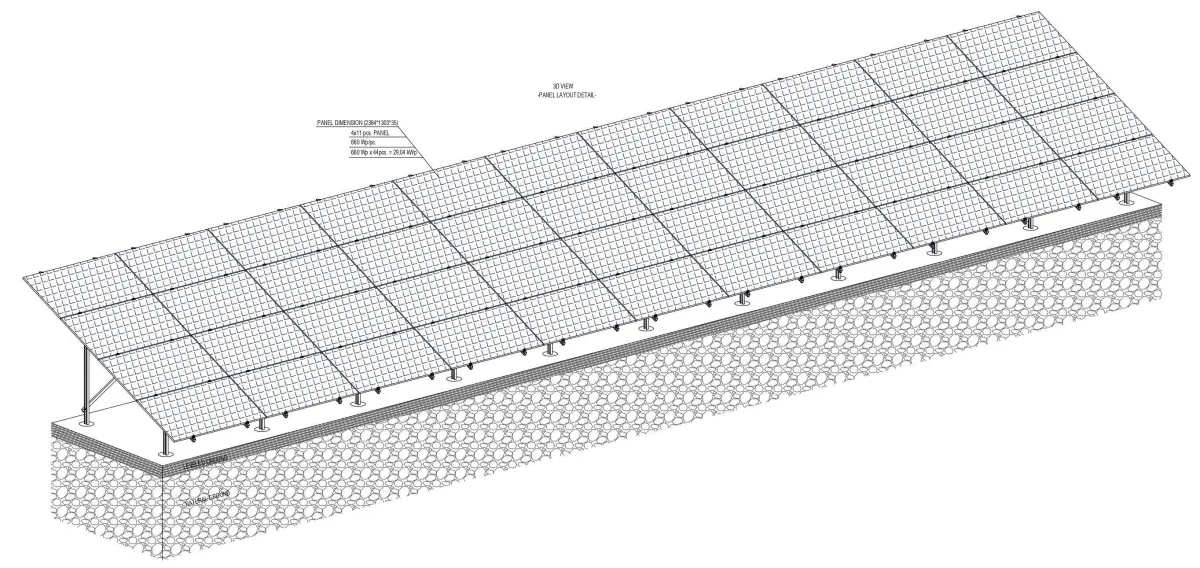

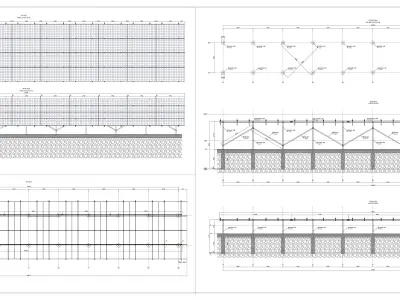

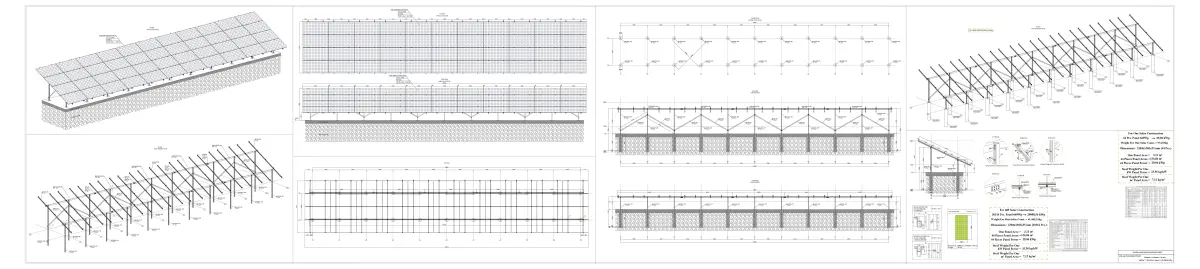

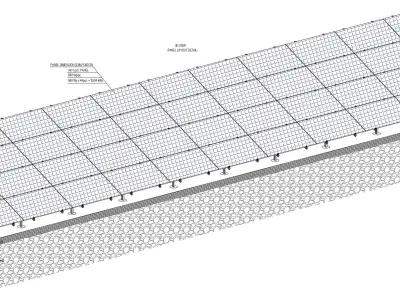

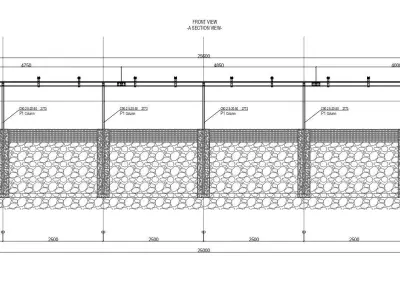

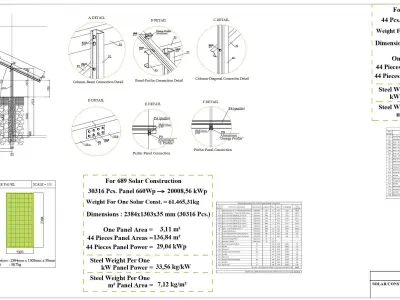

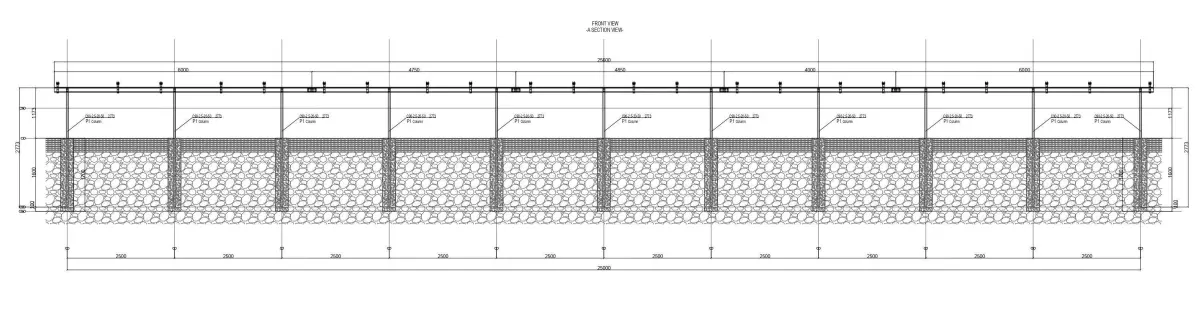

20 MW Solar Project Type 4

Static Steel Fabrication Project

4x11 Horizontal Panel Layout

Ground Connection Type; With Concrete Friction Pile

Distance of Columns Below Ground 1600 mm.

Concrete Friction Pile Dimensions : Ø300 mm H= 1700 mm

Panel Dimensions : 2384 x 1303 x 35 mm

Panel Power : 660Wp

1 solar panel steel construction produces 29,04 kWp power in 1 hour

The system consists of 11 axles and the distance between each axle is 2500 mm.

Distance between two columns 2500 mm.

Horizantal angle of panel 25°

The closest distance of the panels to the floor 700 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 2.19 MB) Exchange Formats: DXF (DXF, filesize: 14.1 MB), PDF (PDF, filesize: 1.42 MB)
