Publication date: 2016-07-29

Buy 225M B3 Left 4-8 Pole IEC electric motor - 3D CAD model 3D model

$3

License: Royalty Free

author:

electricmotors

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «electricmotors». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $3 Add to Wishlist
  • Description
  • Formats

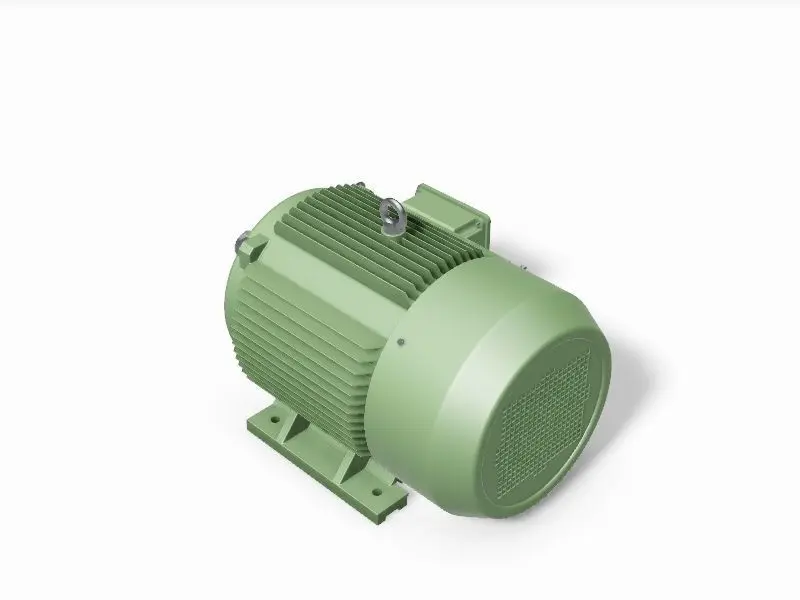

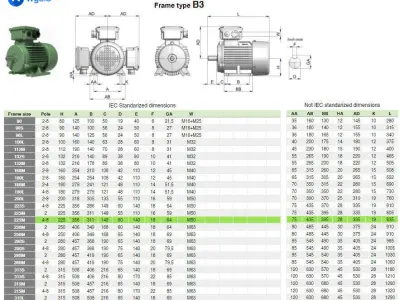

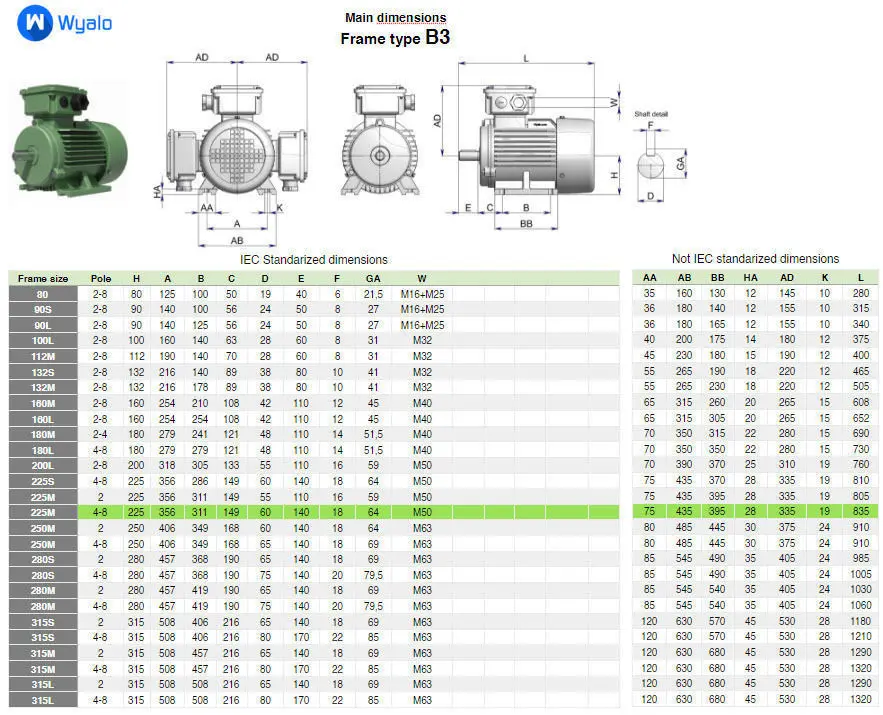

Electric motor IEC 225M B3 - IM1001 (foot mount)
4-8 Pole

■ 45 kW - 1500 r.p.m. (4 pole)(60 Horse Power )
■ 30 kW - 1000 r.p.m. (6 pole)(40 Horse Power)
■ 22 kW - 750 r.p.m. (8 pole)(30 Horse Power)
Terminal box position = left


Is this not the type of motor you need?

Click here for our 3 step motor-selection tool and download the right CAD model in less than a minute...
STP (STEP, filesize: 4.93 MB), DWG (AutoCAD, filesize: 1.48 MB), IAM (Autodesk Inventor, filesize: 4.33 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Other

Tags

Cad model Electric motor Iec motor Induction motor Step file Industrial Machine Industrial machine – Download & Buy
