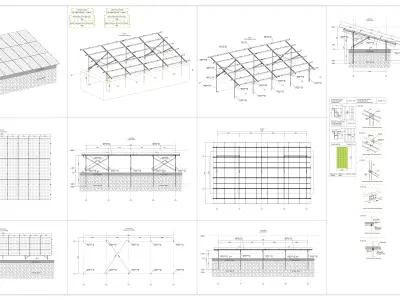

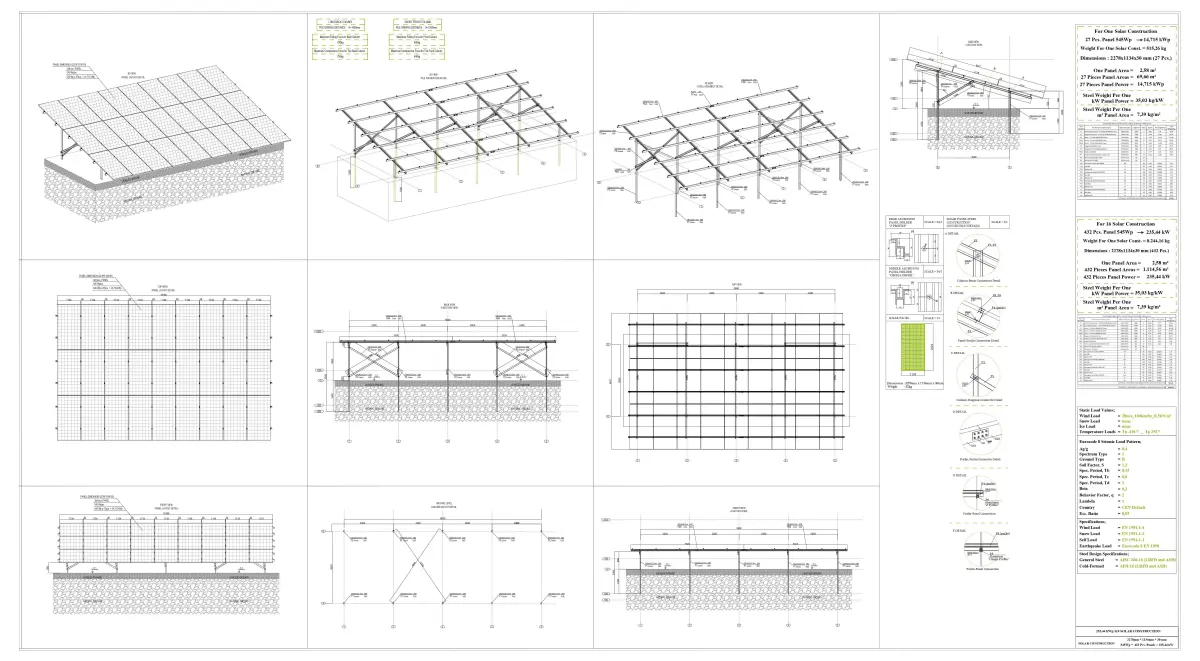

235,44 kWp Solar Project Type 17

Static Steel Fabrication Project

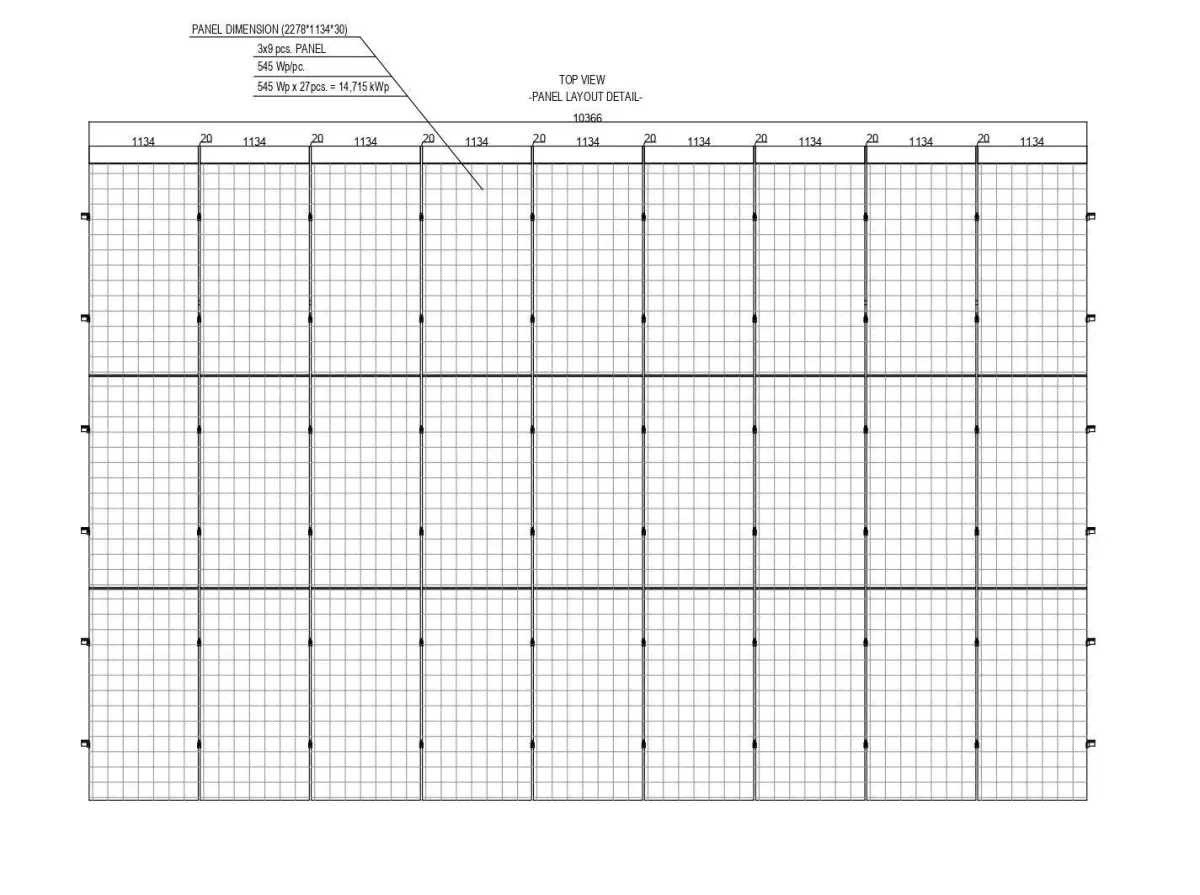

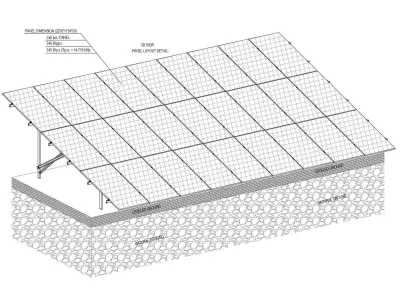

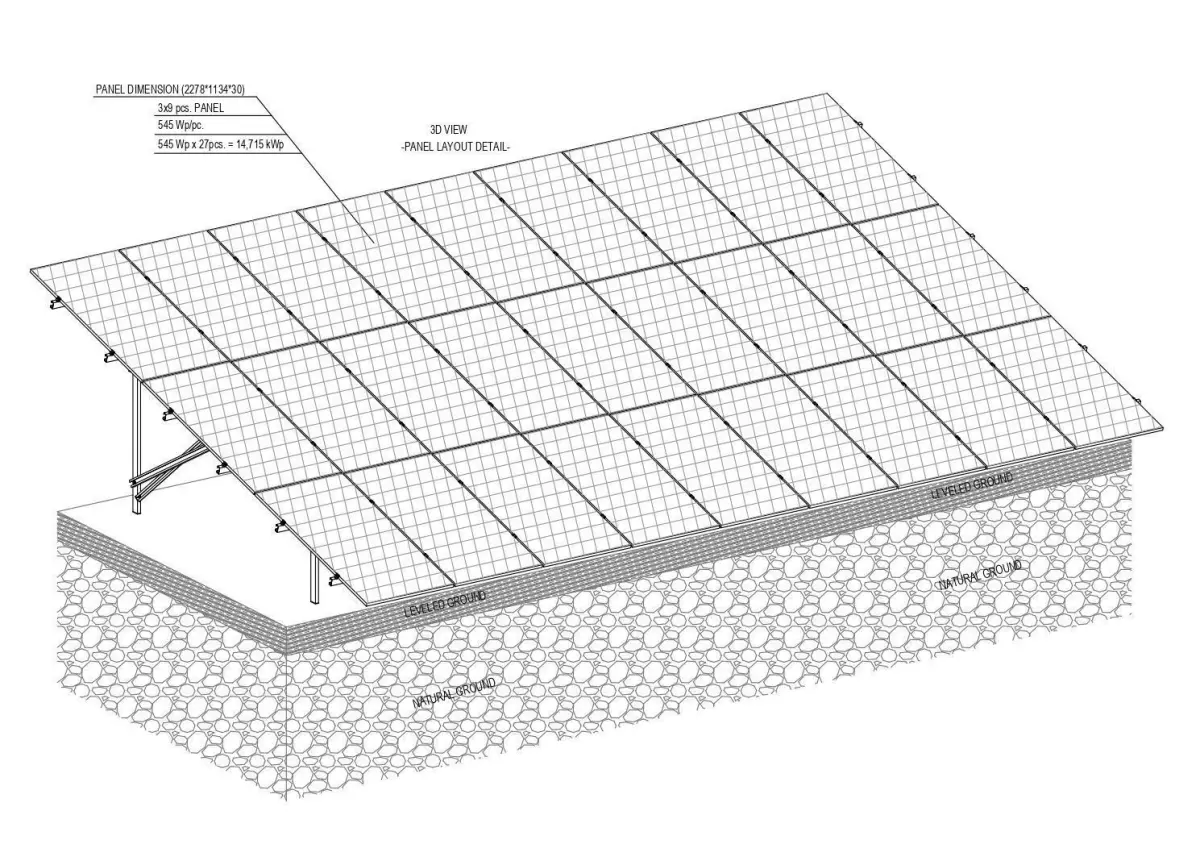

3x18 Vertical Panel Layout

Ground Connection Type; Steel Driven Column

Distance of Columns Below Ground 1500 mm. and 1200 mm.

Panel Dimensions : 2278 x 1134 x 30 mm

Panel Power : 545Wp

1 solar panel steel construction produces 29,43 kWp power in 1 hour

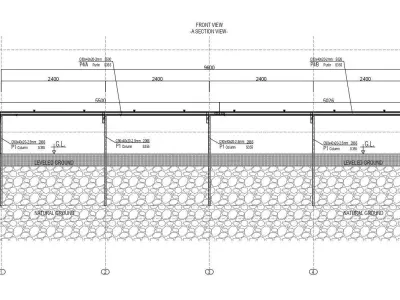

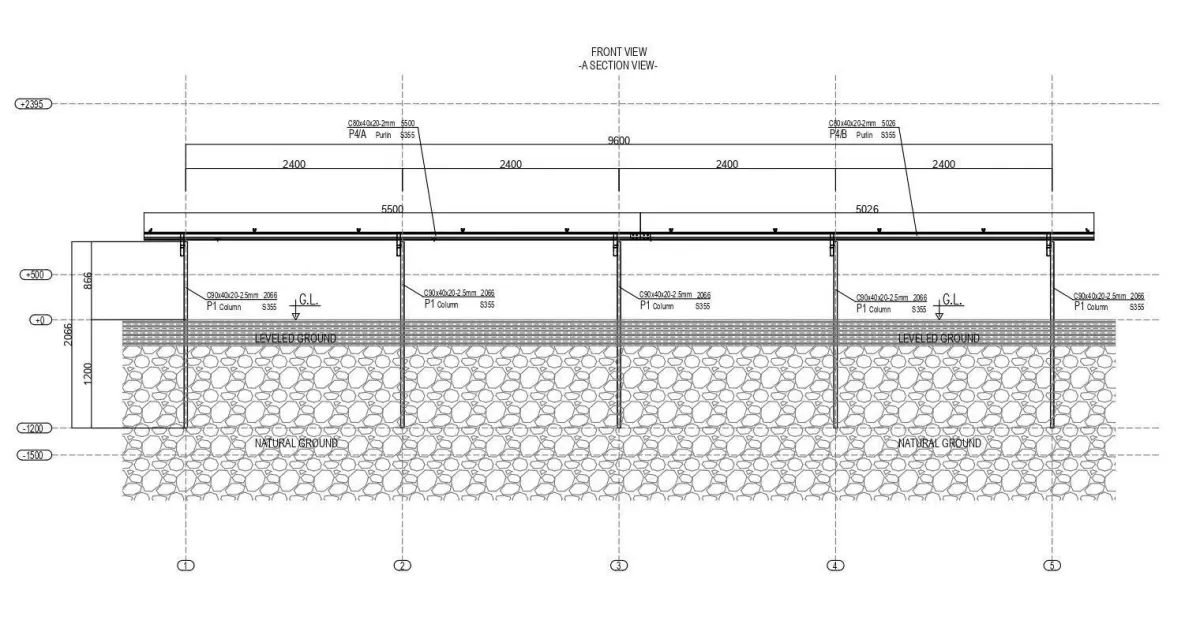

The system consists of 5 axles and the distance between each axle is 2400 mm.

Distance between two columns 3500 mm.

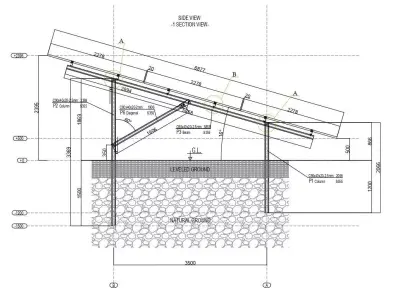

Horizantal angle of panel 16°

The closest distance of the panels to the floor 500 mm.

Prepared With AutoCAD Version 2021

Native Formats: DWG (AutoCAD, filesize: 5.43 MB) Exchange Formats: PDF (PDF, filesize: 762 KB), DXF (DXF, filesize: 35.8 MB)
