Description
The Mil Mi-14 (product 140, machine B-14, NATO codification: Haze - Fog) is a Soviet shore-based multipurpose amphibious helicopter. The new design (with the internal designation B-14) differed from the Mi-8 in having a boat-like hull similar to the Sea King, allowing it to operate off the water, and a retractable four-point undercarriage, with the main wheels retracting into large sponsons on the rear of the fuselage. The helicopter was to be powered by two Klimov TV3-117MT turboshaft engines. A watertight weapons bay is fitted to the centerline of the fuselage allowing internal carriage of a single torpedo or eight depth charges, while a radome housing a search radar is fitted beneath the nose.

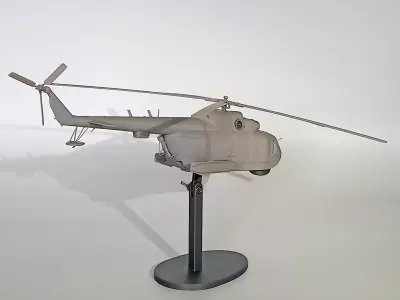

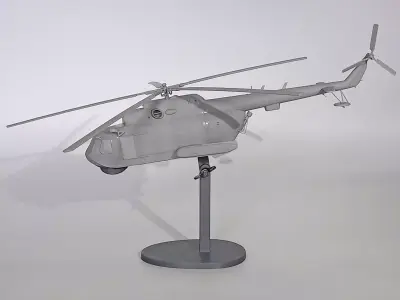

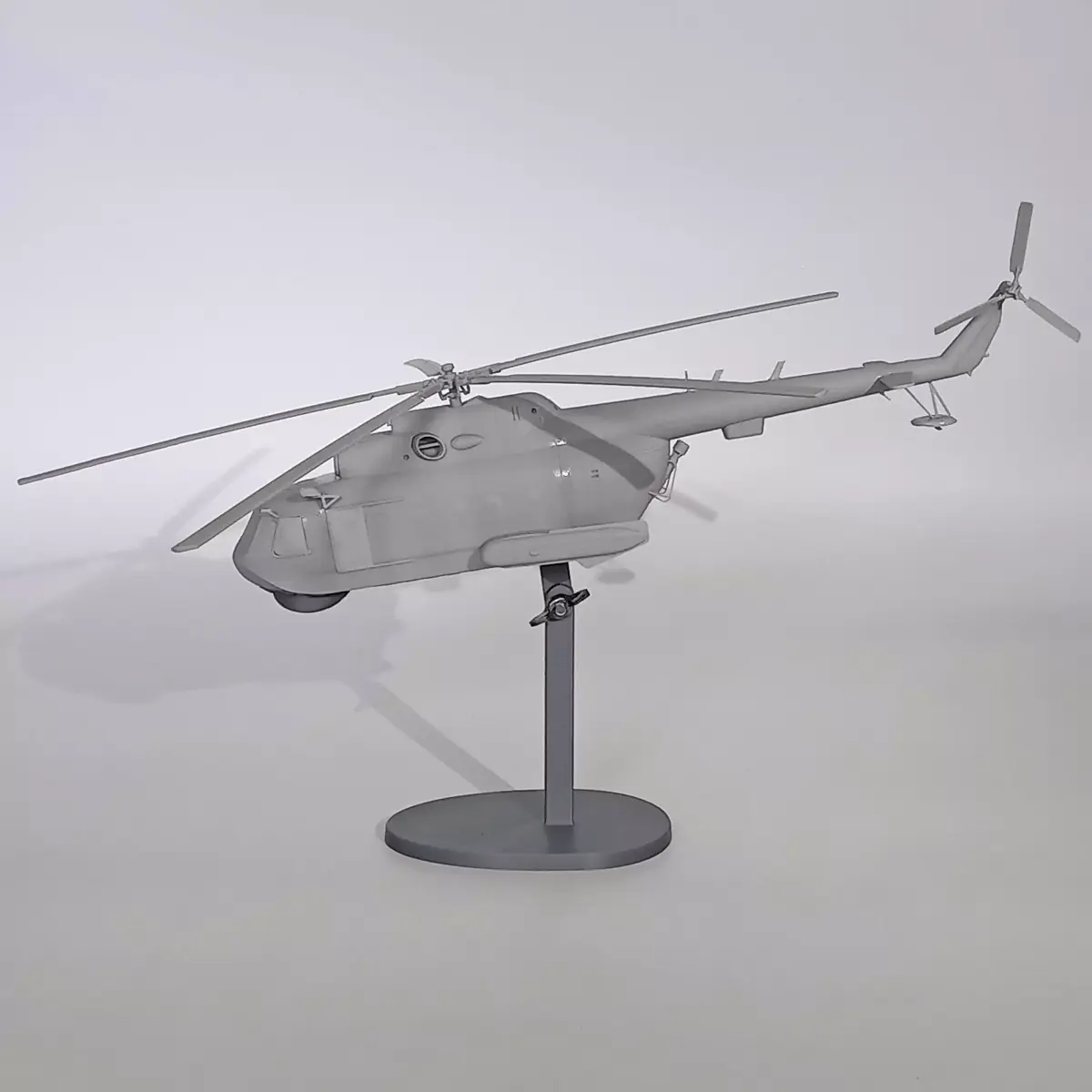

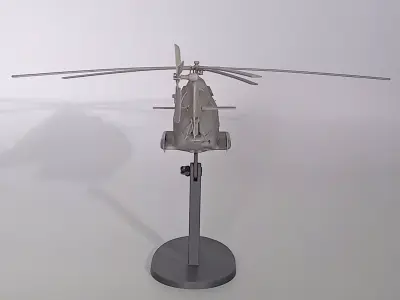

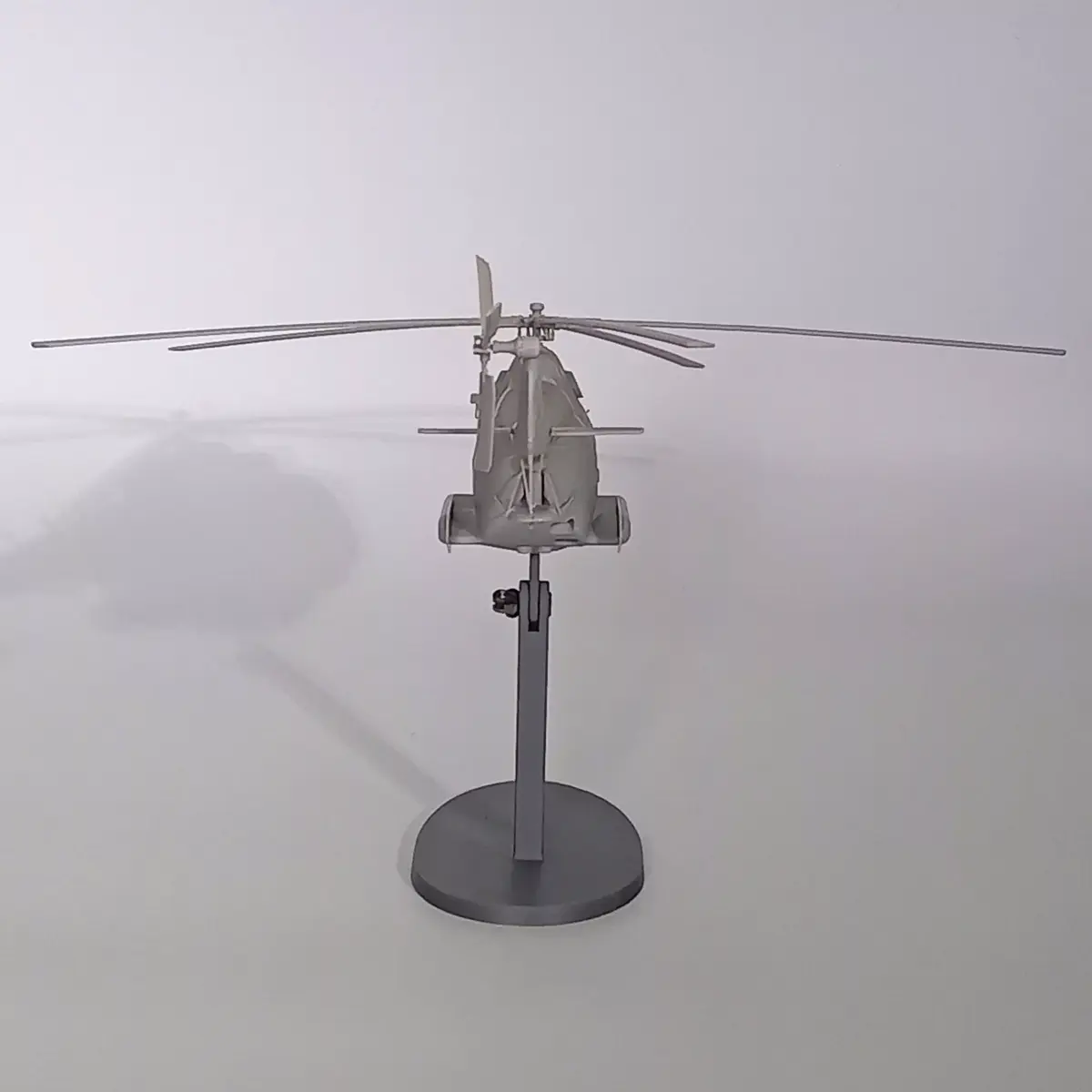

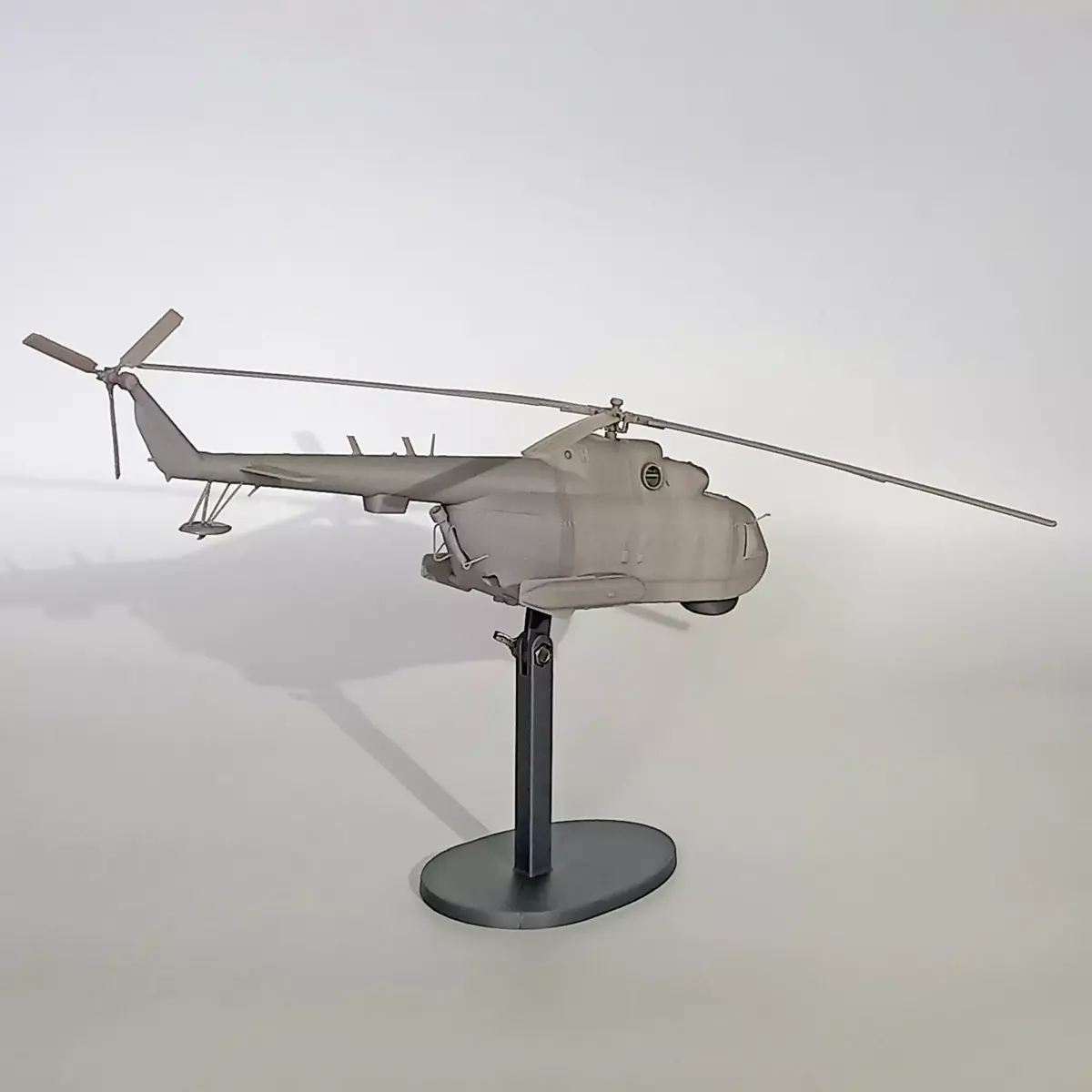

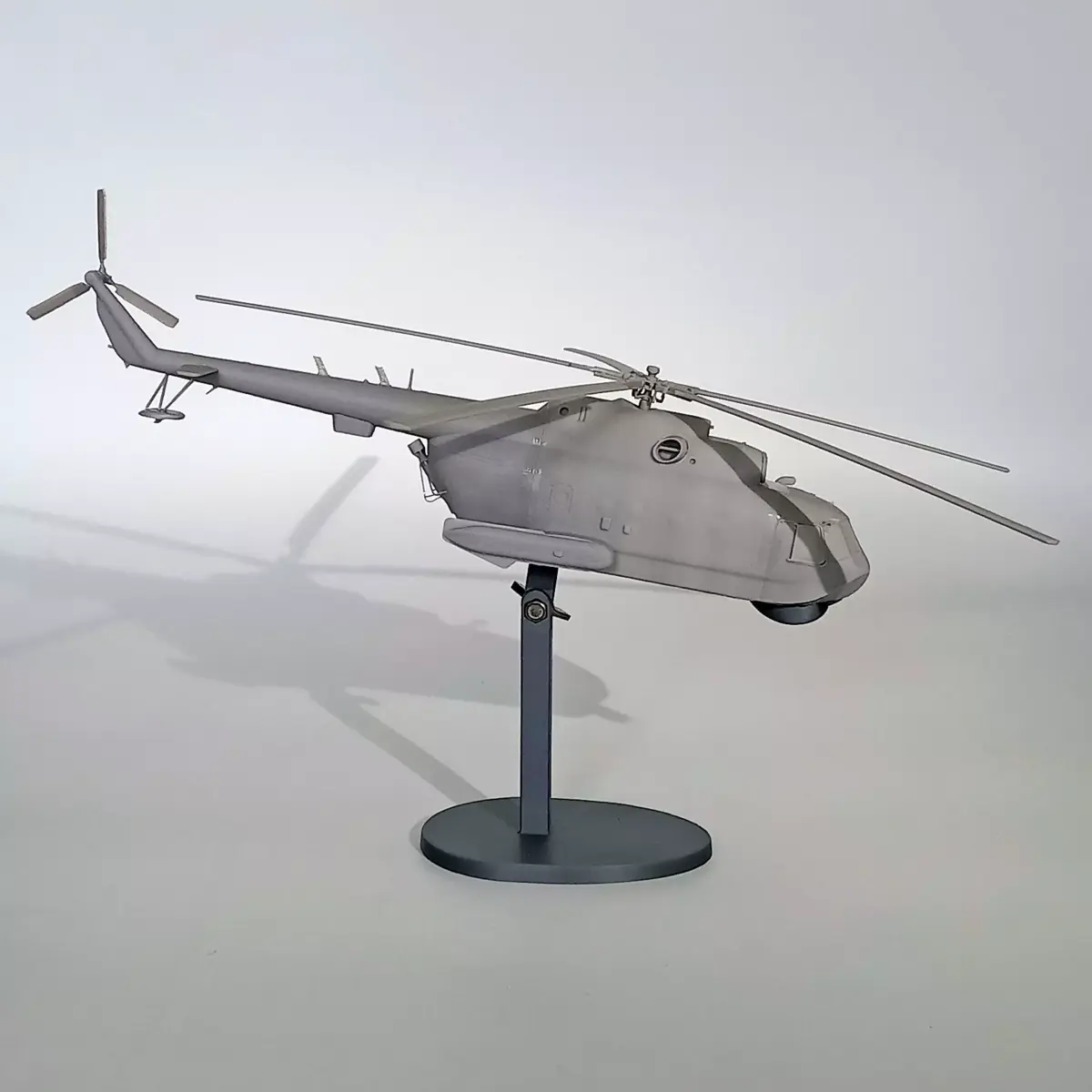

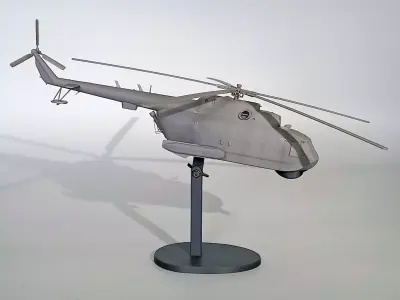

A detailed 3D printable model of Mi-14PL in 1/48 scale. Model with cabin interior, designation of doors, windows, air intakes and many separate parts. The model requires gluing. 3D Printing Guidelines and Assembly Instructions are included.
- Model code: 243310A Model kit Mi-14PL
- Version: with full designation
- Revision: original (2025-08-20)
- Scale: 1/48
- Engines: TV3-117MT
- Landing gear: up/down
- Fuselage length: 385.7 mm
- Full length: 527.5 mm
- Diameter of the main rotor: 443.5 mm
- Parts quantity: 78
- 3D print complexity: 5/5
- Assembly complexity: 5/5
- Decals: -
It is possible to assemble model with open/close door and windows, variable tilt angle of main rotor, rotating wheels, main and anti-torque rotors. The model is not motorized!
Importantly! The model is divided into parts that are oriented for easy printing. Solid model not included in this kit.
If you want to know more about current projects, follow me on Facebook or Instagram.
https://www.facebook.com/AirCADer.Models/
https://www.instagram.com/aircader.models/
If you want to print and sell my models, please contact me first.
3D printing settings
The model is optimized for a 0.4 mm nozzle and 0.15 mm layers. Approximate ⌀1.75 mm filament length for one model (without stand) - 67 meters.
Files format: .stl Providing files in other formats must be discussed separately.
Dimensions of the largest parts (in mm):
- Fuselage Mi14PL Center: 69.7 x 83.6 x 112.5
- Fuselage Mi14PL Tail: 69.7 x 98.2 x 224.5
- Main rotor Blade: 12.9 x 210.9 x 2.9
- Stand B Part 2: 100.0 x 144.0 x 130.0
All parts were tested on a 3D printer Anycubic Chiron. The manual includes information about supports and printing recommendations
