Publication date: 2023-07-30

26404-ASSY LOCATOR 3D model

$2.15

License: Royalty Free

author:

PD-Robotic

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «PD-Robotic». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $2.15 Add to Wishlist
  • Description
  • Formats

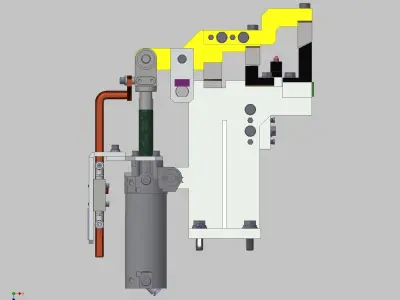

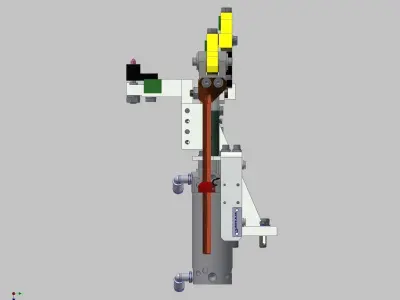

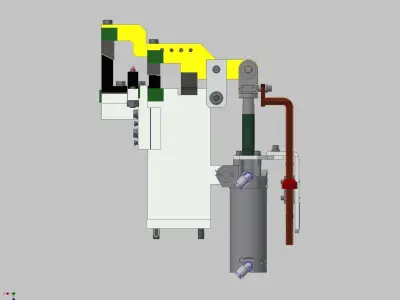

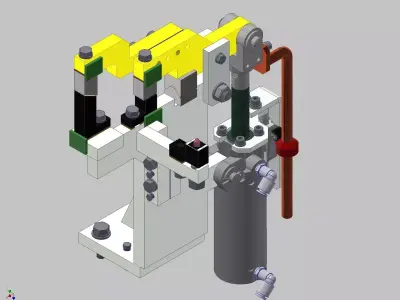

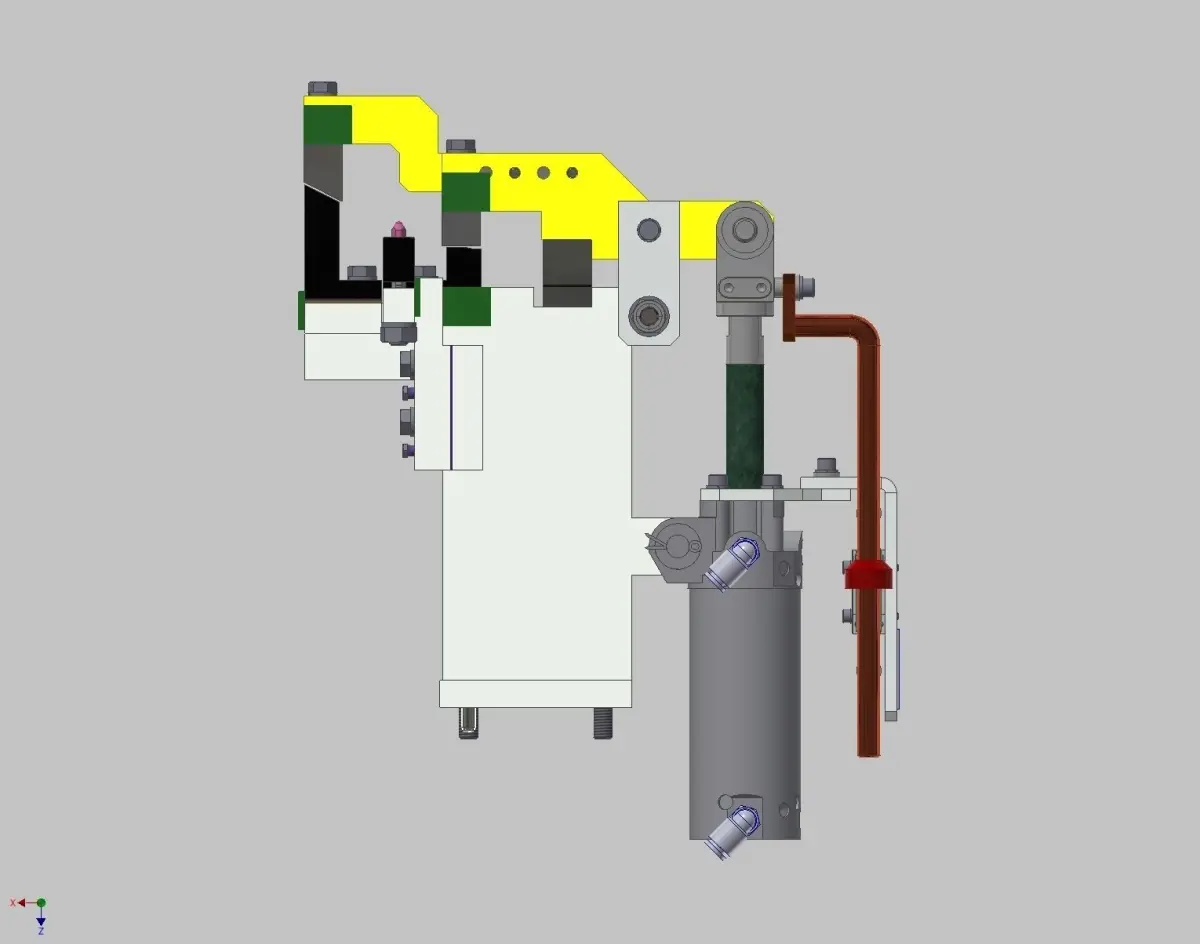

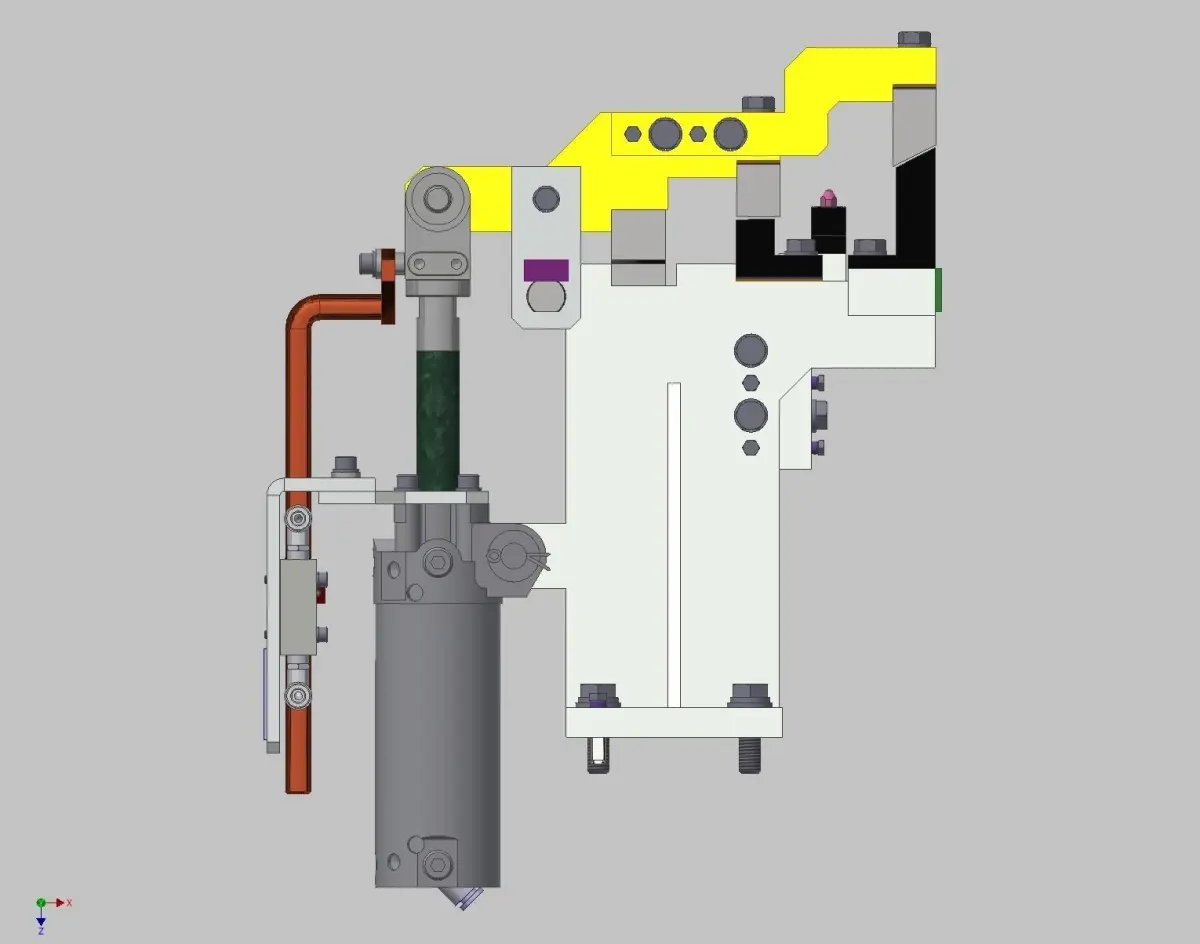

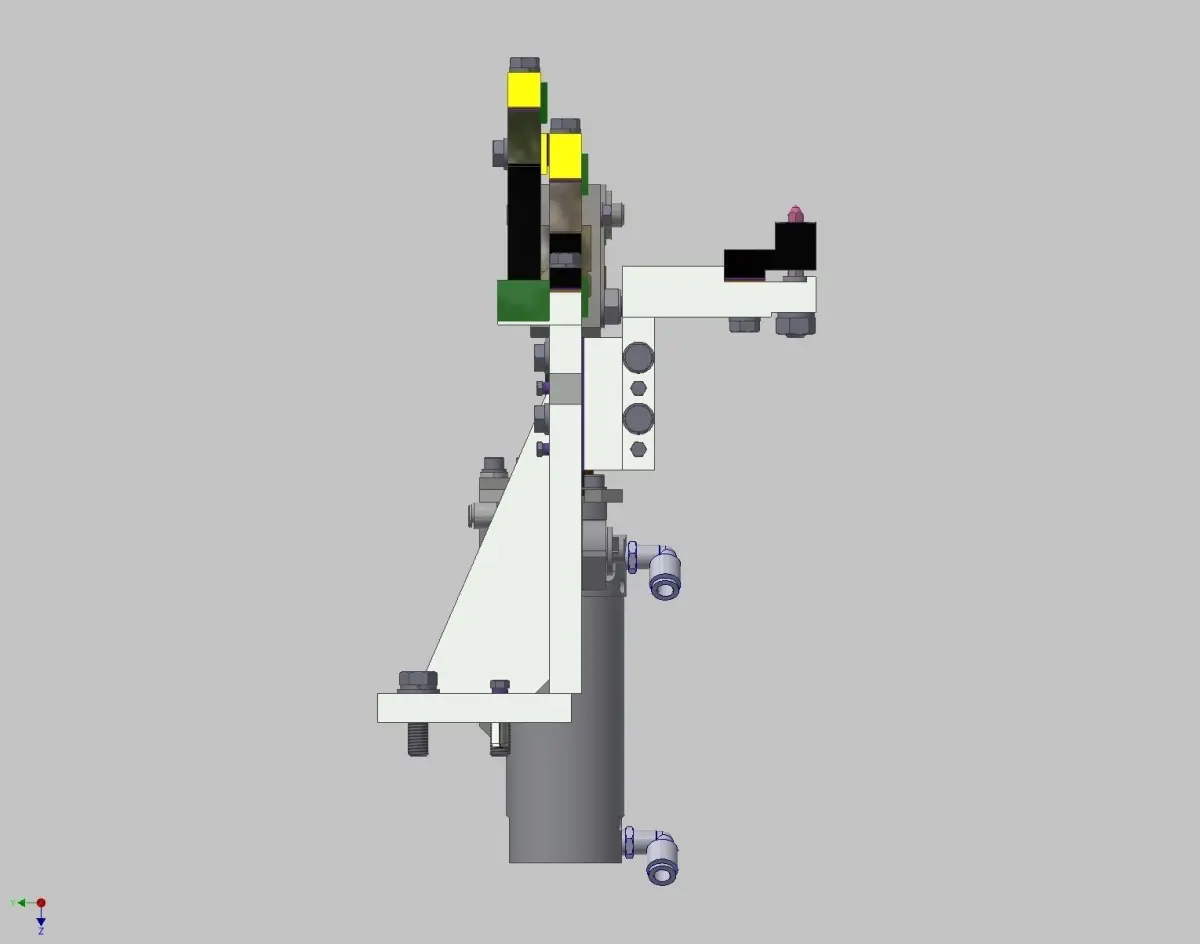

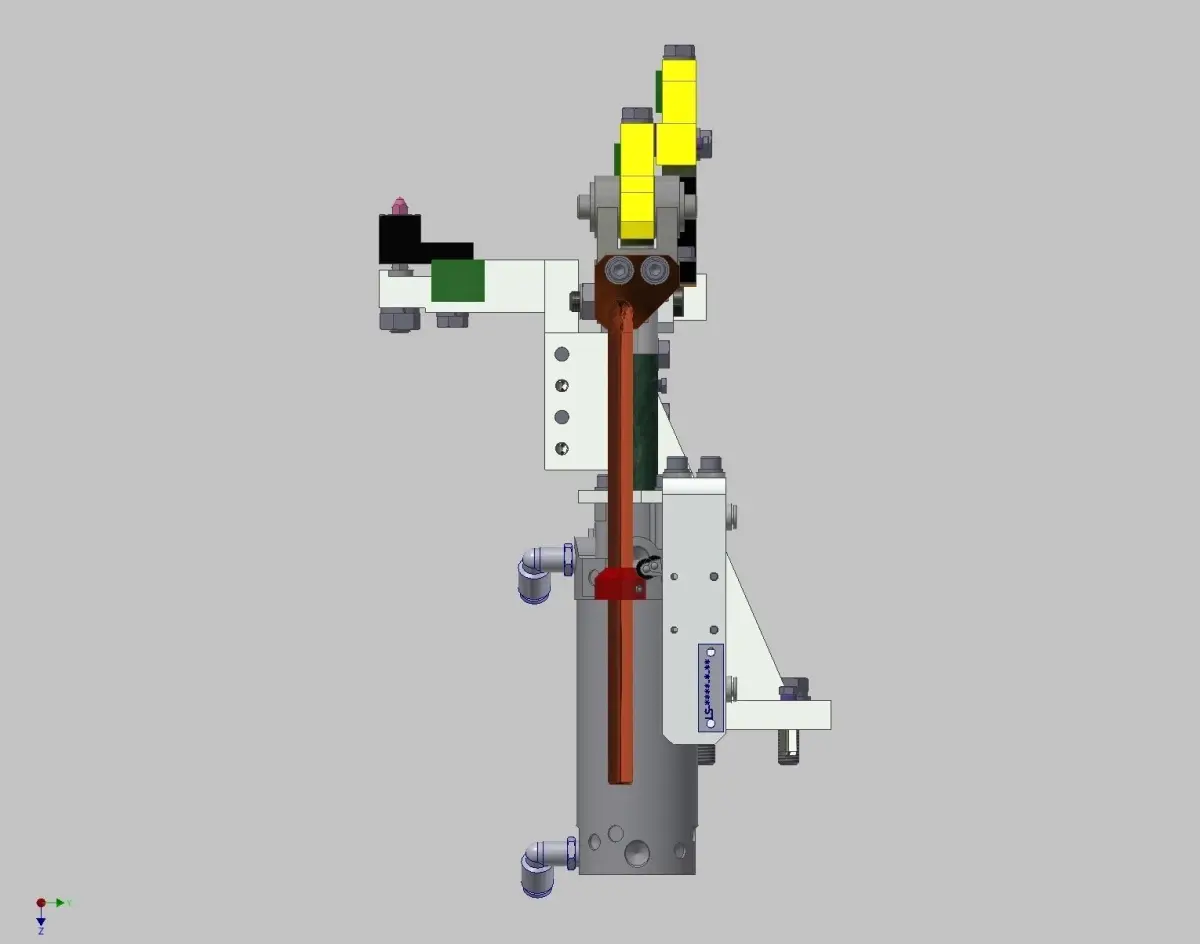

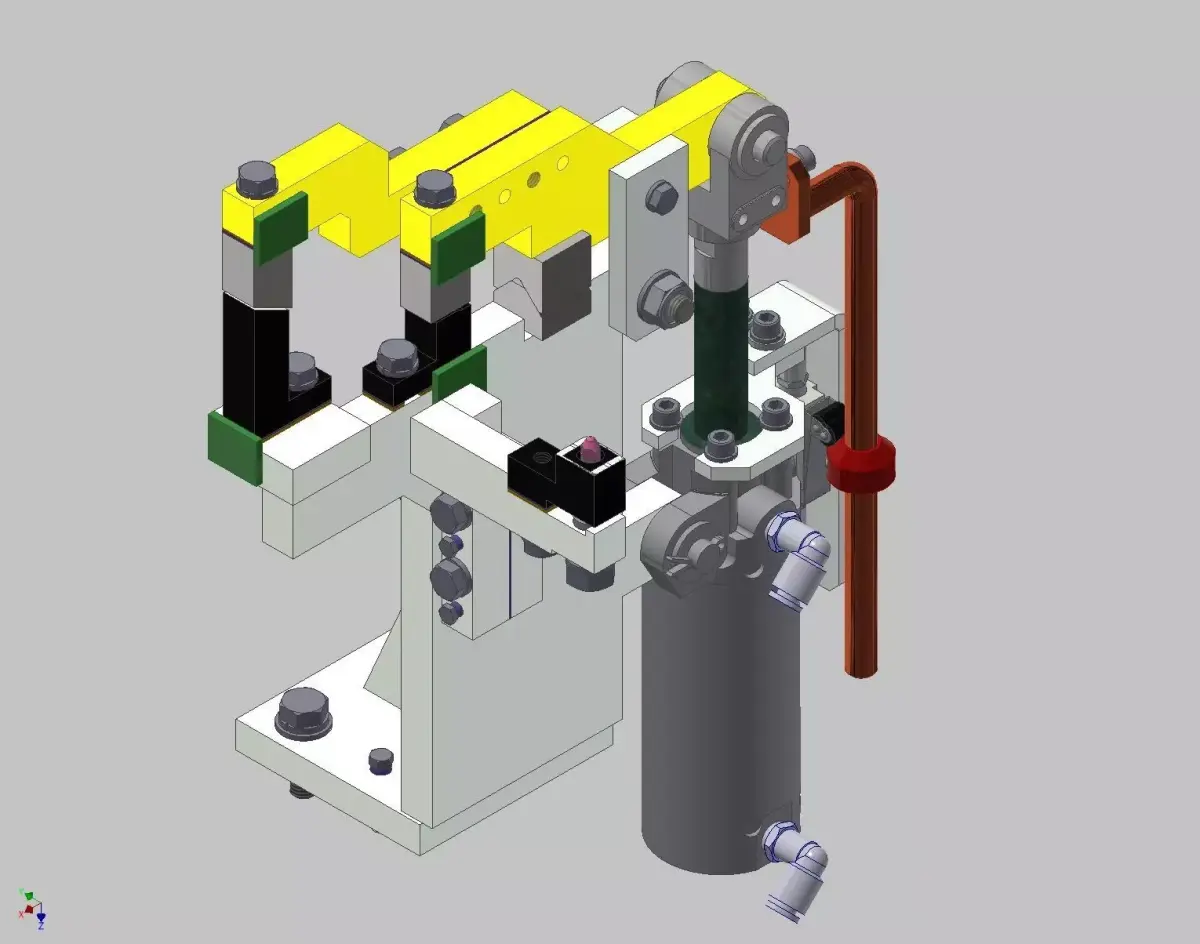

The assembly locator for jig fixture an any shape depend to use support part ,fix part or clamp part.This item for use example type for designer can select for your jig fixture.

Dimension 215 x 313 x 326 mm.

OBJ (OBJ, filesize: 4.5 MB), STP (STEP, filesize: 2.67 MB), IAM (Autodesk Inventor, filesize: 17.2 MB), IDW (Autodesk Inventor, filesize: 17.2 MB), FBM (fbm, filesize: 17.2 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Assembly locator Support part Locator Jig Fixture Clamp Machine Industrial Mechanical Tool Part Industrial part Machinery Automation Automation line Technology Automotive Welding jig
